RAL 7032 Color electrical galvanized metal switch box for cable distribution
- Category: >>>
- Supplier: Wenzhou Feimai Electric Co. Ltd.
Share on (62347243928):
Product Overview
Description

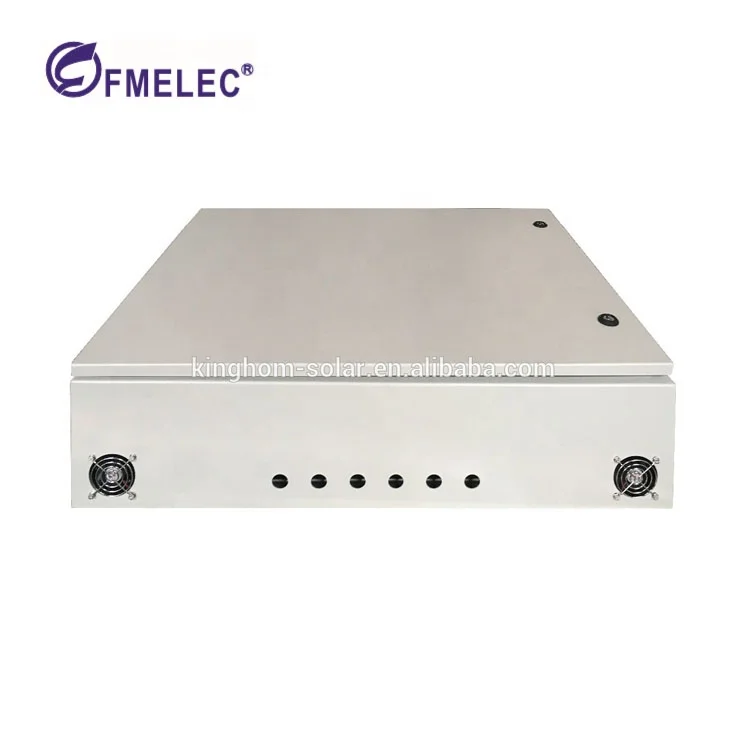

electrical galvanized metal switch box for cable distribution
Product Description

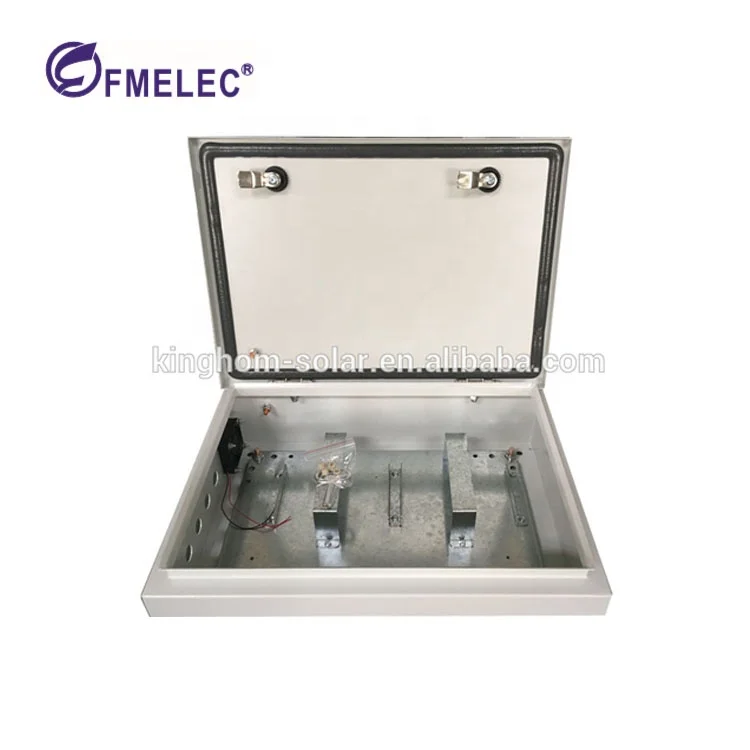

Metal enclosure made from a continiou length of sheet double folded at the front, with back welded to the frame. Both externally and internally protected with polyester epoxy resin Grey paint to RAL-7032 texturized
Paint Finish: Epoxy polyester powder coating textured finish ( outdoors style)
Protection degree: IP65
Material: Sheet steel from 1.2mm till 1.5mm (or requested thickness from client)
Color: RAL 7032
Against mechanical impacts: IK10
Paint Finish: Epoxy polyester powder coating textured finish ( outdoors style)
Protection degree: IP65
Material: Sheet steel from 1.2mm till 1.5mm (or requested thickness from client)
Color: RAL 7032
Against mechanical impacts: IK10
| Metal box Dimensions(Inner door type) | |||
| Model | Height(mm) | Width(mm) | Depth(mm) |
| STB252515 | 250 | 250 | 150 |
| STB302515 | 300 | 250 | 150 |
| STB303015 | 300 | 300 | 150 |
| STB303020 | 300 | 300 | 200 |
| STB403015 | 400 | 300 | 150 |
| STB403020 | 400 | 300 | 200 |
| STB403025 | 400 | 300 | 250 |
| STB404015 | 400 | 400 | 150 |
| STB404020 | 400 | 400 | 200 |
| STB504020 | 500 | 400 | 200 |
| STB504025 | 500 | 400 | 250 |
| STB505025 | 500 | 500 | 250 |
| STB604020 | 600 | 400 | 200 |
| STB604030 | 600 | 400 | 300 |
| STB604040 | 600 | 400 | 400 |
| STB605020 | 600 | 500 | 200 |
| STB605025 | 600 | 500 | 250 |
| STB605030 | 600 | 500 | 300 |
| STB606020 | 600 | 600 | 200 |
| STB606025 | 600 | 600 | 250 |
| STB705020 | 700 | 500 | 200 |
| STB705025 | 700 | 500 | 200 |
| STB705030 | 700 | 500 | 300 |
| STB804030 | 800 | 400 | 300 |
| STB806020 | 800 | 600 | 200 |
| STB806030 | 800 | 600 | 300 |
| STB806040 | 800 | 600 | 400 |
| STB1006030 | 1000 | 600 | 300 |
| STB1008030 | 1000 | 800 | 300 |
| STB1008040 | 1000 | 800 | 400 |
| STB1206030 | 1200 | 600 | 300 |
Packaging & Shipping
Company Information
Wenzhou Feimai Electric Co established in 2003, which is located in the electrical capital of China- ShangMi'ao Industrial Zone, Liushi, Yueqing, Wenzhou China. With high technical capabilities and production testing equipment, our company is a professional large-scale manufacturer of all types of electrical appliance, and we have many years of experience in supplying electrical appliance.
Our company mainly produces photovoltaic control components, including photovoltaic DC isolator switch, photovoltaic distribution enclosure, photovoltaic DC circuit breaker, Waterproof switch socket etc.
With stable quality and excellent performance, our products are mainly exported to Eupore, U.S.A, and other countries, such as Australia. So far, we have attained many kinds of certifications, such as CCC, ISO9001, CE, TUV, SEMKO, and so on.
We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
