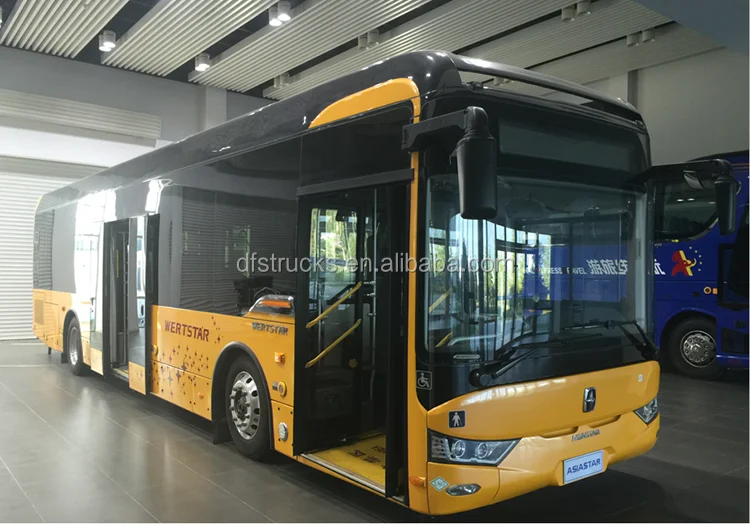

Low floor city bus 10.5m diesel rear engine 26 seats large passenger bus
Product Description
Overall spec.
Overall length(mm)
10490
Engine
Engine model
WP6.245E50
Overall width(mm)
2500
Max. power
180KW/2300RPM
Overall height(mm)
3120,3240
Engine position
Rear
Wheel base (mm)
5000
Engine type
Diesel
Max G.V.W(kg)
16500
Wheel base
4300 mm
Seat capacity
25+1
Displacement
6.75L
Max speed(km/h)
90
Emission Standard
EURO 5
First step height
≤340 mm
Transmission
FAST 5J100T five speed manual transmission
Clutch
Φ430 diaphragm spring clutch
Front Axle
7.5T front axle (low-entrance)-Chinese production
Rear Axle
11T rear driven axle-Chinese production
Suspension
Air spring suspension, front 2/ rear 4 air bellows
Steering
Power steering
Brake
Pneumatic double circuit air brake, front & rear drumbrake, energy storage parkingbrake
Tyre
275/70R22.5
Heater
yes
Seats
ZHONGTONG passenger seat ZTZY8050
Floor
Glued bamboo floor covered
Related Products
Workshop
Packaging & Shipping
Company Information
FAQ
1. How to purchase the bus from our company?
You can choose the model from our website. Also, you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After you confirm the model and price, we can sign the contract.
2. How to ensure product quality?
Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.
3. How to visit our factory?
After you arrive in China, you can fly to Shiyan Wudangshan Airport located in Shiyan City, Hubei Province. Our driver will meet you at the airport and take you to our city by car.
Q4. Can you offer customized service?
A: Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
Q5. What is the warranty term?
A: A: We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.
