ASI/IPinput digital DVB T2 Modulator for wireless transmitting system
- Category: >>>
- Supplier: Chengdu Ustarlink Technology Co. Ltd.
Share on (62347270265):
Product Overview
Description
Product
Outline

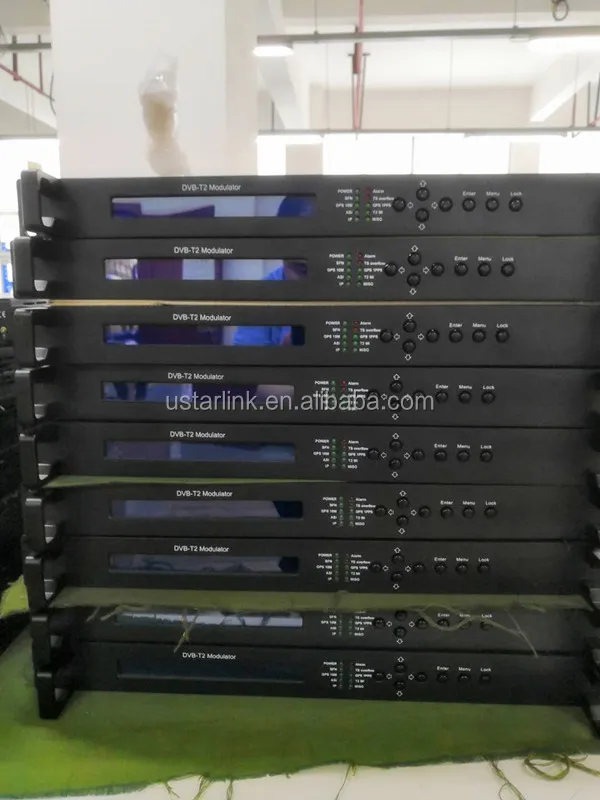

DVB-T2 modulator is our new product developed complying with the DVB-T2 standard. With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile and portable devices. Compared with DVB-T, the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold. DVB-T2 modulator also supports single-PLP and can receive transmission data and synchronous information from DVB-T2 Gateway through its ASI and IP ports.
Moreover, this device can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T2 STB.
Features
lFully complying with EN302 755 standard
l4 ASI inputs (3 for backup), 10MHz input/loop out, 1PPS input/loop out
lSupports single PLP
lSupport MISO and SISO
lSupport QPSK/16QAM/64QAM/256QAM (normal or rotated)
lSupport TS input through ASI port
lHigh performance output: MER>43dB, shoulder level>56dB
lOutput signal bandwidth: 5M, 6M, 7M, 8MHz
lSupport MFN net mode
lRF frequency range: 30MHz~999MHz
lRF output level: -25~+3 dBm, 0.1db stepping
lSupports non-linear and linear digital pre-distortion (DPD)
lConstant temperature crystal oscillator, as high as 0.1ppm stability
lSupport online upgrade
lKeyboard operation and LCD display, Web-based Network management system
Specifications
Input | TS input over ASI | ||
10MHz reference clock input and loop out, BNC interface | |||
1PPS input and loop out, BNC interface | |||
Modulation | Standard | EN302 755 | |
Mode | single-PLP | ||
PLP Constellation | QPSK, 16QAM, 64QAM, 256QAM (Normal or Rotated) | ||
L1 Post Constellations | BPSK, QPSK, 16QAM, 64QAM | ||
FEC Length | Short(16K), Normal (64K) | ||
FEC Rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
Pilot Pattern | PP1 - PP8 | ||
Guard Interval | 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4 | ||
FFT Mode | 1k, 2k, 4k, 8k, 16k, 32k, 8k-ext, 16k-ext, 32k-ext | ||
Bandwidth | 5MHz, 6MHz, 7MHz, 8MHz | ||
Net Mode | MFN | ||
RF Out | Connector | N Type, 50ΩImpedance | |
RF range | 30~999Mhz, 1hz stepping | ||
Output level ATT | -25~+3 dBm, 0.1db stepping | ||
MER | > 43db | ||
Shoulder Level | >56dB | ||
RF In | Input Level | -20 to +10 dBm (>-10 dBm is suggested.) | |
System | LCD display, keyboard and Network management | ||
Supporting software upgrading through network | |||
General | Demission (W*L*H) | 482mm×410mm×44mm | |
Weight | 4.8kg | ||
Temperature | 0~45℃(operation), -20~80℃(storage) | ||
Power supply | AC 220V±10%,50/60Hz | ||
Power Consumption | 34W | ||
Principle Chart
About us
Product categories
Working principle
Packing and shipping
FAQ
Q1: How could I test IPTV system?
We will provide on-line test by our cloud server or help install local server for customer test.
Q2: Could I add some function or design UI interfaces ?
Yes, We have powerful R&D strength to tailor customer's requirements.
Q3: How to make an order?
You can contact our sales by email, whatsapp, skype for quotation.
Q4: How to make payment?
You can make payment by bank TT, western union, Alipay, Paypal etc...
Q5: How about technical support?
We will provide on-line support by teamviewer or on-site support for our customer.
