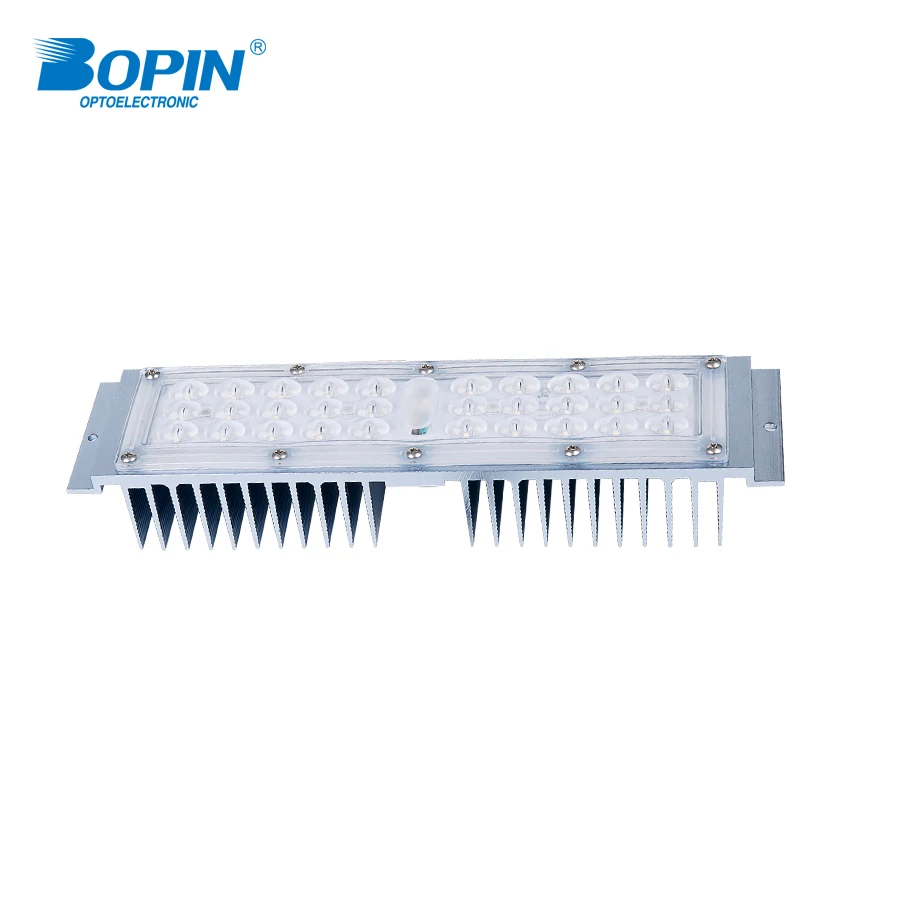

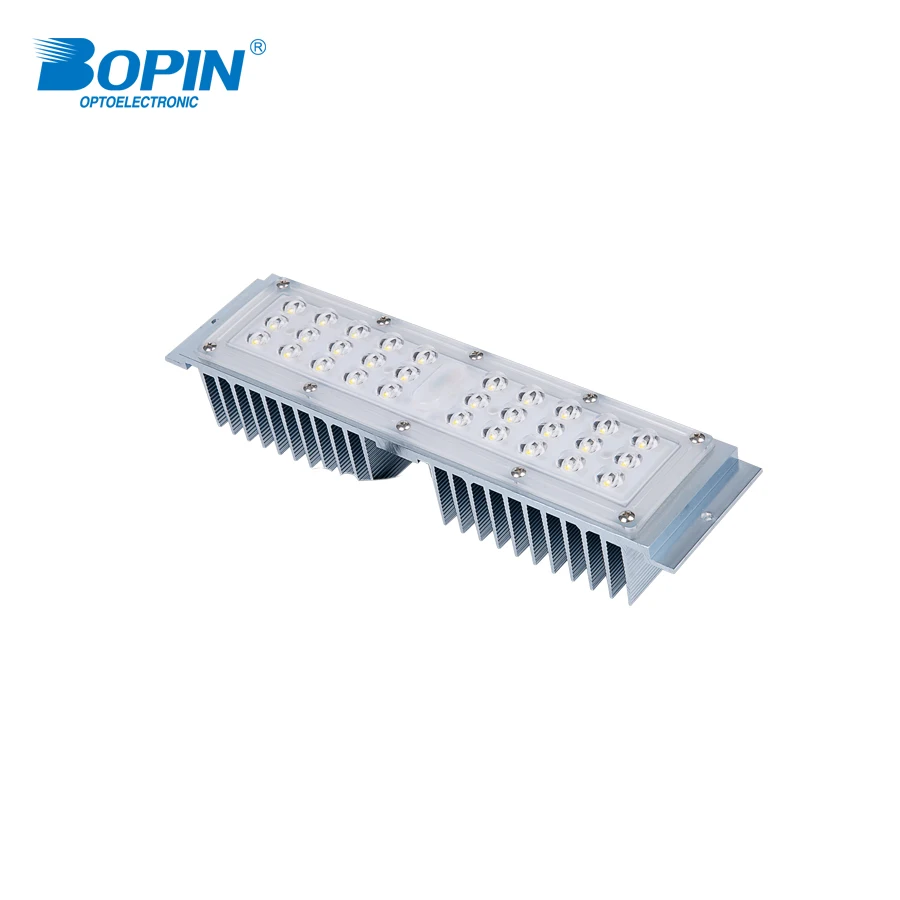

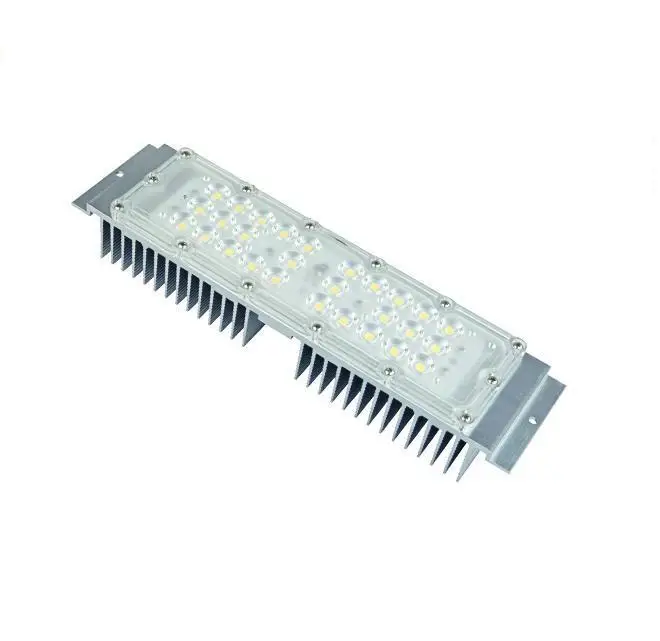

3030 chips constant current LED street light module
- Category: >>>
- Supplier: Zhejiang Boshang Optoelectronic Co. Ltd.
Share on (62347375575):
Product Overview
Description
Adopt high transparency and anti-UV PC lens,multiple lighting disturbutions are available

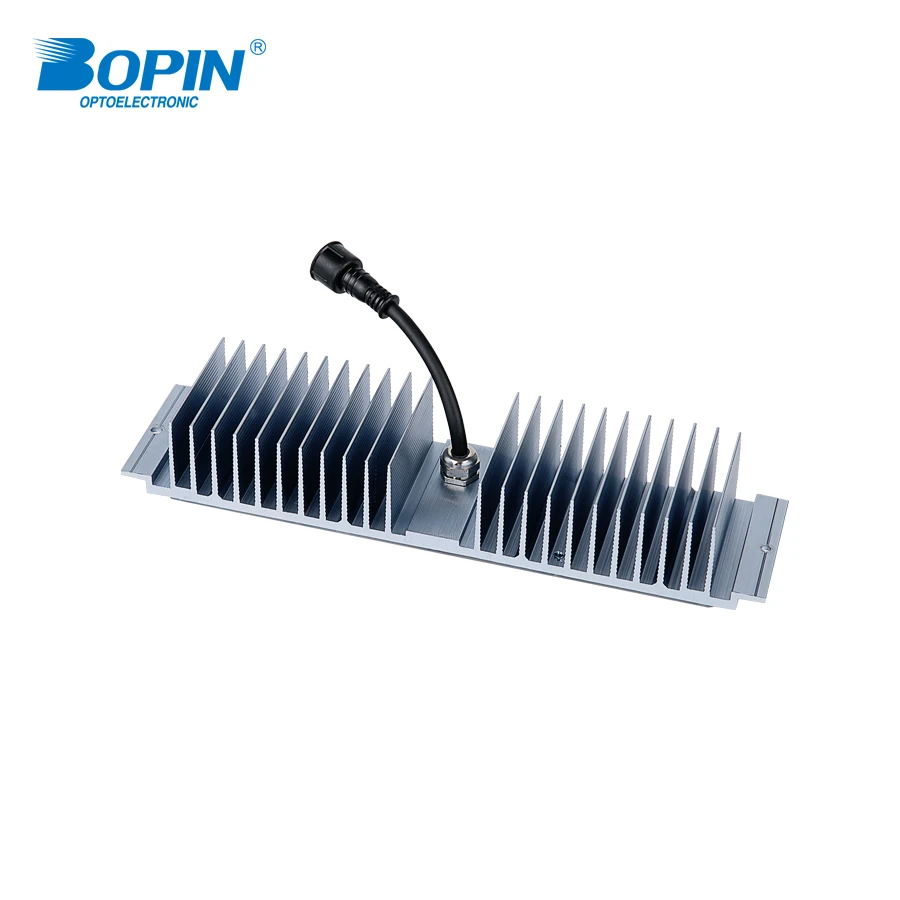

Waved design of the heat sink, resulting excellent thermal performance.LEDchip TJ.:125Deg
Led modules adopt industrial grade silicone seal,meet IP68 rating.
Surge protecor>4KV. The led modules can be used outside safely.
AC or DC are ok,You can choose according customer's needs.
4.Different beam angle,Wide use
The number of led modules is adjustable according to the size of the housing of light so as to satisfy
the need for lighting in different areas.Our led module are widely used in LED high bay light, wall pack
fixtures, flood light , street light , parking lot light , canopy light ,advertising board etc.
5.Modular design
Saving costs and no need to replace the housing.Just replacing the illuminant or its fitting
can meet the requirements.
6.Adjustable holder for AC type led module
We also can add adjustable holder.So you can install it more convenient.You can click the right photo for more information .

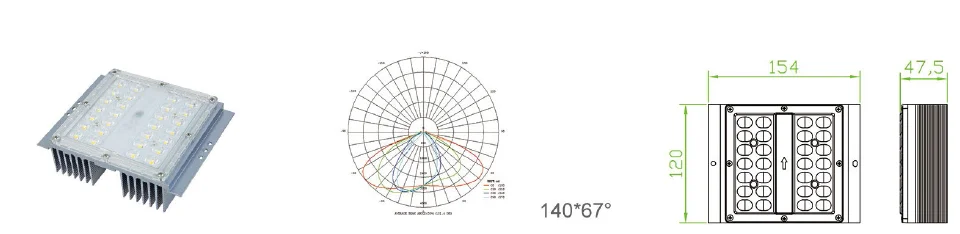

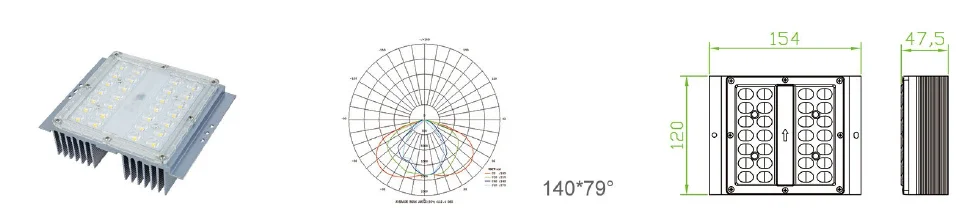

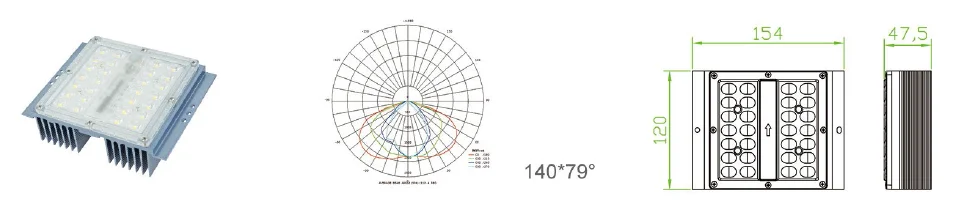

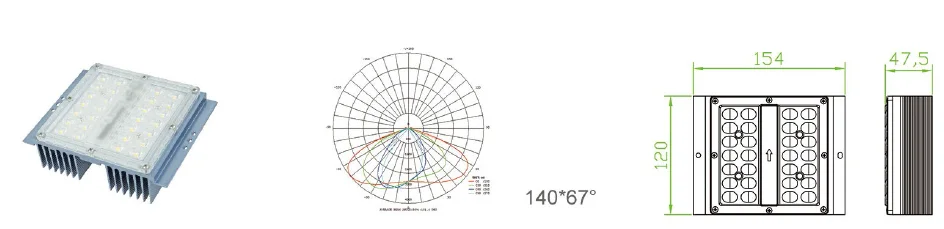

1.Parameter AC Module
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSMX56-30 | 30W-50W | AC180-264V | Max0.284A@AC180V | >110lm/w | 154*120*47.5mm |
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSMX28-50 | 30W-60W | AC180-264V | Max0.340A@AC180V | >145lm/w | 154*120*47.5mm |
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSMX64-30 | 30W-60W | AC180-264V | Max0.340A@AC180V | >110lm/w | 290*70*48mm |
2.Parameter DC Module
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSM28-50 | 30W-60W | DC42-54V | 0.7-1.3A | >170lm/w | 154*120*47.5mm |
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSM56-30 | 30W-50W | DC40-44V | 0.7-1.2A | >130lm/w | 154*120*47.5mm |
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSM60-30 | 20W-60W | DC28-32V/DC57-63V | 1.3-1.8A/0.65-0.9A | >130lm/w | 290*68*47mm |
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSM30-50 | 30W-60W | DC42-54V/DC63-81V | 0.67-1.3A/0.45-0.87A | >170lm/w | 290*68*47mm |
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSYM64-30 | 30W-60W | DC45-52V | 0.64-1.14A | >130lm/w | 290*70*45mm |
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSYM28-50 | 30W-60W | DC42-54V/DC21-27V | 0.7-1.3A/1.4-2.6A | >150lm/w | 290*70*46mm |
Model | Wattage | Input voltage | Driver current | Light efficacy | Size |
BSM09-35 | 18W-26W | DC25-27V | 0.7-1A | >130lm/w | 100*100*42mm |
Zhejiang Boshang Optoelectronic Co.,Ltd (Founded in 2008). is a leading designer and manufacturer in modular high power LED outdoor lighting industry & Commercial indoor lighting field in China.We offers a wide range of LED solutions to make the world full of energy-saving.
Based on top-of-the-line patented IP68 LED modules, we have developed a series of modular LED lighting products including street lights, solar led street light ,high bay lights, tunnel lights, flood/spot lights and garden lights,led modules which are CE, RoHS, TUV, SAA, CCC, CQC, CB, LM-79,LM-82 and ...... approved.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 7 working days, mass production time needs 25 working days.
