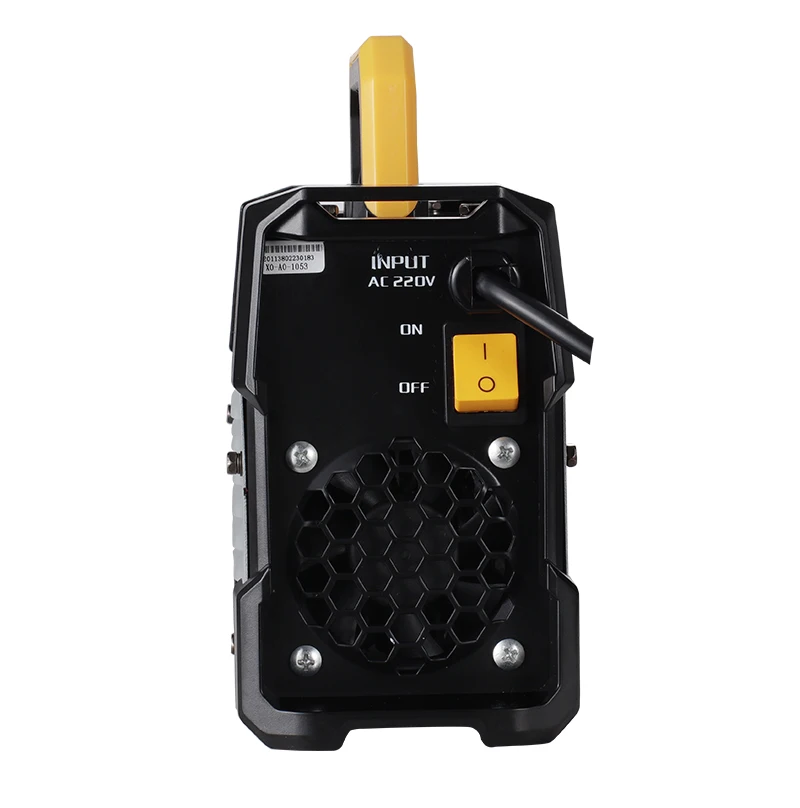

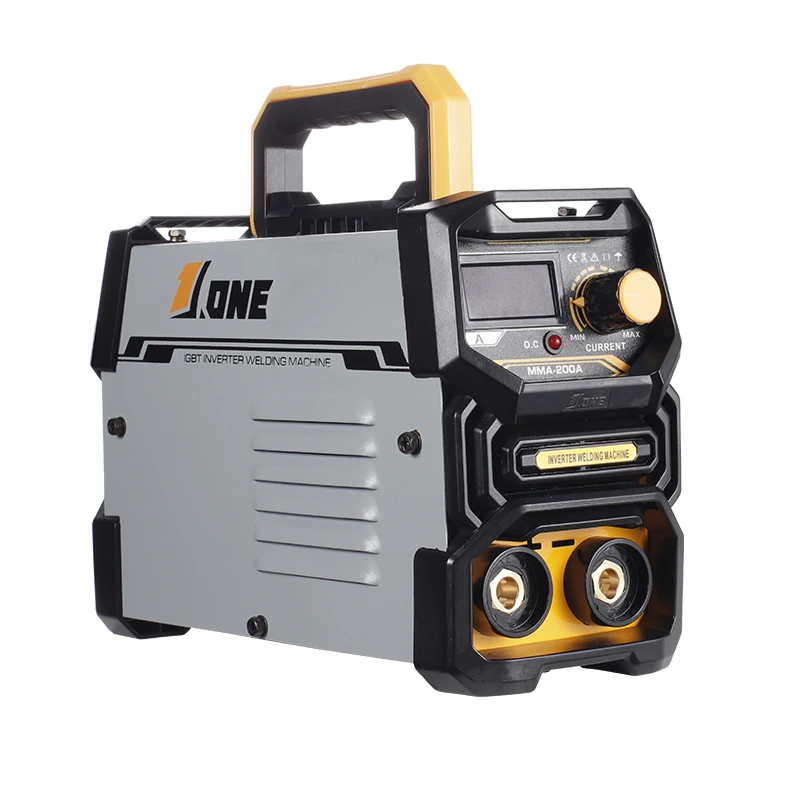

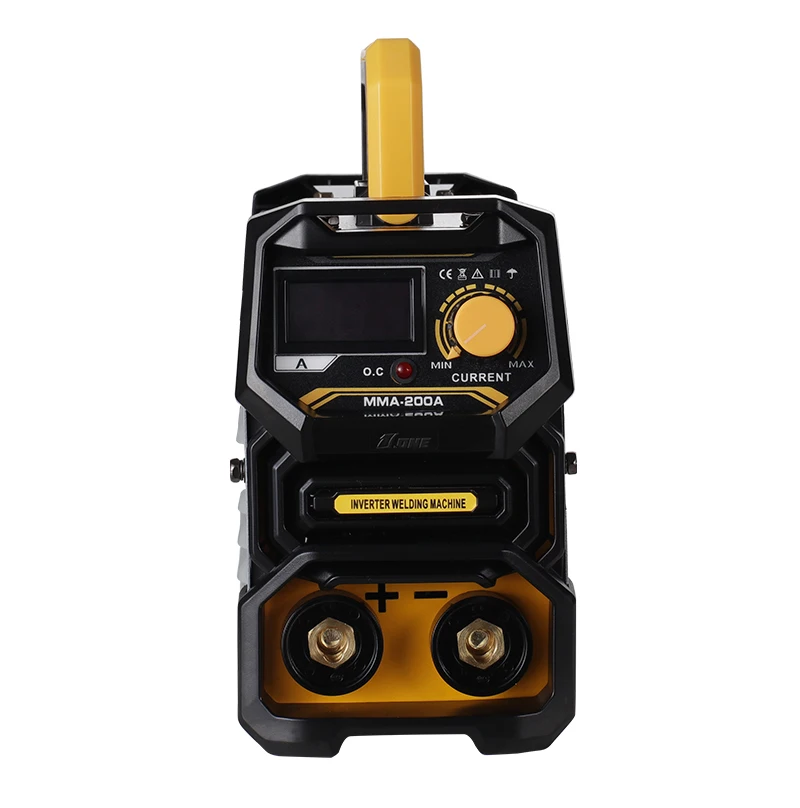

Портативный сварочный аппарат JONE MMA250, мини сварочные аппараты IGBT
- Category: Arc Welders >>>
- Supplier: Dongguan Jone Welding Technology Co. Ltd.
Share on (62347478849):
Product Overview
Description
| Model | MMA-200MN |
| Type | IGBT 1 PCB |
| AC Input Voltage(V) | 220V(110V Support) |
| Rated Input Power Capacity(KVA) | 5 |
| Input Frequency(Hz) | 50/60 |
| Non-load Voltage(V) | 60 |
| Output current range(A) | 20-200 |
| Rated Duty Cycle(%) | 60% |
| Efficiency(%) | 85% |
| Class of Insulation | F |
| Protection class of case | IP21 |
| Electrode diameter(mm) | 1.6-3.2 |
| Quick joint Size | 10-25mm |
| Input power cable(m) | 1.8 |
| N.W./G.W.(kg) | 1.9/3.6 |
| Machine Size(LxWxH mm) | 250*105*170mm |
| Package Dimension(LxWxH mm)/1pcs | 350*142*262mm BMC box |
| Package Dimension(LxWxH mm)/4pcs | 520*305*530 8pcs in 1 kraft paper box |
| Accessories | 1.8m 16mm 200A holder 1.2m 16mm 300A clamp belt,manual |
