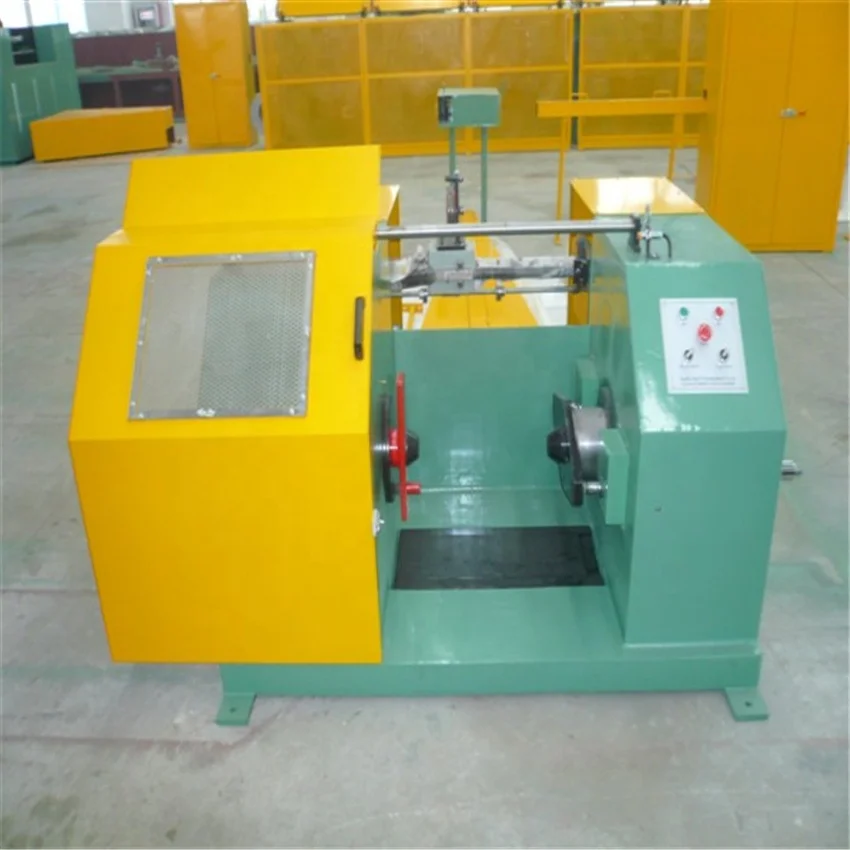

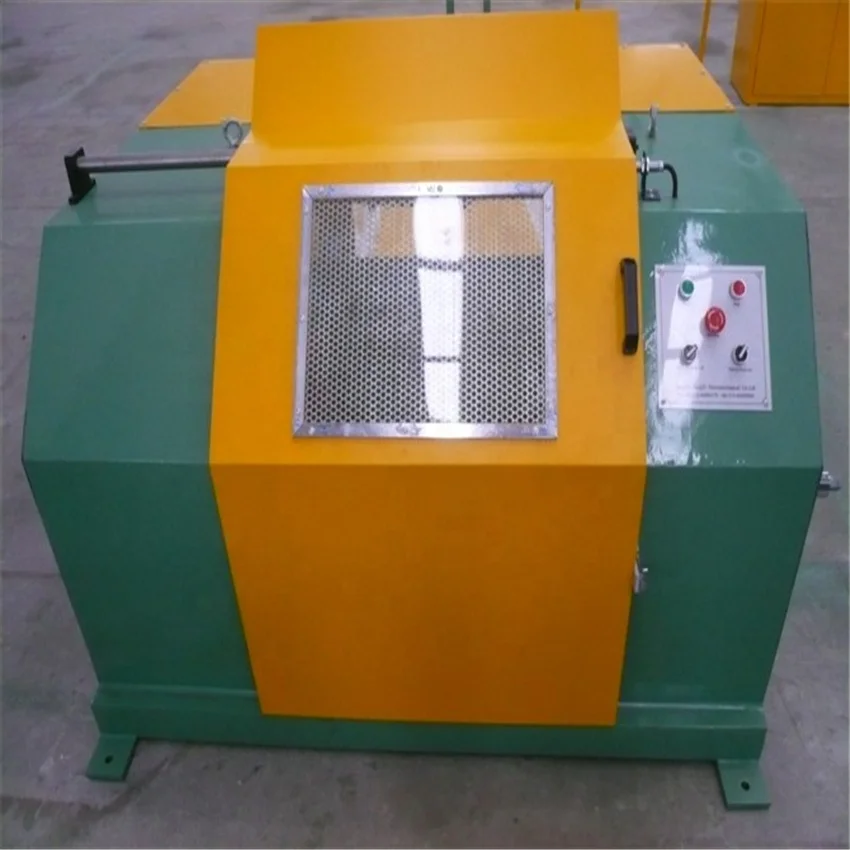

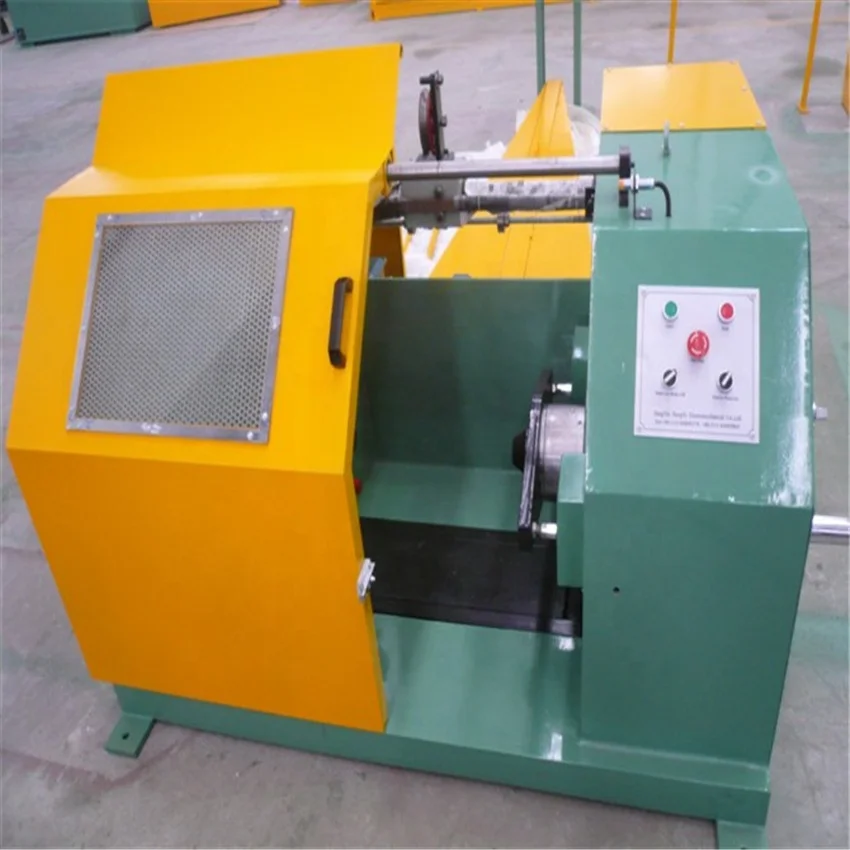

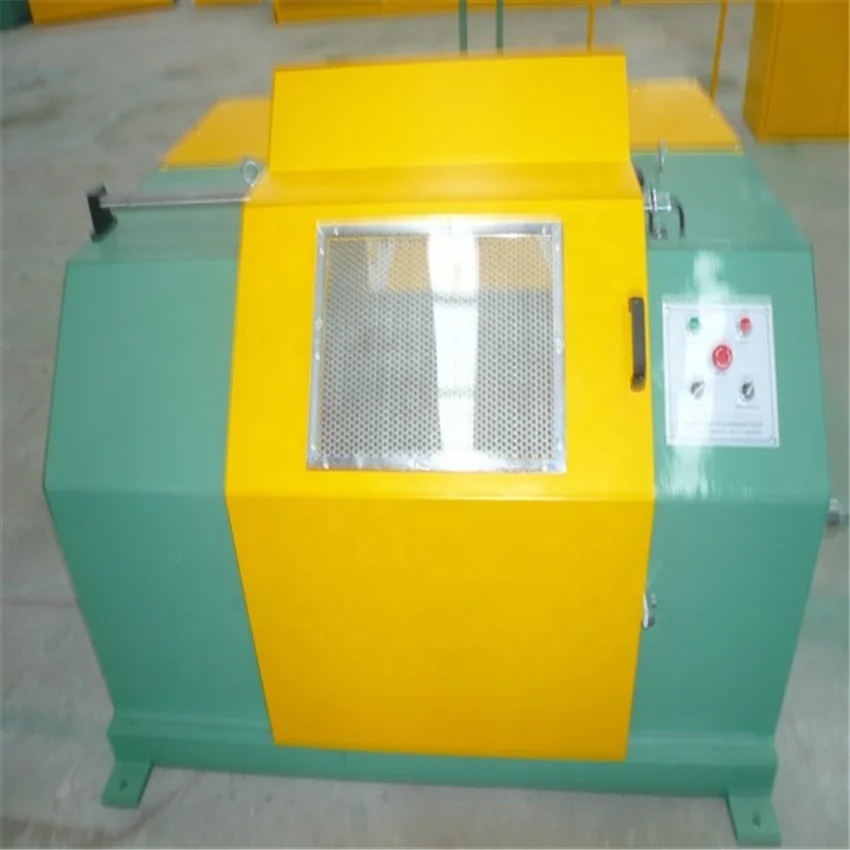

stainless steel wire drawing process Spooler Take up Machine
Model
300
Power（kw）
3
Wire Diameter（mm）
0.6-1.5
Max Speed（m/s）
12
Brake
Pneumatic or Manual
Laying Form
Traverse
Dimensions（mm）
1400*1000*570
Machine Weight（kg）
360
Detailed Images
Machine Parts
Name: Capstan/drum
Brand:SATLE
Original:China
Steel ZG45~55, hardness alloy tungsten carbide is spraying-painted on working surface, with HRC60, lifetime>=26000hours. The height of the capstan is 280mm. The height of spraying tungsten carbide is 80mm and the thickness is 2mm. The temperature of the capstan< 80℃. Roughness <0.8μmm. There are operation buttons in front of each capstan used to adjust the tension. Cooling type: narrow slit water cooling with water proof and anticorrosive treatment. Water volume ：6m3/h ,Water pressure ≥0.25MPa, Air volume：1.5m3/h ,Air pressure ≥0.6MPa.
Main Features
Name:Die box Brand: SATLE Original: China Welding part is adopted for die box, the spraying-painted tungsten carbide is adopted for the surface of guide wheel and guide roller. The die box is divided into lub. powder cavity and water cooling cavity (water flowing automatically for cooling)
Machine Parts
Name:Control system
Brand:Siemens Original: Germany PLC:Siemens/INVT
Inverter:INVT/Sinee
Low voltage appliance:Chint
Main Features
Name:Motor Brand: Hebei/Siemens Original: Germany 22kw,Inverted motor.There is a brake to stop the motor and avoid turning in the opposite direction.Brake material: Nodular cast iron.
Packaging & Delivery
Packing way:plastic film or as customers' requirement
Shipping time:45 days after your deposit
Company Profile
Shijiazhuang Satle Machinery Manufacture Co., Ltd established in the year of 2001, is located in Shijiazhuang City, Hebei Province, China. The company, possessing a professional technical and production team, is mainly specialized in developing and manufacturing the whole set of welding wire production line and whole set metal wire drawing machine, including straight line wire drawing machine, water tank wire drawing machine, pulley wire drawing machine, spooler take up machine, payoff machine, layer winding machine and so on. Most the machines are automatic, high speed and effective. All the products have gained the customers’ recognition and approval in the world. The company is developing and growing, and furnishing all the customers the technical supports and after-sales services in the past 16 years. We think that meeting customer needs is the most important thing we need.
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacture&trading company.
Q: Can your machine be customized?
A: Yes, give me your parameters.
Q: What is your delivery date?
A: 10-40days.
Q: What is your terms of payment?
A: TT, 30% deposit ,70% before shipment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
Q: What is your available Shipment? ?
A: FOB Tianjin.
