1.SX series CO2 laser tube is the multi-core in a single tube with our unique technology. 2.Beam:It's adopted adjustable optical resonant cavity to ensure the beam mode is up to TEM00. 3.Power:The power is higher from 200-600W compared to common laser tube with the same length. 4.Lifespan:The working life is up to 10000 hours because of the catalyst coated discharge tube with processed electode. 5.Reliability:The discharge raw glass tube is made from Germany.The perfect seperation technique can effective block the air and prevent the internal gas from spreading.
Technical Parameters
Model
Diameter(mm)
Length(mm)
Rated Power(w)
Max. Power(w)
Catalyst
Warranty(M)
SX220
80
1500
220
240
Y
8
SX260
80
1650
260
280
Y
8
SX280
100
1700
280
300
Y
10
SX300
120
1800
300
320
Y
12
TX400
120
1800
400
420
Y
12
FX500
130
1800
500
540
Y
12
Product Application
General type laser tube and widely used on CO2 laser engraving or cutting machine and other laser machinery to cut Acric,garment,leather,cloth toys,computer embroidery cutting,mould,crafts,bamboo and wood,advertising and building decoration.packing and priting ,paper products etc.

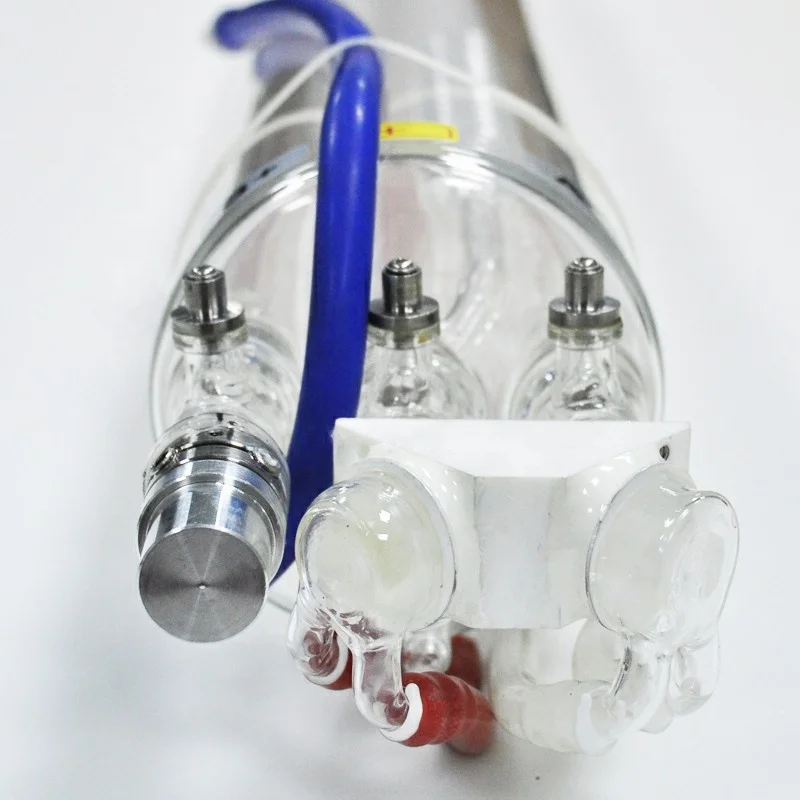

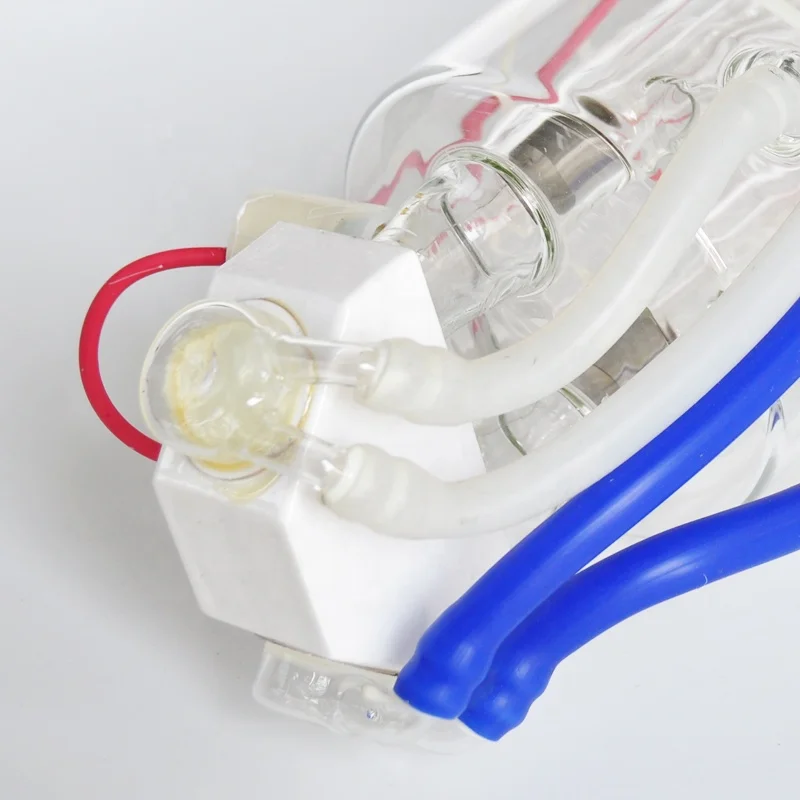

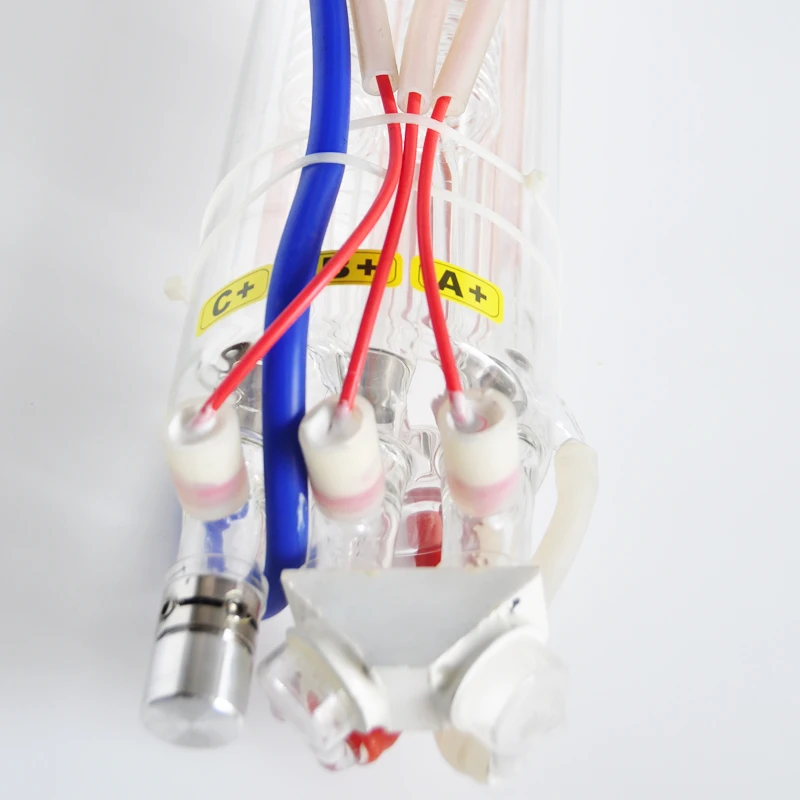

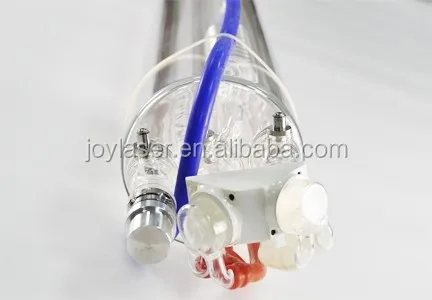

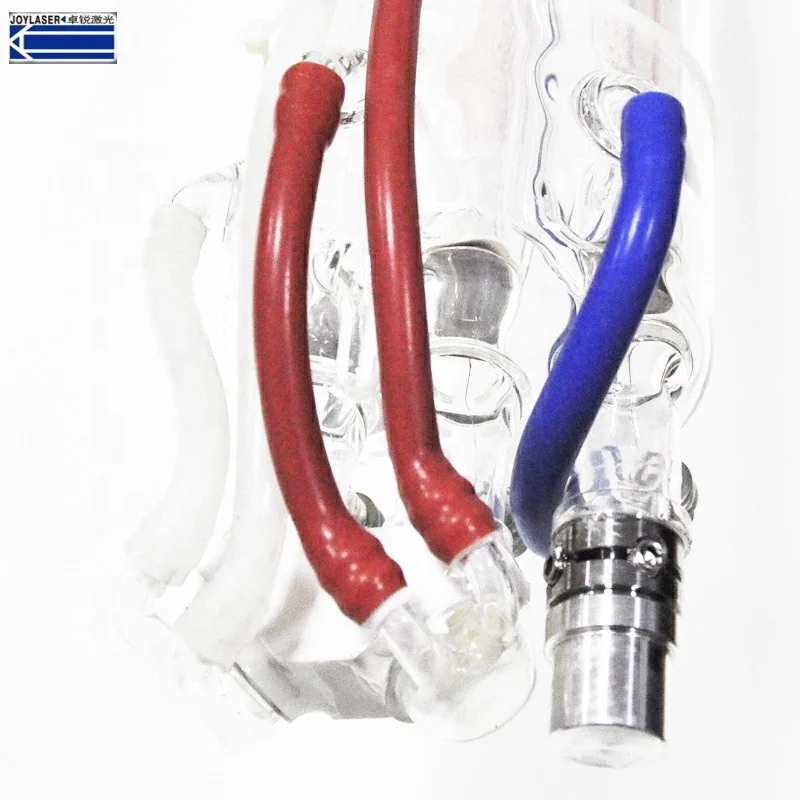

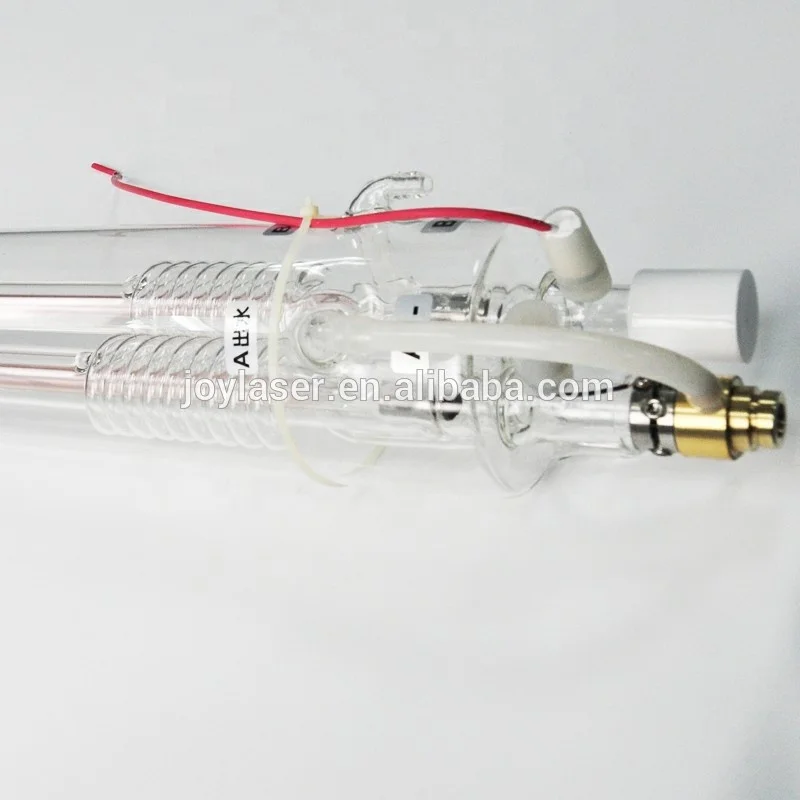

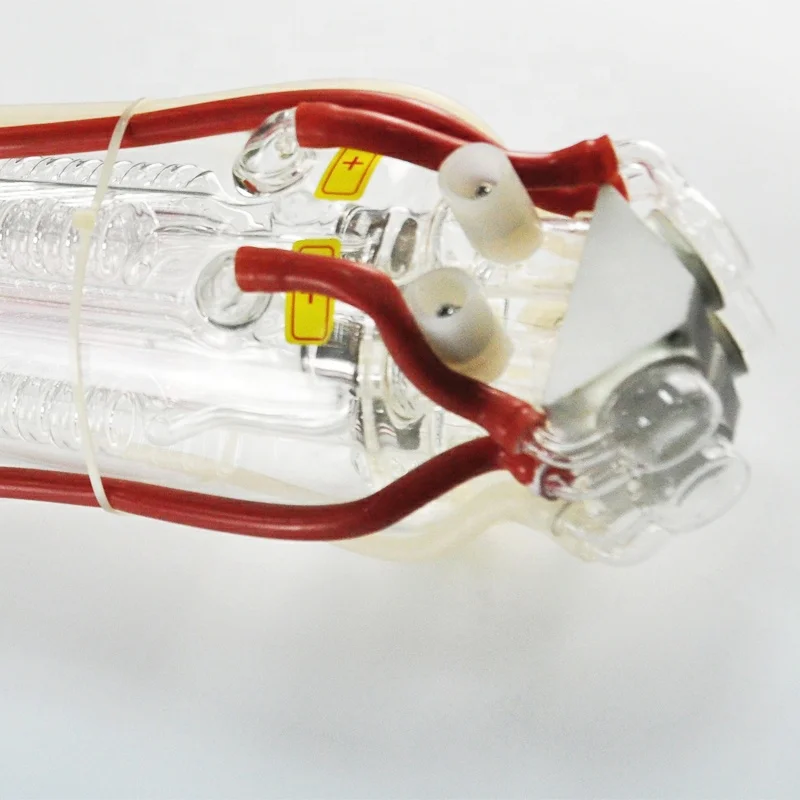

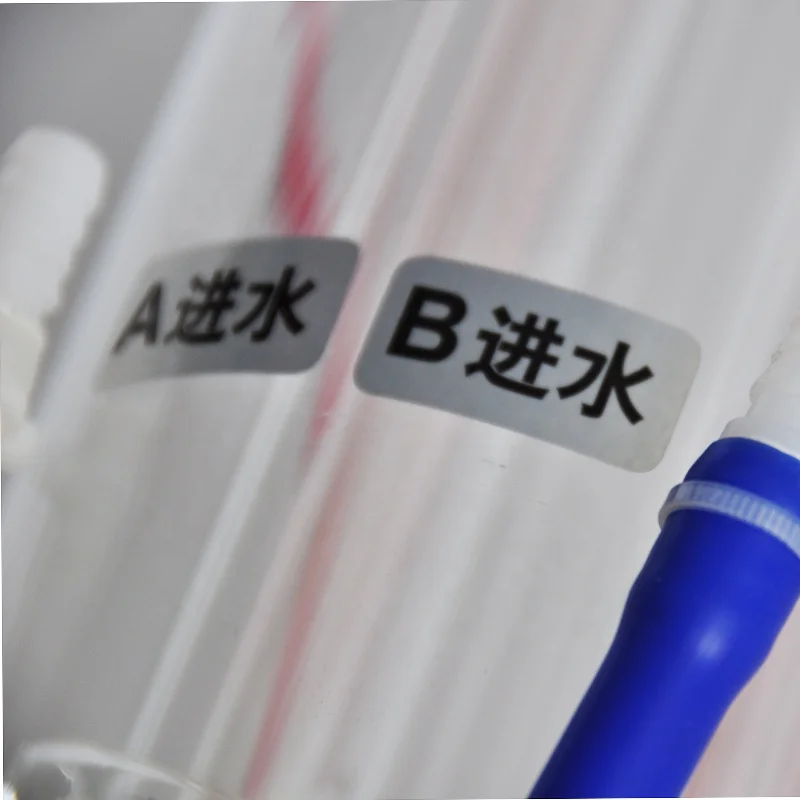

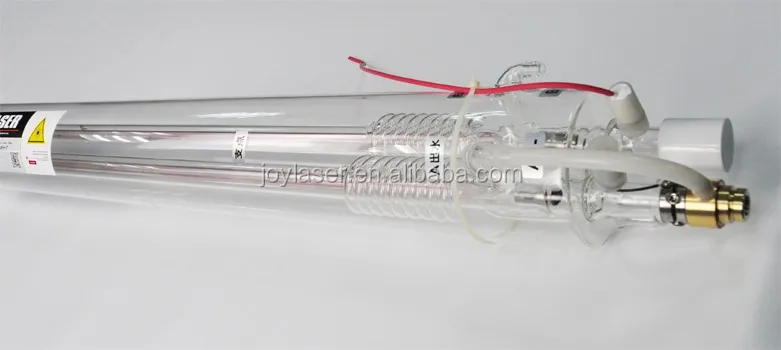

Detailed Images
Proprietary Technology
It has good spot and stable model due to the integrated structure.
Special Design
There is an adjustment device on the output with compact structure to maitain stable performance during working.
Strong Power
It can cut a variety of non-metal/metal materials with high power and quick cutting speed.
Longer Life-span
It has more than 10000 hours life-span and durable.
Packing & Delivery
1.Standard export package(carton with foam,wooden box).
2.Shipped within 3 days once receipt payment(based on the actual quantity).
3.Careful transportation & fast delivery all over the world.
4.Professional forwarder.
