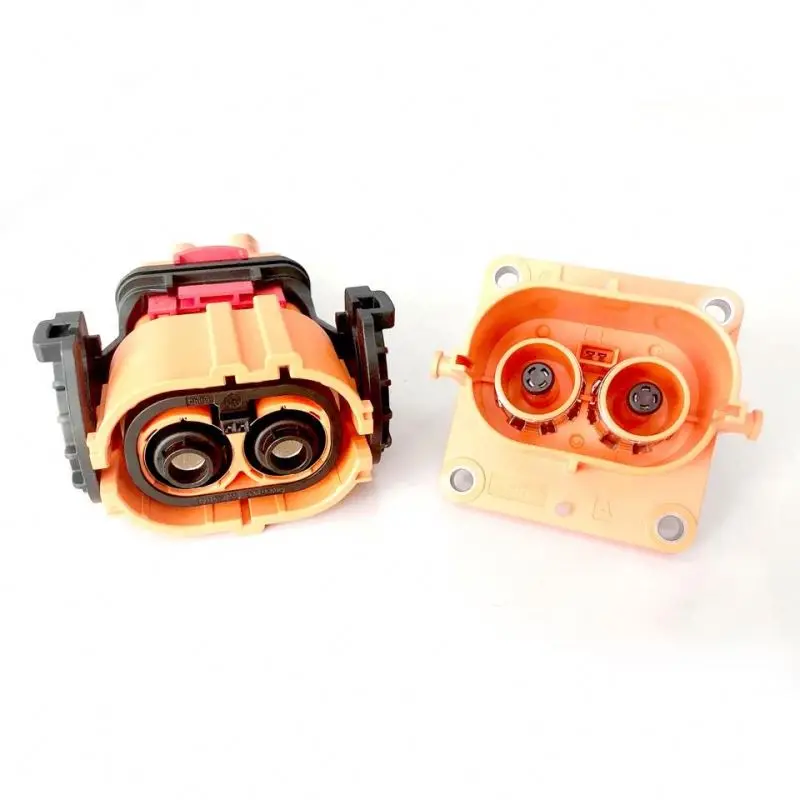

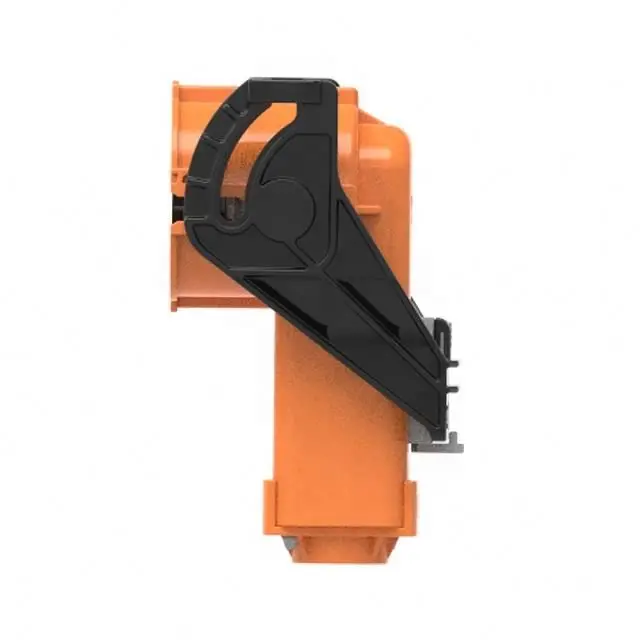

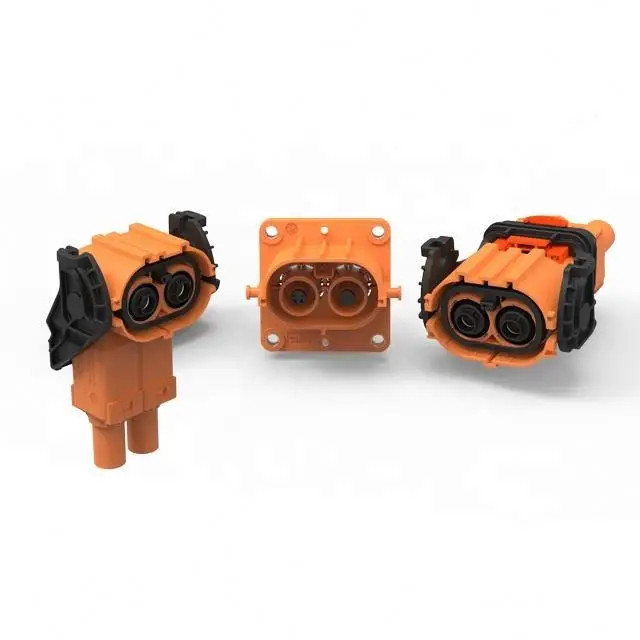

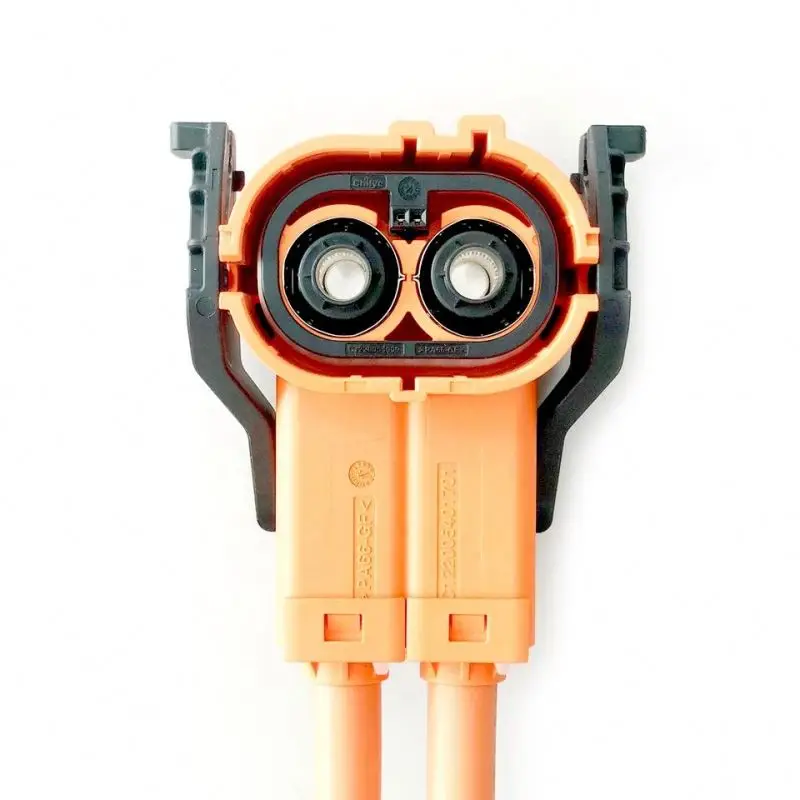

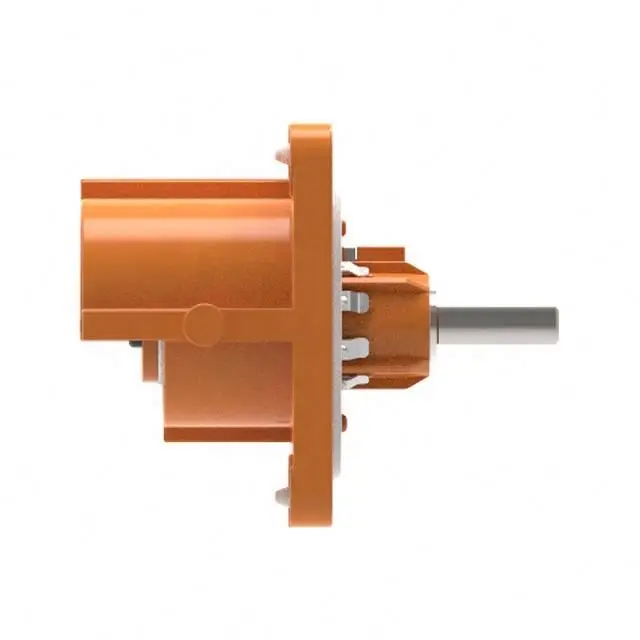

Wholesales High voltage interlock connector 2 pins 800 Series HVIL connector for EV system

Product Overview

Description





High Voltage Connectors

HVC series connectors integrate touch-proof design, good EMC shielding performance,

high IP rating, high voltage interlock loop (HVIL),
providing safe and reliable high voltage connection solutions to electric vehicles and hybrid electric vehicles.









HVC 800 Series



Application

Power battery, motor control, drive motor, inverter



Description

• HVIL

• Mechanical self-locking

• Touch-proof

• 180° and  90° plug

• Six types of keyway design to prevent incorrect mating

• Shielding: 360° shielding

• Conductor cross-sections: power circuit :25 mm² to 50 mm²

                                            HVIL circuit:  0.5 mm²

Technical Features

• Terminal size: 8mm

• Maximum current: 250A(85°C)

• Rated voltage: 1000V

• Operation temperature : -40°C to +125°C

• IP rating: Mated: IP67, IP6K9K

                     Unmated: IP2XB

















Why Choose Us



About us	Equipment & technology	Service
Suzhou Chilye is a leading supplier of high voltage electrical appliances and power distribution units for new energy vehicles	Chilye not only provide high precision connectors and solutions to electric vehicles, but also has the plan to provide technical innovation related to green technology, e.g.	The products are manufactured according to quality system, has the strict management on incoming materials, process technology and process inspections, to ensure all the semi-finished products to the next working procedure.







Main Products



HVC 280 series 2 poles with HVIL 25A/600V	HVC 530 series 4 poles with HVIL 40A/600V	HVC 800 series 3 poles with HVIL 240A/1000V
