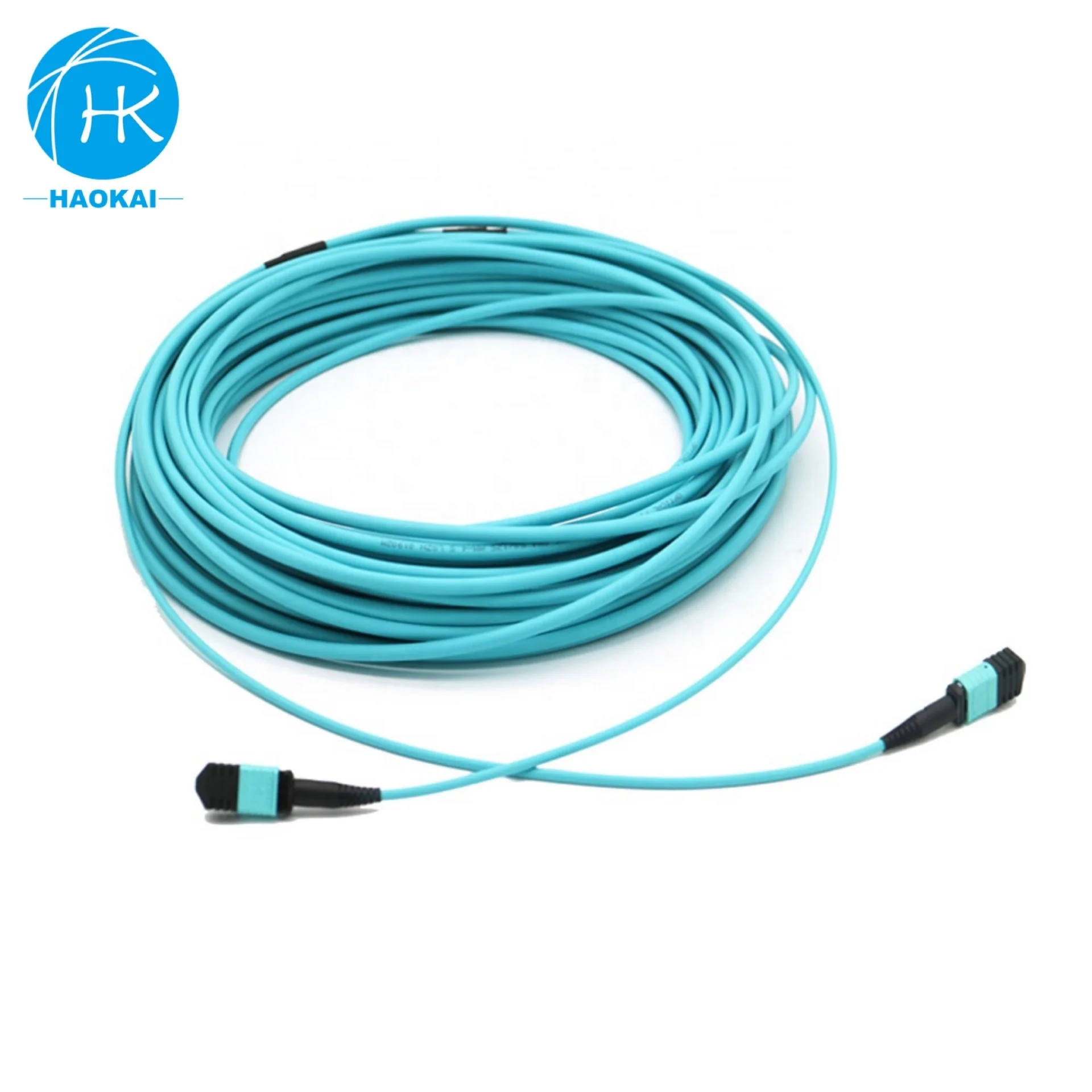

8core 12core 24core OM3 Fiber Optical MPO/MTP Patch cord Connector

Product Overview

Description

8core 12core 24core OM3 Fiber Optical MPO/MTP Patch cord Connector

Model		SM	MM

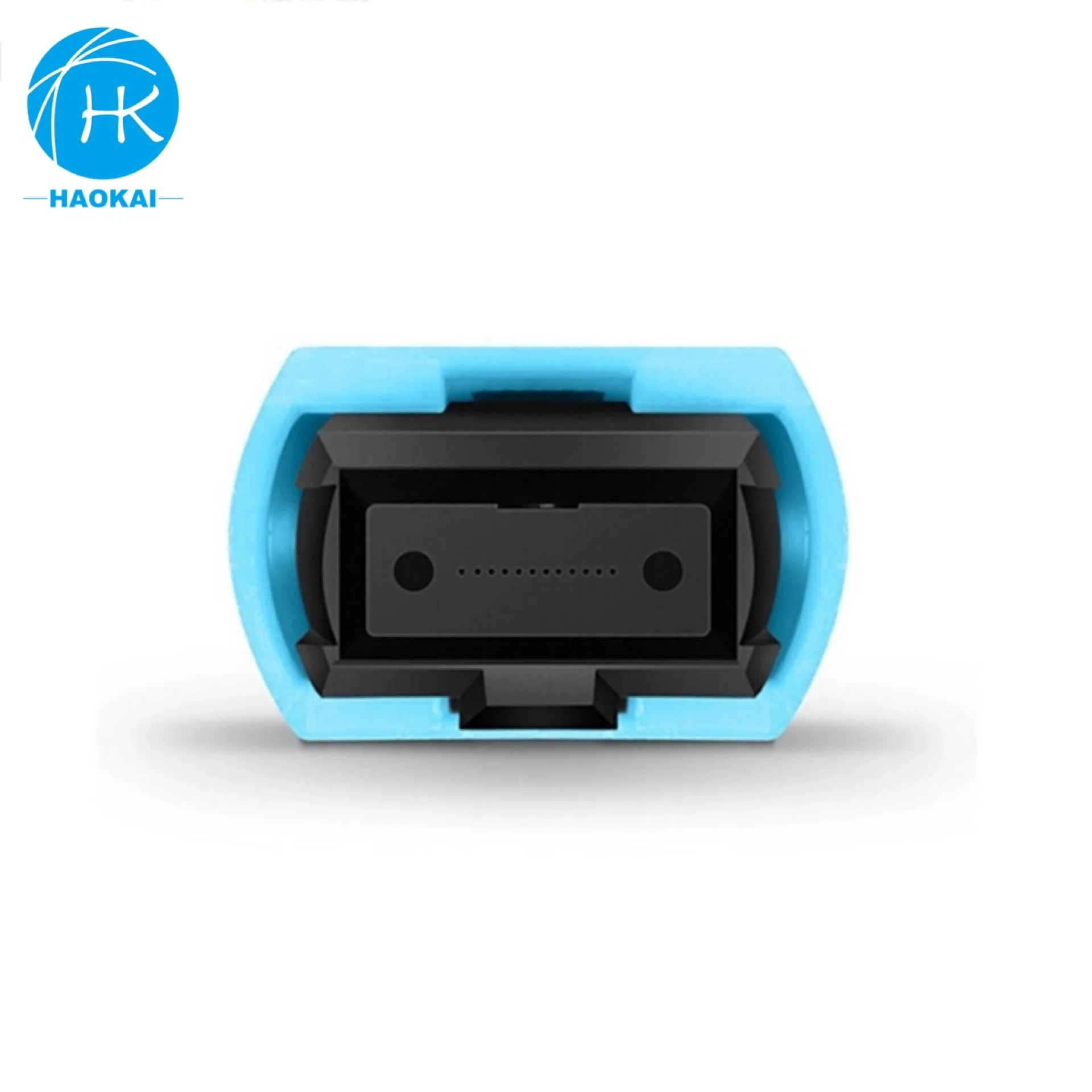

Connector A:MPO/MTP
Connector Fiber Count		8,12,24,48 Core
Polish		PC,APC	PC
Insertion Loss	Standard	≤0.70dB	≤0.50dB
	Elite Low Loss	≤0.35dB	≤0.30dB
Return Loss		PC≥50dB,APC≥60dB	≥30dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

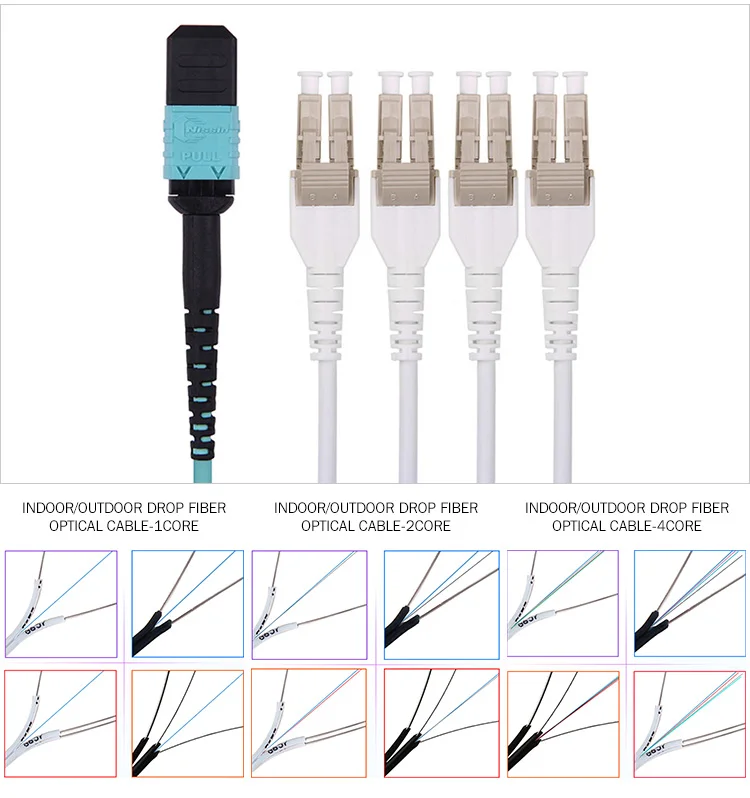

Connector B:LC,LC Uniboot,SC,FC,ST
Polish		PC,APC	PC
Insertion Loss		≤0.2dB	≤0.2dB
Return Loss		PC≥50dB,APC≥60dB	≥35dB
Durability(500 Matings)		≤0.2dB
Test Wavelength		1310/1550nm	850/1300nm

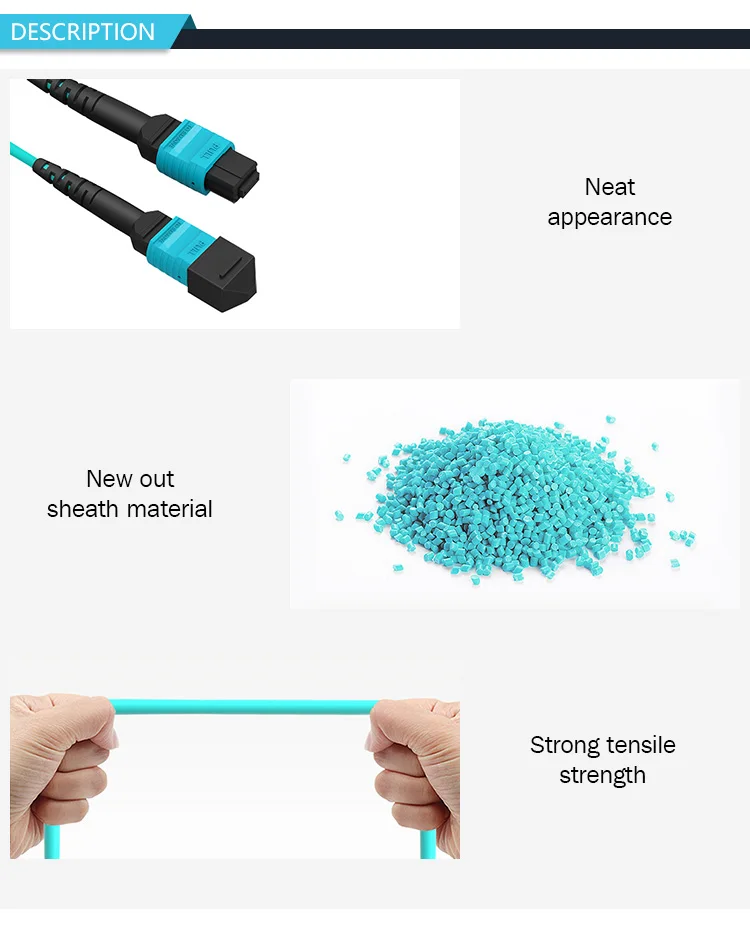

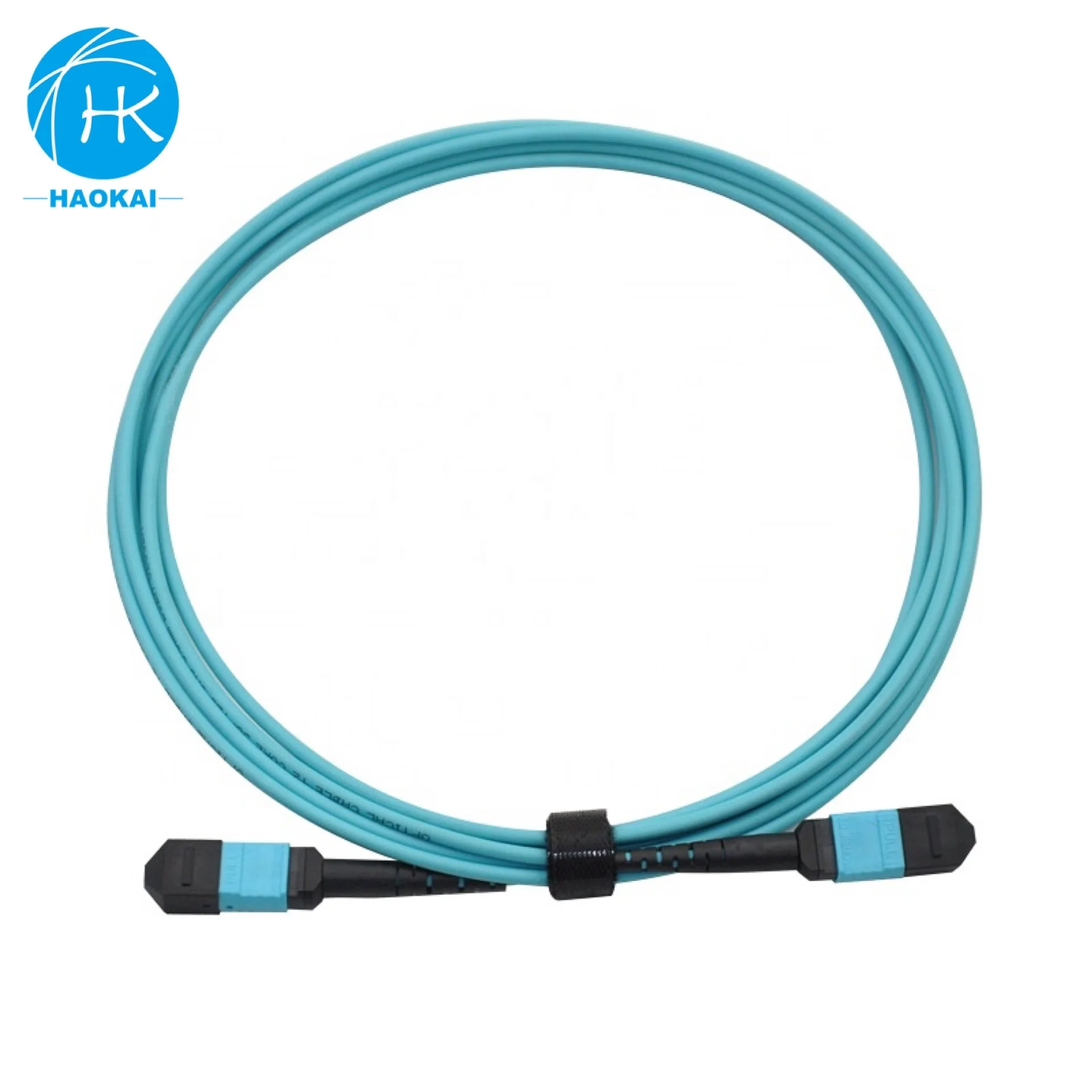

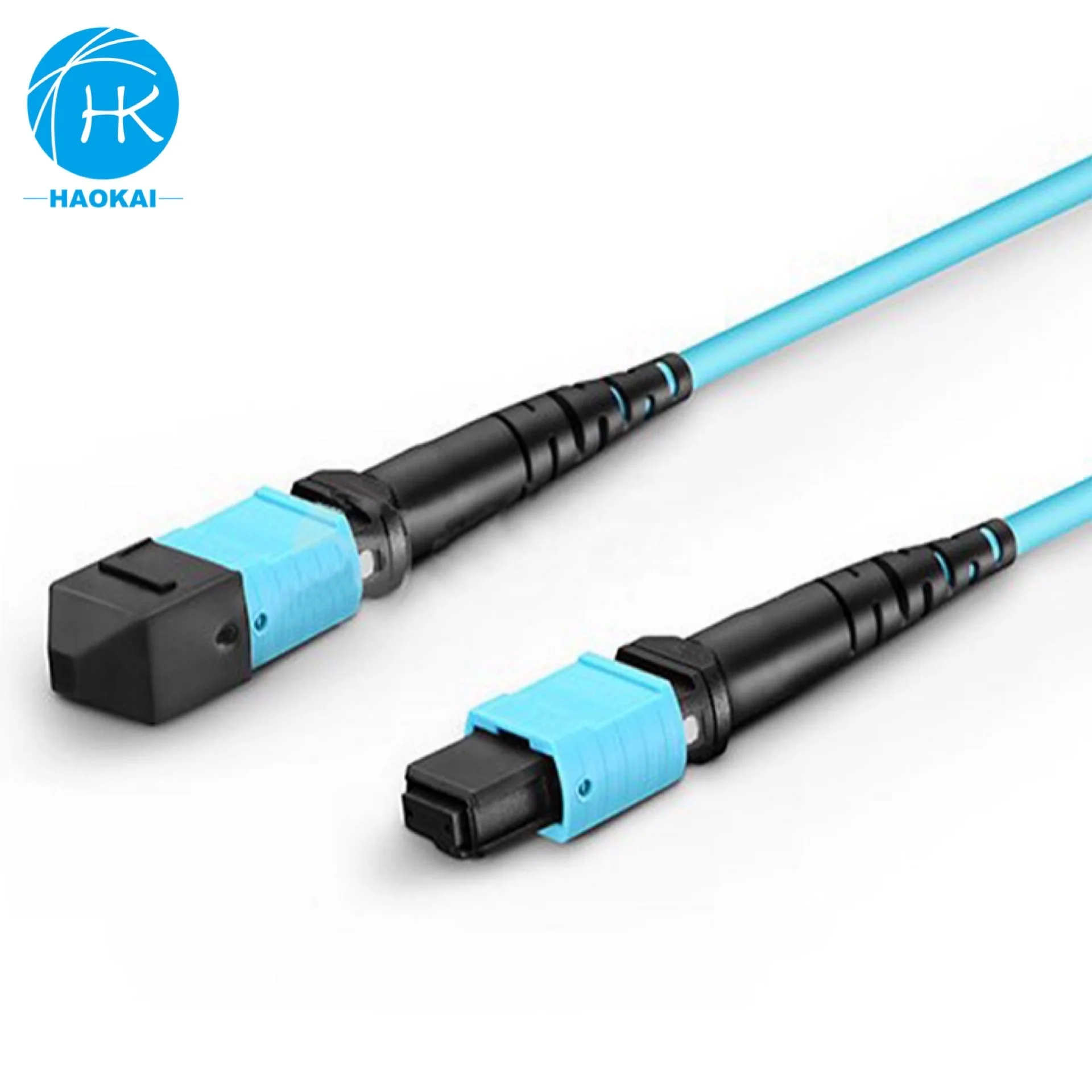

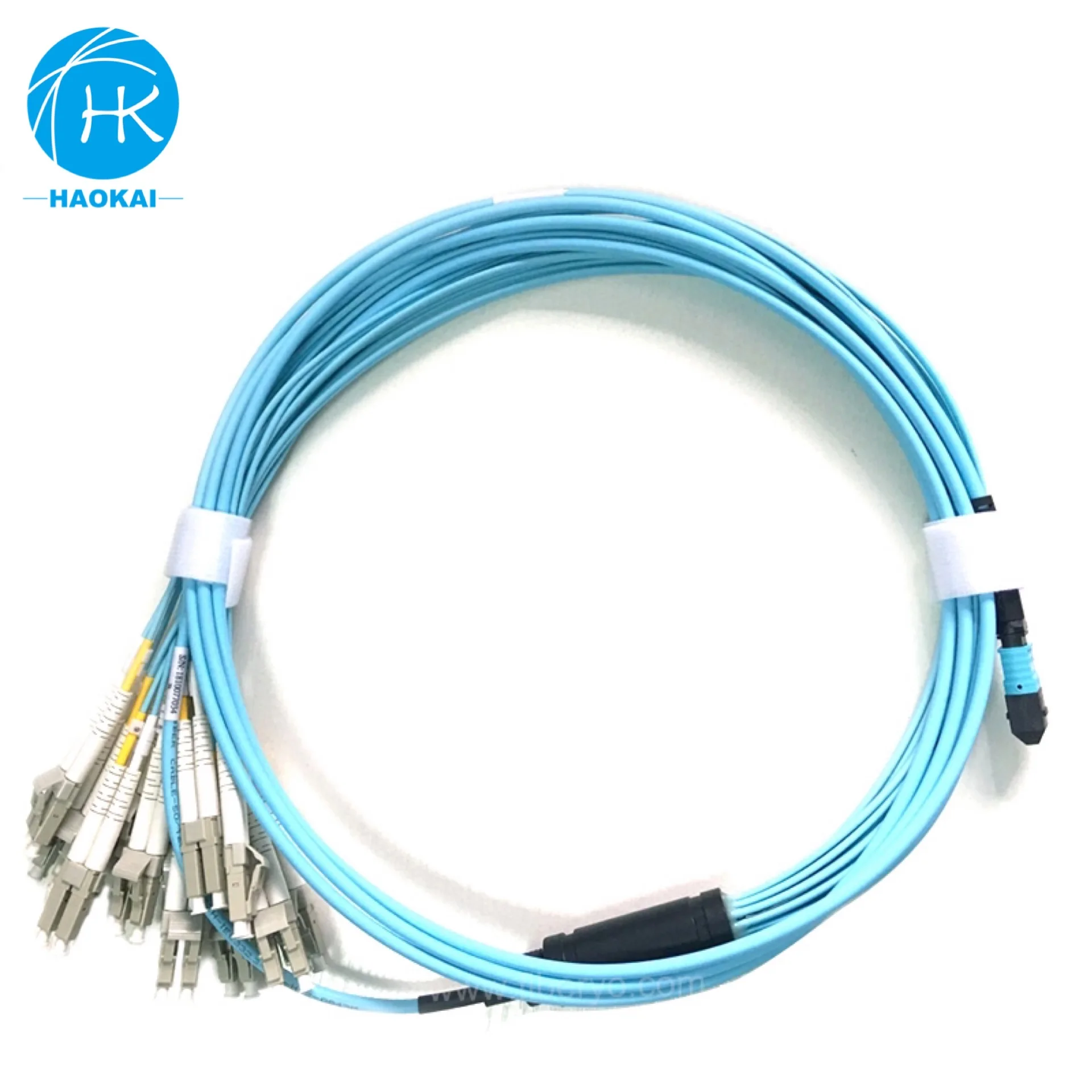

MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs. It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical.



Fiber type	SingleMode(G652)
	MultiMode(OM1/OM2/OM3/OM4)
Connector type	MPO or MTP
Fiber end face type	PC or APC
Insert loss	SingleMode: Typical value (average ) ≤ 0.55dB  Maximum value ≤0.75dB
	MultiMode: Typical value (average ) ≤ 0.65dB  Maximum value ≤0.80dB
Return loss	SingleMode: Typical value (average ) > 40dB(PC); >55dB(APC)
	Minimum value >35dB(PC); >50dB (APC)
Suitable type of optical cable	Ribbon or bundle cable
Operation temperature	-40℃~+ 85℃
