electric scooter charger 60v 7A lead acid battery charger 73.5v for motorcycle
- Category: >>>
- Supplier: Guangzhou Yunyang Electronic Technology Co. Ltd.
Share on (62347682950):
Product Overview
Description
electric scooter charger 60v 7A lead acid battery charger 73.5v for motorcycle
UY600 battery charger specification
| Product Name | electric scooter charger 60v 7A lead acid battery charger 73.5v for motorcycle | ||
| Brand Name | YEWY | Model Number | UY600 |
| Input Voltage | 90-130Vac/200-260Vac/100-240Vac | Frequency | 47~63HZ |
| N.W | 2.5KG | Dimension | 208*120*70mm |
| Efficiency | 88% | Leakage Current | <0.75mA |
| Operating humidity | 5%-95% RH Non-condensing | Altitude | 2000m |
| Operating Temperature | -20℃—+40℃ | Storage Temperature | -40℃-+70℃ |
| Safety certifications | CE, CB, RoHS Directive-compliant | ||
| Suitable battery Type | Lead Acid/LiFePo4/Li-ion | ||
| Charging Time | Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:3-4 hours) | ||
| Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours) | |||
| Protection | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge | ||
| Advantage | *MCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. | ||
| *Aluminum case, Robust, Elegant and Reliable | |||
| Package Contents | *1xbattery charger *1xInput Wire *1xUser Manual This battery charger is your affordable necessity without sacrificing performance. It features an integrated MCU and PWM for power control. | ||
UY600 Parameters
Voltage :12V 24V 36V 48V 60V 72V 84V
Max Current : 25A 20A 12A 10A 7A 6A 5A
Other parameters can be customized as per customer's requirements.

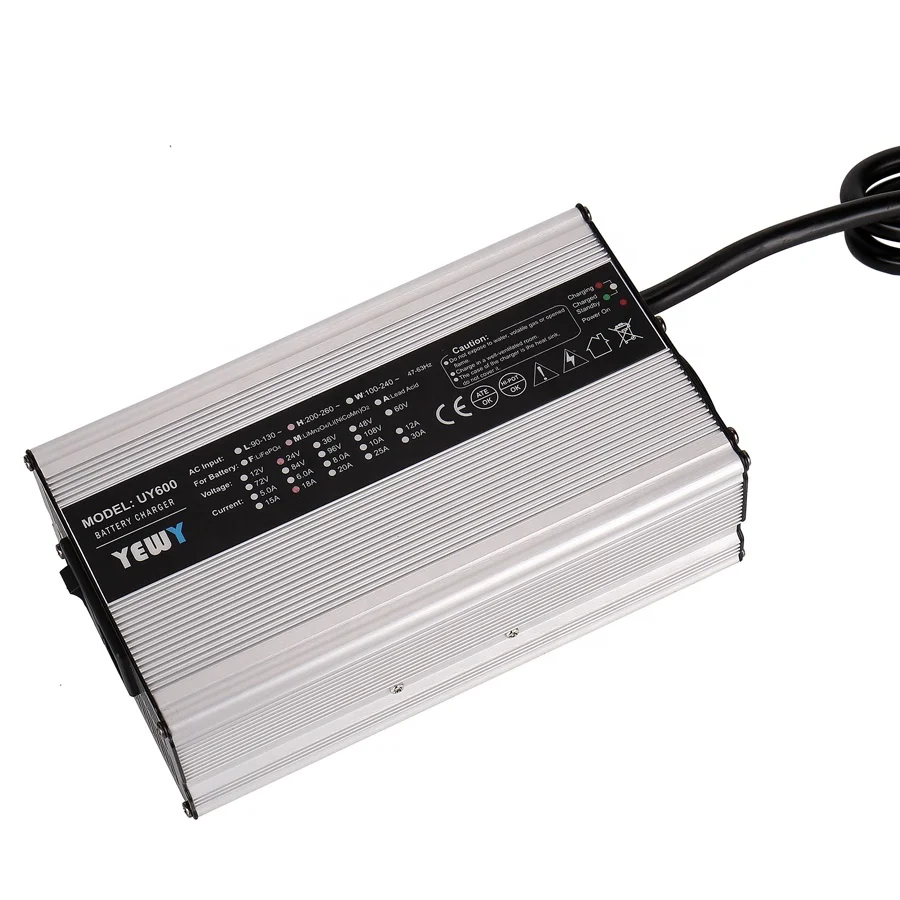

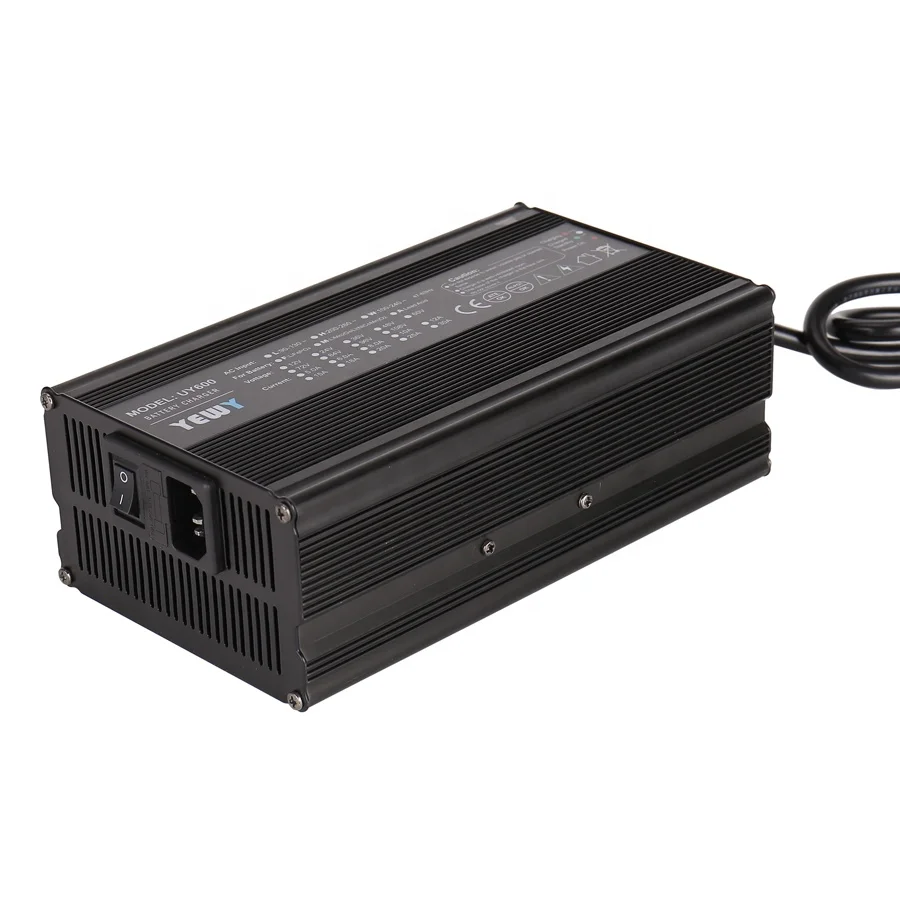

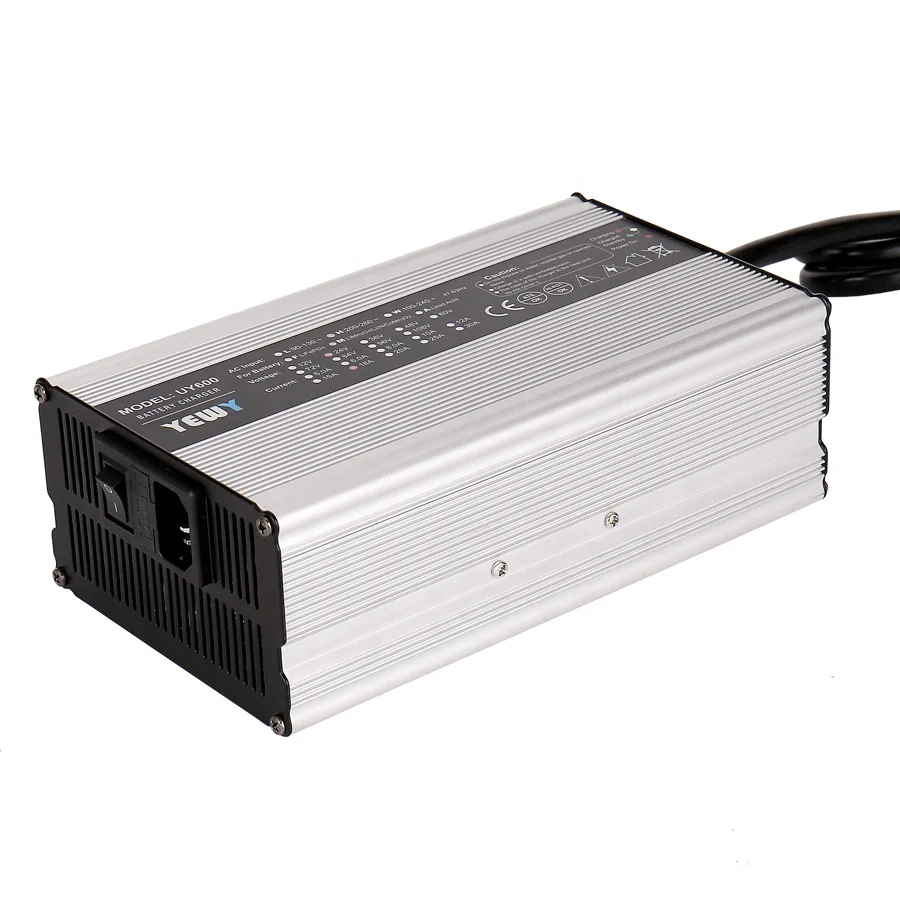

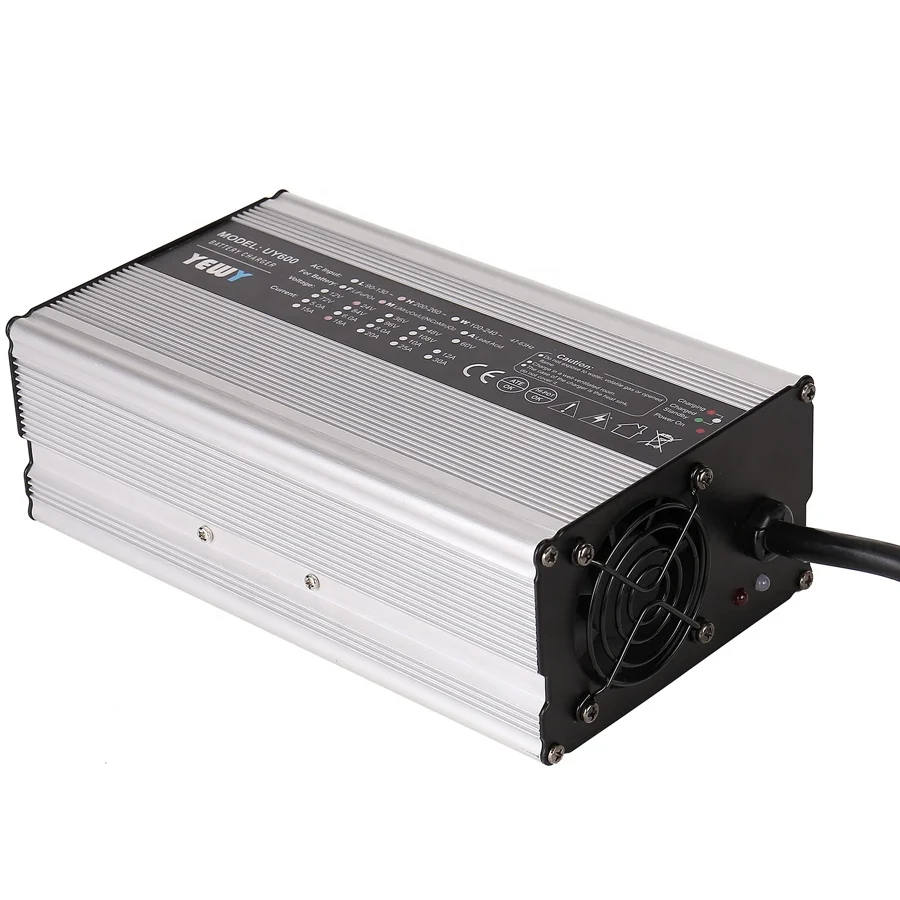

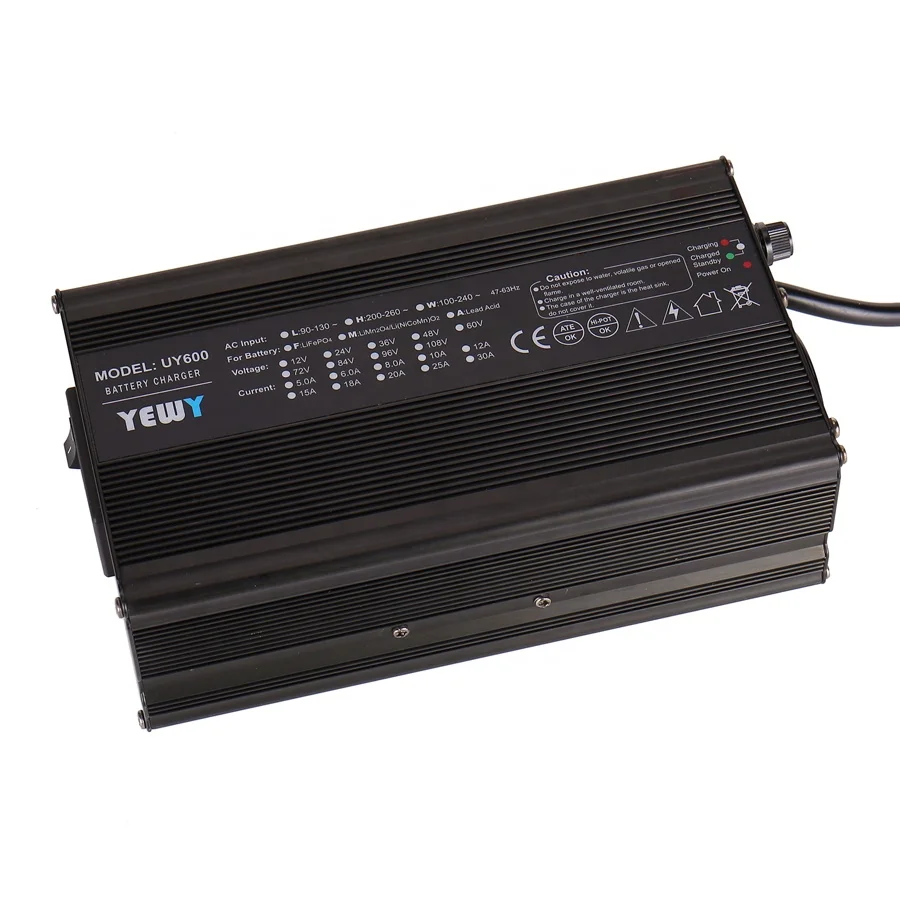

Product Display

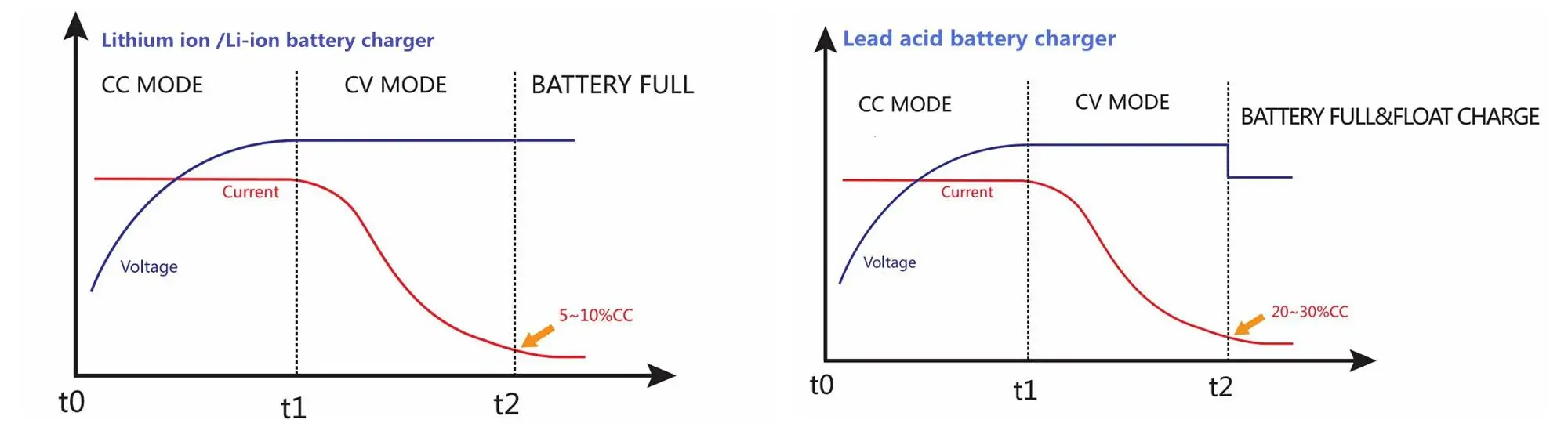

Charge Curve
|
Application UY600 battery charger widely used for: Electric bicycles, electric scooters, golf carts, electric motorcycles,electric washing machine ,two wheeled vehicle, three wheeled vehicles, four wheeled vehicles,electric tricycle ,unmanned aircraft, Patrol Car, Sanitation Vehicle, electric cars,Electric forklift , Electric Pallet Truck, electric tools, unmanned aircraft, sightseeing cars,diplopod sweeper and so on.
|
AC & DC Plug
|
|
Packing Show
|
Our Service Our Advantages: 1:We are factory company,which can provide competitive prices,direct technical instruct,customized produ- ction and profession- al after-sales service. 2:Independent R&D Team with high degree and rich experience,which makes us have the strong ability to meet different demands from our customers. 2:"Quality is our soul".our product are mainly for European and America high-end market,and insist on Quality first! 3:Chargers here are high quality,intelligent,stable,portable,small size,light weight and approved by CE.CB and ROHS. After-sales support: 1:Quick response for any questions. 2:Responsible attitude,not just sell products. 3:Send engineer to client's loation if need
