Stainless steel coil ss304 water tank heat exchangeris widely used for freezing industries,such as plating,oxidation,chemical industry,metallurgy,light industry,shipbuilding,heating, pharmaceutical,foodstuff ect, also for leather chiller, injection molding machine chiller, print chiller,PV shoe machine chiller and so on.
Product Description
APT
The specialist applicator of heat exchanger
Detail parameters
Liquid Flow Rate
Refer to detail
Maximum Working Pressure
4.5 Mpa
Weight
20 KGS
Warranty
1 Year
After-sales Service Provided
Field installation, commissioning and training
Applicable Industries
Manufacturing Plant
Condition
New
Place of Origin
Foshan, China (Mainland)
Brand Name
APT
Structure
Tube Heat Exchanger
Voltage
110V/220V/380V
Dimension(L*W*H)
800*400*450mm
Certification
CCC, CE, ROHS, ULSS
Material
SS304
Application
Cooling for laser machine
Type
New energy
Package
Wooden package
You can rely entirely on APT for product requirements of heat exchangers!
The manufacturing history of APT shell-and-tube heat exchangers can be traced back to the early stage of China's reform and opening up. This is our family industry. Therefore, our heat exchanger products are very mature, reliable in quality and rich in design experience. China's manufacturing industry continues to develop and update technology. At present, APT heat exchanger factory is equipped with automatic processing equipment to ensure the stability of output and product quality, and also equipped with professional testing equipment to ensure its reliability and prevent quality escapes. The company has a special heat exchanger design department. What you see on the website is only part of our regular products. You have more in-depth needs. You need to contact our engineering department. We will provide the best professional design services. The company has a dedicated overseas market service department, so that the process of re-cooperation between global customers is more worry-free and efficient.

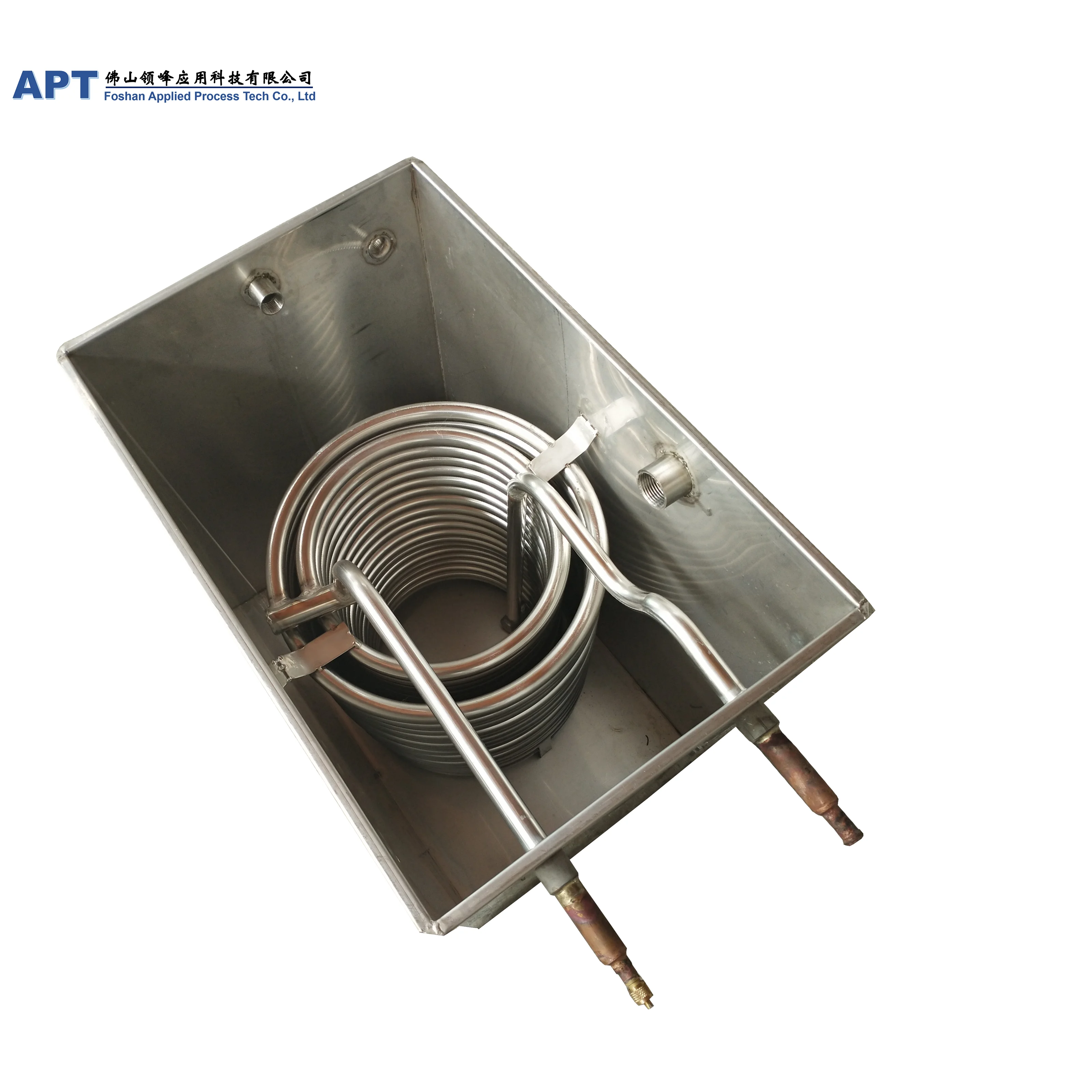

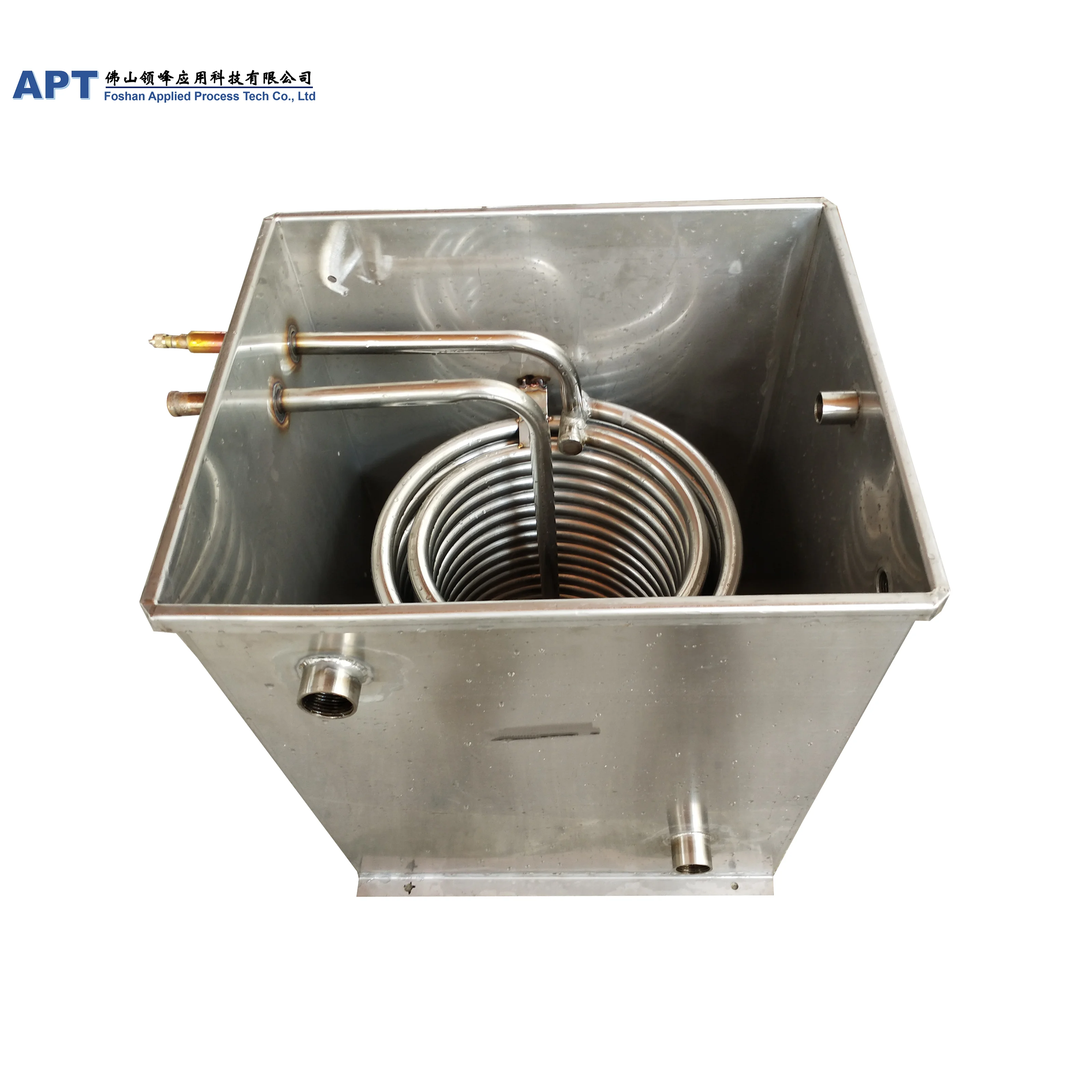

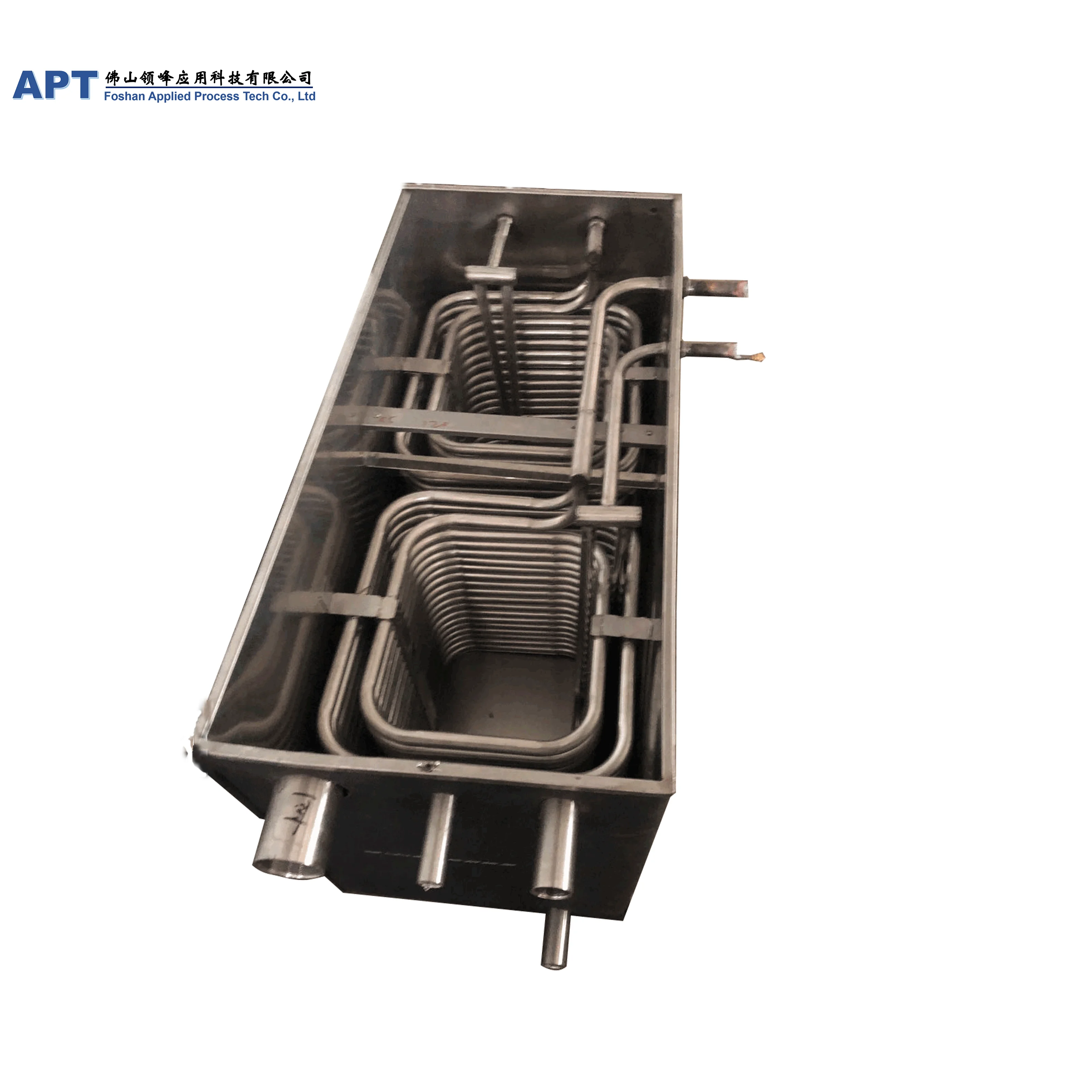

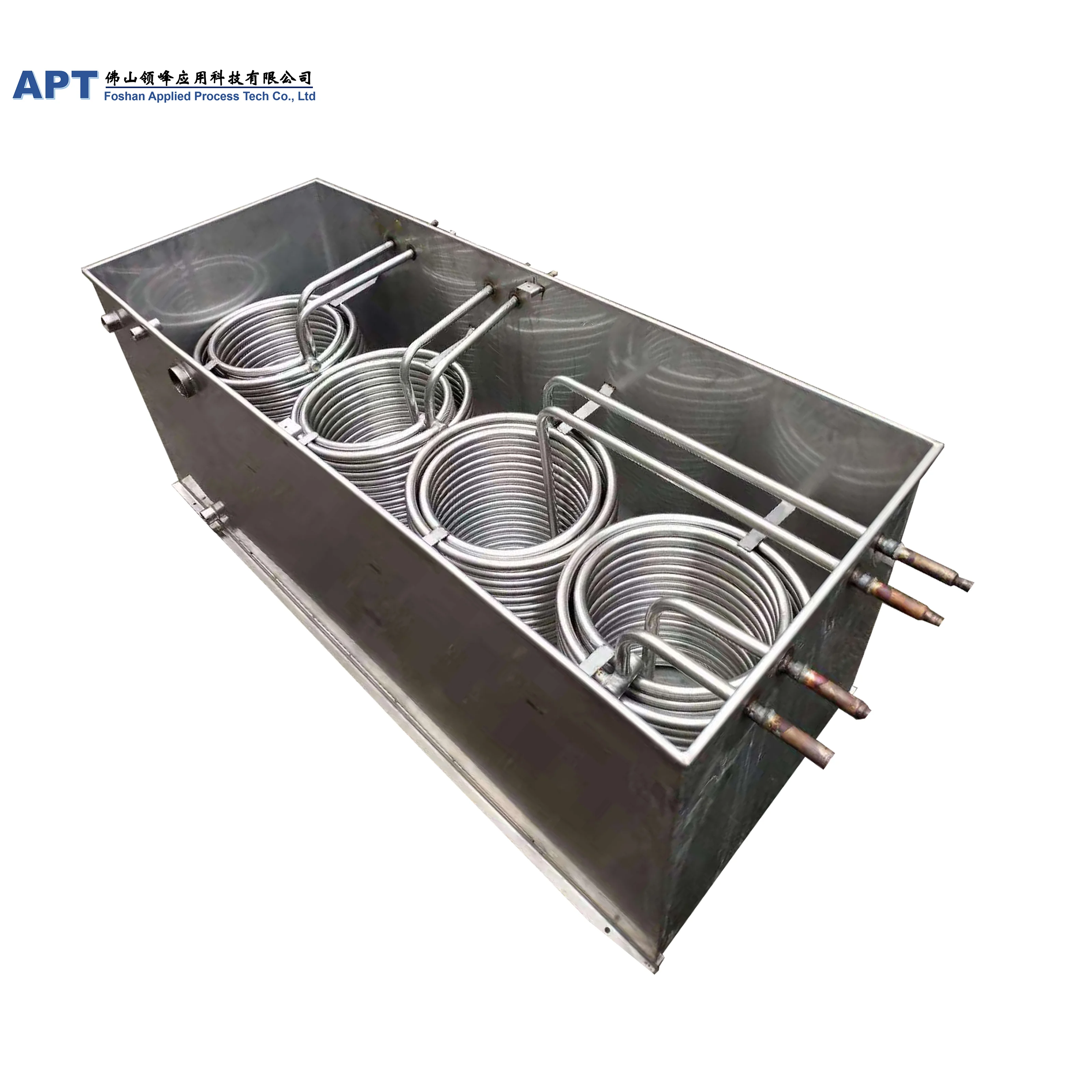

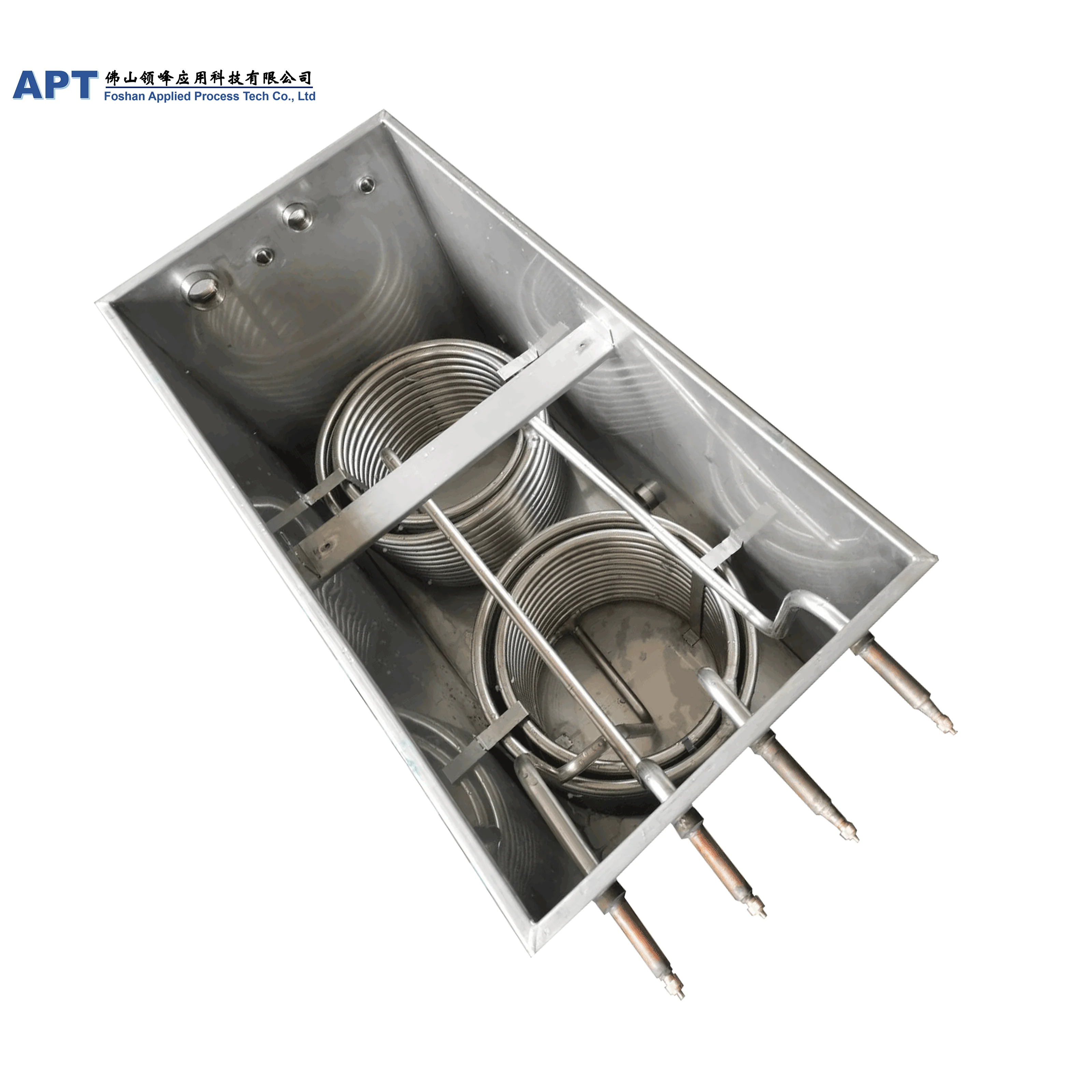

APT Stainless steel tube evaporator for Laser machine cooling systems
1. The inside of the water tank is made of SUS304 stainless steel coil. The stainless steel tube has the advantages of good heat resistance, excellent machinability, good thermal conductivity, high heat transfer efficiency, non-toxic, non-magnetic, non-polluting medium, non-scaling and strong pressure-bearing capacity. The heat exchanger tube is inspected with 3.0Mpa nitrogen to ensure cold. The medium system is safe and airtight.
2. The shell water tank is formed by high quality PP injection moulding, which improves the product quality, improves the appearance and reduces the labor cost.
3. Design pressure of evaporator refrigerant system: 3.0Mpa is suitable for refrigerants such as R22, R407C, R410A and R134a.
4. The design temperature of the evaporator water system is - 10 C - 80 C.
5. Application: Laser water cooler, UV-LED lamp water cooler, water cooler and other fields

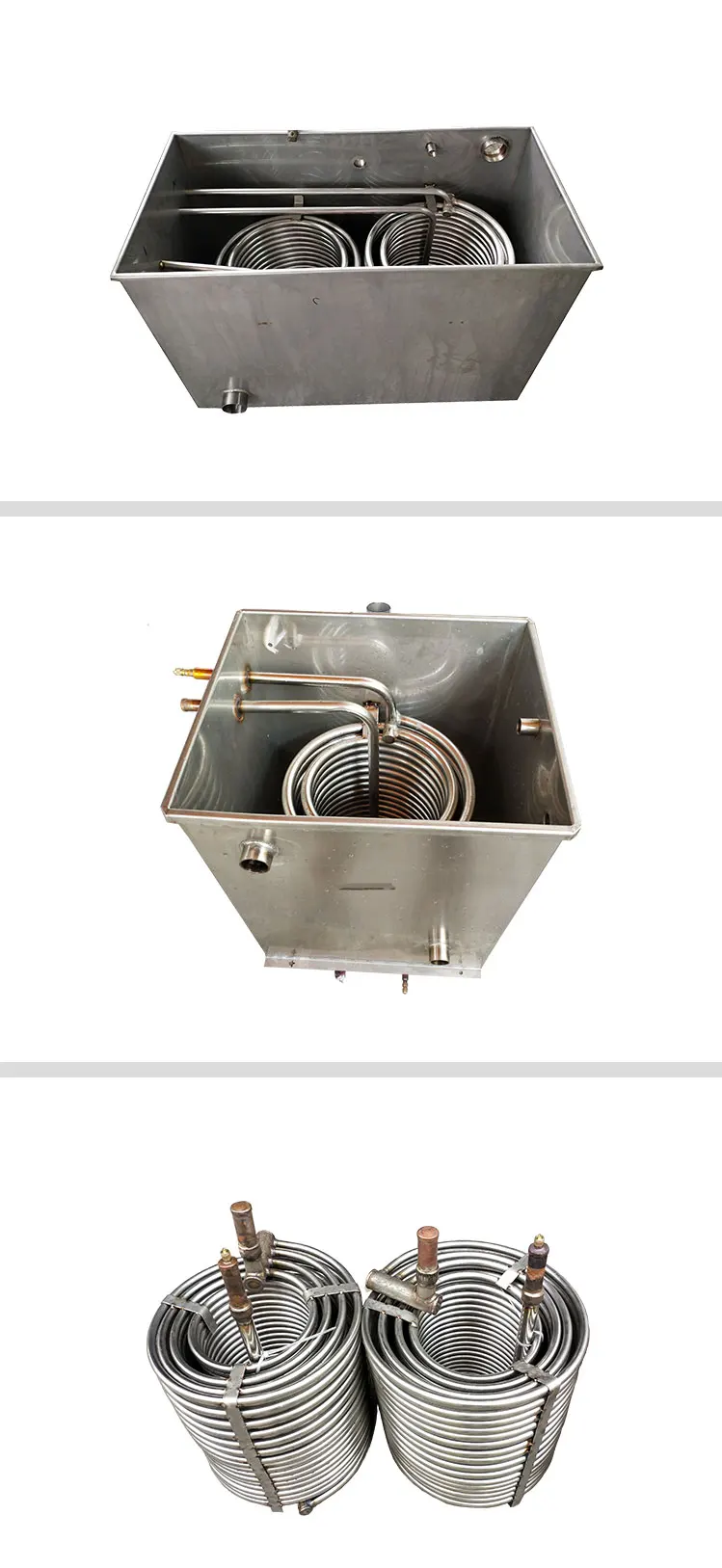

Product shows
Evaporator core has strong corrosion resistance, good thermal conductivity, high temperature resistance, strong heat transfer performance, not easy to scale, non-magnetic, not easy to leak. The inner core adopts high-strength sealing structure, which has good sealing performance and increases heat transfer performance.Application: Laser water cooler, UV-LED lamp water cooler, water cooler and other fields
As you know, APT has powerful design capabilities. As long as your product needs heat exchanger matching, don't worry about its complexity, contact us, we design for you.
Advantages of APT stainless steel heat exchange products
1. Choose the appropriate stainless steel model according to the customer's working conditions, give full play to its maximum corrosion resistance and ensure the heat transfer effect.
2. Professional and standardized welding process to ensure that the weld is not leakage, the starting point and source of corrosion.
3. Factory price and professional engineering services.
Kinds of heat exchanger that APT design and produce
Shell and tube heat exchanger.
Shell material including:PVC , PPR, Titanium, Stainless steel 304, Stainless 316, Steel, or designed based on the customer’s reqiurment.
Tube material including:Copper tube, Titanium,stainless steel or designed based on the customer’s reqiurment.
Tube diameter:1/2inch, 3/4 inch, 1 inch or designed based on the customer’s reqiurment
Tube type: Straight and threaded pipes
Application:
1Evaporator of Aquarium Water Temperature Control System;
2Heat Exchanger of Constant Temperature System for Seafood Culture;
3Condenser of swimming pool heating system;
4Artificial hot spring, SPA heat pump condenser;
5 Heat Exchanger of Chemical Temperature Regulating System;
6 Industrial chiller evaporator;
7 Marine Cooling System Heat Exchanger;
8 Evaporator of Laser Equipment Cooling System
Coaxial heat exchanger
Coaxial heat exchanger consist of one spiral grooves inner tube and a outer tube. Cold liquid and heat liquid flow in the gap that between inner and outer tube or in inner tube separately.
Kinds of coaxial:
1 Based on shape Circle ,Rectangle,Double helix,Spiral,Trombone
2 Based on system No. Single system,Double helix type 3 systems,Trombone interspersed 2 systems,Trombone type 6 systems,Spiral type 9 systems
3 Based on material: Red copper,Cupronickel (BFe-10-1-1),Titanium,Stainless steel,Steel
It adopts high quality titanium tube with corrosion resistance, safety and environmental protection, and fast refrigeration speed. Economic and efficient. Usually used in seafood fish ponds, fresh water or seawater refrigeration or heating, mariculture and so on.
Other non-standard customized heat exchangers
APT has a professional design team, according to customer requirements, equipment characteristics, operating conditions, the design of cost-effective heat exchangers.
Application Object
Stainless shell and Stainless tube heat exchanger heat exchanger:
APT engineers will select different materials according to the working conditions of your heat exchanger, develop appropriate processing technology, and inform our customers of the correct use and maintenance methods, so as to ensure that stainless steel will not produce corrosion, pitting, rust or wear. Our different types of stainless steel heat exchangers are well used in industrial corrosion environment without chloride, marine environment, acidic water, saline water and chemical corrosion environment.
How to choose the right material for shell or tube of heat exchanger:
304 is a versatile stainless steel, which is widely used in the production of equipment and components requiring good comprehensive performance (corrosion resistance and formability), which is also the most commonly used heat exchange material in APT.
304L is a variant of 304 stainless steel with low carbon content. It is used for welding occasions. Lower carbon content minimizes the amount of carbides precipitated in the heat affected zone near the weld, and the precipitation of carbides may lead to intergranular corrosion (welding corrosion) of stainless steel in some environments.
304N is a nitrogen-containing stainless steel. Nitrogen is added to improve the strength of the steel.
308 stainless steel is used to make welding rods.
The 316 and 317 stainless steels contain aluminium, so their pitting corrosion resistance in marine and chemical environment is much better than 304 stainless steels. Among them, 316 stainless steel includes low carbon stainless steel 316L, high strength stainless steel 316N containing nitrogen and free cutting stainless steel 316F with high sulphur content.
321, 347 and 348 stainless steel stabilized by titanium, niobium and tantalum, respectively, are suitable for high temperature welding components. 348 is a kind of stainless steel suitable for nuclear power industry, which limits the amount of tantalum and drill.
APT heat exchangers are widely used for:
1. Heat pump water heater condenser
2. Condenser/evaporator for aquarium or aquaculture water chiller
3. Condenser for pool heat pump
4. Condenser/evaporator for water(ground) source heat pump
5. Cooler or regenerator for CO2 heat pump air
6. Condenser/evaporator for marine AC
7. Condenser for ice machine
8. Evaporator for water purifier
9. Evaporation or condenser for mariculture constant temperature machine
10. Condenser for dish washer
