Industrial HMI controller board i.MX6UL development kit 4GB EMMC Flash wifi dual ethernet Embedded Board
- Category: >>>
- Supplier: Zhejiang Qiyang Intelligent Technology Co. Ltd.
Share on (62347764226):
Product Overview
Description
Product Description

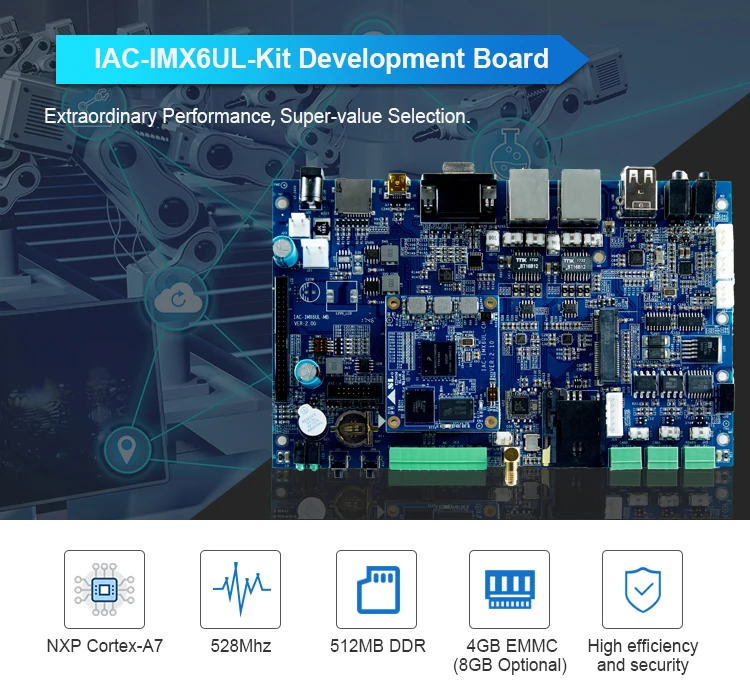

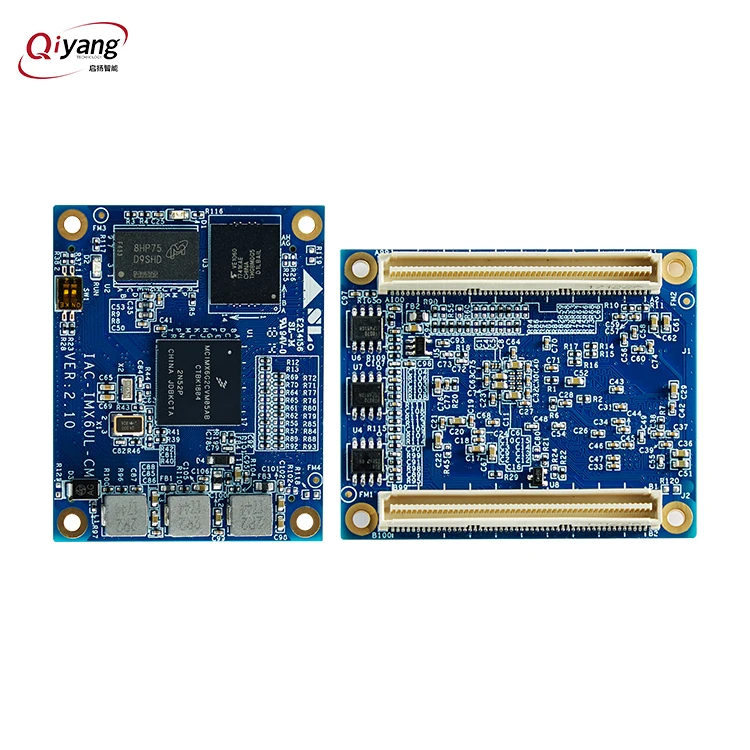

i.MX6UL development kit

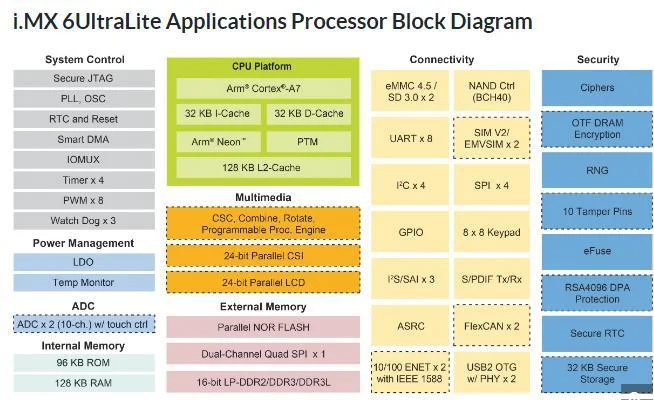

IAC-IMX6UL-KIT development kit adopts NXP Cortex-A7 Single Core processor， 528Mhz. The processor is with NEON and FPU co-processor， support abundant encryption algorithm. Due to its excellent characterists for high performance ,high-efficiency， super security，it could meet the demand for vehicle information management，Internet of Things (loT），electronic POS machines, grid concentrators and other rapidly growing areas of specific needs.

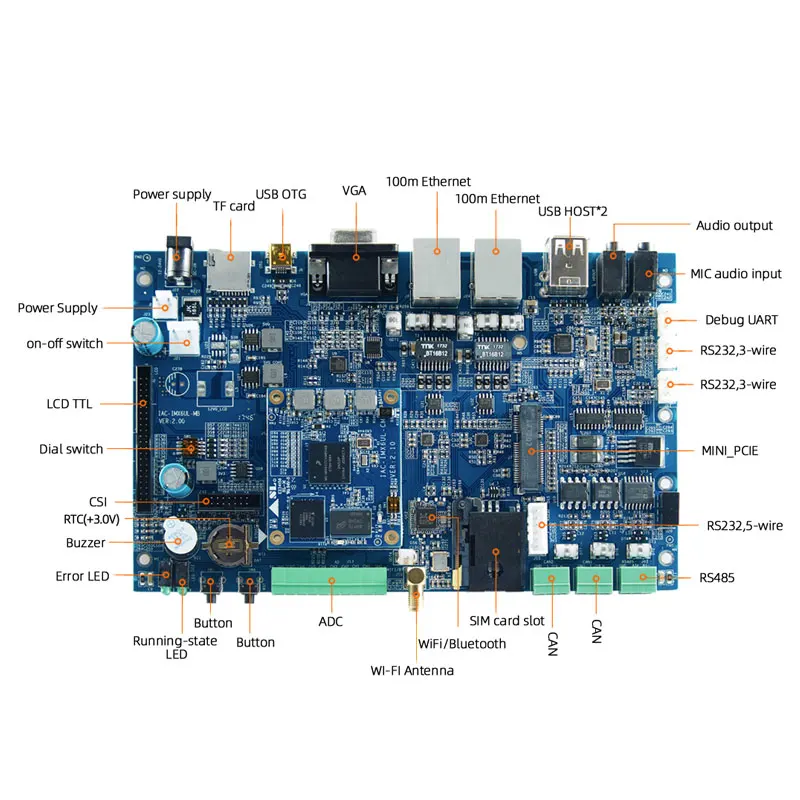

Hardware Resources | CPU | NXP i.MX6UL-2 CPU,ARM Cortex-A7 kernel, Main Frequency: 528Mhz | ||||
RAM | Single DDR3 SDRAM, standard capacity: 512MB | |||||
FLASH | 4GB eMMc(8GB Optional) | |||||
System Power | +5V power input, output all voltages that core board required. | |||||
Communication Interfaces | 4-CH RS232 serial ports, among which one is debug serial port; 1-CH 5-wire serial port, 2-CH 3-wire serial ports | |||||
1-CH USB rapid OTG, 4-CH USB2.0 HOST | ||||||
2-ch industrial 10/100Mbps Ethernet, RJ45 connector type, with ACT,LINK indictor | ||||||
1-ch mini PCI-e connector, with SIM card socket, to connect external 3G/4G module | ||||||
2-ch CAN BUS, isolated, entirely support CAN2.0A and CAN2.0B protocol | ||||||
1-ch RS485 BUS interface, isolation. | ||||||
8-ch 12bit ADC | ||||||
Display | 18-bit TFT-LCD, highest resolution ratio: 1366*768 | |||||
VGA , to connect general displayer. | ||||||
Audio | MsASP audio interface, dual-channel output, MIC audio input | |||||
Input | 4-wire resistive touch screen interface | |||||
Camera interface, support 8/10/16 bit CSI imaging sensor | ||||||
Storage Interface | 1-CH TF card interface | |||||
Others | Bootup Switch, reset circuit, RTC, Watchdog, buzzer | |||||
Power Input | +12V, +5.5V~+28V wide voltage supported. | |||||
Software Resource | OS | Linux4.1.15 | Electrical Specification | |||

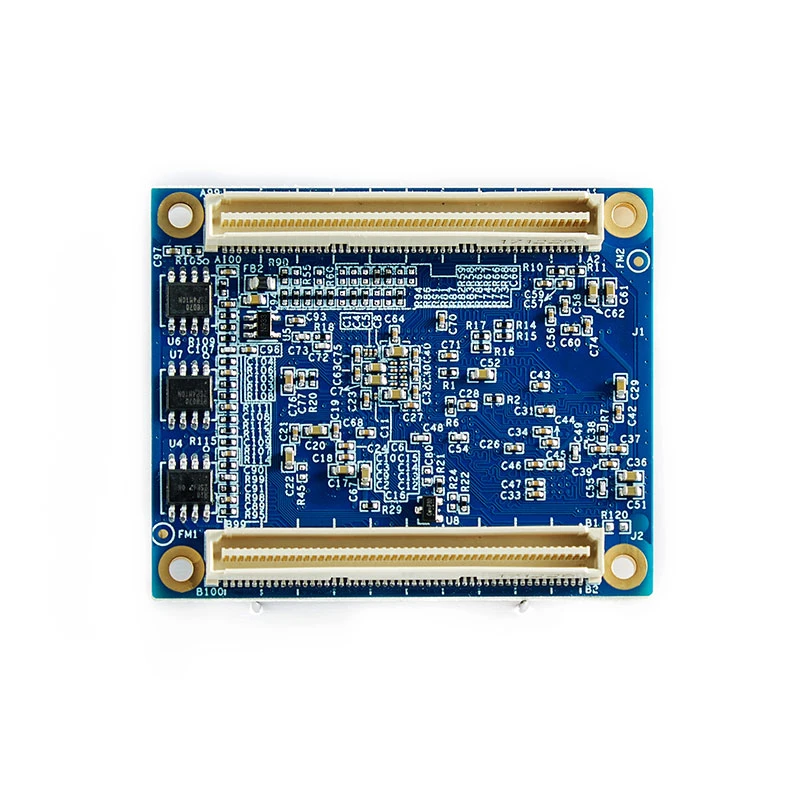

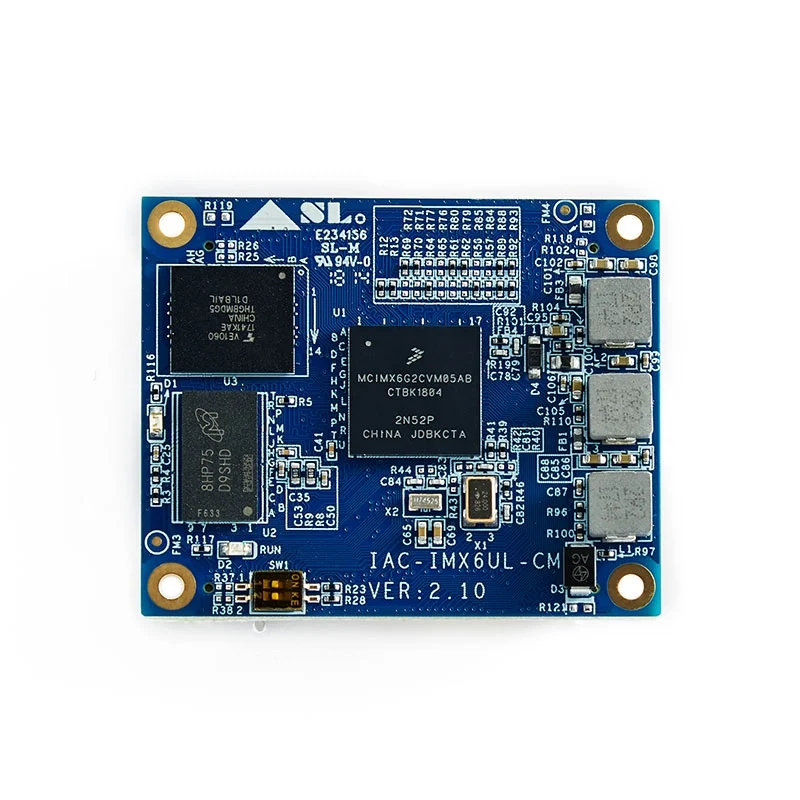

Drawings | Baseboard schematic diagram (PDF), PCB, IO comparison table | SOM size | 55mm*46mm | |||
Driver software | Interface drivers and driver source code | Interface Board size | 185mm*110mm | |||

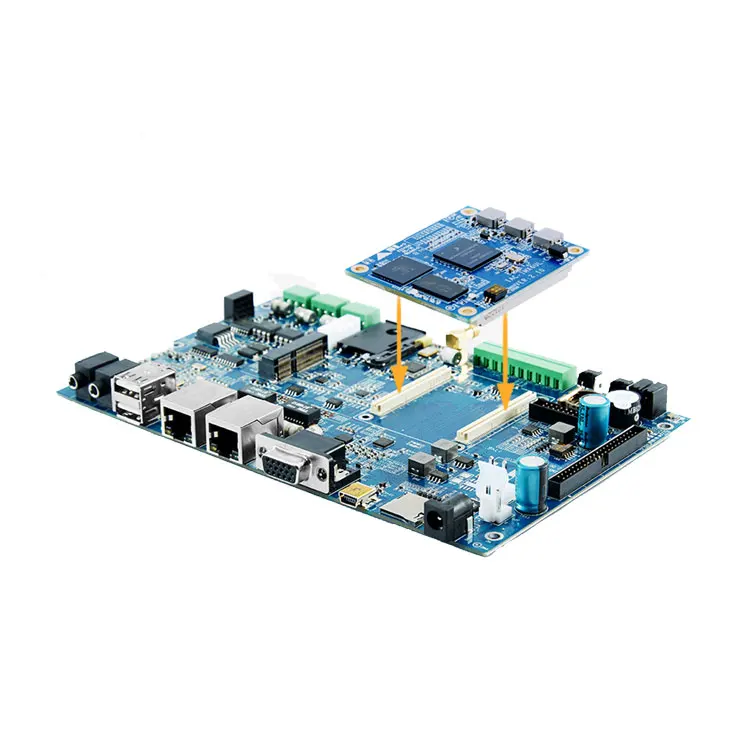

Testing Software | Interface drivers, test program and source code | Board to Board connector | 2*100pin B to B | |||
Development Tool | gcc-linaro-arm-linux-gnueabihf-4.7-2012.12-20121214_linux.tar.bz2 | Power Consumption | <2W | |||
Startup Code | Uboot | Operation Temperature | -20℃~+70℃, -40℃~+85℃(optional) | |||
GUI | QT4.8/5.9 | Humidity | 5%~95%, non-condensing | |||
Details Images
Applicable Scenarios
vehicle information management，Internet of Things (loT），electronic POS machines, grid concentrators, industrial automation, HMI etc.
