High vacuum metering valves are used to control gas flows. Precise flow rate is set by adjusting the dial. Great for controlling the exact flow rate into or out of the system for:
1. adjusting the vacuum level.
2. adjusting vacuum flow speed.
3. back filling with inert gas.
4. safe and gradual release of vacuum.
5. stabilizing vacuum controlling system
Techical Data:1.Pressure range:1x10^(-5)Pa~1.2x10^(5)Pa
2.Service life until first maintenance:3000 times
3.Minimum adjustable flow:4.7x10^(-3)Pa.L/S
4.Valve body baking temperature:≤150℃
5.Pressure difference on opening:≤1.2x10^(5)Pa Any
6.Installation orientation: Any
7.Body and seat leak rate:1.3x10^(-7)Pa.L/S
8.Valve position indication:With dial indication
Model
DN(MM)
Connecting Flange
1
2
EVGW-J2(KF)
0.8
KF
KF
EVGW-J2(CF)
0.8
CF
CF
EVGW-J2(KF+MPA)
0.8
KF
Male Pipe Adapter
EVGW-J4(KF)
1.2
KF
KF
EVGW-J4(CF)
1.2
CF
CF
EVGW-J4(KF+MPA))
1.2
KF
Male Pipe Adapter

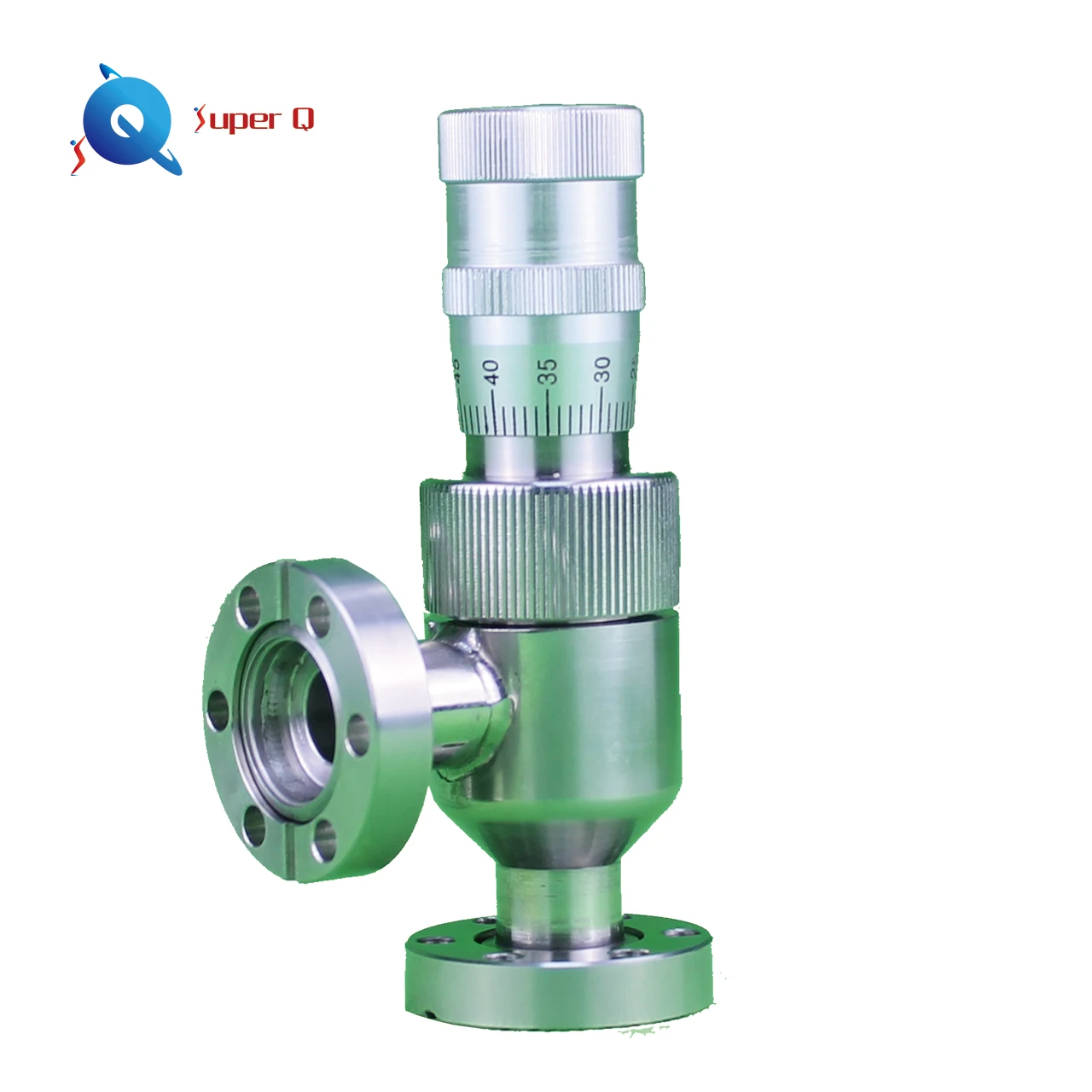

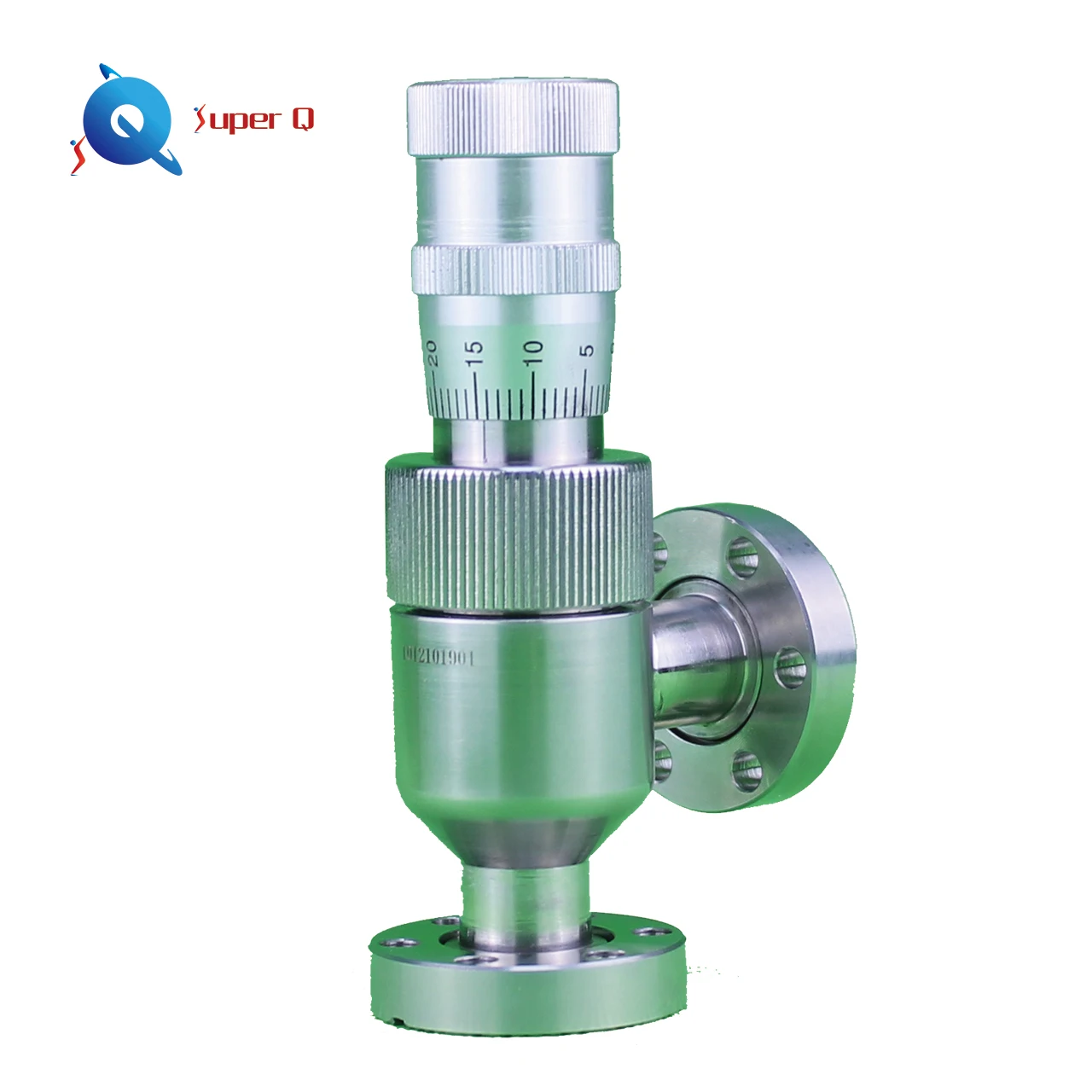

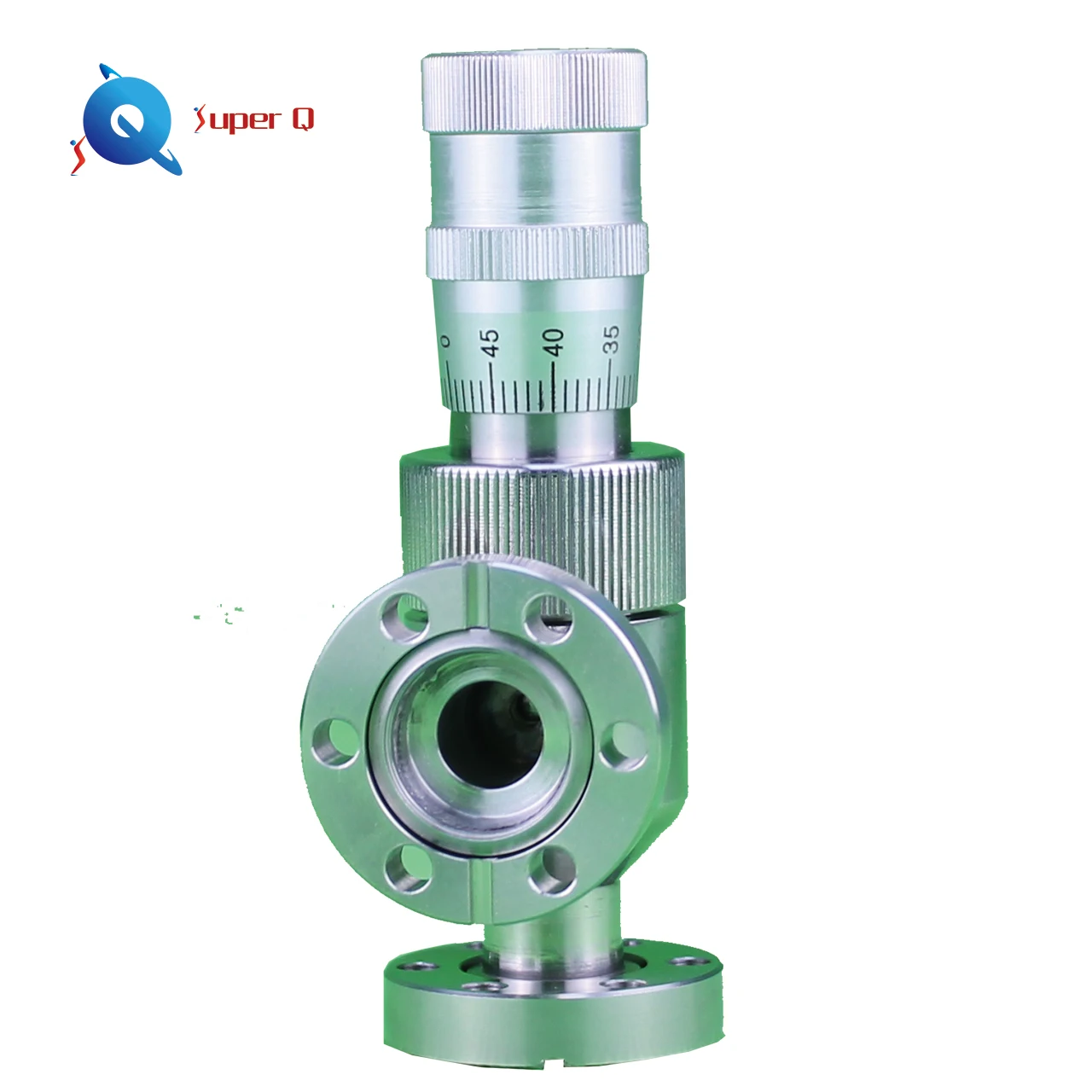

CF-CF Flange Type
KF-KF Flange Type
KF Flange + Maie Pipe Adaptor
