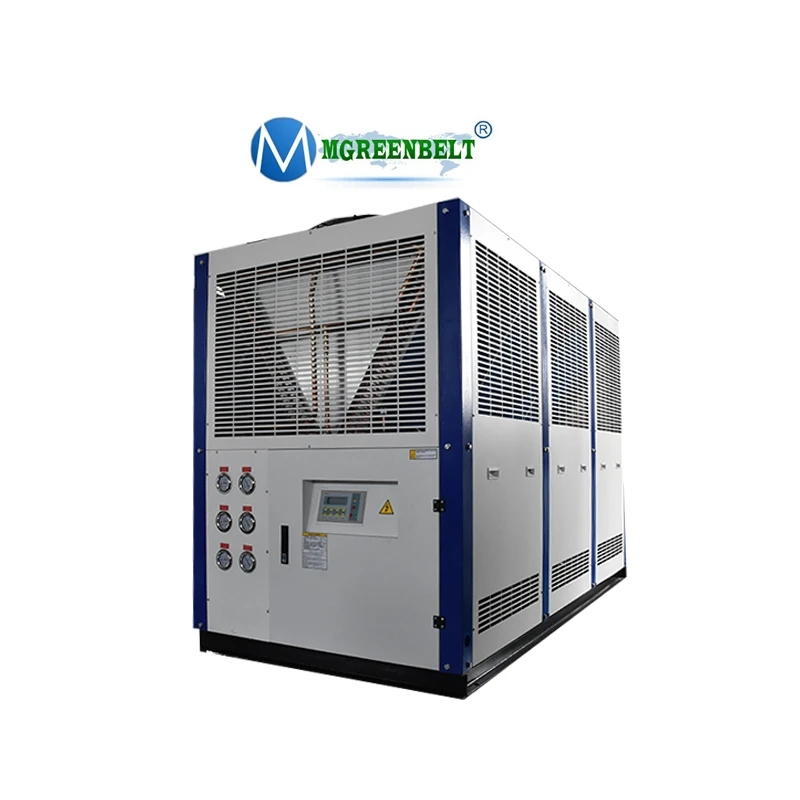

Low Temperature 5C 10C 30HP Brewery Cooling Industrial Glycol Chiller For Beer Equipment
- Category: >>>
- Supplier: Shandong Mgreenbelt Machinery Co. Ltd.
Share on (62348054689):
Product Overview
Description

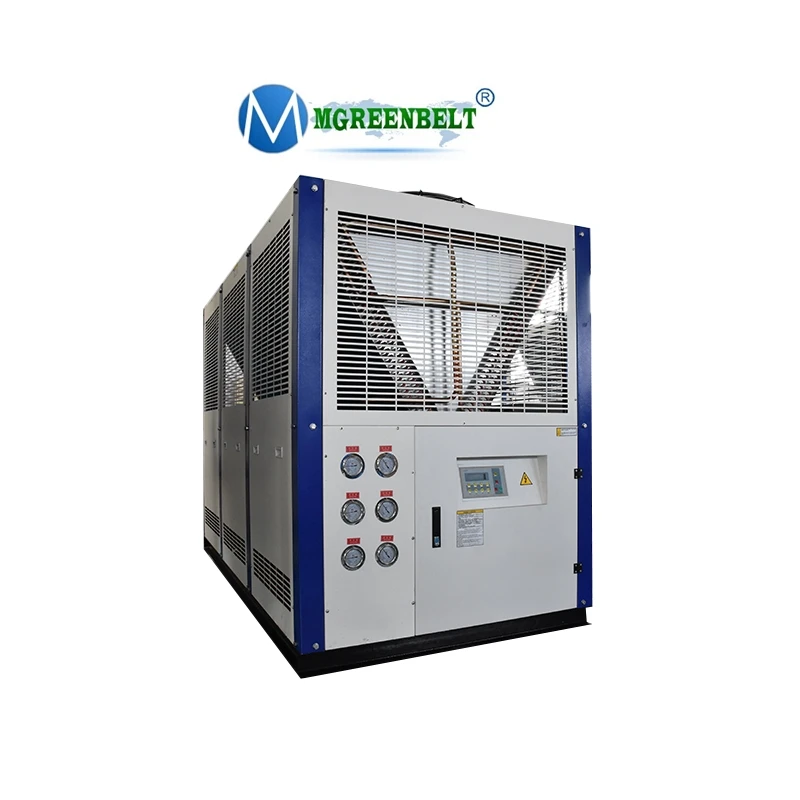

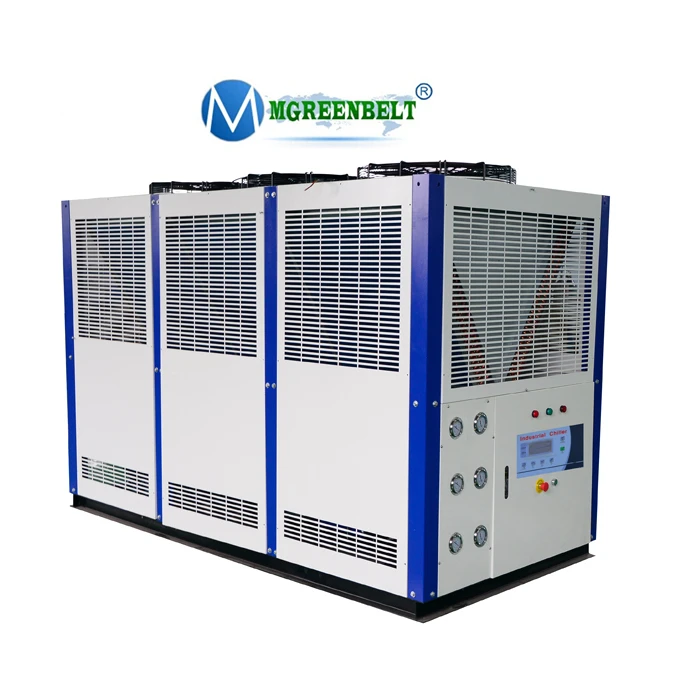

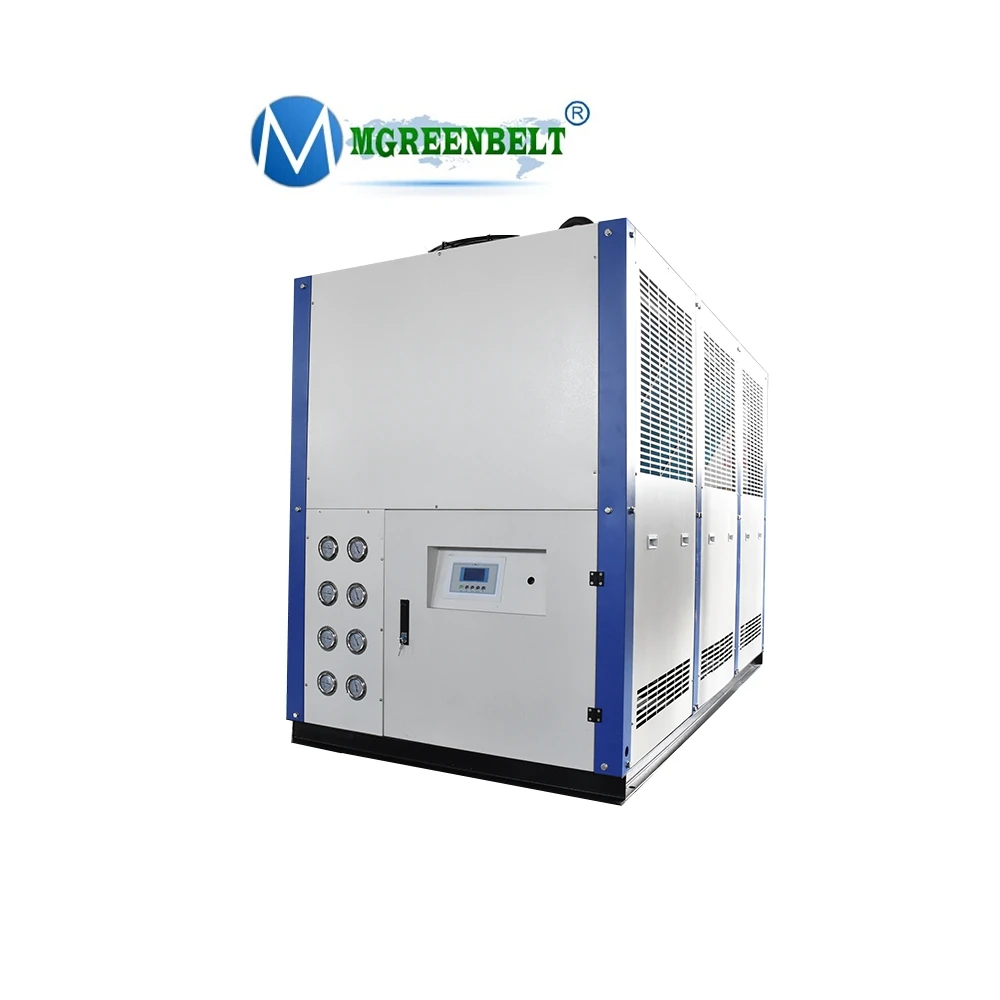

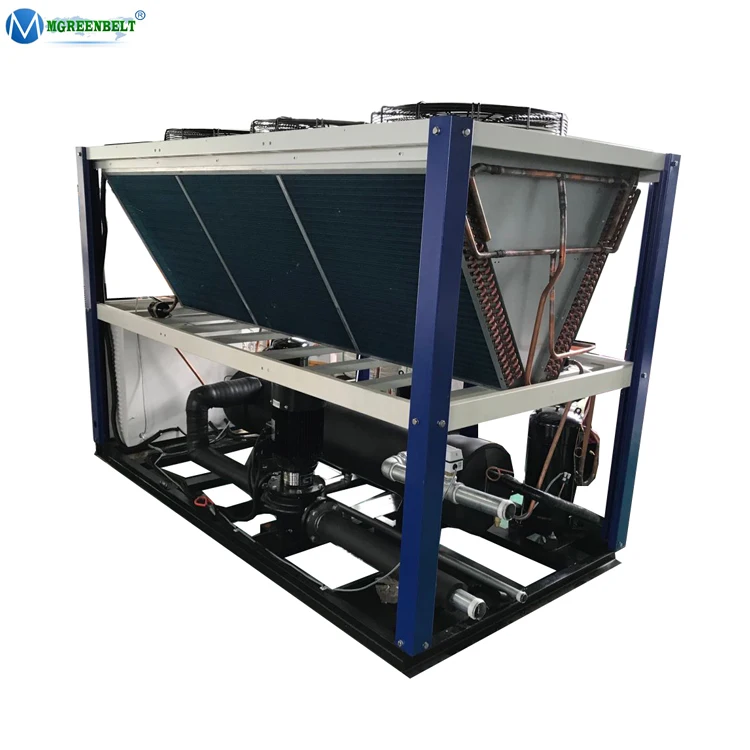

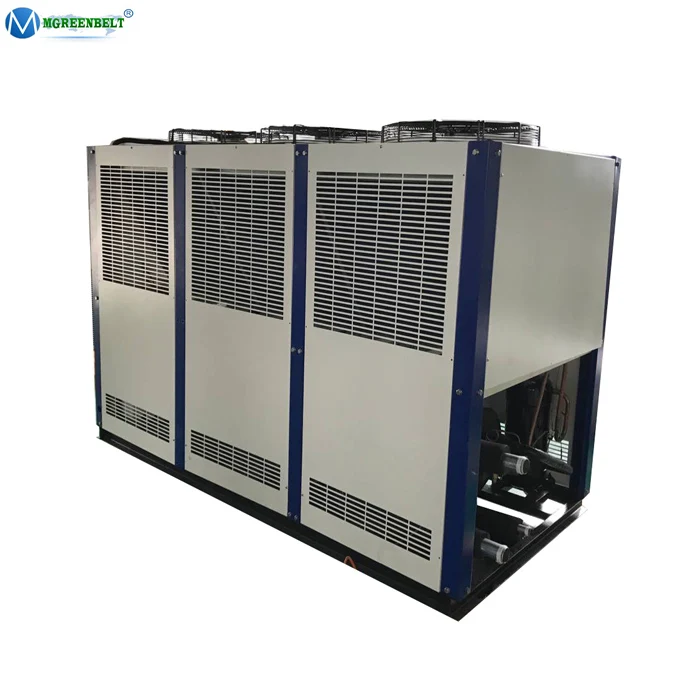

Low Temperature -5C -10C 30HP Brewery Cooling Industrial Glycol Chiller For Beer Equipment
--18 years of water chiller manufacturing experience: MGREENBELT is a leader of water chiller manufacture with rich experience
14 month;
14 month;
--Warranty time:MGREENBELT provide 14-month warranty for standard chillers can extend to 14 months covered all water chillers;
--Famous brand spare parts: Each water chiller from MGREENBELT using world famous brand refrigeration spare parts
Technical support& Training service:MGREENBELT can provide all clients water chiller
Technical support& Training service:MGREENBELT can provide all clients water chiller
--1 Hours troubleshooting:In case of any water chiller error or alarm, MGREENBELT will give a quick response within 1 Hours to help to solve the problem
--Lifetime service: MGREENBELT promise clients to give all water chiller unit whole lifetime service free of charge.
About us
Shandong Mgreenbelt Machinery Co., Ltd. is a professional manufacturing,sales, and service as one of the industrial water chiller and plastic auxiliary equipment field of outstanding manufacturing enterprises.
We have 18 years experience of the designer team, To provide the best service to our customer.
Our products have passed the ISO9001 and CE system certification.
The main production of industrial chillers, air cooled chiller, water cooled chiller and cooling towers.
Products in Europe, the Americas, Africa, Southeast Asia, more than 20 countries and gain acceptance.
Product Description
Feature:
Low Temperature -5C -10C 30HP Brewery Cooling Industrial Glycol Chiller For Beer Equipment
1.Temperature control from 5℃ to -35℃
2.Both air cooled and water cooled for option
3.Stainless steel brazed plate heat exchanger
4.Glycol coolant flow rate up to 450LPM
5.Scroll and piston compressor available
6.Used for cooling fermentation and mixers
7.All models and cooling capacity are available
SPECIFICATIONS GLYCOL WATER CHILLER | ||||||
Model | MG-30CL | |||||
Colling capacity | 0 deg C | KW | 66.9 | |||
-5 deg C | Kw | 56.8 | ||||
+5 deg C | Kw | 83.6 | ||||
Water Chiller Performance | Voltage | 220v/380v/415v/440v/460v/480V | ||||
Refrigerant | R407c, R22 | |||||
Refrigerant Control | Expansion Valve | |||||
Glycol Beer Chiller Compressor | Power | KW | 8.7*3 | |||
Quantity | 3 | |||||
Type | Hermetic scroll | |||||
Glycol beer chiller Evaporator | Type | Stainless Steel Water Tank with coil; Stainless steel heat exchanger plate | ||||
Tank Capacity | 450L | |||||
-5 deg C Water Flow | 11.68 m3/h | |||||
Pipe Diameter | DN 65 | |||||
Air Cooled Condenser | Type | Finned Copper Tubes | ||||
Chiller Water Pump | Power | kw | 2.2 | |||
Head | m | 20 or others | ||||
Dimension | mm | 2200*1160*1900 | ||||

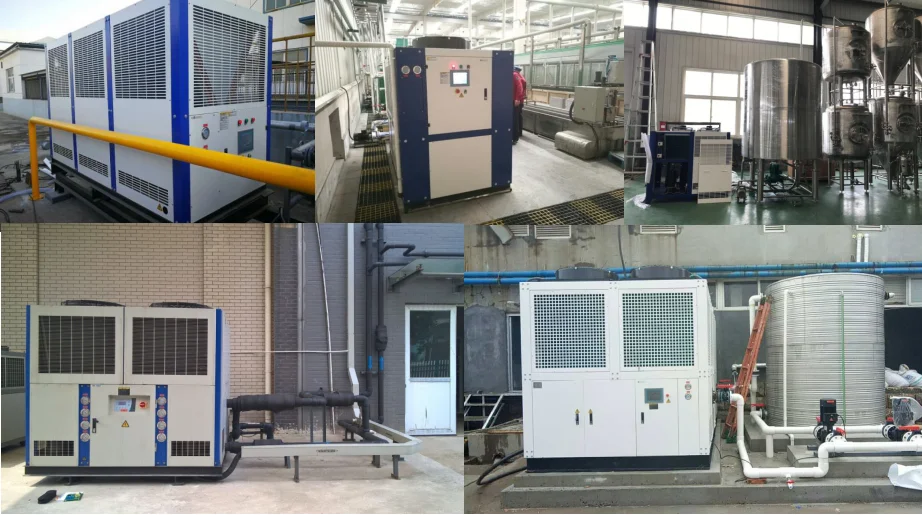

What’re the applications of fermentation glycol chiller?

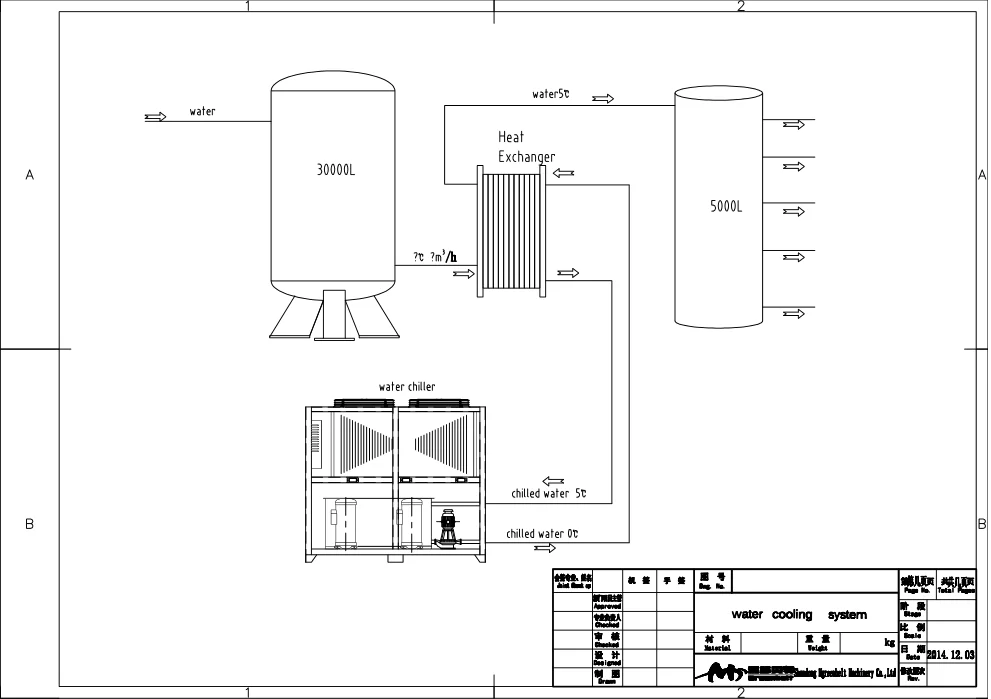

1. Glycol chiller plate heat exchanger and fermentation tank
2. The process of making wine has evolved into one of the most scientific processes in the beverage industry. 3. MGREENBELT can provide complete glycol chillers including simple or advanced chiller control systems.
4. Most wineries & breweries tend to keep controls as simple as possible to avoid any confusion for their maintenance team.
5. The wine-making process evolved tremendously over hundreds of years into a highly scientific operation beginning with the development of the grapevine right down to the packaging of the wine. 6. However, the most advanced developments have occurred in the process of winemaking.
7. Once the must or crushed grapes are transferred to the fermentation tanks, these fermentation tanks are cooled to maintain a desired temperature in the 40-F range.
8. The winemaker adds sugar and yeast to start the process of fermentation.
9. Fermentation chillers designed by MGREENBELT are very high efficiency, low cost, durable cooling systems that can be operated by anyone after simple explanation.
Details Introduce

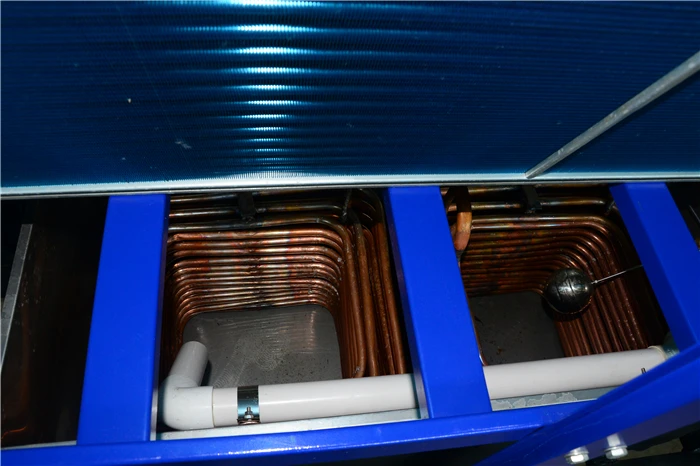

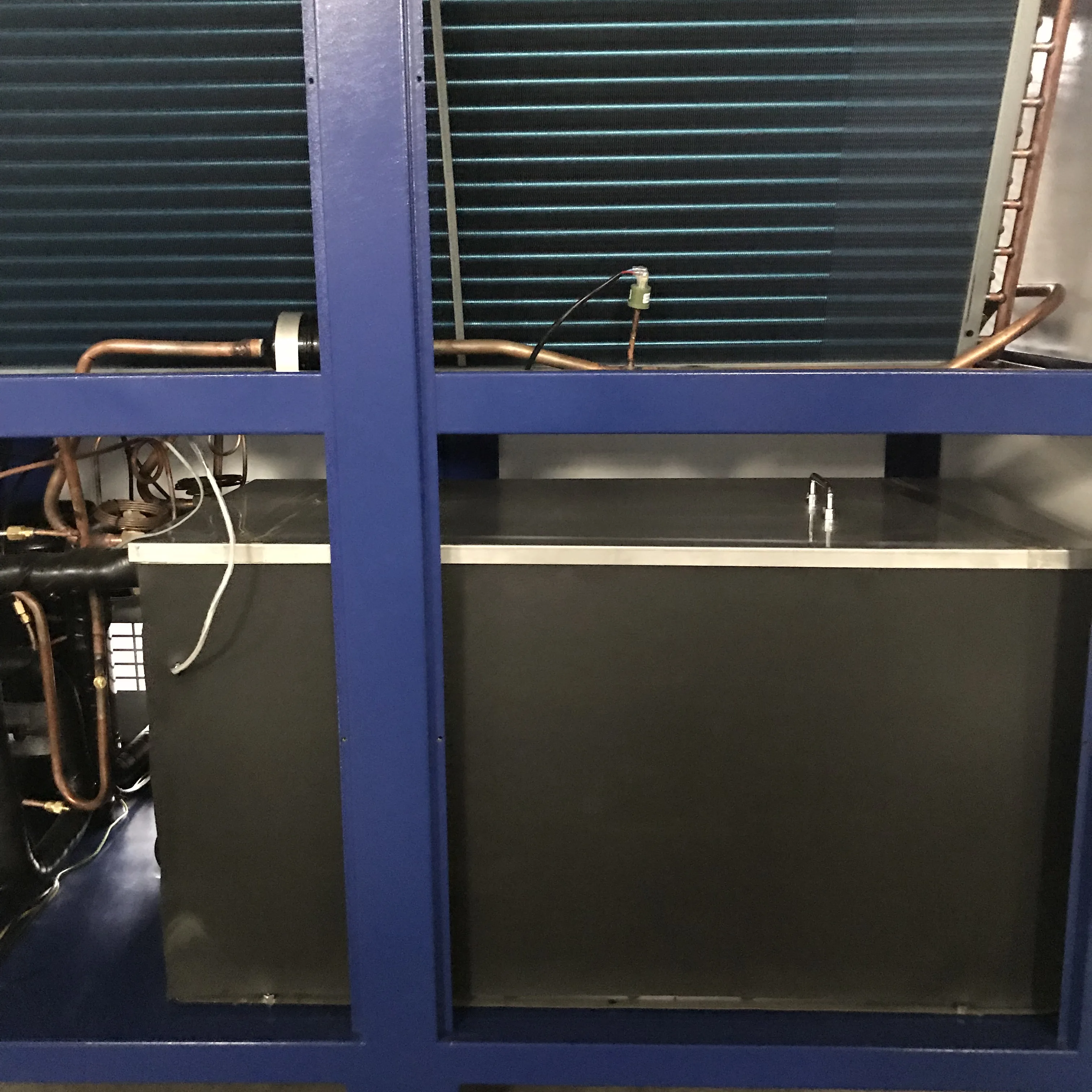

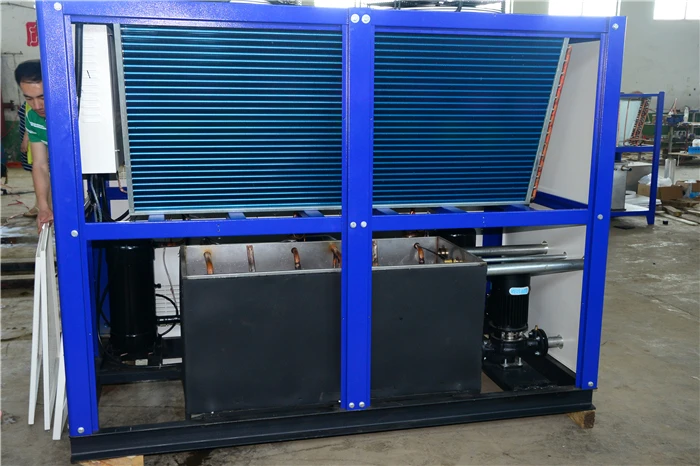

Tank and Pump built-in
--- This kind of fermentation chiller has an inbuilt water tank as an open loop system. We call this is the buffer tank inside the chiller. But the built-in glycol water pump is a must.
--- The fermentation chillers designed and manufactured by MGREENBELT are always used in some special industrial applications like fermentation process in cooling the wort, controlling fermentation crash cooling vessels, prepackaging in breweries and beers.
--- Other applications include product storage such as cold stabilization, room cooling for wineries, fermentation control, cold chilling the juice, cold storage of the final product for beverage and drinking.

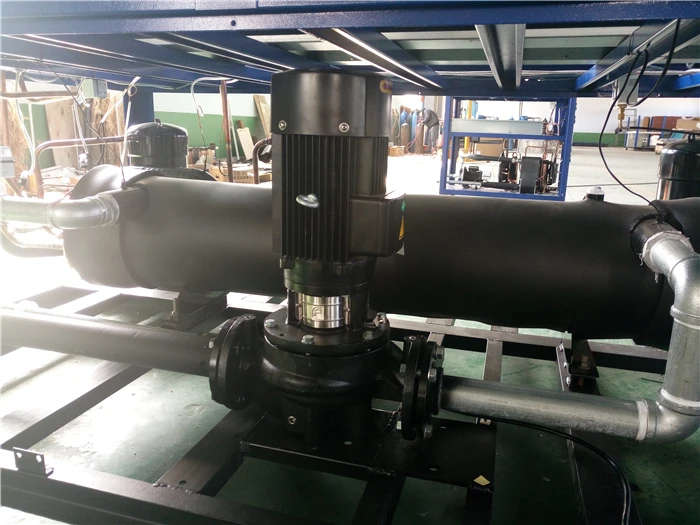

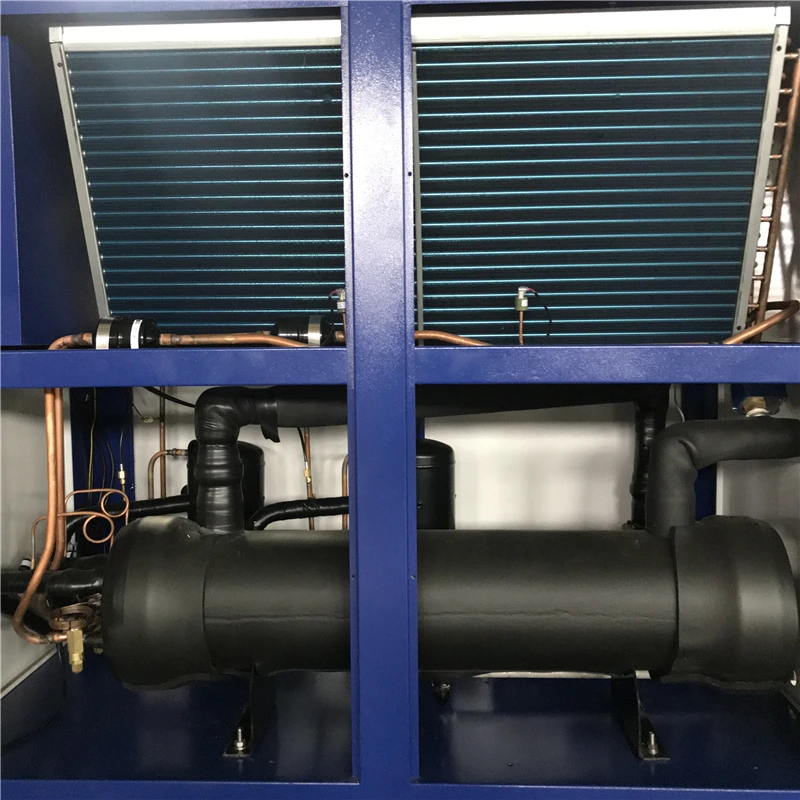

Stainless steel plate heat exchanger or shell and tube heat exchanger
--- Stainless steel plate heat exchanger or shell and tube heat exchanger are also available for the client’s requirements depending on the closed loop refrigeration system.
---Circulation between distillation tanks & stills heat removal for distilleries, control of fermentation temperatures, chilling after fermentation and storage cooling for kombucha processing, are other applications of fermentation chiller

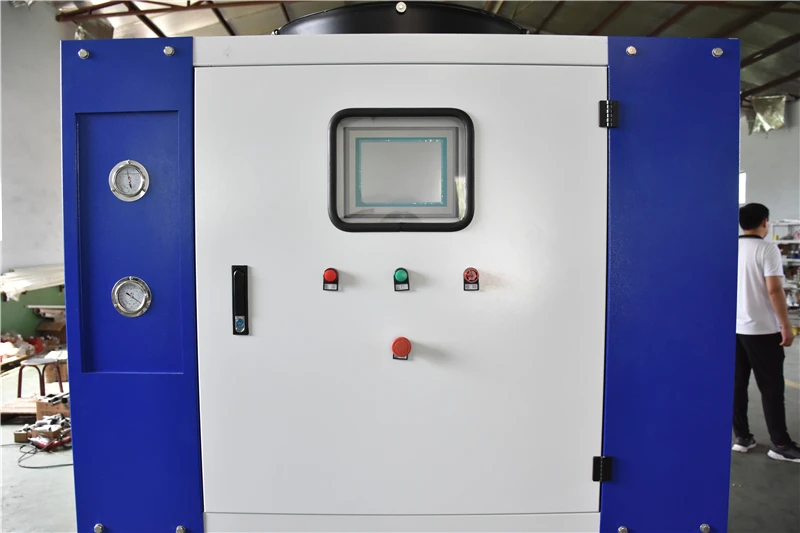

Control System
How does the temperature can affect the fermentation process?
Yes, the temperature really affects the rate of fermentation in yeast.
The rate should increase from 10°C to 40°C. At 50°C and above, the rates will decrease. …
The fermentation rate at high temperatures will be low because high temperatures are lethal to yeast.
Enzymes move too fast and denature at high temperatures.
We must use glycol chiller which can provide a constant cooling source to maintain and control the rate and temperature.
French Schneider,LS electric accessories.
Well designed and reasonable Pipelines-ensures power supply and saves energy
Well designed and reasonable Pipelines-ensures power supply and saves energy
High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection,
Anti-frozen protection.
Anti-frozen protection.

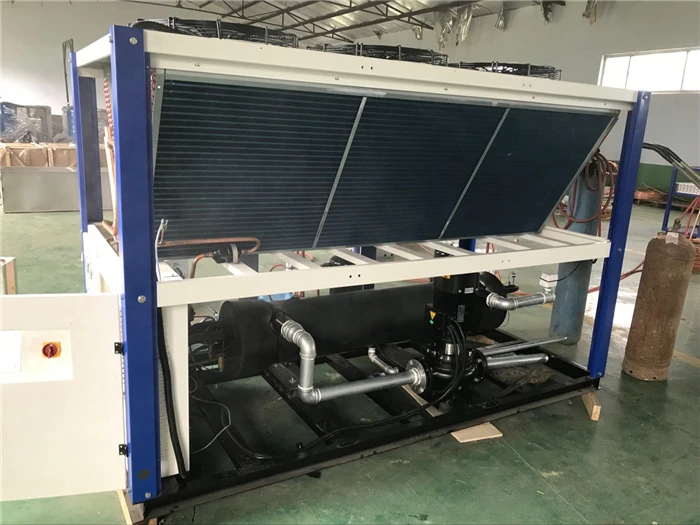

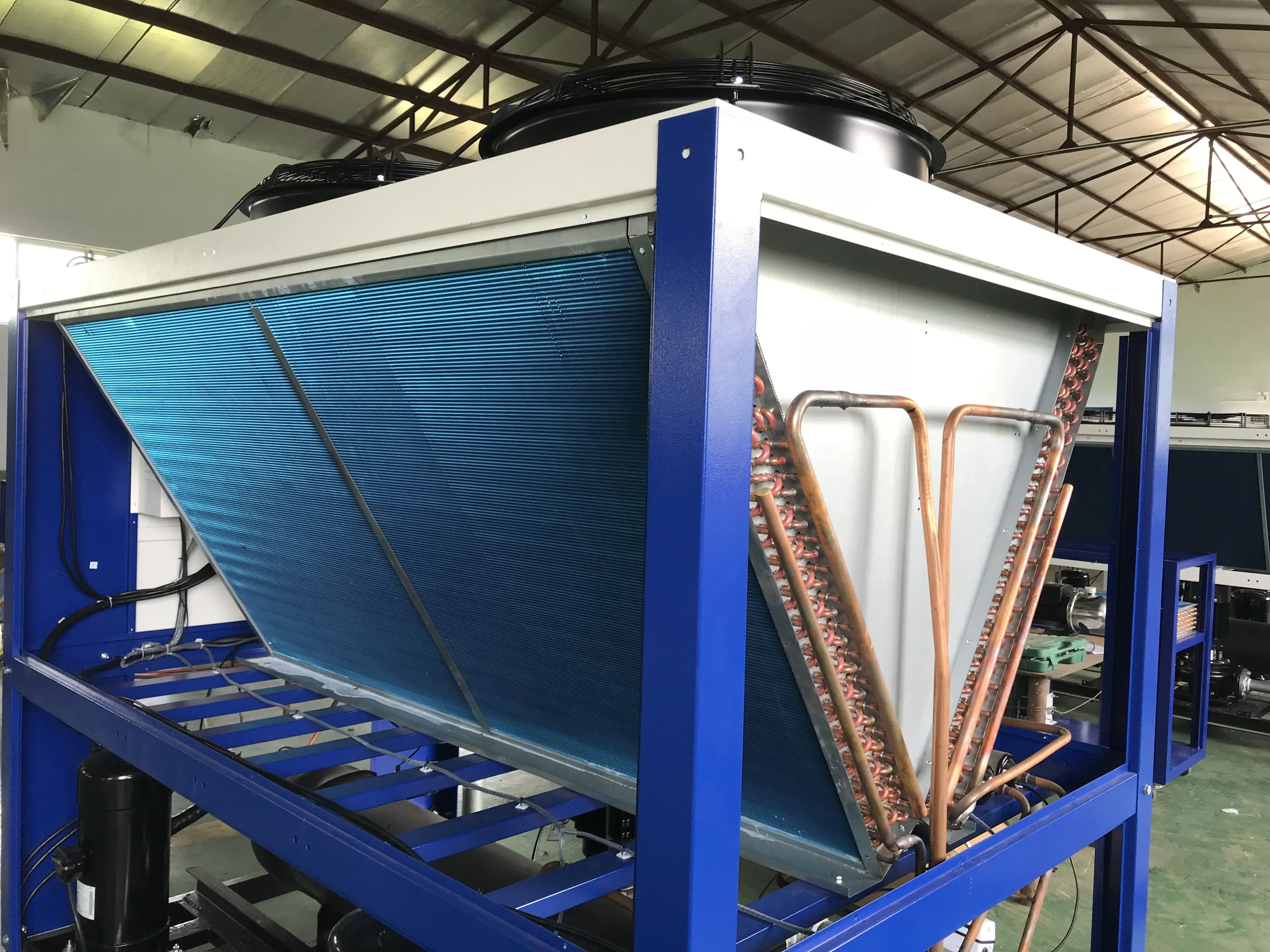

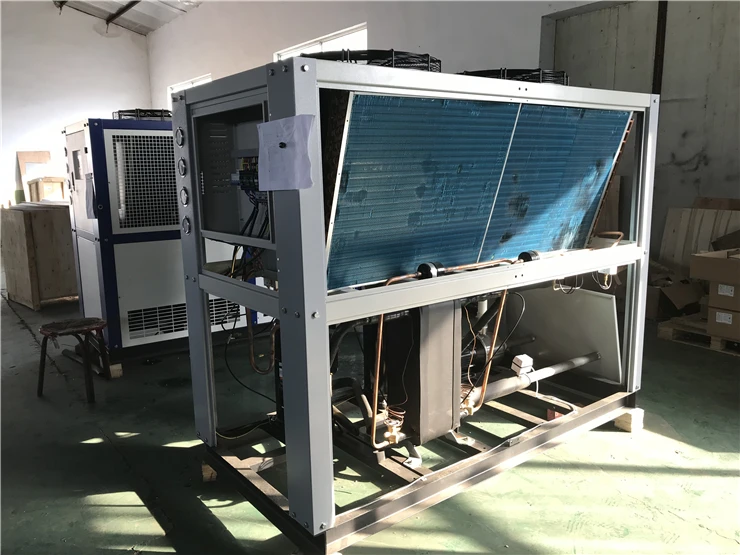

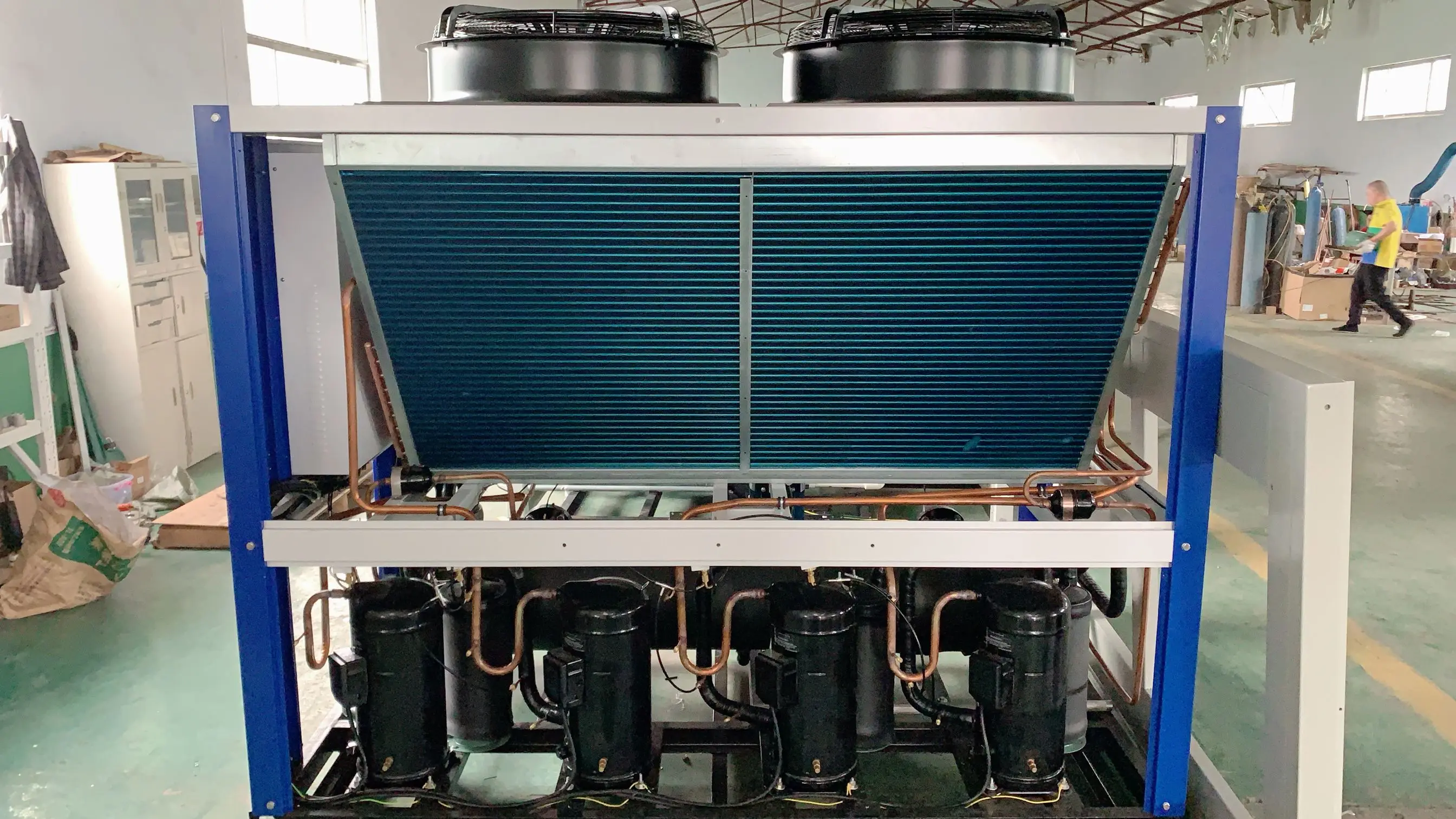

Air Cooled Type Condenser

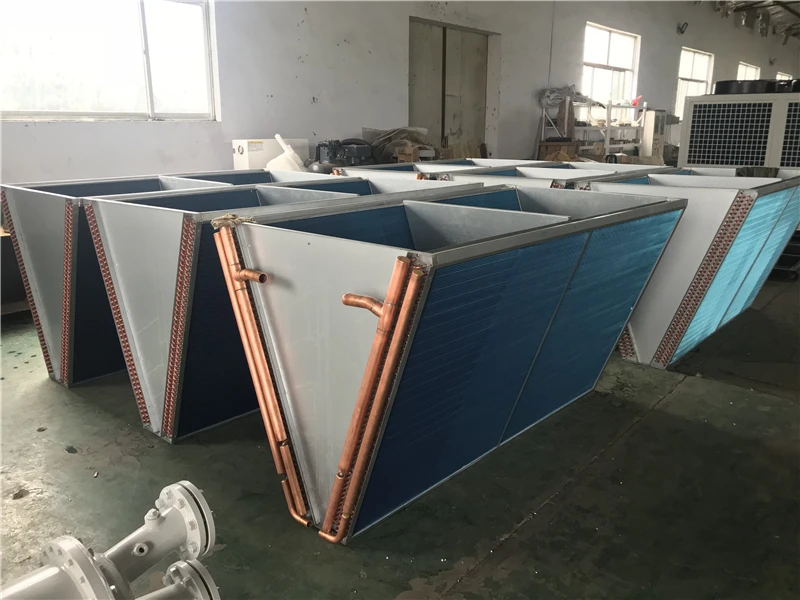

The condenser coils are usually made of copper tubes and aluminum fins and are assembled in the form of W to offer a larger heat exchange surface.
MGREENBELT using the last generation of microchannel condensing coils:
Long service life aluminum alloy
Reduced refrigerant charge
Several coating options available
Reduced refrigerant charge
Several coating options available
.

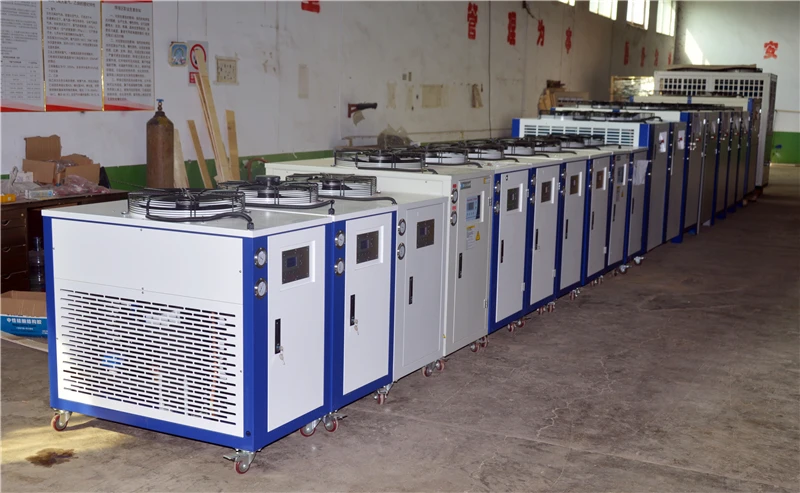

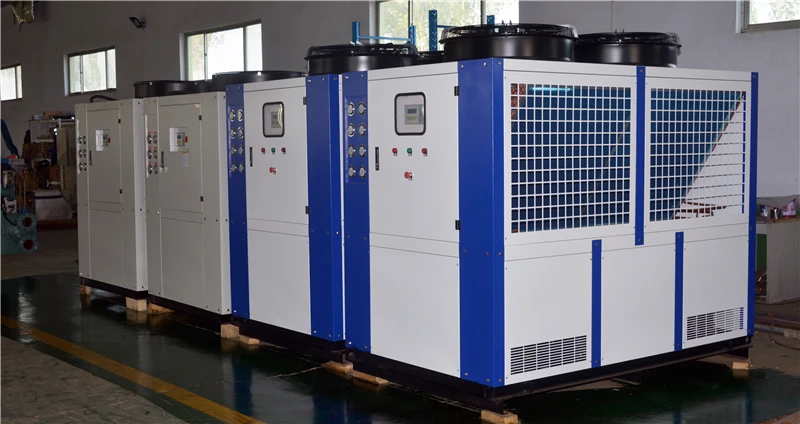

Factory
Main Product
Packing & Delivery
Packaging | ||
Size | 2300 (L) * 1260(W) * 2000(D) mm | |
Weight | 1250kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H) shipping by LCL; If air cooled chiller can be loaded in one contianer, we will shipping it by FCL; We accept any loading port in China, FOB OR CIF or other terms. | |
Our Service
China Top Service

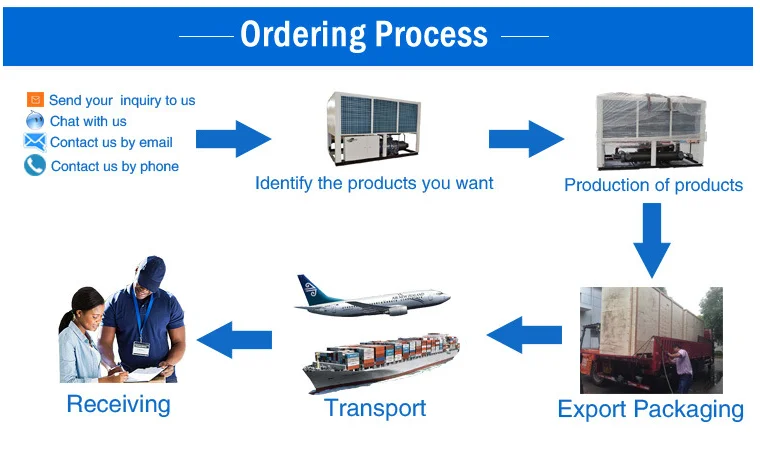

A. Order service
Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Advanced Payment-Production-Testing --Balance Payment- Packing &Delivery- Customs declaration- Documents to consignee- Assist of custom-cleaning --Instruction of Installation&Operation-Feedback
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
C. After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.
Professional engineer team will design the proposal and suply the install and system drawing for your prpject.
Spare parts provide in the air colled chiller's whole life.
FAQ
Frequently Asked Question
How about the quality of your product?
· Our products manufactured strictly according to national and international standard.
· We have CE, ISO certification.
· We take a test on every product before delivery.
· How about the price of this product?
· We can give the lowest price than market one.
· We do quotation as soon as possible for any customer.
· Discount can be given according to quantity.
· What is the MOQ?
· 1 set
· If you can be customized?
· We can make products according to customer's requirements.
· What is the voltage?
· 380V 50hz 3 phase or any other voltage according to client's requirement.
