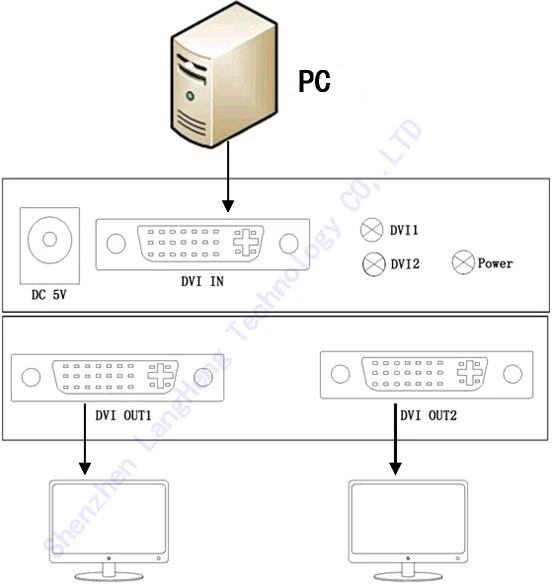

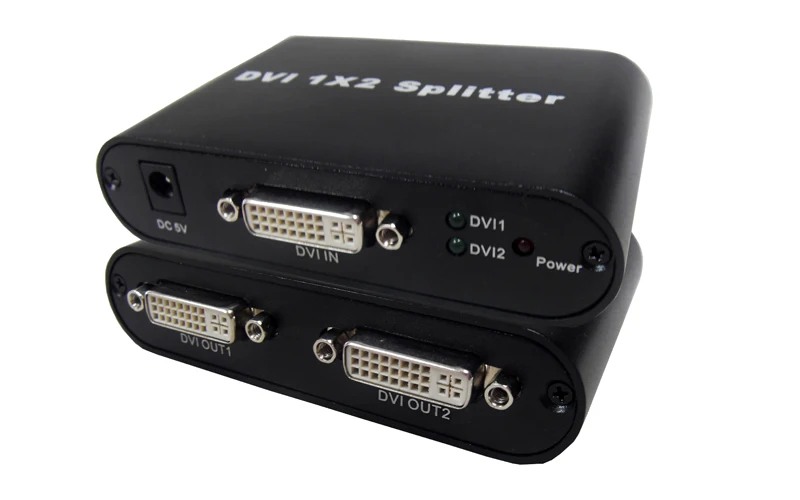

DVI-SP2 is a splitter with multiple digital video output. One way input and 2 way output. Each output has the same video quality as the source. It can work with DVI switchers, consist of a splitter/switch video system.
Specification:
Function
Input
1 way
Output
2 way
Video Port & Performance
Video Input Port
DVI-I (Support DVI-D signal only)
Video Output Port
DVI-I( Support DVI-D signal only )
Video Source Type
DVI1.0, DVI-D all digital T.M.D.S signal
Max Resolution
1920×1080@60HZ,1920×1200@60HZ
DVI Bandwidth
1.65GHZ
Input/Output Signal
T.M.D.S:800mVp_p
Input Cable
≤20m
Output Cable
≤20m
Physical Features
Size(L×W×H)
108mm×80mm×26mm
Case
Aluminum case
Color
Black
Net Weight
148g
Power Adaptor
Operating Voltage
Input:AC110V-220V,50/60HZ
Output:DC 5V/1A
Power Consumption
<0.6W
Surroundings
Operating Temperature
0℃-50℃
Storage Temperature
-20-80℃
Humidity
5%-75% (No condense)
FAQ
Are you a manufacturer?
Yes. We have own technical team and production line,Our company have over 200 kinds of product for your choice.
Can I get a sample?
Yes.Our MOQ is 1PC.We are pleasure to offer you samples.
