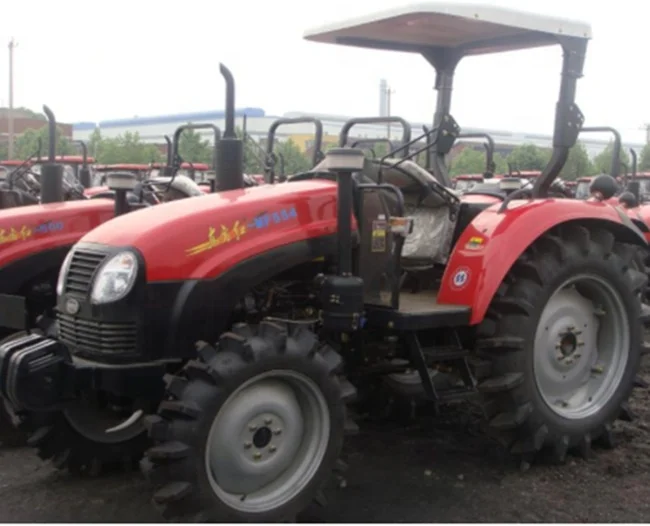

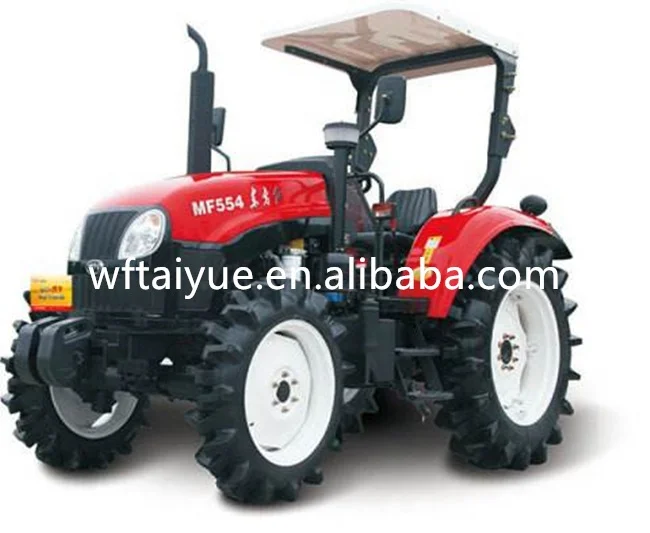

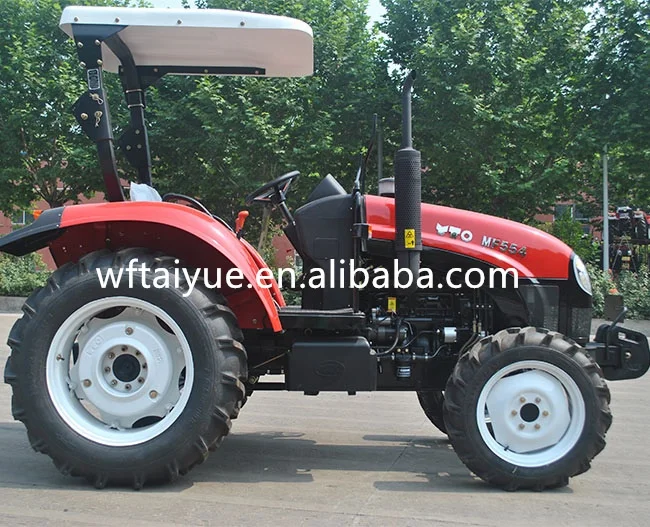

Direct export top quality yto 554 tractor
- Category: >>>
- Supplier: Weifang Taiyue Machinery Equipment Co. Ltd.
Share on (62348141390):
Product Overview
Description
Product Description

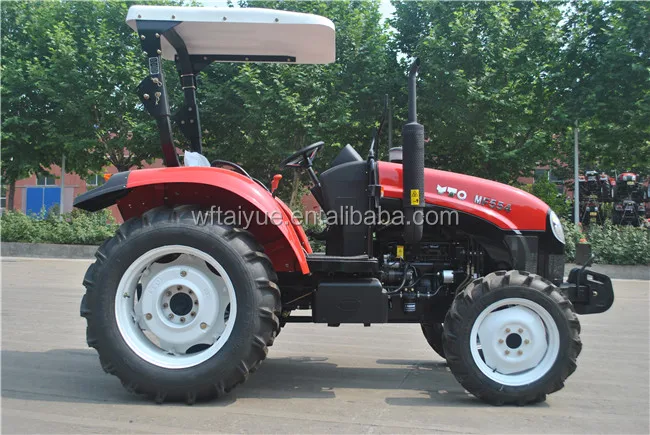

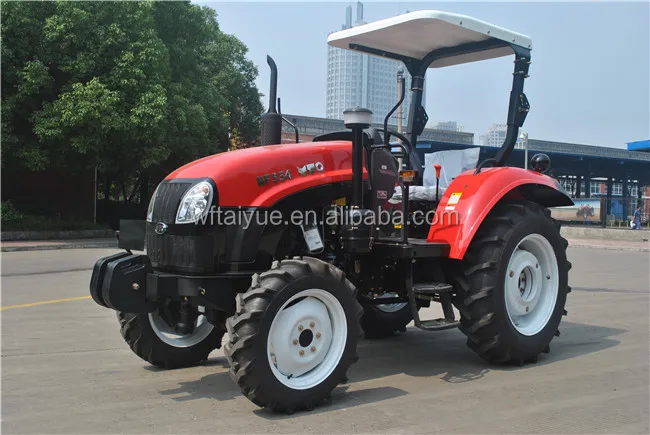

yto 554 tractor Features
1).YTO engine delivers high fuel efficiency, generates low emissions, and is eco friendly.
2).Reliable disc brake and OECD anti-turnover bar help ensure the operator safety.
3).Tractor awning is optional for high driving comfort.
4).Stepless adjustment of rear wheel tread makes the operation simpler.
5).Special tires for use on grassland farms are also available, thus making our wheel loaders better suit customers' requirements.
yto 554 tractor specification
Model | YTO-554 |
Diesel engine | |
Model | YT4A2-22 |
Type | Four cylinder, vertical, water cooled, four stroke |
Displacement (L) | 4.15 |
Rated power/speed(Kw)/(r/min) | 40.4/2200 |
Max. torque (N.m)/speed (r/min) | 214/1650 |
Bore x stroke (mm) | 105X120 |
Transmission | |
Gear shift, forward/backward | 8/4 |
Speed range (Km/h), forward/backward | 2.47~32.38/3.66~11.18 |
PTO power (Kw) | 36.7 |
PTO rotation speed(r/min) | 540/720 or 540/1000 |
Clutch | 11-inch, dry, double action |
Implement | |
Three-point linkage category | Rear three-point linkageⅠ |
Tilling depth control mode | Combined draft, position control and floating control |
Lifting force(KN) | 9 |
Options | |
Cab | Frame construction, streamlined shape, with fan; air conditioning system is optional |
Transmission with shuttle-type gear | 4x2x2 |
Transmission with creeper gear | 4x(2+1)x2 |
Luxury integral panel | 1 or 2 group |
Hydraulic output | Stepless adjustment |
Dimensions, mass, drive | |
Drive type | 4x4 |
Overall dimensions (LxWxH)(mm) | 3910x1745x2565 |
Wheelbase(mm) | 2127 |
Min. ground clearance(mm) | 350 |
Min. operating mass(with safety stand)(Kg) | 2380 |
Tyre spec., front /rear | 8.3-20/13.6-28 |
Wheel tread, front/rear | 1250/1300,1400,1500,1600 |
Steering | Full hydraulic |
Brake | Disc, mechanical |

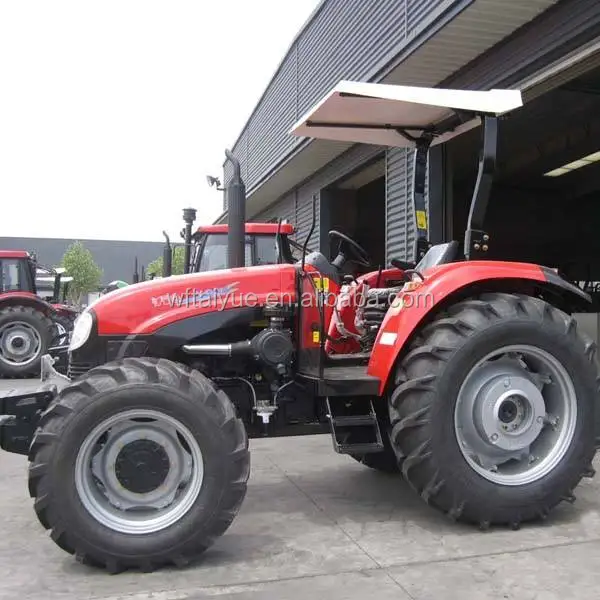

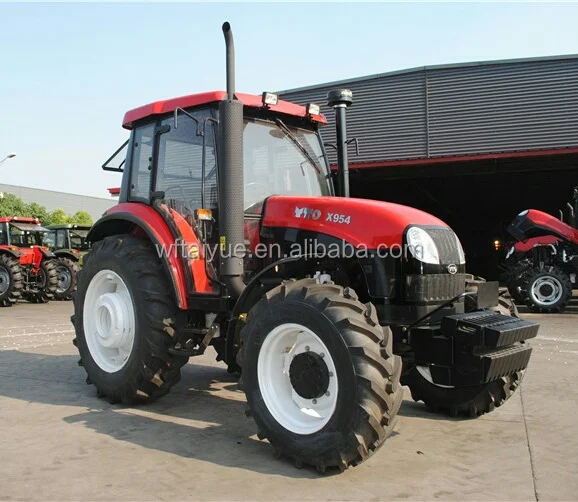

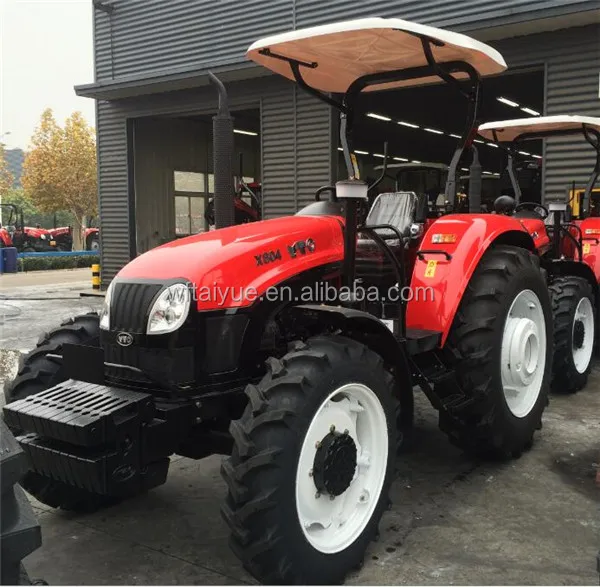

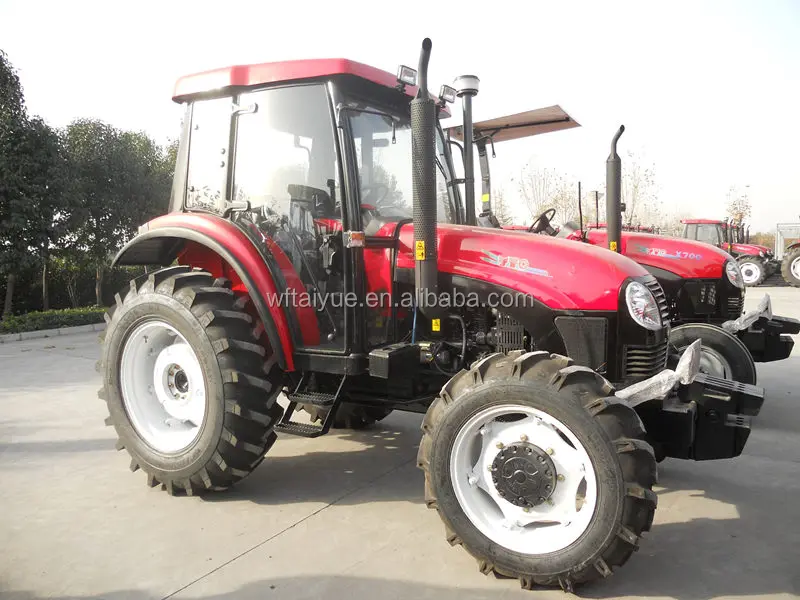

Other model of YTO tractor
