Product Overview

Description

Honey Ice Cream Homogenizer Head High Pressure inline Homogenizer For Yogurt 50L 100L 200L 300L 500L

Brief discribtion

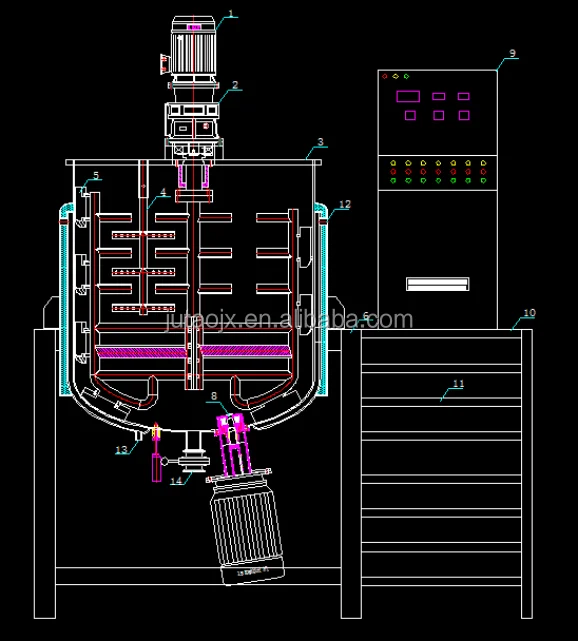

The machine is mainly composed of water pot , oil pot , emulsifying pot , vacuum system , lifting system ( optional) , electric control system (PLC is optional),operation platform.

Vacuum homogenizing emulsifier means that when the materials are under the vacuum condition,it makes use of the emulsifier to extruding,impacting,breaking and turbulence for over 100 thousand times per minute,after reciprocating circulation at high frequency,the fine finished products of stable and high quality without bubbles will be achieved.





Features and Advantages

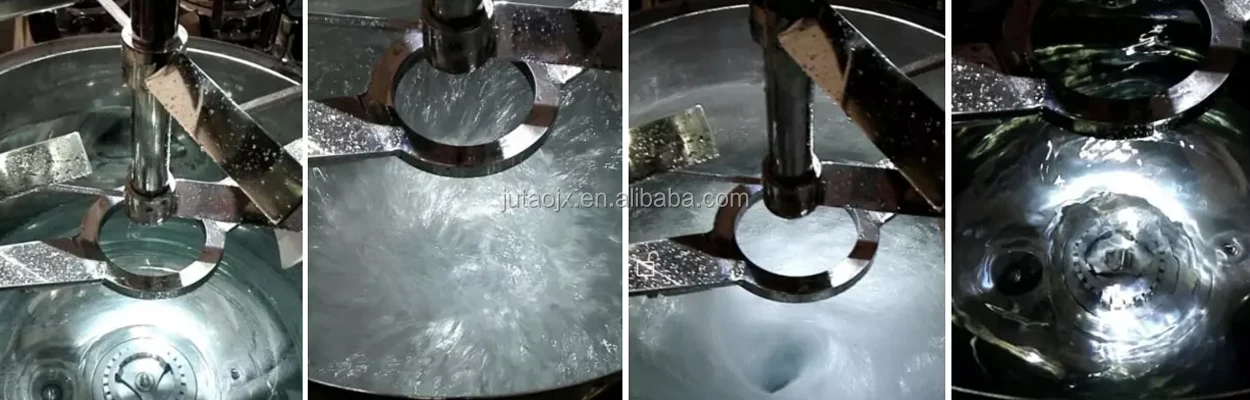

1.  Native emulsification device at the bottom, can use the emulsifying head circulate in high and low position to choose  to use emulsion or the outer loop emulsification.Using high-speed emulsification equipment  collocation slowly scraping edge effect,  raw materials can form powerful circulating water flow,  no dead Angle,  the product can fully be blended, emulsification, dispersion and homogeneous, forming good uniform molecular  structure.This type of emulsion system than  traditional emulsification effect is better.



2.  This device is composition by Oil tank,Water tank, ,Vacuum homogenizing emulsifying tank, Water cycle vacuum pump, Heating system, Lifting system, Operation Cabinet, Control system etc. It is the most applicable cream equipment  for produce high grade skin care products .



3.  Continuous working processing quantity is big and it can produce material circularly and homogenized and also can put positive pressure to produce material on main boiler which is convenient and fast.



4.   The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 4200rpm and the highest shearing fineness can reach 0.2-5 μm.



5. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.







Technical parameter



Model	Capacity	Emulsify		Agitator		Outside Dimension			total power steam/ electric heating(KW)	limit vacuum (mpa)
		KW	r/min	KW	r/min	Length	Width	Height
150	150L	2.8-4	1440/2800	1.5	0-63	1270	2500	2300	7/30	-0.09
250	250L	6.5-8	1440/2800	2.2	0-63	1480	2650	2700	9/35	-0.09
350	350L	6.5-8	1440/2800	3	0-63	1580	2800	2800	12/38	-0.085
500	500L	6.5-8	1440/2800	3	0-63	1780	3050	2950	15/50	-0.085
800	800L	9-11	1440/2800	4	0-63	1850	3250	3150	20/65	-0.085
1000	1000L	9-11	1440/2800	5.5	0-63	2100	3400	3650	29/75	-0.08
2000	2000L	11-14	1440/2800	5.5	0-63	2750	3950	4300	38/92	-0.08
3000	3000L	15-18	1440/2800	7.5	0-63	3000	4300	4500	43/120	-0.08

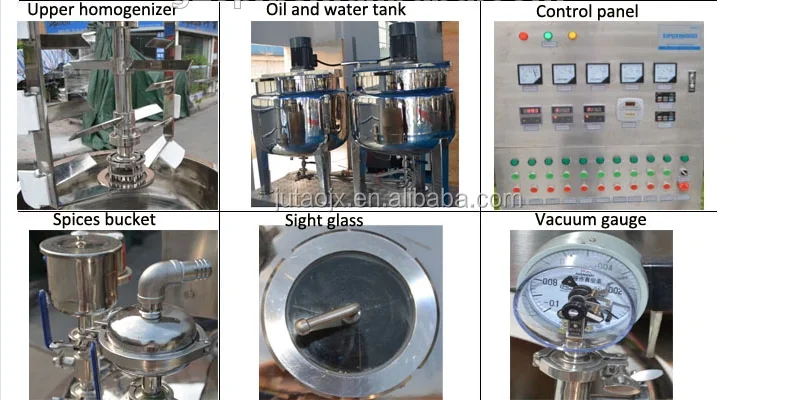

                                                       Material sources of parts

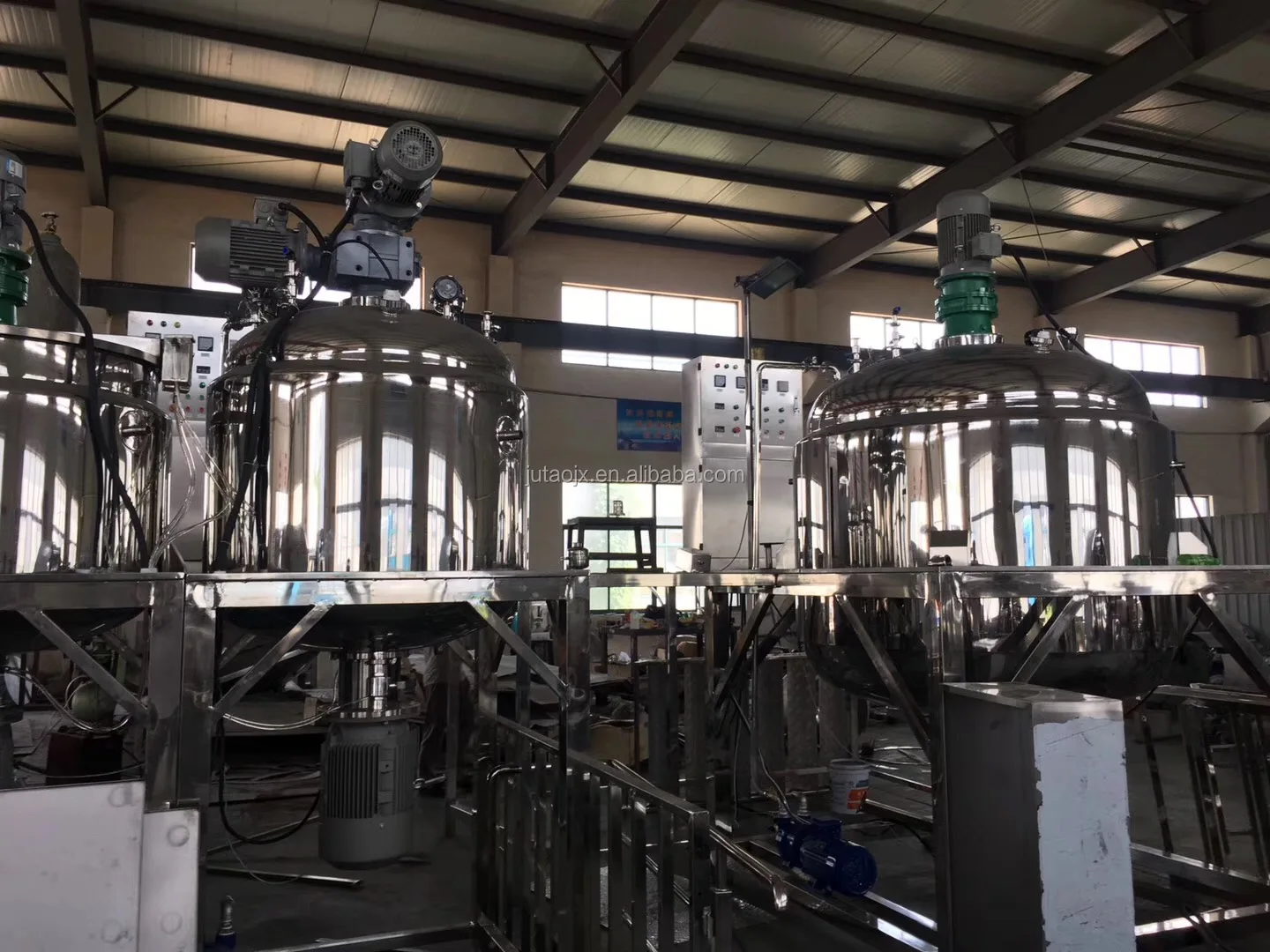

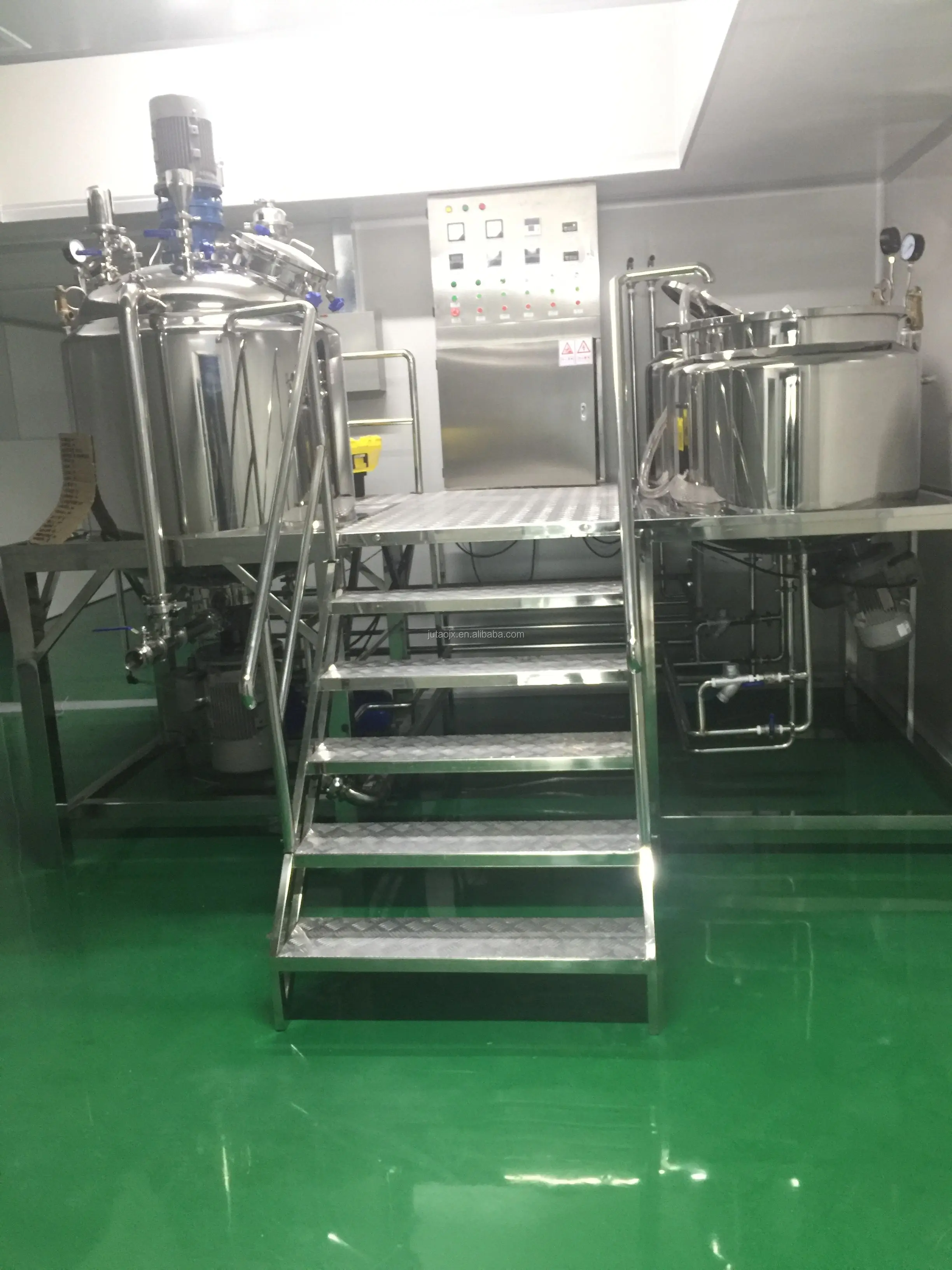

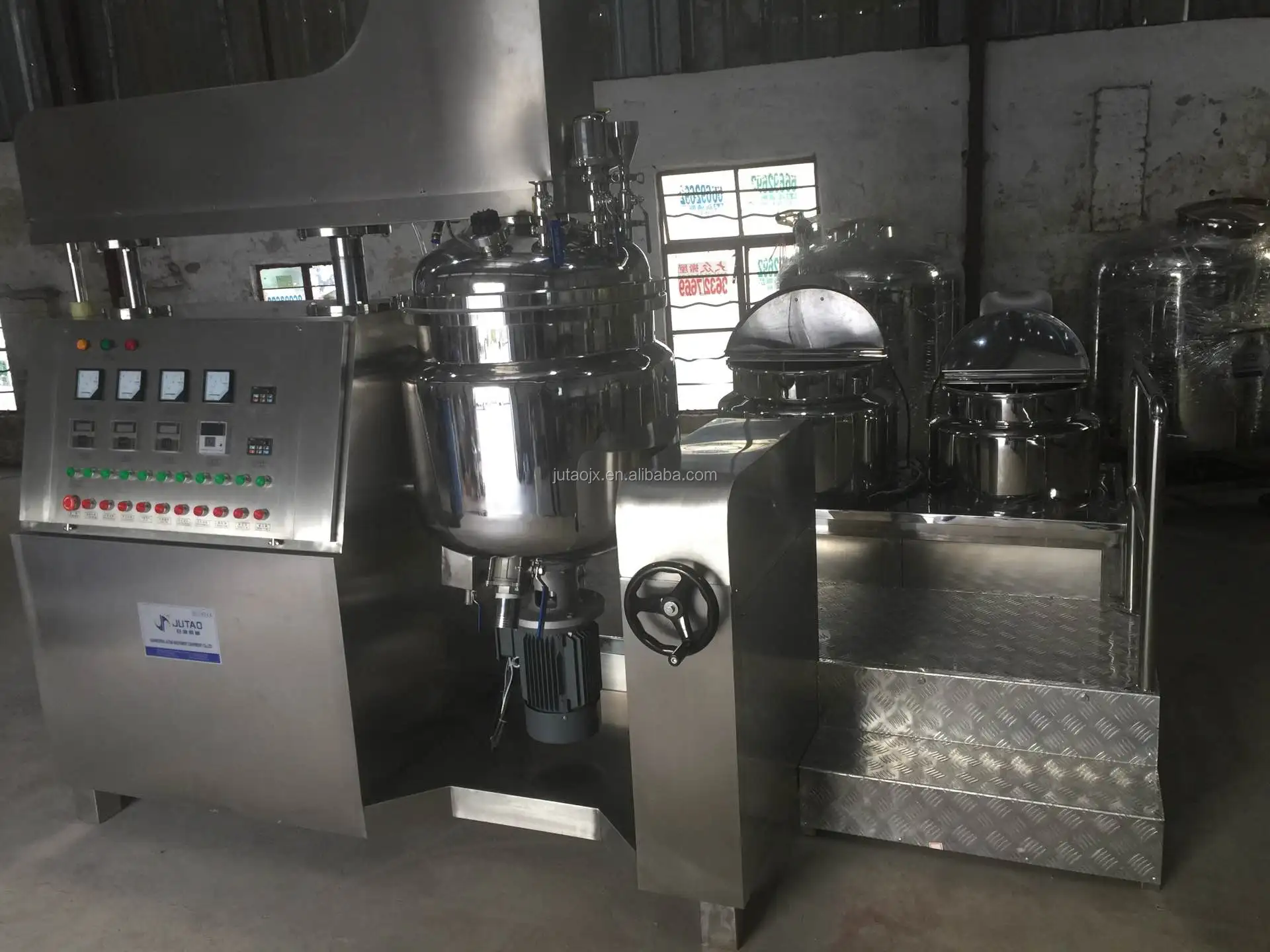

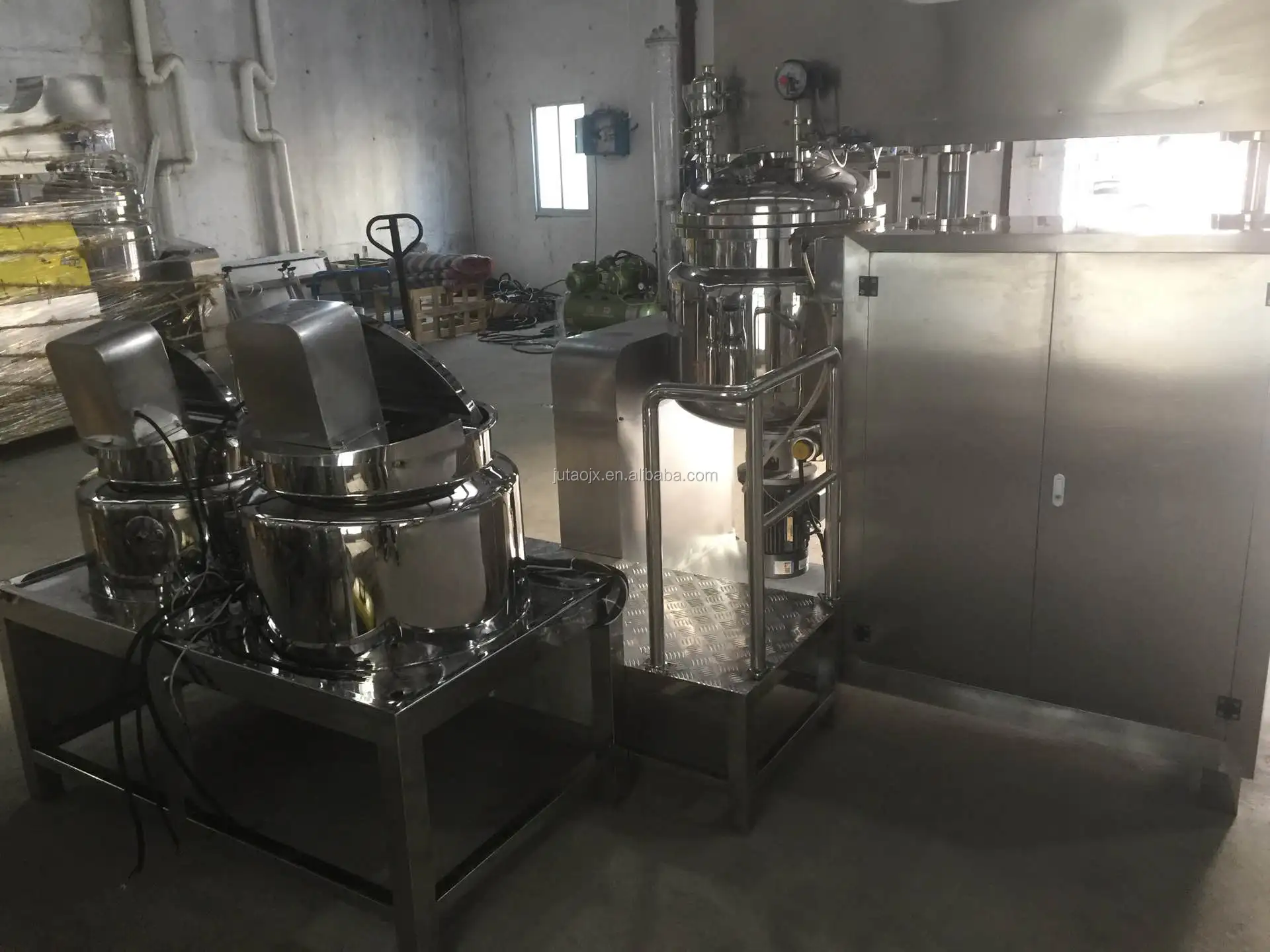

Finished products













 Notes: A quality department has been set up to control the product quality during every process of production. For years, we are strictly implementing International Quality Management System ISO 9001.

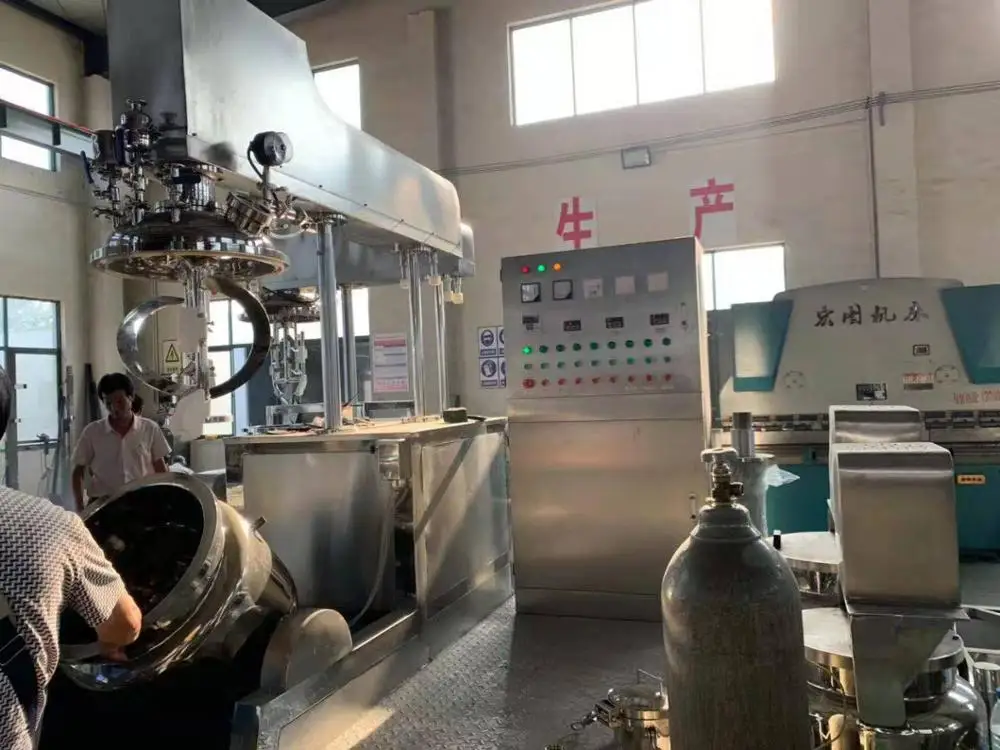

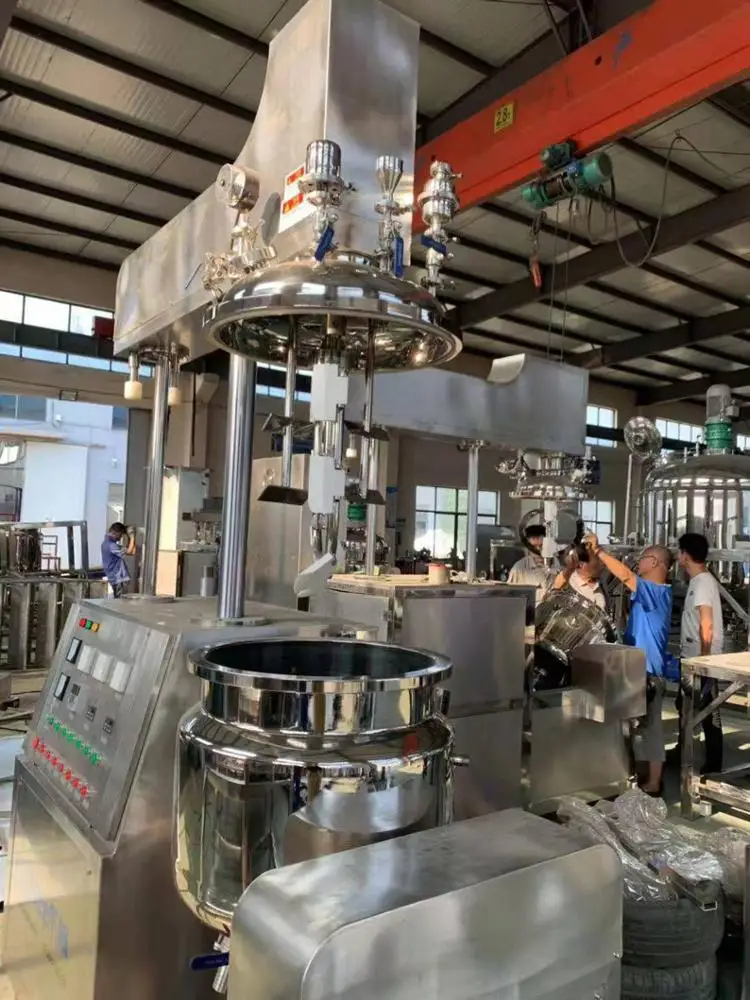

Notes: Founded in 1997, with 5 production lines and covering an area of 12,000 square meters, our factory has developed into a professional manufacturer of cosmetics machinery and equipment, by integrating R&D, manafacturing, sales and service. Advanced production equipments are the guarantee for high quality products.









Notes: Our product categories mainly include: Vacuum emulsifying mixer, Liquid washing mixer, Water treatment equipment, Perfume machine, Filling machine, Packing machine, Labeling machine etc. We are able to supply a wide range of high quality products for your One-stop sourcing in our exhibition center.











 Notes: We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.









Why choose us

FAQ



1. Q: Are you a manufacturer or a trading company?

     A:We are a professional manufacturer with over 10 years experience.



2. Q: How's your products?

    A:  Our good quality is built on superior material imported from Japan, Germany etc. We've pass ISO9001,CE,GMP. We are strictly implementing TQM(total quality management)system to control quality.



3. Q: How's your price?

    A: Our price is based on good quality, and we will give reasonable price to every customer!



4. Q: How about your after-sales service?



    A:  We can give you one years after-sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.



 5. Q: How to order?

    A: You can send us an inquiry / requirements, then we could confirm the details through email or telephone.
