This RJ45 HDMI Transmitter and Receiver kit gives you the flexibility to locate digital signage displays where you need them. Using your local network to extend a Full HD 1080P HDMI signal, you can seamlessly distribute video to multiple displays from multiple source devices, making it easy to position your displays.
You can add additional receivers (sold separately) to distribute your HDMI signal to multiple locations.
Extend your HDMI signal to up to 170 m with this HDMI over IP extender. Use your existing CAT5/5e cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs, in a point-to-point setup.
The extender also works to extend an infrared (IR) signal, enabling you to control your video source from the remote location.
Features
- Extends HDMI audio/video signals over a cost effective CAT5/5e cable up to 170m
- Sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference.
- HDMI1.3 and HDCP1.2 compliant
- Support video resolutions up to 1920*1080@60Hz
- Works in conjunction with existing network infrastructures via TCP/IP
- Supports three connection configurations: direct connect from transmitter (Tx) unit to receiver (Rx) unit; Tx unit to network switch to many Rx unit; Tx unit to many network switches to many Rx units
- The transmission distance can be further extended by using Network Switch (up to 100m per segment)
- Compatible with DVI signals when using an HDMI-to-DVI adapter
- IR remote control (optional)
Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a CAT5/5e cable for convenience
- Typical applications:
* Point-to-point and point-to-multipoint applications
* Distribute digital signage or entertainment content in schools, hospitals, office buildings, shopping centers or stadiums
* Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time * Present your social media feeds on multiple screens in a large viewing area
- Plug and play installation, no software or driver needed
- OEM service is acceptable
- This RJ45 transmitter and receiver kit is backed by a one-year limited warranty and lifetime technical support
Notes: - A good quality CAT5/5e cable is essential in delivering quality content. - This package comes with one Transmitter and one Receiver. For one Transmitter to multiple Receivers setup over the network, 1080p Receiver(s) can be purchased separately
Specifications
Type
RJ45 transmitter and receiver
Brand name
Langheng
Model no.
HDV-170D
Condition
Brand new
Enclosure
Aluminum
Compliance
HDMI1.3, HDCP1.2
Connectors
Transmitter:
1 X HDMI Type-A, female
1 X 3.5mm jack (IR out)
1 X RJ45 Ethernet connector
1 X DC power jack
Receiver:
1 X HDMI Type-A, female 1 X 3.5mm jack (IR in) 1 X RJ45 Ethernet connector 1 X DC power jack
Video resolutions
1080p/1080i/720p/720i/576p/576i/480p/480i
Color depth supported
24-bit, 30-bit deep color, 36-bit deep color
Supported audio formats
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS
0.5-1.5Vp-p(TTL)
DDC
5Vp-p(TTL)
IR control
3.5mm audio jack, one-way
Power supply
DC 5CV/1A
Power consumption
Transmitter: 4W
Receiver: 3W
Dimensions(LxWxH)
93*74*30mm
Working temperature
-15℃-55℃
Storage temperature
-40-80℃
Humidity
0-95% RH, no condensation
Warranty
One year limited warranty , lifetime technical support
OEM services
Logo printing, customized color and packaging artwork

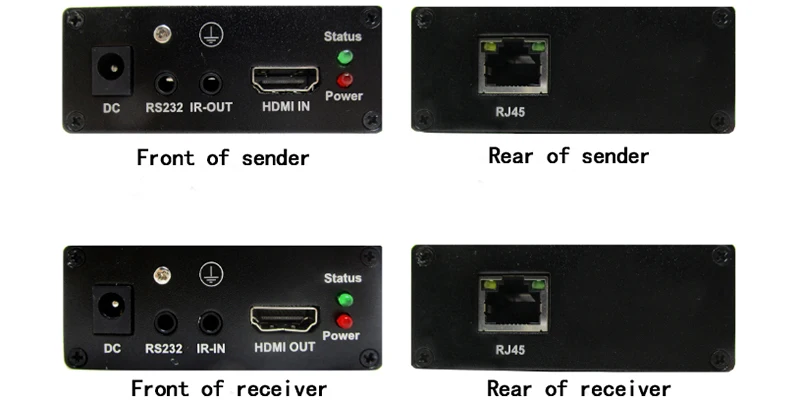

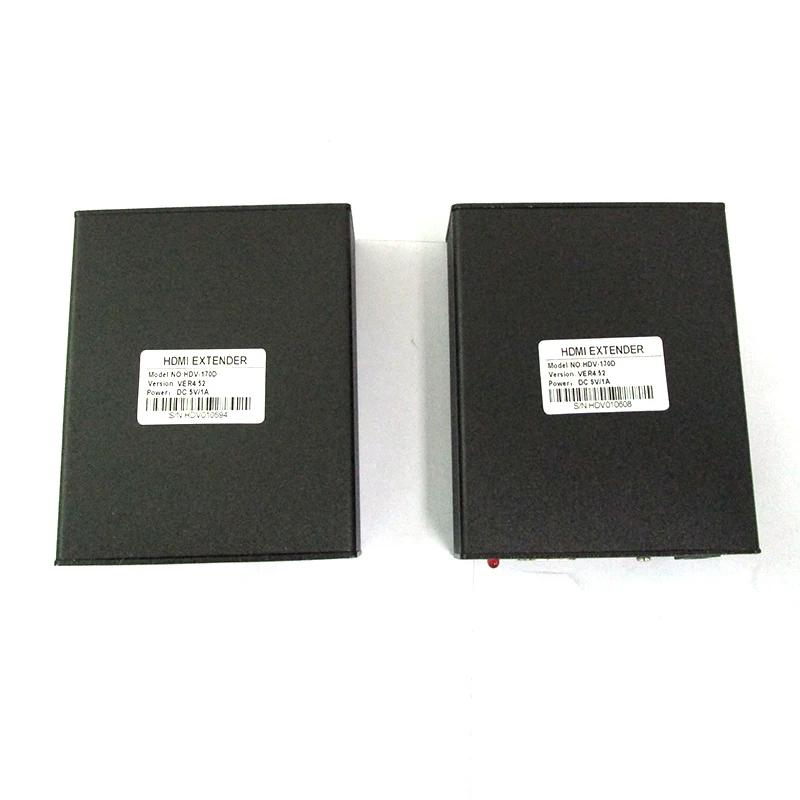

Detailed images

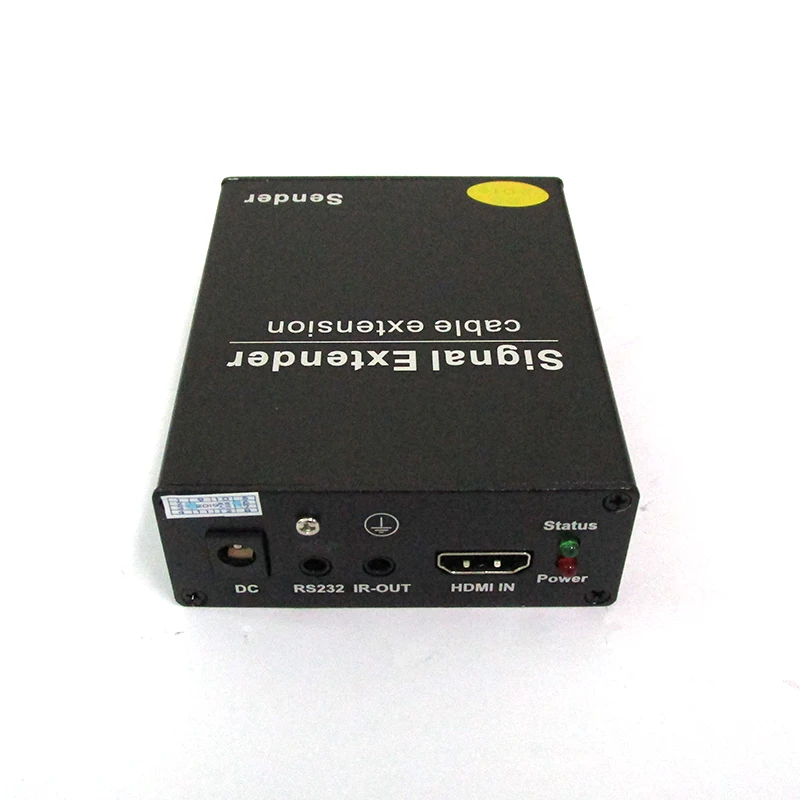

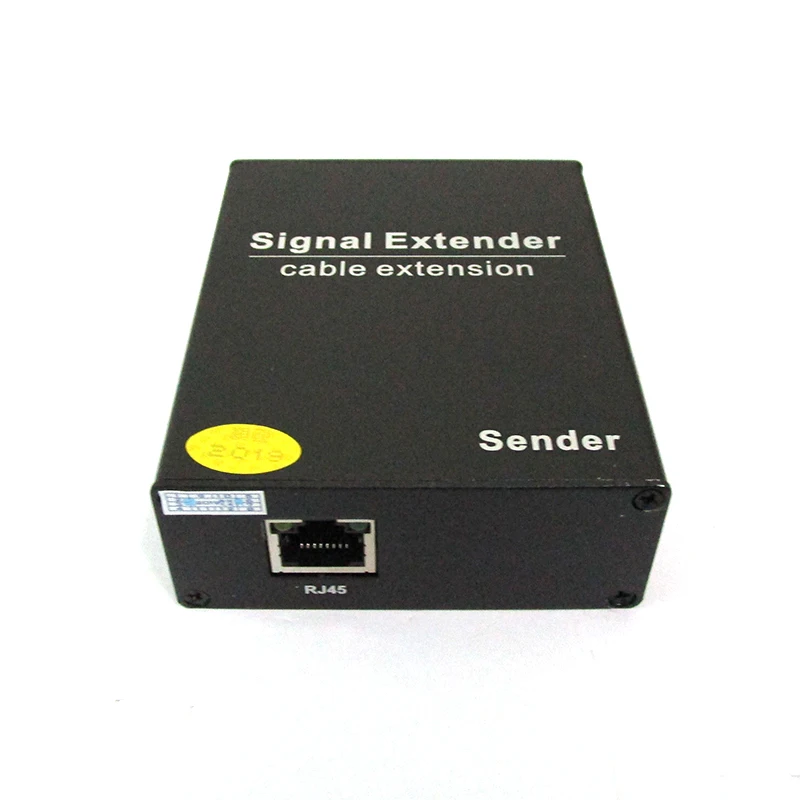

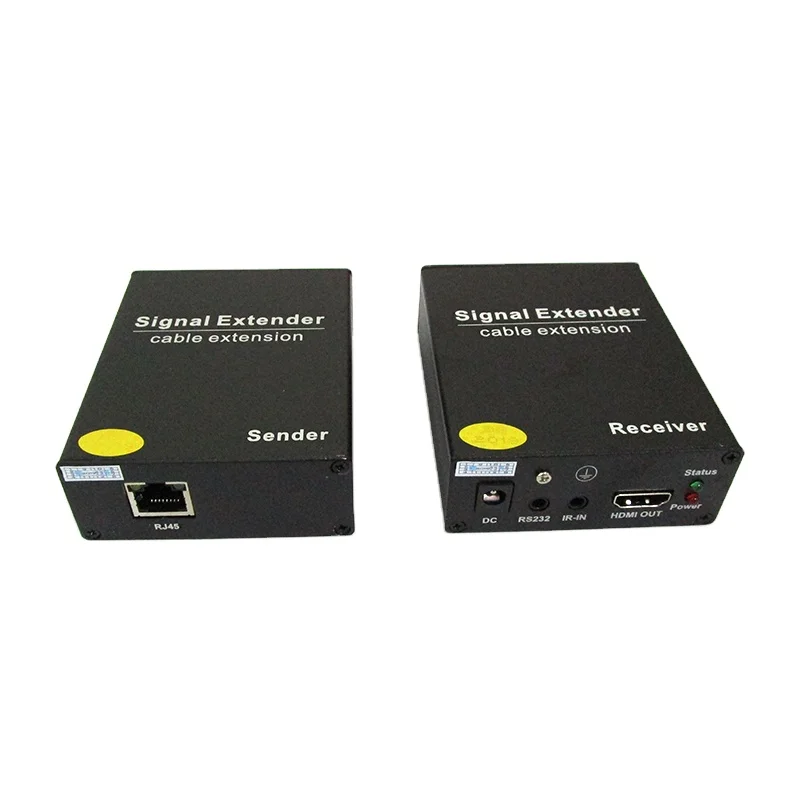

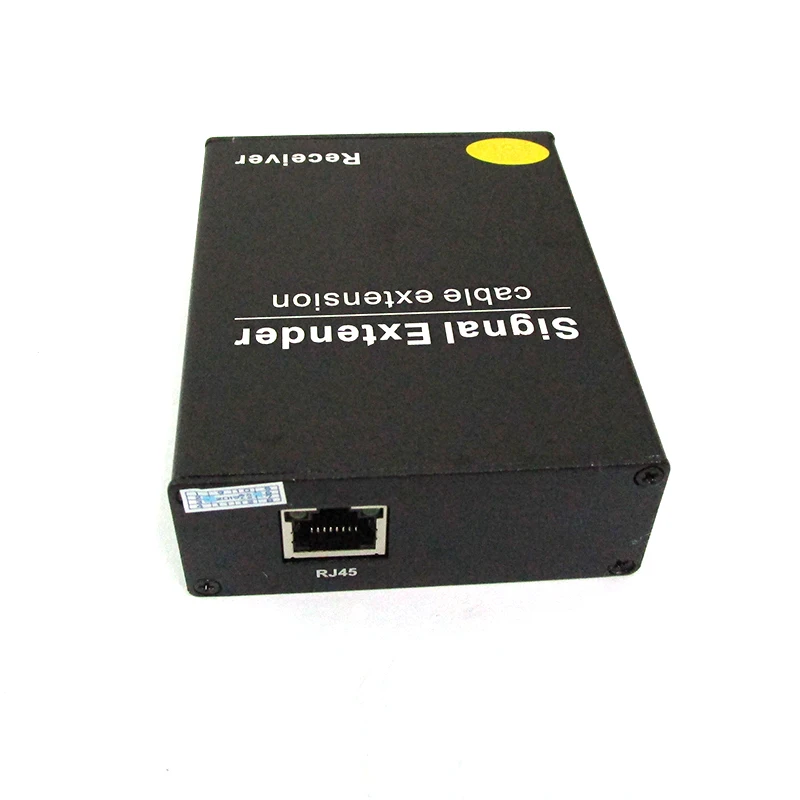

* HDMI IN: HDMI signal input port. Connect the HDMI source to this port using included HDMI cable
* IR OUT : Infrared 3.5mm socket. Plug IR Blaster extension cable here. * RJ45: Connect your Cat5e/6 cable here * HDMI OUT : HDMI signal output port. Connect to the HDMI display using an HDMI cable (not included) * IR IN: Infrared 3.5mm socket. Plug IR Receiver extension cable here. * DC power jacks: Connect the included 5V DC power adapters to this power receptacle * Power LED: This LED will glow bright red when the unit is powered * Status LED: This LED glows solid green when a link is established between the Sender and Receiver

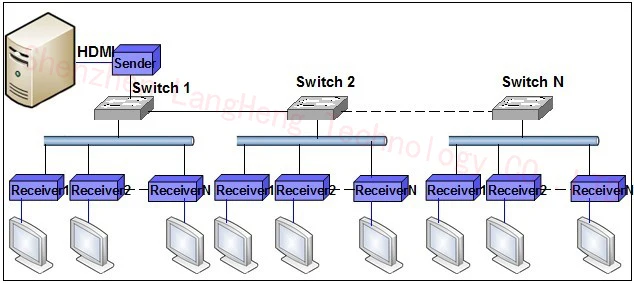

Connection diagram

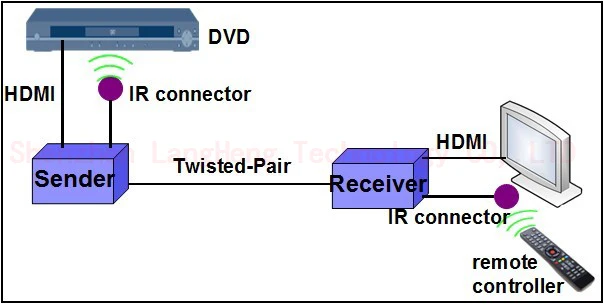

Point to point connection:
one transmitter to one receiver

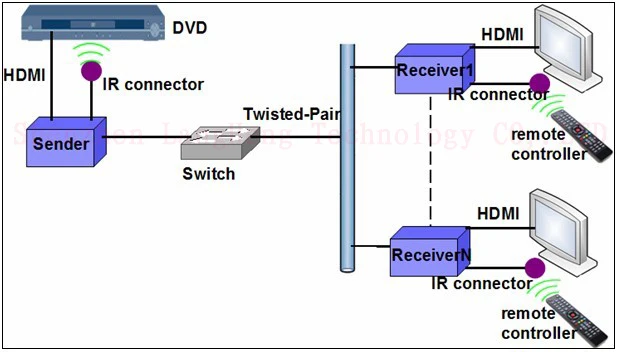

Point to multi-point connection 1:
one transmitter to Network switch to many receivers
Point to multi-point connection 2:
one transmitter to many Network switches to many receivers
Hardware installations:
Point to Point connection:
1 . Power off all devices, including the HDMI device (source) and display. 2. Connect your HDMI source to the transmitter's "HDMI IN" connector with the included HDMI cable 3. Optional: Plug the IR Blaster cable to the Transmitter's "IR OUT" port 4. Connect your HDMI display to the Receiver's "HDMI OUT" connector with another HDMI cable (not included). 5. Optional: Connect the IR Receiver extension cable to the receiver's "IR IN" port. 6. Connect and link the Transmitter and Receiver by a CAT5/5e cable. 7. Plug the included power adapters into the Transmitter's and Receiver's Power Jack, then plug the power adapters into any reliable power outlet. 8. Power on your HDMI device and HDMI display. 9. The HDMI Extender is ready for use
Point-to-multipoint Connection: • When using a LAN Connection, follow the Point to Point connection instructions but instead of connecting the Transmitter and Receiver to each other, connect each of them to a Network Switch using a CAT 5/5e Cable.
Packing & Delivery
- Package: White box
- Package included: 1 X Transmitter unit
1 X Receiver unit 1 X HDMI Extension cable 2 X DC power adapters(US/EU/UK...plugs) 1 X IR emitter/receiver sets（optional） 1 X User manual
- Packing info.: * Dimensions of transmitter/receiver unit: 93*74*30mm
- Delivery time: 3-5 working days after receiving payment
- Shipping & Payment:
- All of our products are 100% tested & inspected and well packed before shipping. - Shipping method: DHL/UPS/FedEx/EMS express, by air or by sea - Payment terms: T/T, West Union, Paypal,Moneygram, Escrow , L/C....
Company Profile
Shenzhen Langcen Technology Co., Ltd is a professional manufacturer of quality computer connectivity solutions products.These products establish the connection or increase the bandwidth capability between a computer system and its connected external devices.
We offer a series of KVM products for small/home offices.The Enterprise solutions offer a series of Over IP solutions that allow customers to effectively manage IT infrastructure from anywhere in the world. The Professional Audio / Video line offers integrated video solutions for home and professional use for a variety of uses including corporate, education, hospitality, commercial and home theater applications.
Our priority is quality control so the 100% of our products undergo advance tests on every stage of the production. All the processes in the factory are constantly improved by experienced engineers which result in effectiveness and quality.
FAQ
1. Do they have to be used as specific pairs or can any transmitter be used with any receiver? Yes, they have to be used as pairs.
2. What exactly can I do with this? Connect hundreds of displays to a single HDMI source.
3. Is the system HDCP/DDP compliant? Yes, the units are HDCP1.2 compliant.
4. How far can I transmit HDMI signals? Up to 170m over a single Category 5/5e cable. The distance can be further extended by using network switches.
5. What is included in the kit? The kit includes one transmitter unit, one receiver unit, an HDMI cable ,two power supplies and one user manual.
IR emitter/receiver cables are optional.
6. Do you accept trial orders/sample orders? Yes.
7. Do you supply OEM services? Yes.Logo printing, customized colors and packaging artwork is acceptable.
