DC 12V 24V 36V 48V 60V 72V Digital gasoline engine generator for truck air conditioner

Product Overview

Description

DC 12V 24V 36V 48V 60V 72V Digital gasoline generator for truck air conditioner

Engine	Original Honda engine
Technical Data
Maximum output (W)	3000
Continuous output (W)	2600
Net weight (kg)	45
Height (mm)	290
Depth (mm)	385
Width (mm)	480
Width with suspension (mm)	580
THDV (%)	1
Frequency (Hz ±1%)	50
Max starting current (A)	33
Engine	GX 160/5.5 HP
Engine output (kW)	4.0 (5.5 HP)
Displacement (cm³)	163.4
Consumption max. (l/h)	1.2
Consumption LPG max. (kg/h)	1
Sound level (dBA/7m)	53-60
Guaranteed sound level (dBA)	85

DC 12V,24V,48,60V,72V Range Extender DC Honda engine gasoline slient generator for RV motorhomes Caravan AUTO CAR TRuck

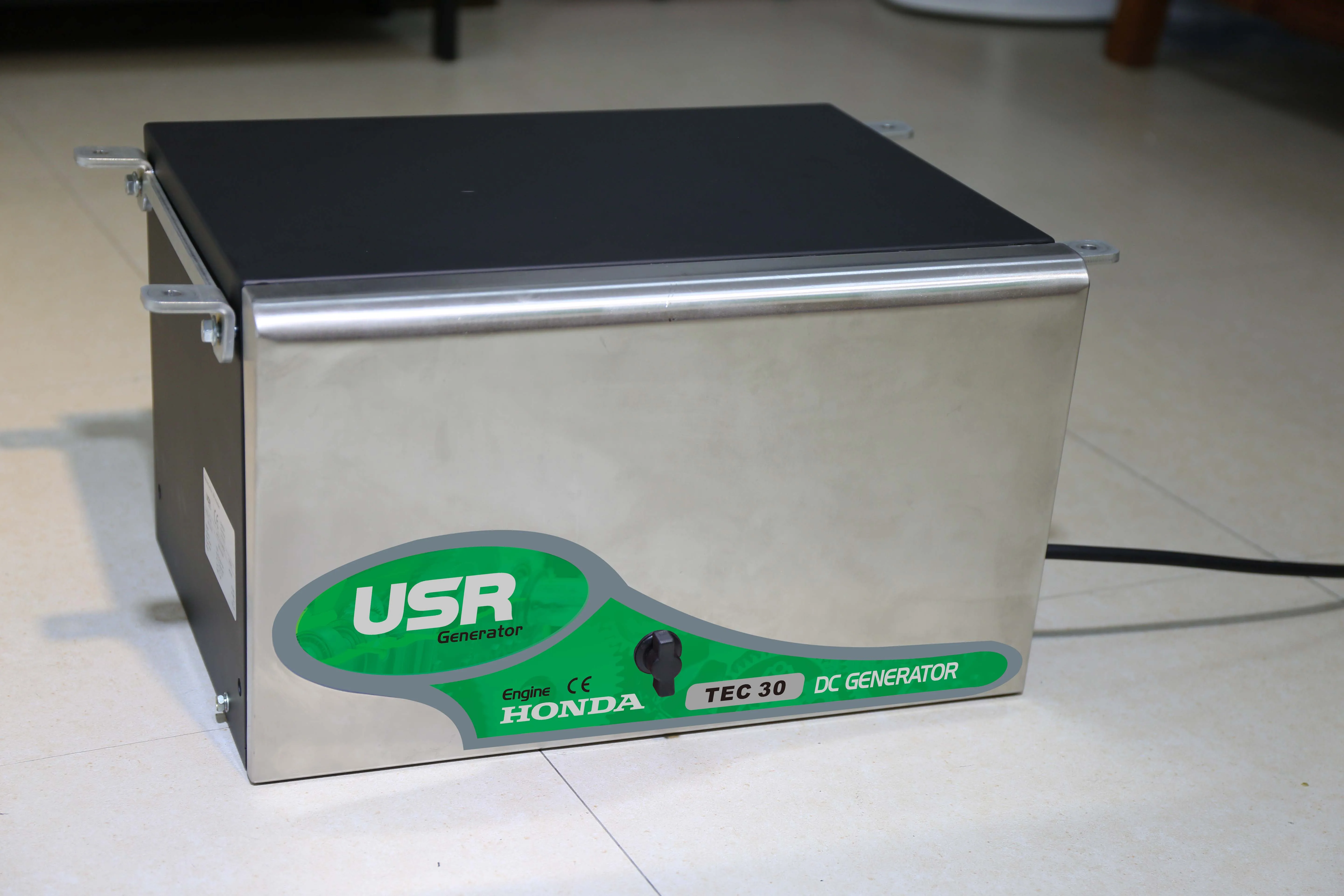

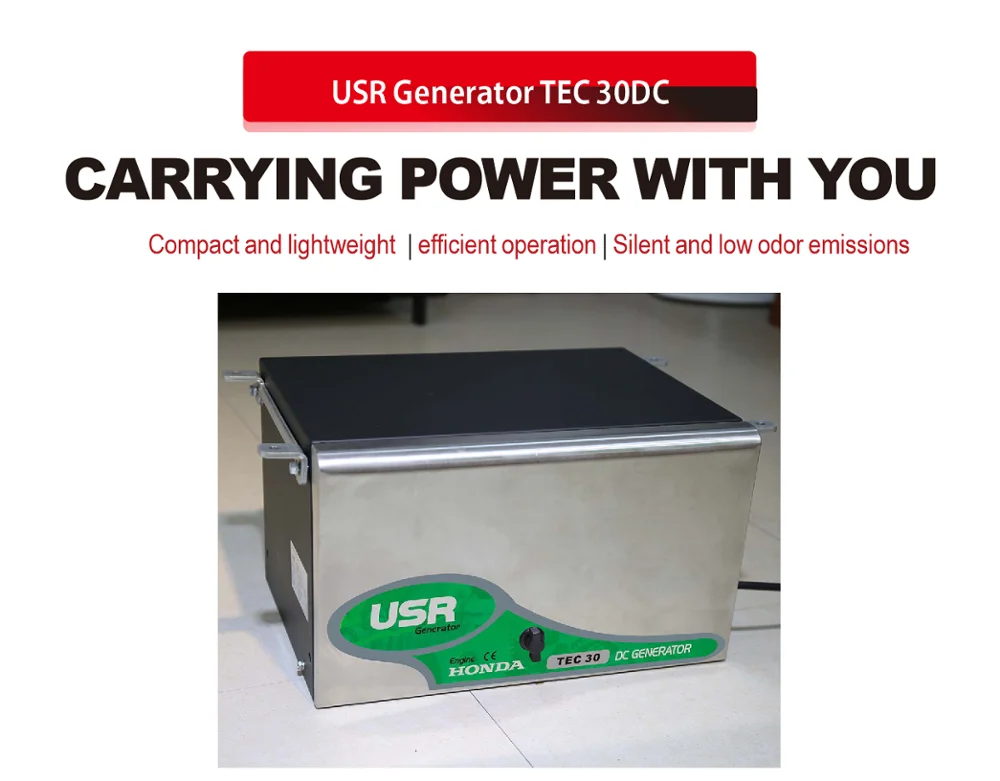

Model: TEC-30DC

DC Generator 3kW, inverter generator Technology. DC range extender generator

3kW gasoline slient DC generator for Truck & RV

FEATURES

COMFORTABLE CLIMATE WHEN MAINS POWER IS UNAVAILABLE
Travelling off the beaten track with all the comfort you are accustomed to – USR generators make it possible. They ensure reliable power supply wherever mains power is unavailable. This makes them a must-have accessory for outdoor enthusiasts striving for maximum freedom and independence. Geared to the needs of camping enthusiasts, the TEC-30DC petrol generator ensures self-sufficient operation of all USR RV air conditioners. Naturally, it will supply other gadgets too. Outstanding benefits: lightweight, efficient operation with reduced noise and odour emission.

USR TEC-30DC is a highly compact and lightweight generator fuelled by regular unleaded petrol. Ideal for fitting under the vehicle floor, it provides 60A continuous output and is also extremely efficient, with minimal noise and smell emission. Its convenient auto start function starts the generator to recharge a battery as soon as its voltage becomes low. Like all USR generators the TEC-30 is supplied complete with remote control. There's no reason to ever be without power!
SPECIFICATIONS
GENERAL

Model TEC-30 DC

Scope of delivery Generator, control panel + 5mt cable, external silencer + 2mt flexible exhaust pipe, brackets, change over switch, clamps, washers, muffler curve, fuel filter, cut out template, user and installation manuals
Product Description Petrol generator
DIMENSIONS

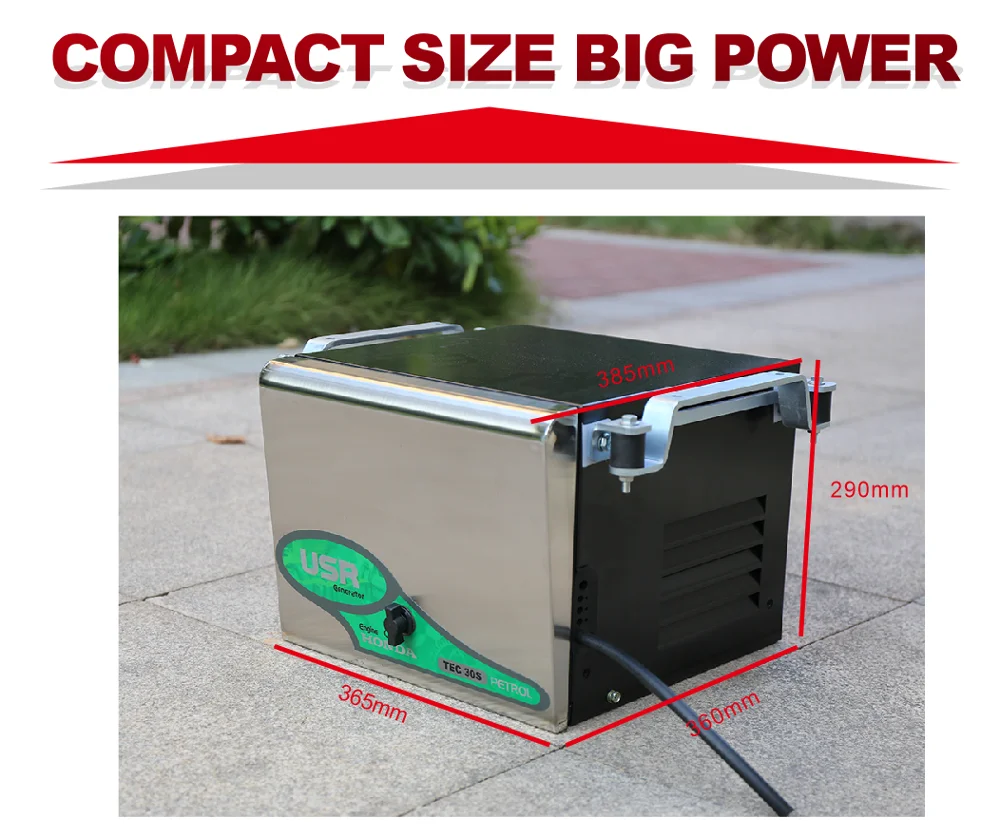

Dimensions product depth 385 mm
Dimensions product height 290 mm
Dimensions product width 480 mm
Net weight 44 kg

ELECTRICAL
Output voltage 12V-72V



PERFORMANCE
Continuous power 25°C 60A
Operating temperature min -15.00 °C
Operating temperature max 50.00 °C
Fuel type RON 91 Regular Grade Petrol



LOGISTICS
Dimensions parcel depth 550 mm
Dimensions parcel height 328 mm
Dimensions parcel width 600 mm
Parcel weight 59 kg
