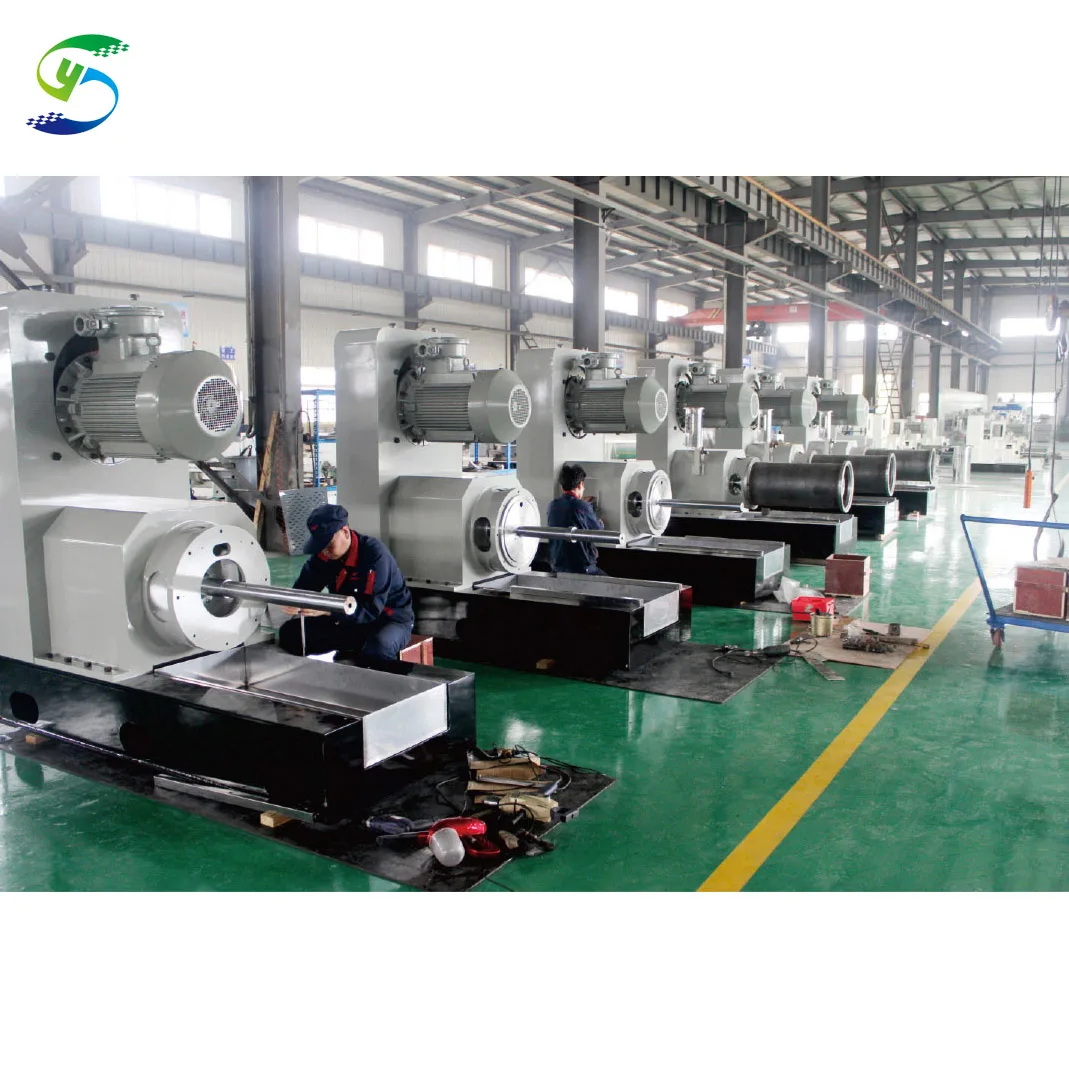

Nano Degree Laboratories Fine Grinding Mill and Lab Horizontal Mill
- Category: >>>
- Supplier: Qinhuangdao Yushun Intelligent Technology Co. Ltd.
Share on (62348458382):
Product Overview
Description

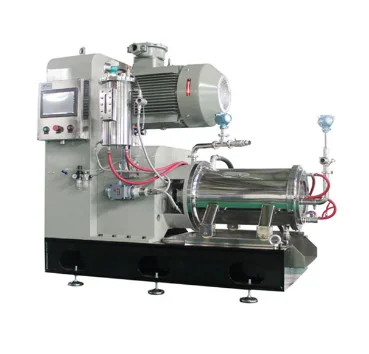

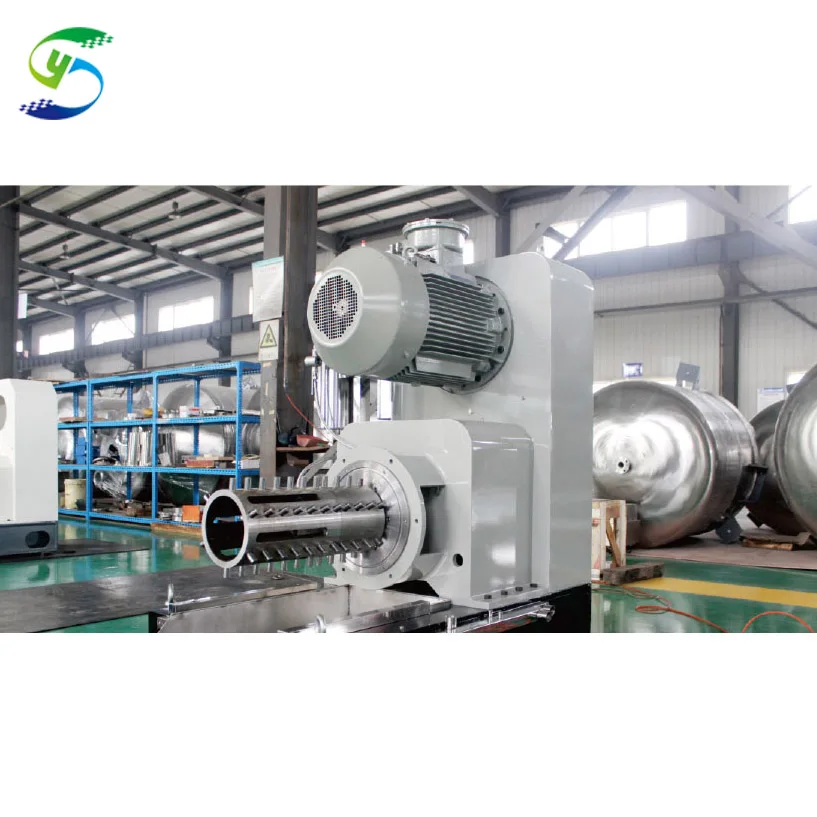

Nano Degree Laboratories Fine Grinding Mill and Lab Horizontal Mill
Product Description
This mill adopts advanced grinding technology to grind products to super fineness, high grinding efficiency, large production capacity, low energy consumption, etc.
|
Main Feature
|
- Technical Parameter
| Item/Model | BS-5 | BS-10 | BS-20 | BS-30 | BS-60 | BS-100 |
| Tank Effective Volume(L) | 4.8 | 9.2 | 20 | 29 | 58 | 98 |
| Main Motor Power(KW) | 5.5 | 11 | 30 | 37 | 45-55 | 75 |
| Main Shaft Speed(r/min) | 1440 | 1273 | 1120 | 838 | 694 | 533 |
| Product Viscosity(Pa.s) | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 |
| Grinding Media Quantity(L) | 2.7-3.3 | 3.9-5.5 | 10-13.5 | 14.4-20.5 | 23-32.6 | 44.7-63.37 |
| GrindingMedia Diameter(mm) | 0.6-1.5 | 0.8-2.5 | 0.8-2.5 | 0.8-2.5 | 0.8-2.5 | 0.8-2.5 |
| Production Capacity(kg) | 10-100 | 30-300 | 40-400 | 50-500 | 70-700 | 120-1200 |
| Air Consumption(m3/h) | 0-0.3 | 0-0.4 | 0-0.5 | 0-0.6 | 0-0.6 | 0-1.5 |
| Water Consumption(m3/h) | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Feed Tube Diameter | G3/4" | G3/4" | G1" | G1" | G1 1/2" | G1 1/2" |
| Discharge Tube Diameter | G1" | G1" | G1" | G1 1/2" | G2" | G2" |
| Cooling Tube | G3/8" | G3/8" | G1/2" | G1/2" | G1/2" | G1/2" |
| Weight(T) | About 1 | About 1.2 | About 1.3 | About 2 | About 2.6 | About 3 |
| Measuremeent(L*W*H,mm) | 900x700x950 | 1250x800x1350 | 1460x860x1580 | 1560x900x1420 | 1620x1000x1550 | 2000x1200x1850 |

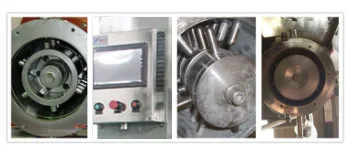

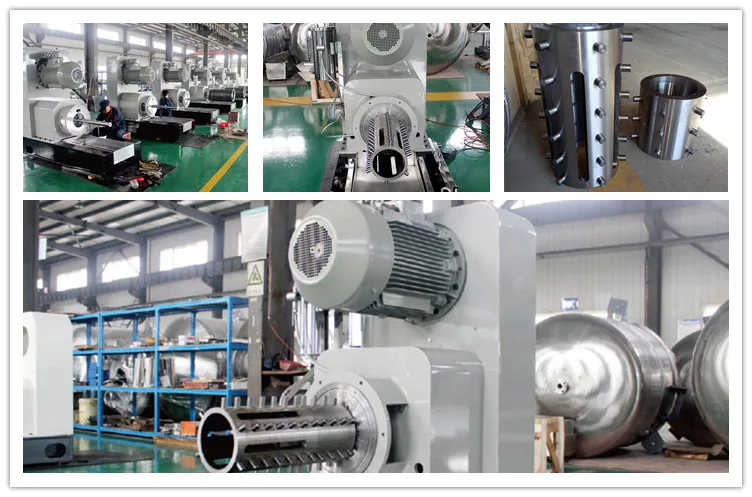

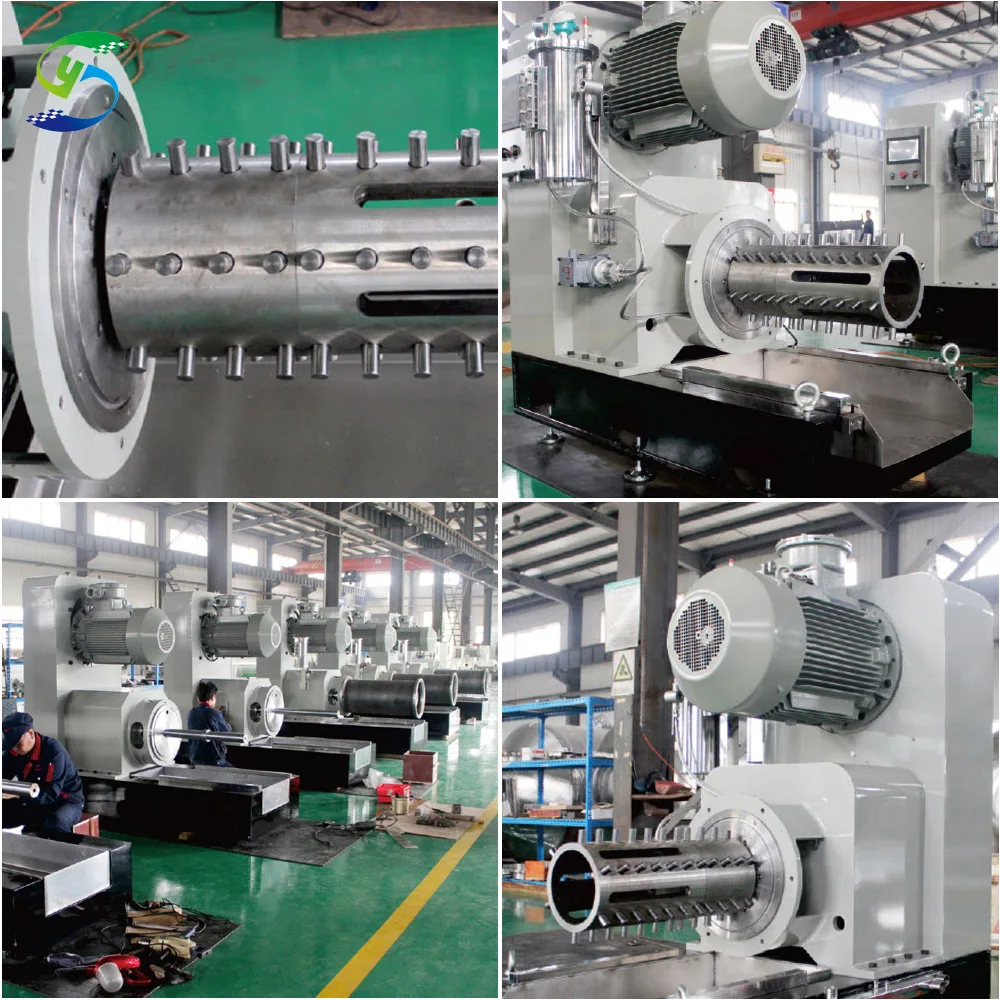

Product details of sanding mill machine
- Application
Widely used in the industry of coatings, paint, ink, dyestuff, pesticide and new energy etc.
Packaging & Shipping
All our machine packing in wooden box according to export standard,it will be well protected when shipping.
Our Services
- Manufacturer Factory Established in 1995
- Professional Team - R&D: 5 Marketing: 10
- Export to USA, Russia, India, Australia, Egypt, Sri Lanka, Ukraine, Thailand, Brazil, Malaysia, Vietnam etc. around the world.
Click here for more information !
Related Products
Company Information
- About us
YuShun Intelligent Technology Co., Ltd. is located in the Qinhuangdao Economic and Technological Development Zone on the beautiful coast of Bohai Sea. It is a professional manufacturer with lithium automation equipment as its core, and it is a modern enterprise integrating scientific research, production and operation.
Welcome to our factory !
Over the years, we have been leading the same industry with product technology technology content, stable and reliable product quality.
The company has a group of high-quality professional talents and a capable team of employees. It is based on strong technical strength, continuously improves product performance and core technologies, resolves pain points in the industry, reduces costs and expands the market, and customizes various lithium batteries for customers. Automation equipment complete production line.
The company's products have been exported to the United States, Russia, India, Australia, Egypt, Sri Lanka, Ukraine, Thailand, Brazil, Malaysia, Vietnam and other countries, with its excellent quality and good service, has been widely recognized by domestic and foreign customers.
Our goal is "to first-class products, first-class service, to create a first-class brand." YuSHun Company, with sincerity, innovation, efficiency, and forging ahead, is willing to join hands with you to create a brilliant future.
FAQ
Q 1: Payment terms capacity?
A : T/T, cash, Alibaba trade assurance;
Q 2: Trade terms?
A : In according with Incoterms 2010, normally with EXW, FOB Tianjin, CFR, CIP, CIF ;
Q 3: Validity of quotation?
A : Within 30 days;
Q 4: Modes of shipment?
A : By sea, by railway, by air and by express;
Q 5: Warranty?
A : One year and lifelong service provided at cost;
Q 6: Installation and training?
A : usu. tel or online guidance for installation, for production line, paid overseas engineering service provided.
