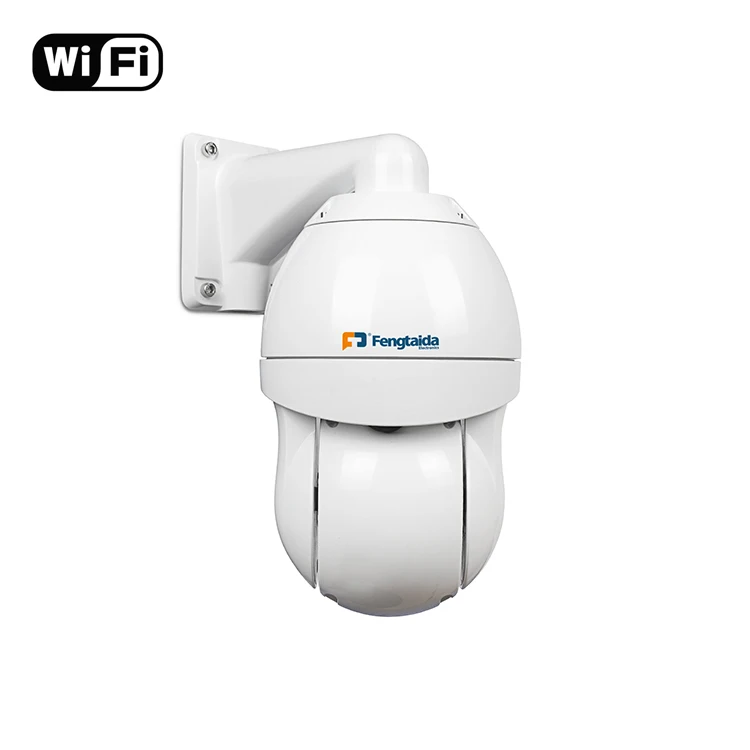

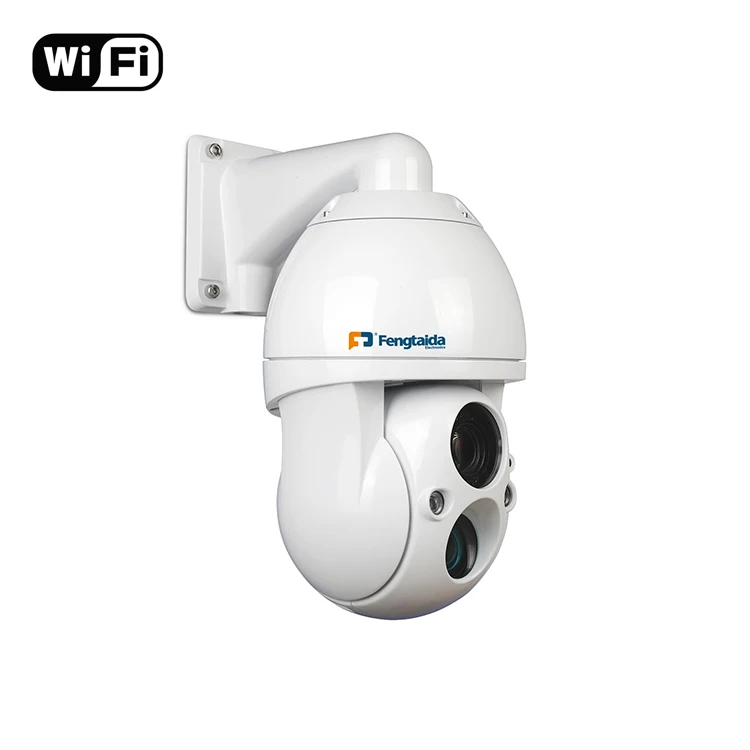

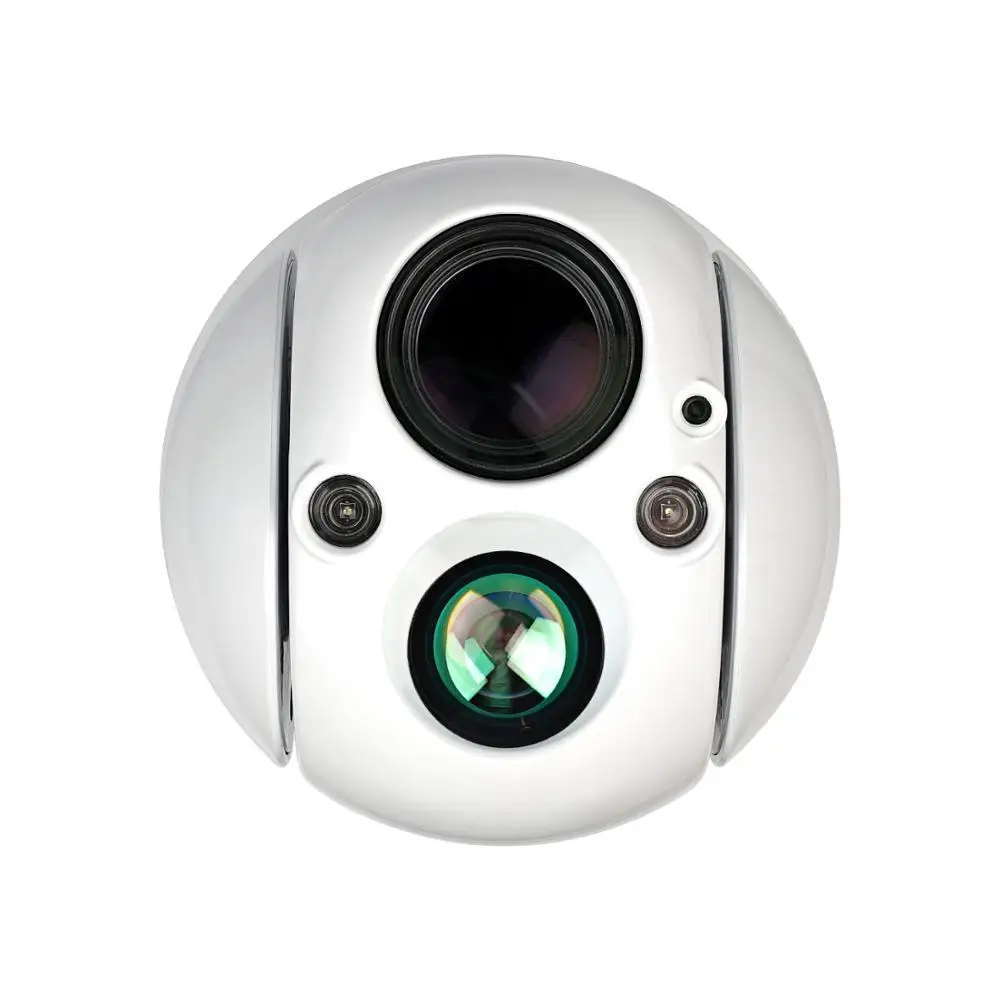

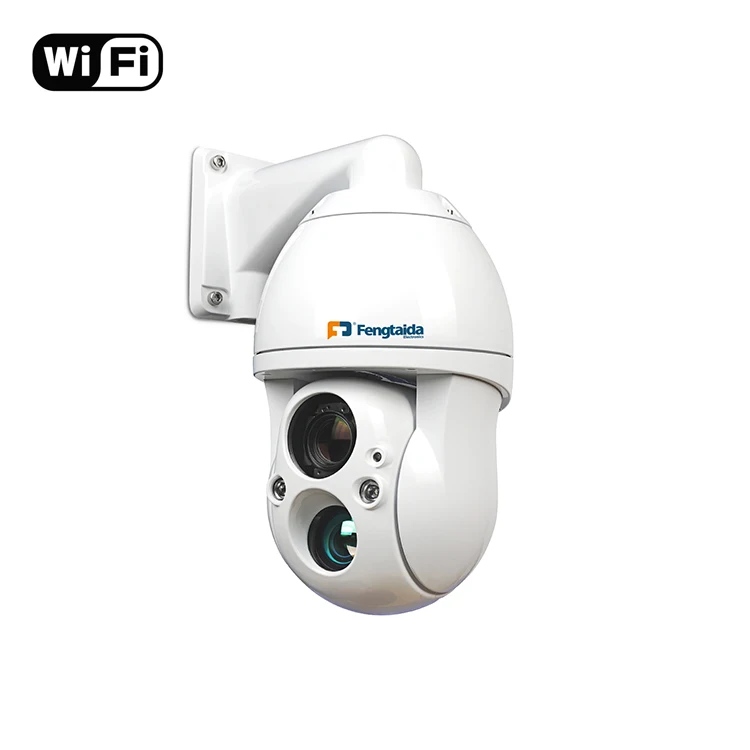

2020 Wifi 4K Digital Full Focus Night Hight Speed Ptz 4G CCTV Cameras For Outdoor
- Category: >>>
- Supplier: Fengtaida Co. Ltd.
Share on (62348536962):
Product Overview
Description
Product Description
2019 Wifi 4K Digital Full Focus Night Hight Speed Ptz 4G Cctv Cameras For Outdoor
Invention patent CTC Technology,it allows work at -45°C~70°C
Unique diversion duct design, cooling down and heating up quickly

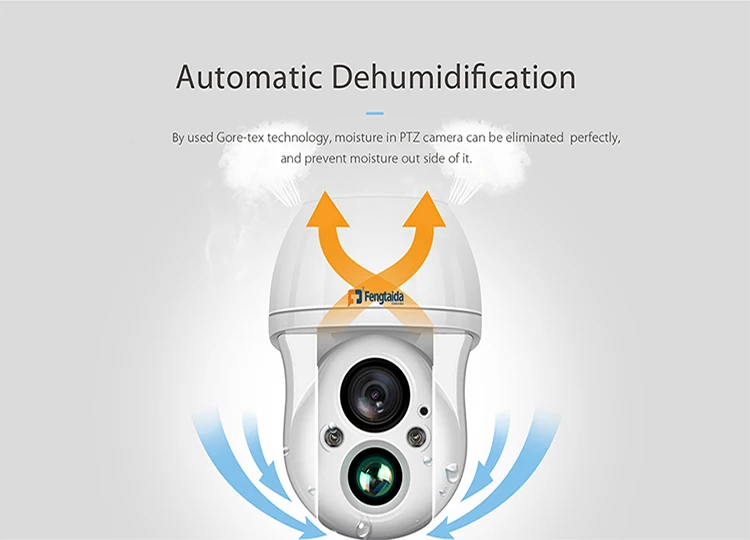

Gore-tex technology, no humidity around internal dome

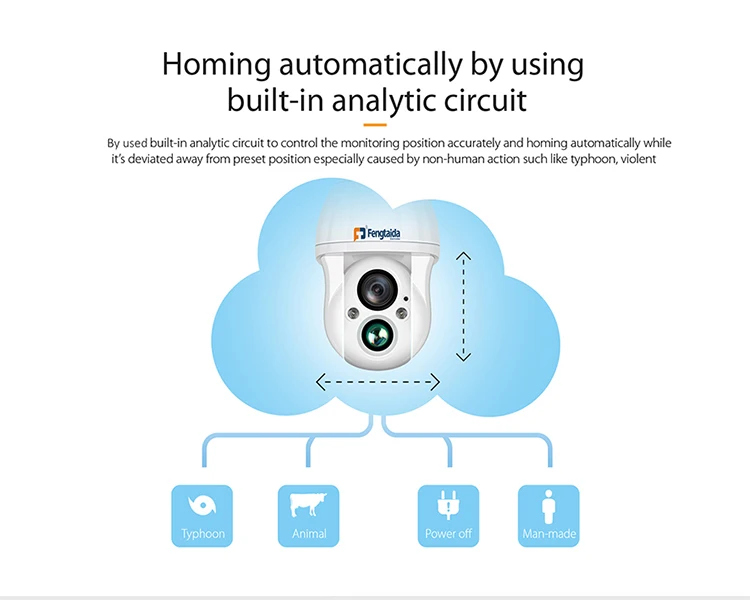

By using built-in analytic circuit, homing automatically
High precision step motor,preset accuracy is less than ±0.1 degree
Durable housing, no corrosion and flaking after 300hr spray test

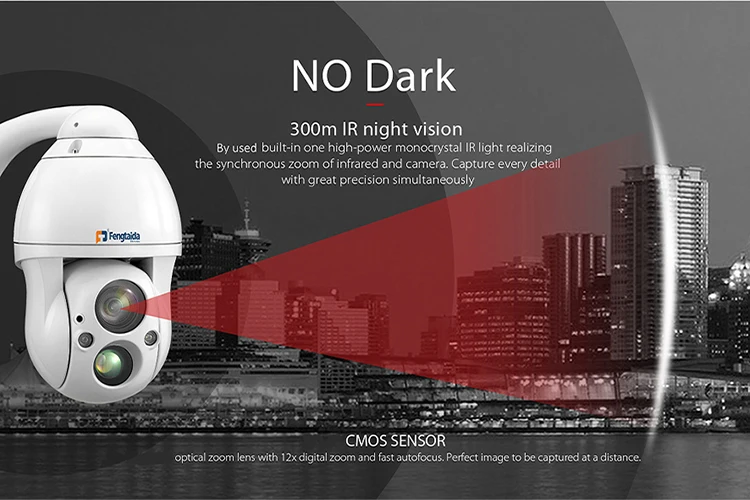

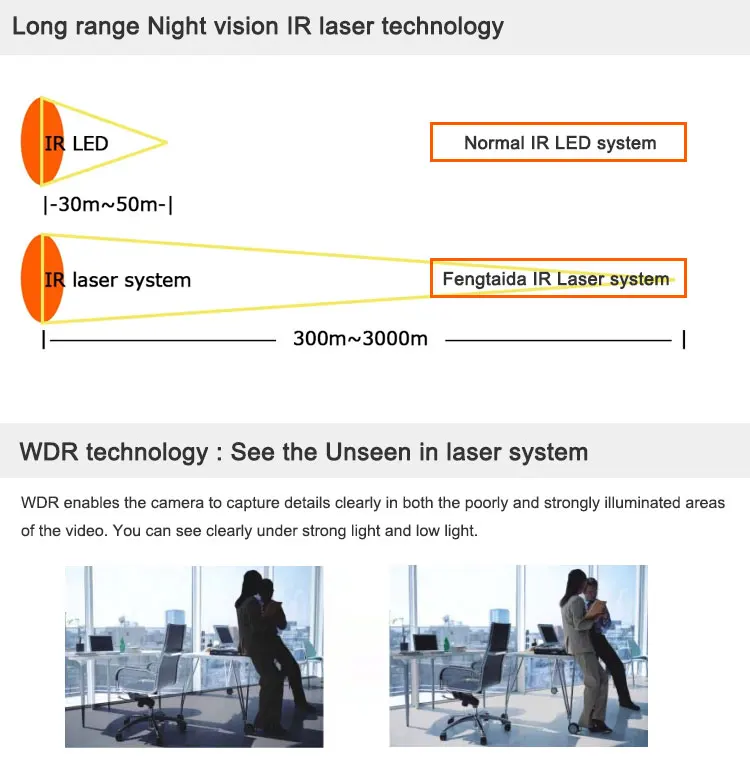

300m IR night vision, IP66 waterproof
| Dome type | IR6-001 Series High Definition IP Speed Dome Specifications | ||||||
| FTD-IR6-2022GW (38X) | |||||||
| Network | Network Interface | Ethernet 10/100Base-T (4G&wifi) | |||||
| Network Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P | ||||||
| Compatibility | Support most of the platforms on the market | ||||||
| Interface Protocol | ONVIF2.6/GB28181(Option- Customize) | ||||||
| Mobile monitoring | Operating System | Android/IOS | |||||
| Camera | Image Sensor | 8.42M 1/1.8” Pixel IMX334 | |||||
| Optical Zoom | 38X(5.56 -212mm) | ||||||
| Minimum Illumination | Color: 0.005Lux at F1.5; B/W: 0.0005Lux at F1.5; 0Lux(IR on) | ||||||
| WDR | ≥100dB | ||||||
| S/N Ratio | More than 46dB(AGC off) | ||||||
| Day/Night | Auto(ICR) / Color / B/W | ||||||
| Angle of View | H: 61.2°~2.32° | ||||||
| Electronic Shutter Speed | 1/2 - 1/20,000s | ||||||
| Noise Reduction | DNR,3DNR | ||||||
| Defog | Support | ||||||
| Max. Aperture | F1.5~F4.8 | ||||||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||
| Gain Control | Auto / Manual | ||||||
| Video | Compression | H.265/H.264/MJPEG | |||||
| Video Interface | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB) | ||||||
| Resolution | Main stream: 3840x2160,2592x1944,2592x1520,2304x1296,1920x1080,1280x960,1280×720 | ||||||
| Sub stream:640×480,480x360,352×288,320×240,176×144 | |||||||
| MJPEG:3840x2160,1920x1080,1280x720 | |||||||
| Max Frame Rate | H.265/H.264: 25fps at 3840×2160 | ||||||
| Bitrate | MainStream:10.0Mbps at VBR/Sub Stream:32Kbps at VBR | ||||||
| Audio | Algorithm | G711A/U,PCM,AAC | |||||
| Input | 1 x Line-In (Mini-stereo, Single Mono) | ||||||
| Output | 1 x Line-Out (Mini-stereo, Single Mono) | ||||||
| Intelligence | Advanced Intelligent | Face Detection, detect 20~30 faces in one frames; | |||||
| IVS | Tripwire, Intrusion, Abandoned/Missing,Wander,Retrograde motion,Counting | ||||||
| Pan/Tilt | Range | Pan : 360°(Endless)/ Tilt: -10~90° | |||||
| Pan/Tilt Speed | Preset Max.:240°/sec | ||||||
| Manual : 0.1° ~ 180°/sec (Zoom Proportional) | |||||||
| Patrol : 1.4°~240° /sec | |||||||
| Preset | 241Presets and 14 presets for special function | ||||||
| Patrol Scan | 3 Group Patrol | ||||||
| Other Functions | Auto Flip, Auto Parking, Power-up Action & etc | ||||||
| Alarm | Alarm Input | 1(ON/OFF signal) | |||||
| Alarm Output | 1(ON/OFF signal) | ||||||
| Infrared | IR distance | 300m(Max.) | |||||
| Wave | 850nm | ||||||
| Physical | IP protection | With IP66 | |||||
| Operating Temperature | –30℃~50℃ | ||||||
| Humidity | 0%~98% (Non condensing) | ||||||
| Power Source | AC24V 3A 60Hz/50Hz; DC12V 5A ; | ||||||
| Power Consumption | AC24V:8W-45W DC12V/POE:8W-36W | ||||||
