Product Overview
Description
Aluminium Truss
Application
Roof truss system,Concert truss, Event truss, Fashion show light truss, Auto Show lighting truss, LED screen truss, Speaker truss,
Exhibition booth truss, Staging truss, Lighting truss,etc.
Exhibition booth truss, Staging truss, Lighting truss,etc.
Material | Aluminum alloy 6082-T6/6061-T6 |
Connections | Bolt and Nut |
Color | Silver |
Shape | Square |
Truss unit length | Straight truss 1,2m,Customized |
Feature | Non-rust,light weight,easy to set up and remove |
Certificate | TUV,SGS,ISO,CE |
Features
1. Component customization base on demand.
2. Quality & service guaranteed.
3. Over 20 years experience in the industry.
4.Focus mainly on kwikstage system, ringlock system & frame system.
5. Provide solutions to Nisso, Harsco, SGB, Modern etc.
2. Quality & service guaranteed.
3. Over 20 years experience in the industry.
4.Focus mainly on kwikstage system, ringlock system & frame system.
5. Provide solutions to Nisso, Harsco, SGB, Modern etc.
Product Detail
Material | 6061-T6/6082-T6 |
Main Tube | Φ50.8x3.2mm |
Vice Tube | Φ50.8x3.2mm |
Braces | Φ25.4x3.2mm |
12''TBSH(Loading table) | Span(m) | 4m | 6m | 8m | 10m | 12m |
UDL | kg/m | 485 | 284 | 150 | 87 | 45 |
DEFLECTION | mm | 8 | 24.2 | 35 | 60.8 | 78 |
CPL | kg | 784 | 559.6 | 410 | 326 | 270 |
DEFLECTION | mm | 4.5 | 16.8 | 25 | 47.8 | 63 |

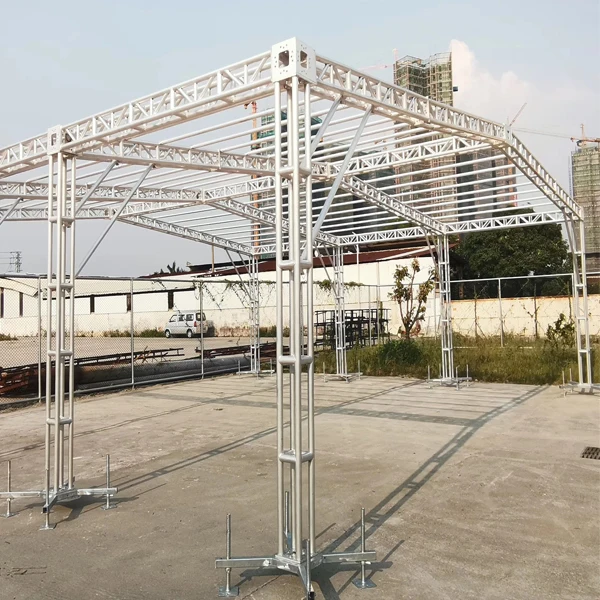

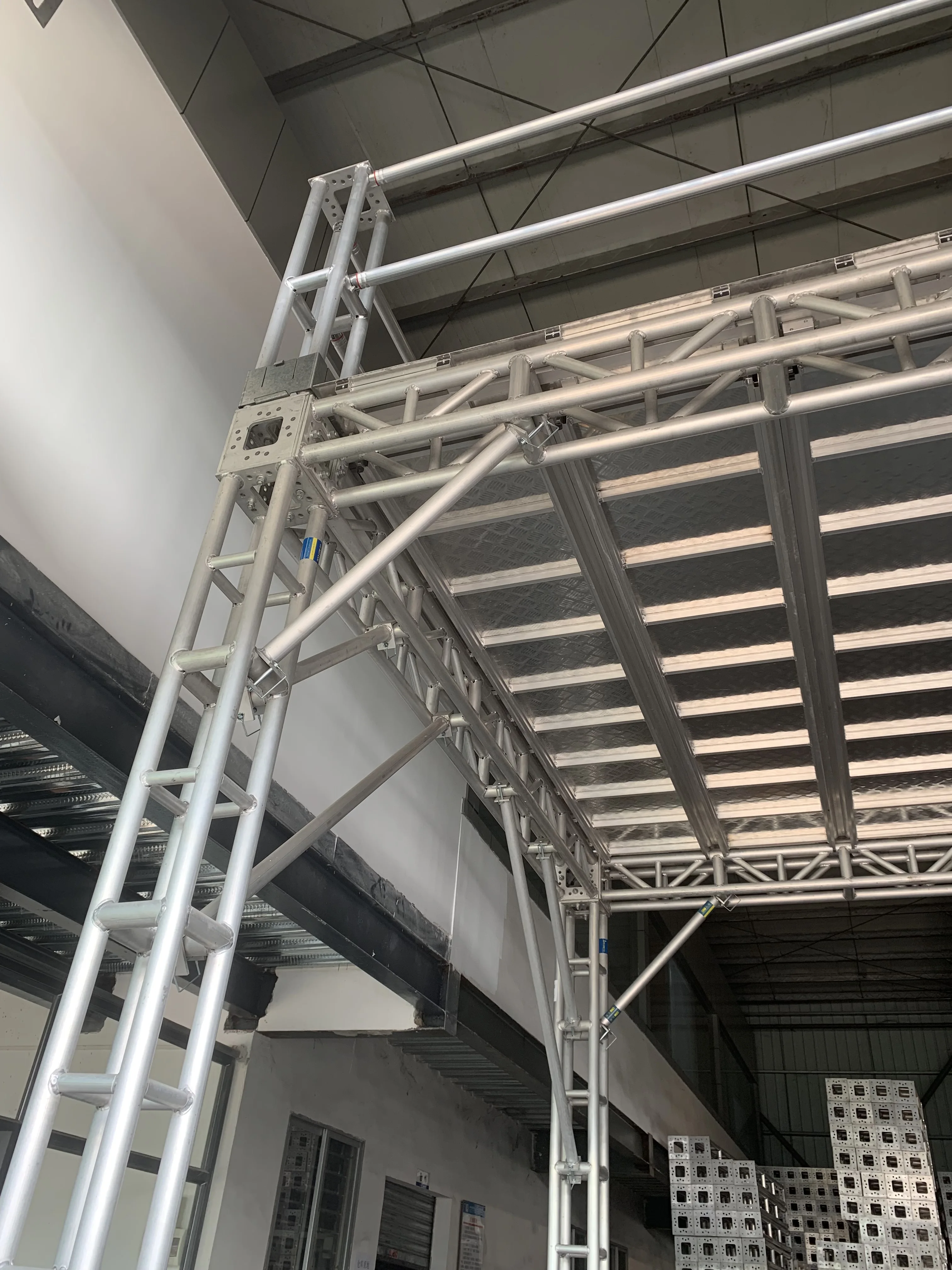

Project picture display
