8ton Tractor trailed barnyard manure spreader and distributor

Product Overview

Description

8ton Tractor trailed barnyard manure spreader and distributor



   Product advantages:

  1. The heightening hole is reserved, which is convenient for the customer to self-increase to increase the loading capacity.

  2. The self-contained speed-regulating valve can adjust the speed of the feeding chain to control the fertilizer output.

 3. The double-feeding and fertilizer-feeding chain is uniform and stable. Can be used for the application of precise granular fertilizer.

 4. The manual adjusting handle is set at the fertilizer discharging door, and the user can adjust the size of   the fertilizer outlet on the basis of the required amount of fertilizer.

 Specification:

Model	unit	2FS-8
Spreading form		Double disc
Capacity	m³	8
Loading weight	ton	8
Machine weight	Kg	2500
Spreading range	m	6-15
Overall size	mm	5400*2300*2500
Hopper size	mm	3880*1990*1200
Tyre model		400/55-22.5
Driving type		PTO/540rpm
Matched power	hp	90-140
Running speed	km/h	3-20
Work efficiency	mu/day	200-500
Linkage		traction

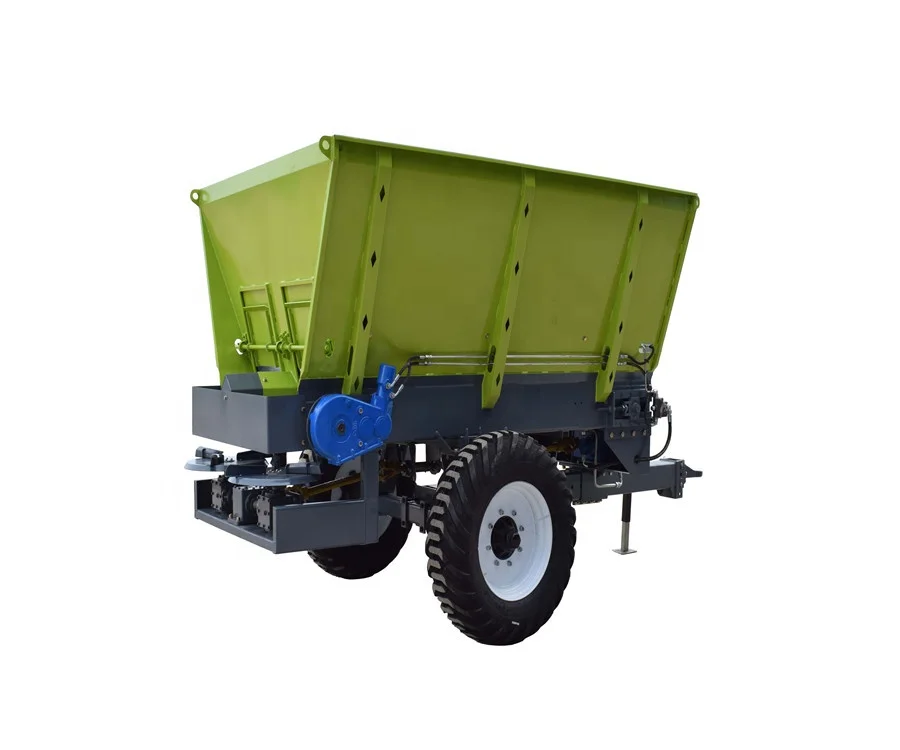

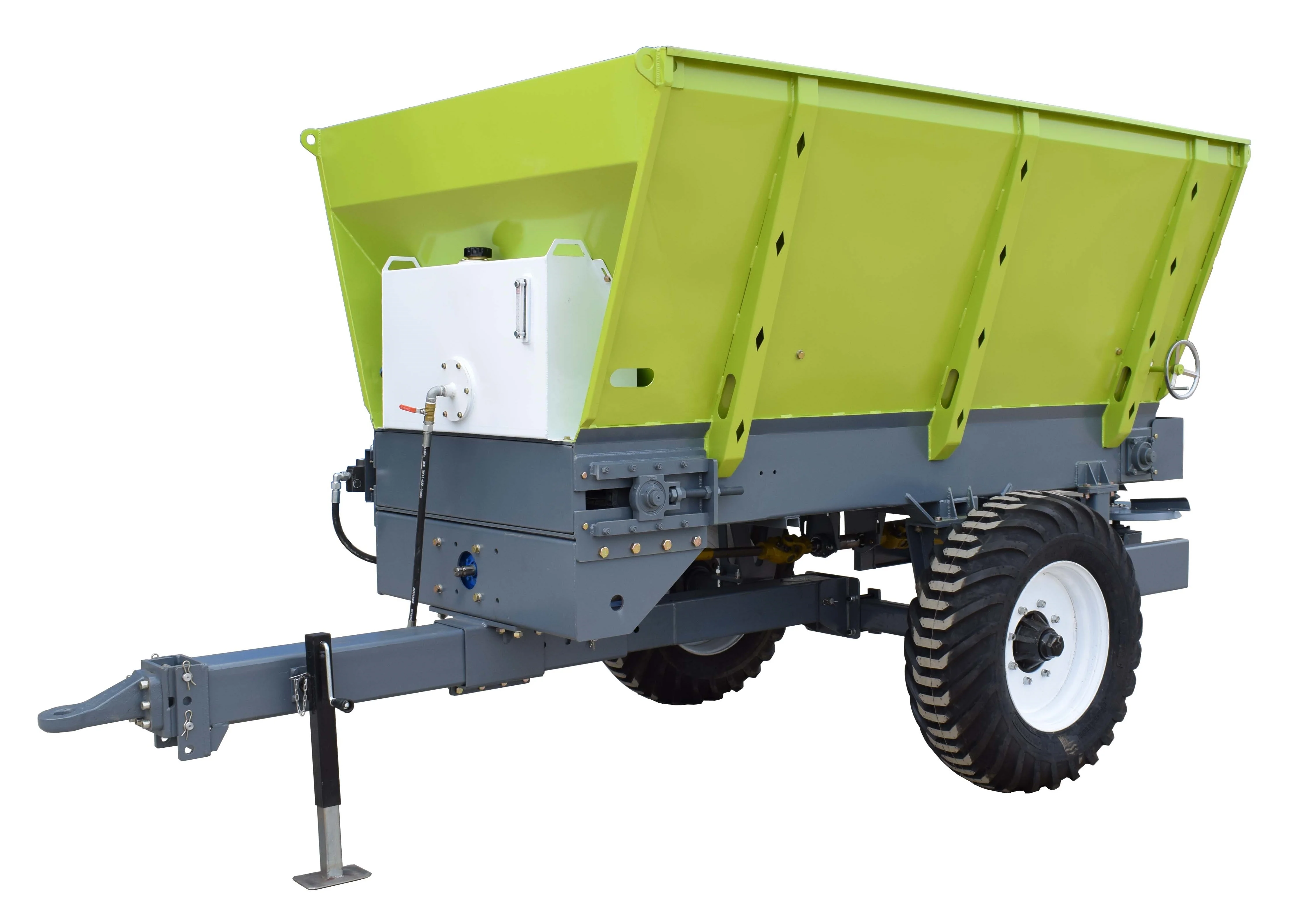

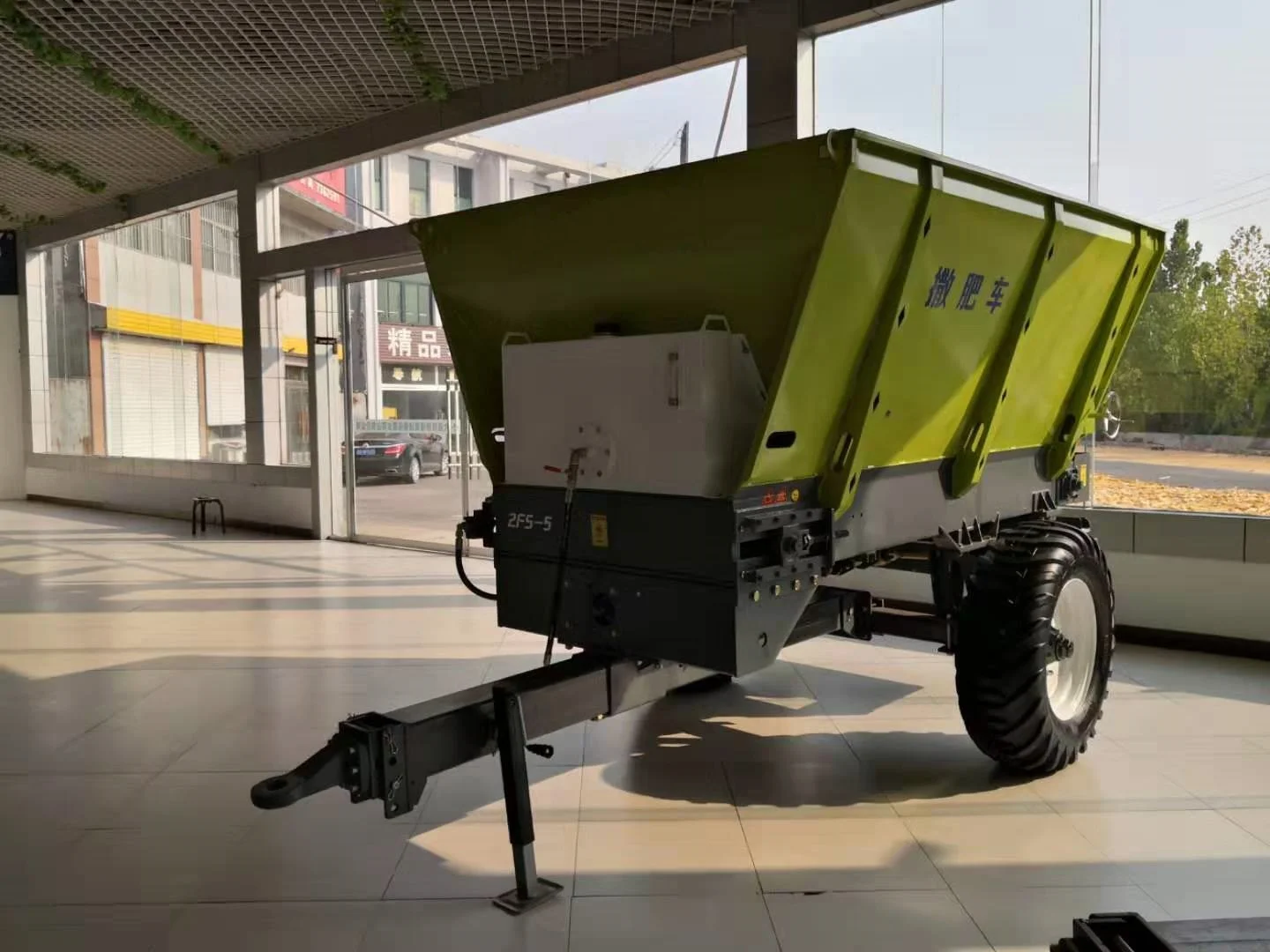

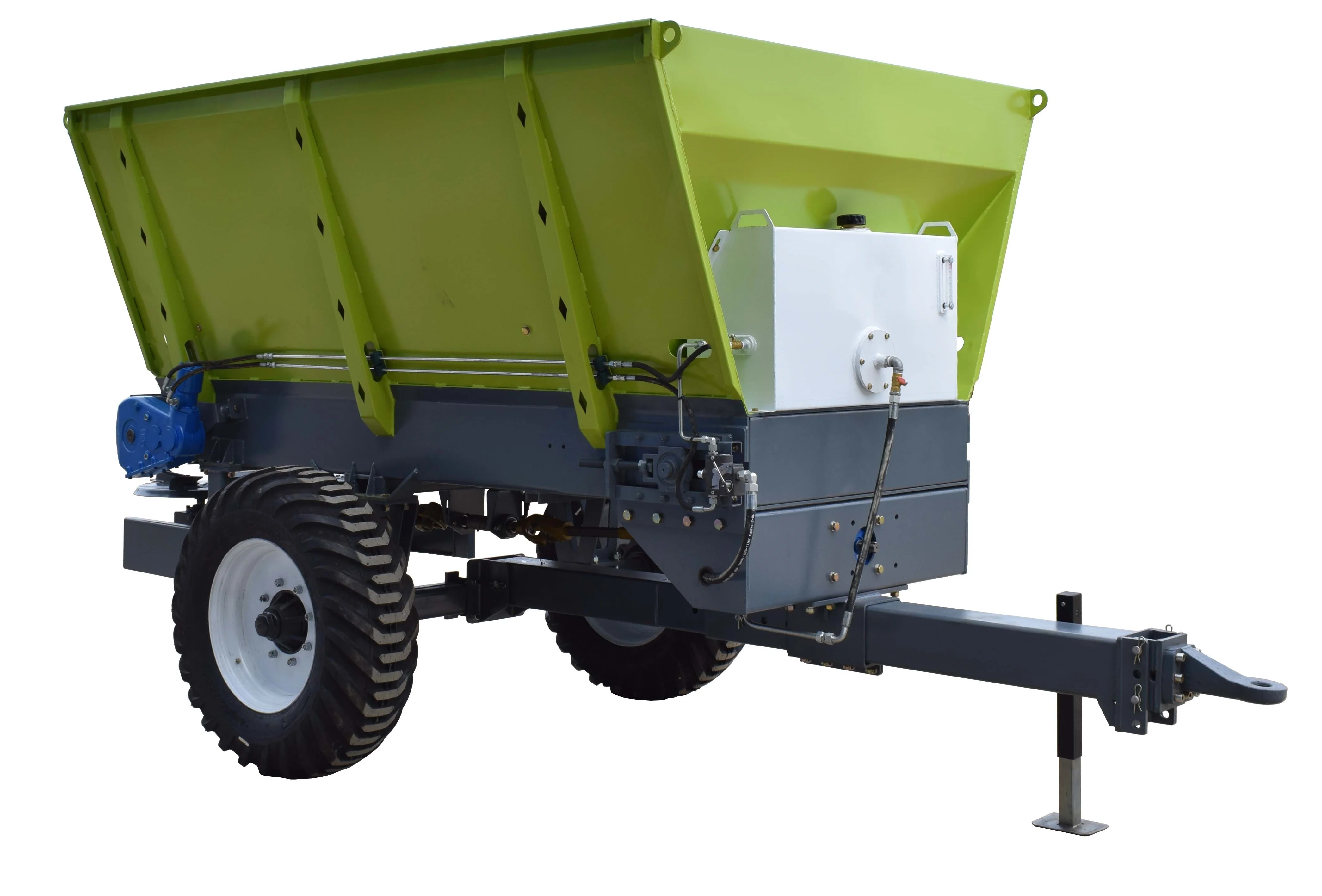

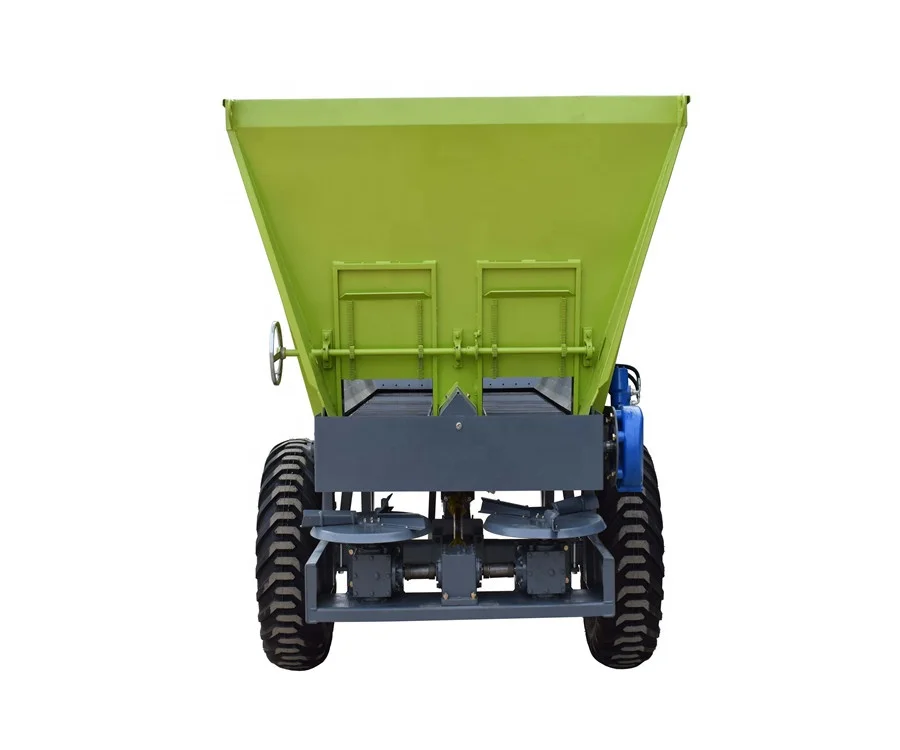

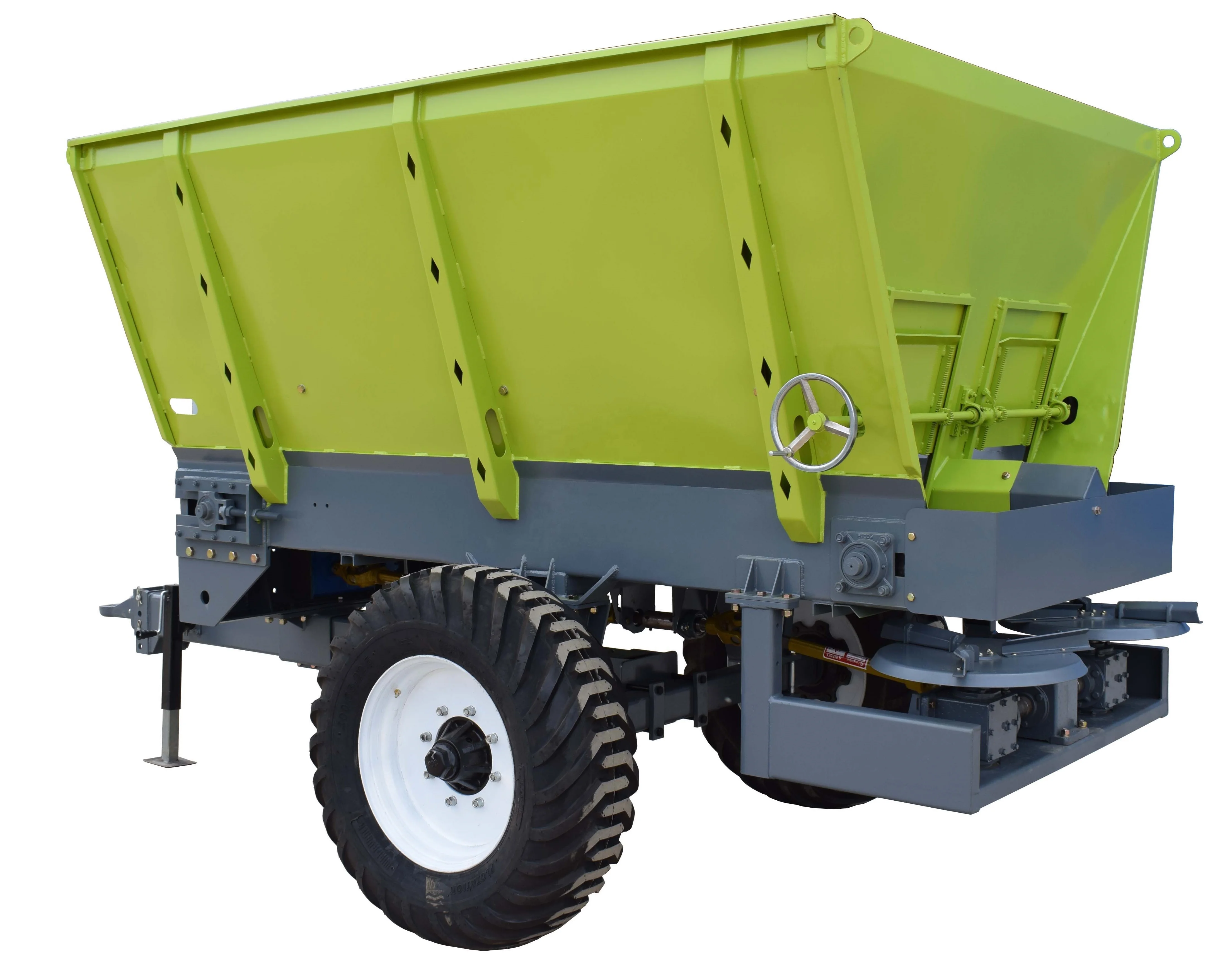

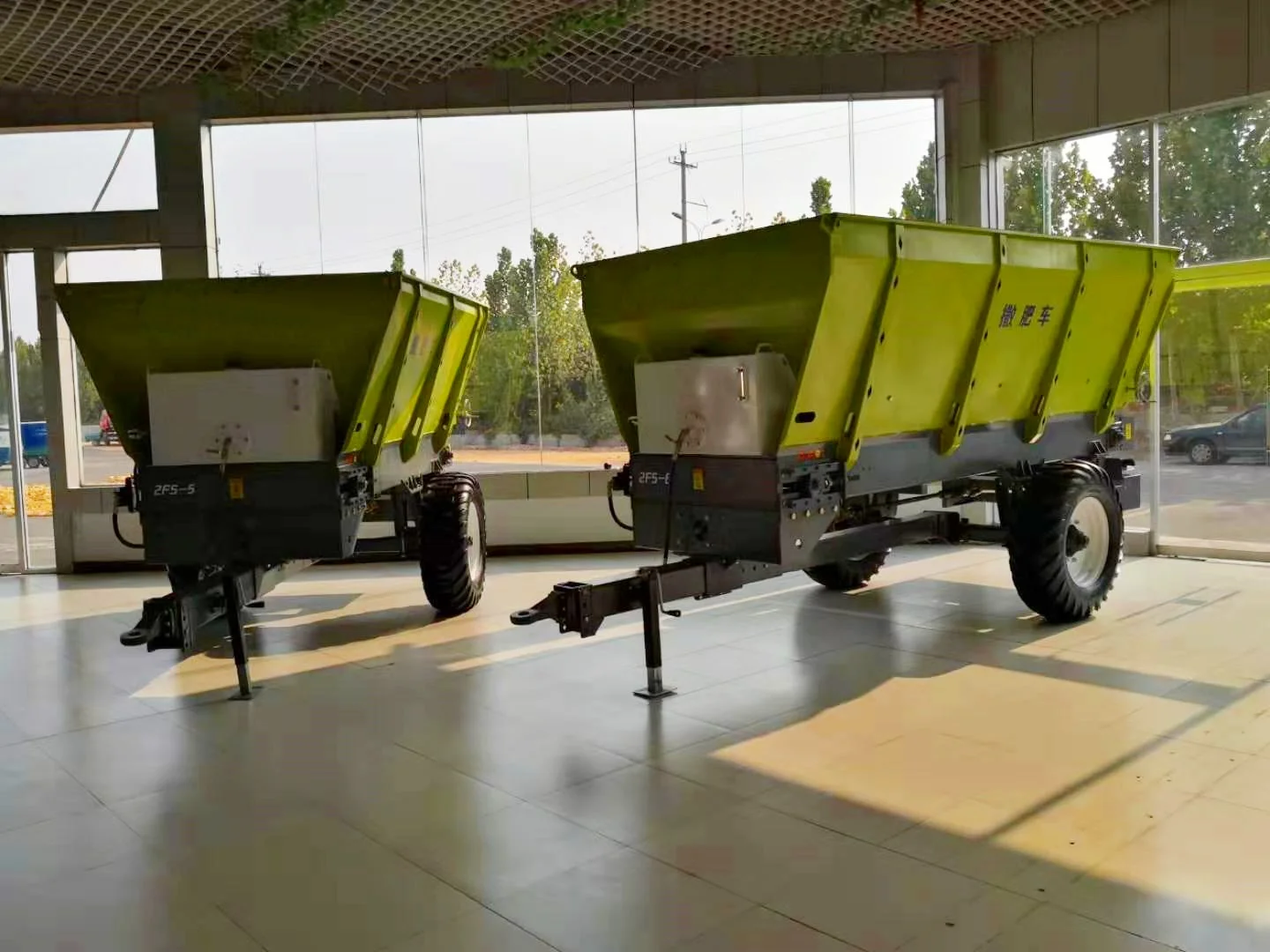

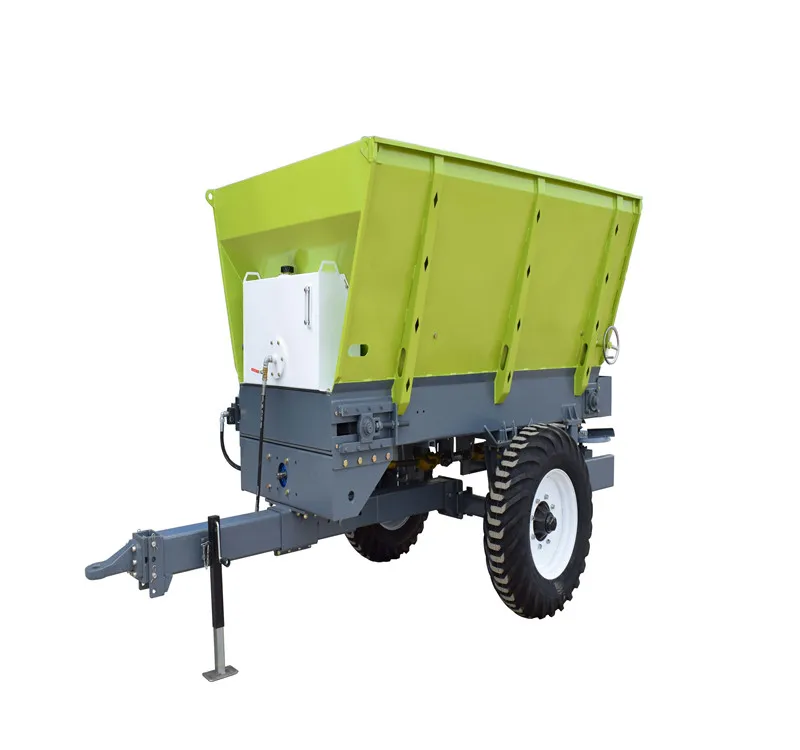

  Pictures:
