Product Overview
Description
Products Description

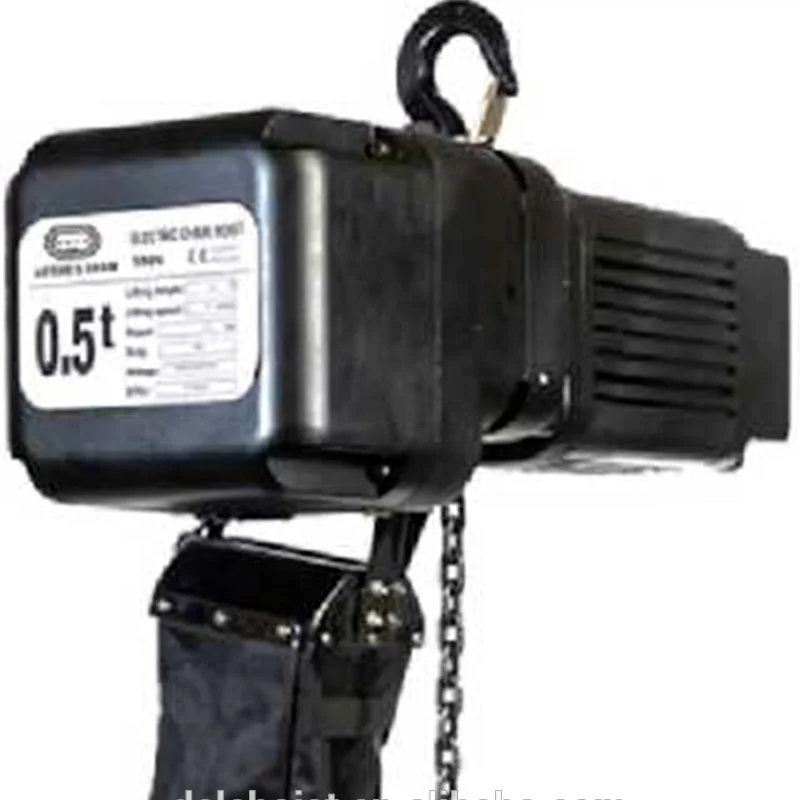

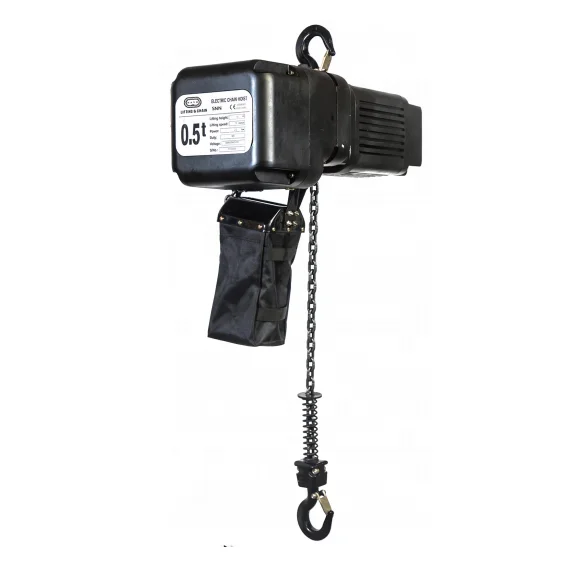

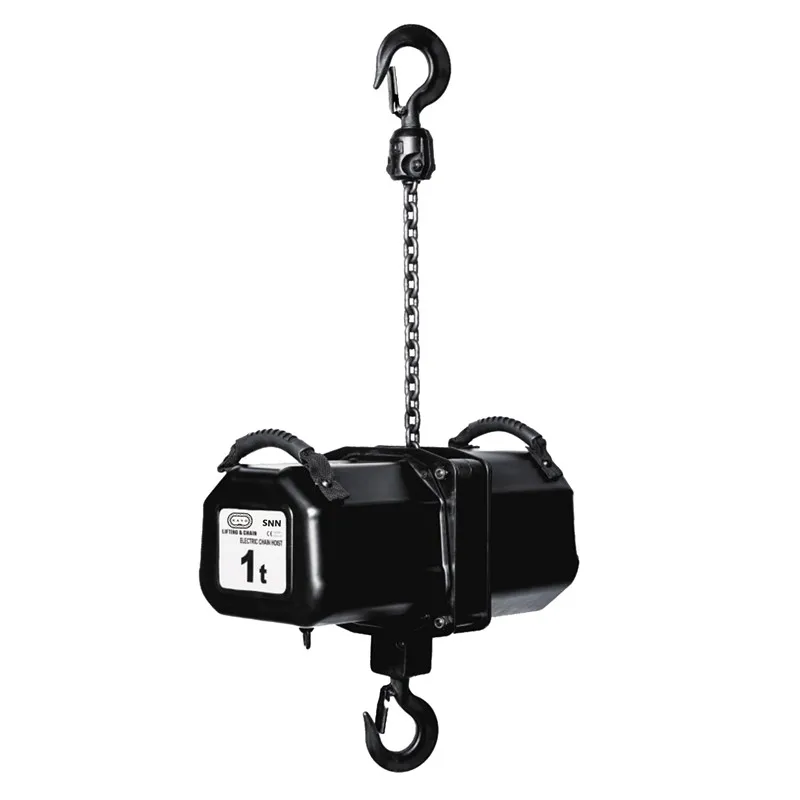

DSNN Electric stage chain hoist
Technical parameters
Model | Capacity(T) | Test load(T) | Protection level | Classification FEM/ISO | Lifting speed(m/min) | Motor(kw) | Load chain(mm) | Load chain falls | Net weight(kg) |
DSNN-S6-0.5 | 0.5 | 0.625 | IP56 | 2m/M5 | 5.8 | 0.8 | Φ7.1×21 | 1 | 38 |
DSNN-S6-1 | 1 | 1.25 | IP56 | 2m/M5 | 4.3 | 0.9 | Φ7.1×21 | 1 | 39 |

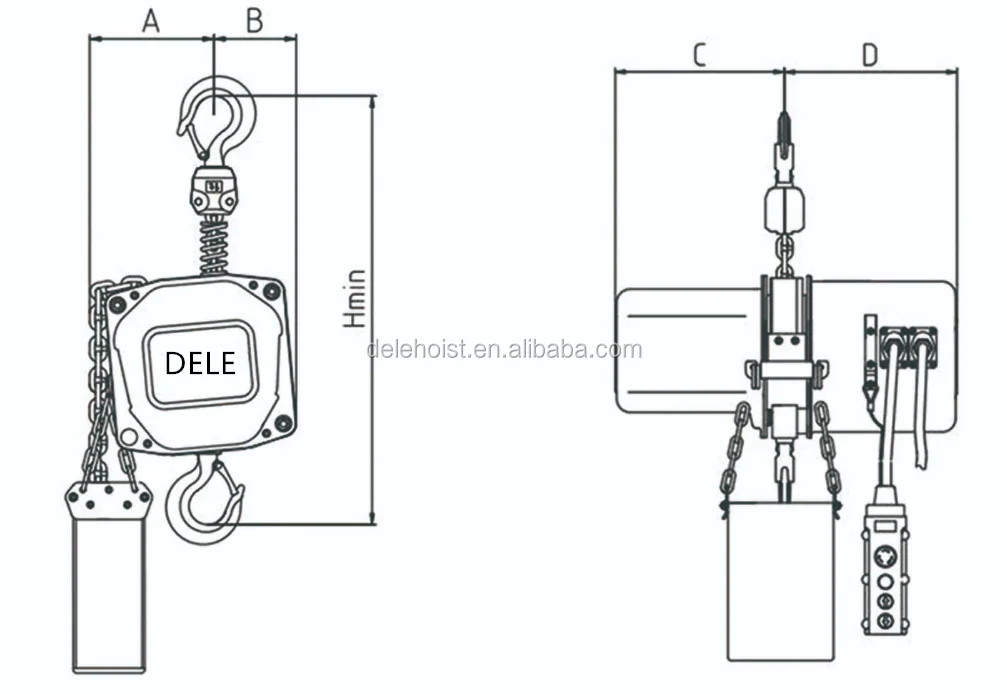

Dimension(mm)
Model | Capacity(T) | Hmin | A | B | C | D | |||
DSNN-S6-0.5 | 0.5 | 550 | 168 | 112 | 245 | 250 | |||
DSNN-S6-1 | 1 | 590 | 168 | 112 | 245 | 250 |
SNN-S1 Intelligent stage hoist(we also called CNC HOIST) is an intelligent control chain hoist developed by the entertainment industry. S1 HOIST is suitable for touring, large-scale activities and multi-purpose venues to meet the special and harsh installation requirements.
1.Security
S1 conforms to relevant international standards and specifications (EN818-7-DAT/JB/T5317-2016/CE/dln56950)
2.Convenience
Convenience is the focus of our research and development. S1 is a plug-and-play chain hoist for touring and large-scale activities. Convenient installation allows S1 to take into account both time and cost.
3.Durable and quiet

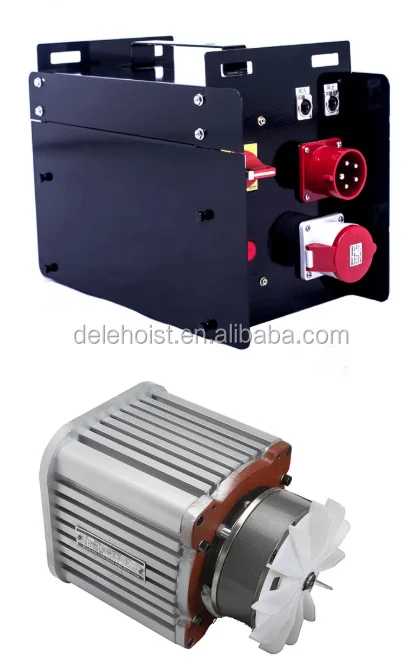

In order to meet the harsh use environment of entertainment industry, S1 adopts M6 motor of the highest level in the world, and cooperates with helical gears to achieve quiet operation.
4.Precision
The repetitive positioning accuracy of 0.1mm can be realized with 9500 drive module.
5.Strength
S1 super group rigidity can be dust-proof, waterproof, and can cope with severe use environment and conditions. The fatigue resistance of S1 is greatly enhanced by using super strength nickel plated load chain.
6.Reliable
S1 has overload protection function for option, the chain will not slide even power off.

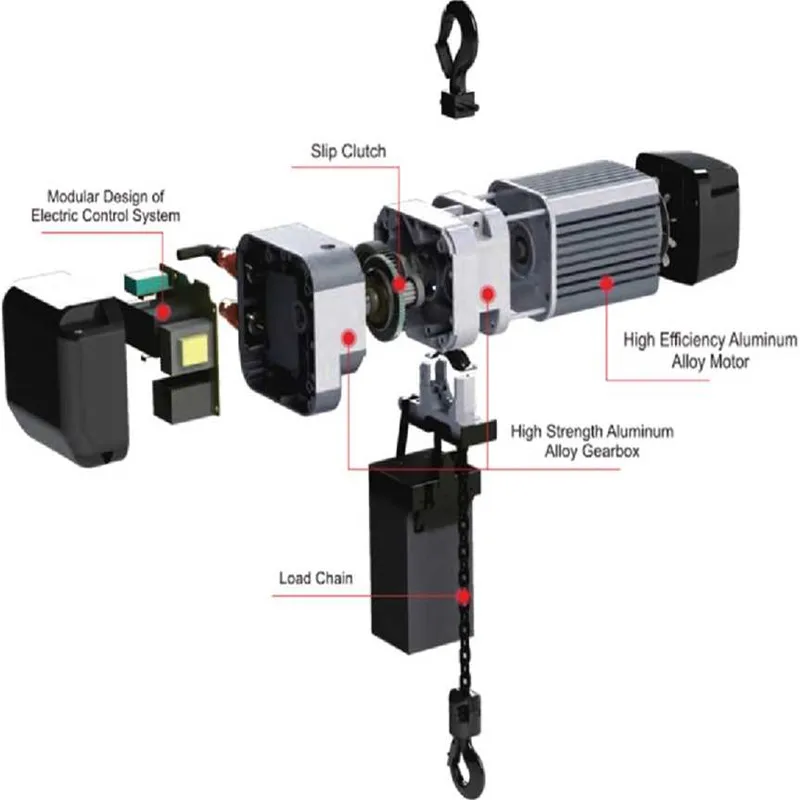

Details Images
Emergency Stopper
Standards: EN 150 13849 • 1 : 2006 EN 62061 : 2005
Load Sheave
The material is special alloy steel. finish machining by CNC machining center, suspension type design, convenient maintenance

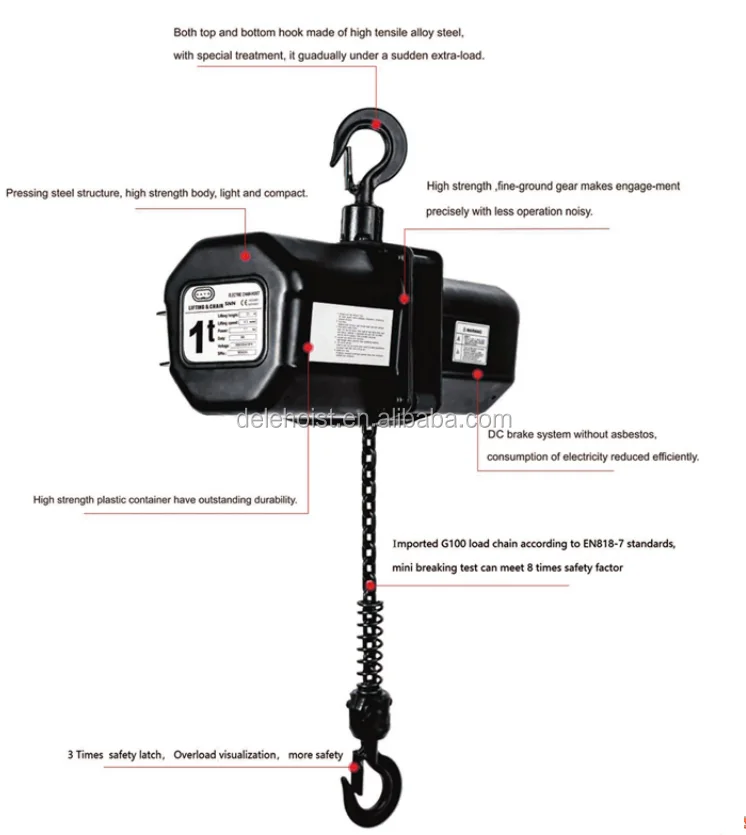

Load Chain
Imported G100 load chain according to EN818-7 standards,mini breaking test can meet 8 times safety factor
Slip Clutch
There device will working under the condition of the overload. The friction disc is imported.
Intelligent Satge Hoist
DSNN-S1 Intelligent stage hoist(we also called CNC HOIST) is an intelligent control chain hoist developed by the entertainment
industry. S1 HOIST is suitable for touring, large-scale activities and multi-purpose venues to meet the special and harsh
installation requirements. 1.Security S1 conforms to relevant international standards and specifications
(EN818-7-DAT/JB/T5317-2016/CE/dln56950) 2.Convenience Convenience is the focus of our research and development. S1 is a
plug-and-play chain hoist for touring and large-scale activities. Convenient installation allows S1 to take into account both time
and cost. 3.Durable and quiet In order to meet the harsh use environment of entertainment industry, S1 adopts M6 motor of the
highest level in the world, and cooperates with helical gears to achieve quiet operation. 4.Precision The repetitive positioning
accuracy of 0.1mm can be realized with 9500 drive module. 5.Strength S1 super group rigidity can be dust-proof, waterproof, and
can cope with severe use environment and conditions. The fatigue resistance ofS1 is greatly enhanced by using super strength
nickel plated load chain. 6.Reliable S1 has overload protection function for option, the chain will not slide even power off.
industry. S1 HOIST is suitable for touring, large-scale activities and multi-purpose venues to meet the special and harsh
installation requirements. 1.Security S1 conforms to relevant international standards and specifications
(EN818-7-DAT/JB/T5317-2016/CE/dln56950) 2.Convenience Convenience is the focus of our research and development. S1 is a
plug-and-play chain hoist for touring and large-scale activities. Convenient installation allows S1 to take into account both time
and cost. 3.Durable and quiet In order to meet the harsh use environment of entertainment industry, S1 adopts M6 motor of the
highest level in the world, and cooperates with helical gears to achieve quiet operation. 4.Precision The repetitive positioning
accuracy of 0.1mm can be realized with 9500 drive module. 5.Strength S1 super group rigidity can be dust-proof, waterproof, and
can cope with severe use environment and conditions. The fatigue resistance ofS1 is greatly enhanced by using super strength
nickel plated load chain. 6.Reliable S1 has overload protection function for option, the chain will not slide even power off.
Main Features
1.Maximum 120 set hoists or 60 objects
2.Supporting simultaneous online backup of primary and secondary computers
3.Auto-save, no need to re-edit the power-off storage
4.Visual Monitoring in Real-time Communication for Measuring and Controlling Cue Motion
5.Replacement and removal of hoists without re-editing Cue
5.Replacement and removal of hoists without re-editing Cue
6.Real-time manual control of any hoist during installation anddemolition
7.Can store up to 1000 Cue groups and support file import and export
8. It can realize up to 60 independent continuous synchronization (straight line, arc, space circle)
9.With Software Emergency Stop System 10.Power supply 100-240V (50/60Hz)

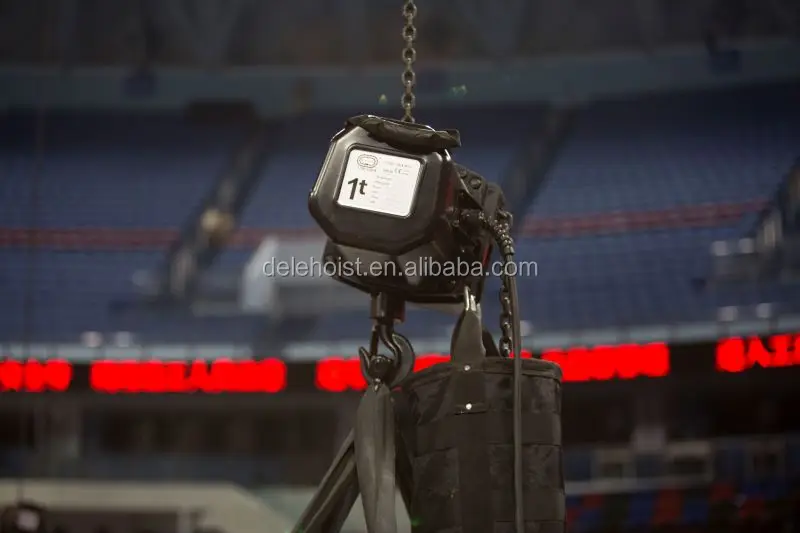

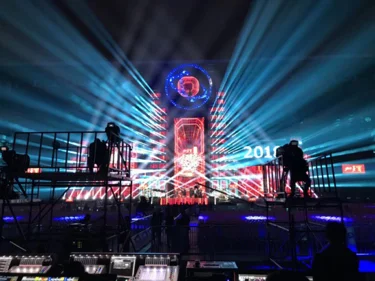

Use Occasion
Accessories

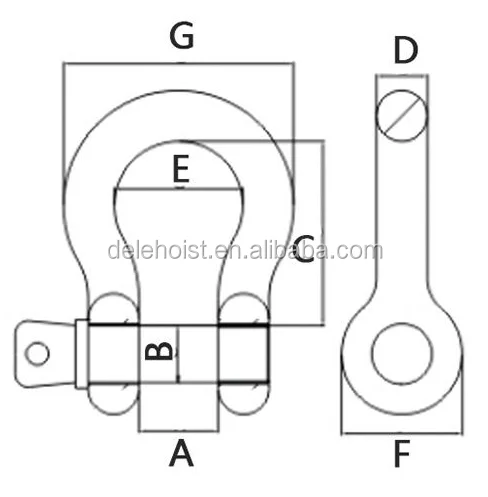

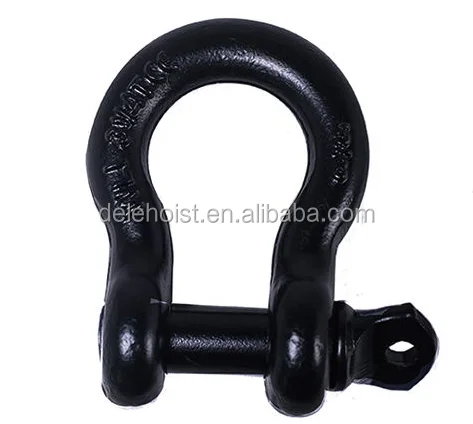

Entertainment Stage Shackle
Good quality
ITEM NO. | WLL/T | A | B | C | D | E | F | G |
SL504-1/2 | 2 | 20 | 16 | 46 | 12 | 33 | 29 | 58 |
SL504-3/4 | 3.25 | 27 | 19 | 61 | 16 | 43 | 38 | 75 |
SL504-5/8 | 4.75 | 32 | 22 | 76.5 | 19 | 51 | 46 | 89 |

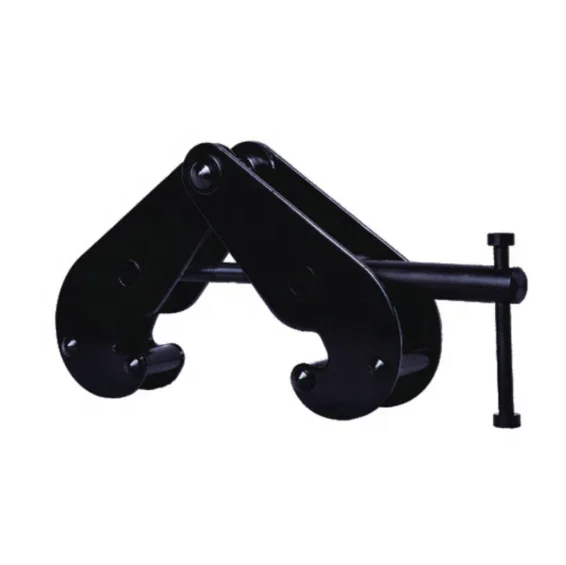

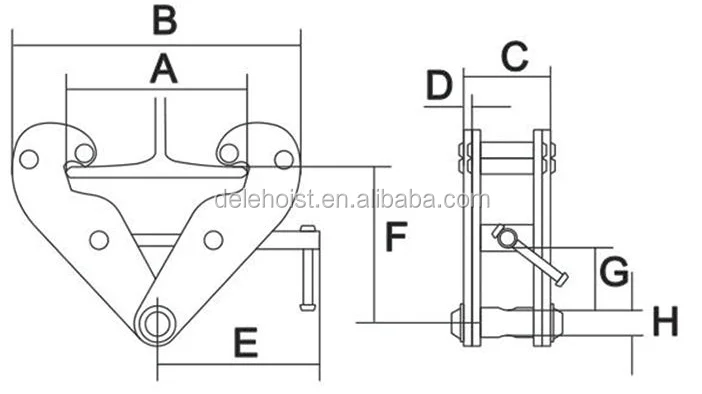

Entertainment Beam Clamp
Capacity | I-Beam | A | B | C | D | E | F | G | H |
max | min/max | min/max | |||||||
1T | 75-220mm | 260mm | 180/360mm | 64mm | 5mm | 215mm | 102/155mm | 25mm | 22mm |
2T | 75-220mm | 260mm | 180/360mm | 74mm | 6mm | 215mm | 102/155mm | 25mm | 22mm |
3T | 80-320mm | 354mm | 235/490mm | 103mm | 8mm | 260mm | 140/225mm | 45mm | 24mm |
Entertainment Stage Webbing Slings
Entertainment Stage Hoist Controller
Entainment Stage Hoist Controller
Ratchet Tie Down
20-50mm EN12195 STARANDS

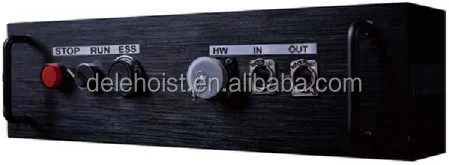

HOIST CONTROLLER
1.The controllers are generally 4, 8, 12, 24 routes, etc.. 2.Electric chain hoists will be delivered with direct or low voltage control, single phase controller is for optional.
3.Panel control and handle control total acceptable.
4.Control the single electric chain hoist or group is acceptable.Each lines have the UP/DOWN selector switch, the "RUN” button activates all of the preselection loops.
5.With the function of leakage protection device and phase transformation.
6.With emergency braking.
3.Panel control and handle control total acceptable.
4.Control the single electric chain hoist or group is acceptable.Each lines have the UP/DOWN selector switch, the "RUN” button activates all of the preselection loops.
5.With the function of leakage protection device and phase transformation.
6.With emergency braking.

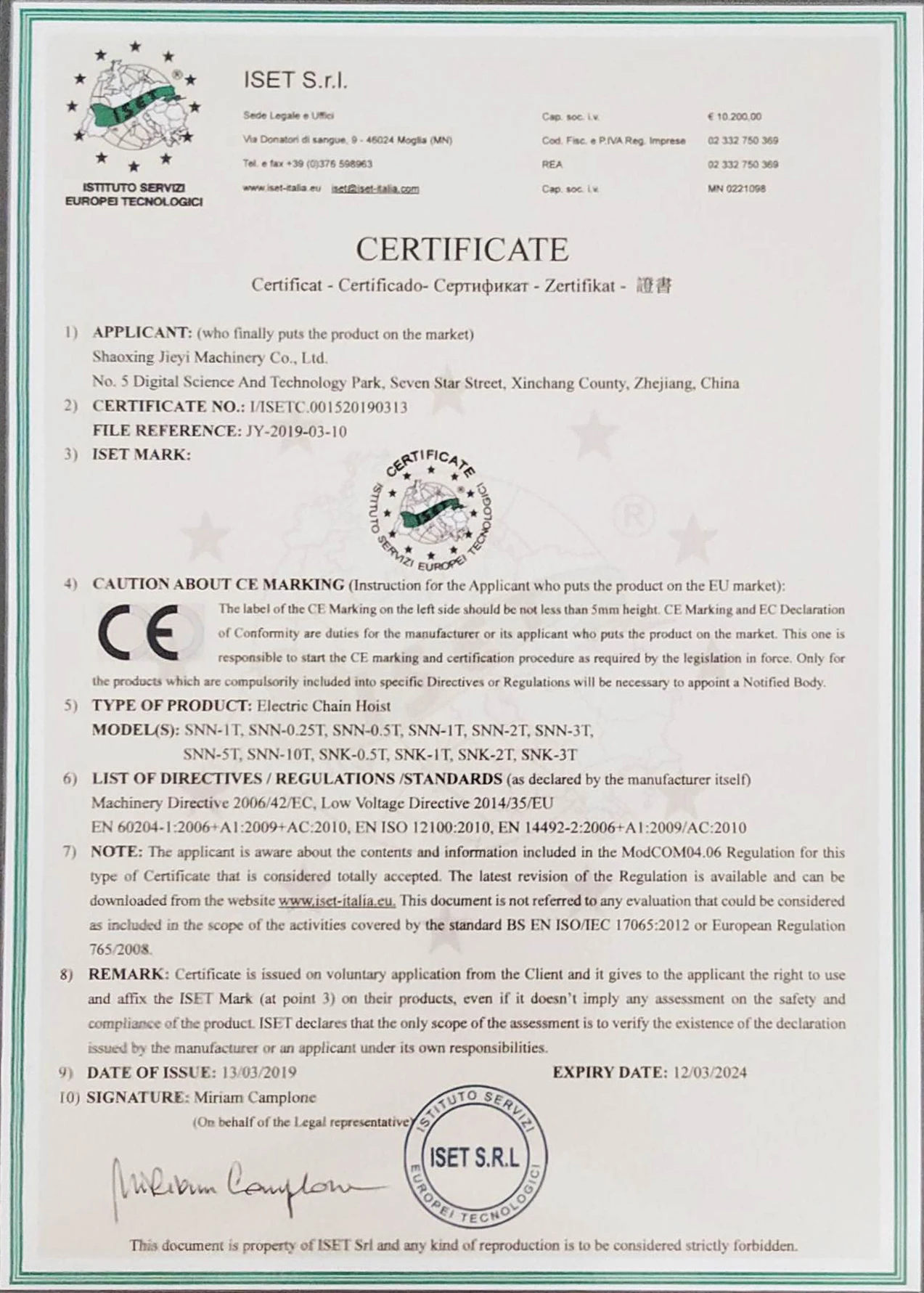

Certifications
