Product Overview
Description

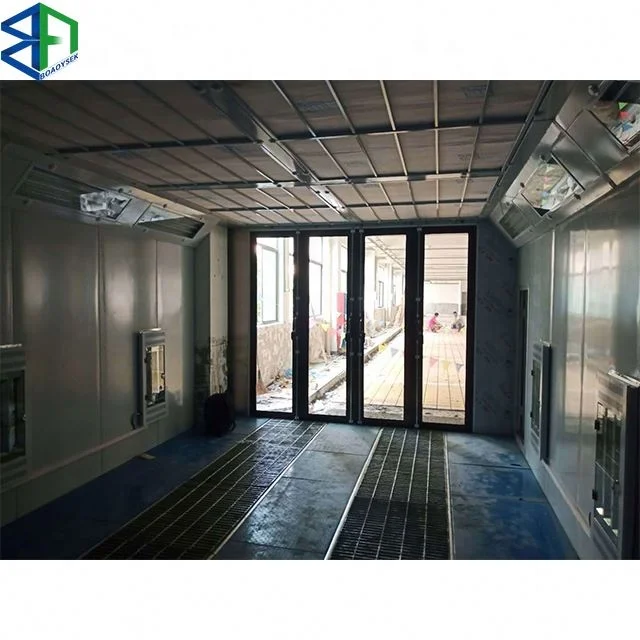

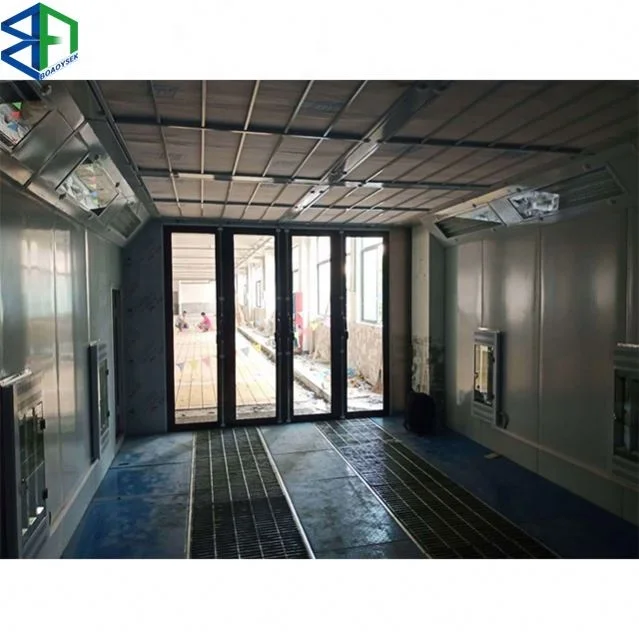

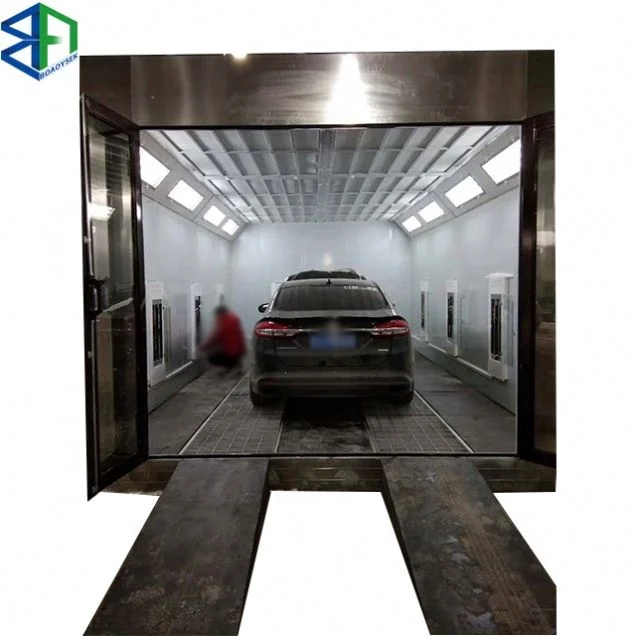

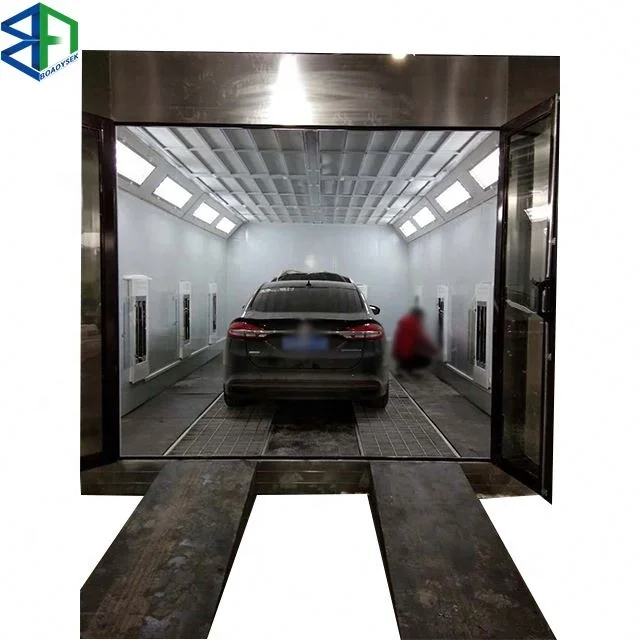

Brand New Car Painting Equipment/Auto Paint Spray Booth/Paint Drying Systems With High Quality
Product Description
| Name | Quantity/Unit | Specifications | Requirements |
| External size | mm | 7000x5500x3600mm | ** |
| Internal size | mm | 6900x4000x2800mm | ** |
| Note: if there is any difference between the internal size and the external size, the internal size shall prevail. | |||

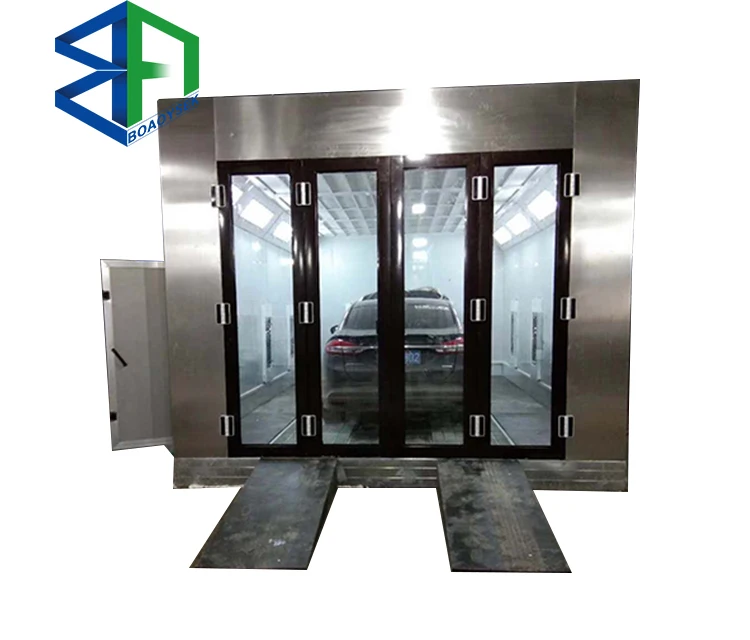

| Gate size | 1 | 3000x2700mm | Three fold,with glass observation window and explosion-proof door lock,Aluminum alloy edge around. |
| Side door size | 1 | 800x2000mm | With glass observation window,explosion-proof door handle.Aluminum alloy edge.With pedal. |
| EPS insulation board | 110 Square meters | The thickness of 75 mm | Double-sided color steel plate,single-layer thickness of 0.475mm steel plate,foam density of 10kg/m3. |
| Static top bracket | Electric galvanized | ||
| Static press filter cotton web | Spray, white | ||
| Bottom bracket (galvanized) | 1 | 10A # channel steel | Channel steel 100x58x6.0mm support,six vertical support,four horizontal support,galvanized, height of 300mm |
| Bottom plate (galvanized) | 30 Square meters | Steel lattice plate 4mm, pattern plate 3mm | Two row grid plate,three row diamond plate,800mm width,galvanized |
| At the end of cotton net | Two columns | Add tray under two row grid plate(mesh stainless steel or galvanized)(800mm wide) | |

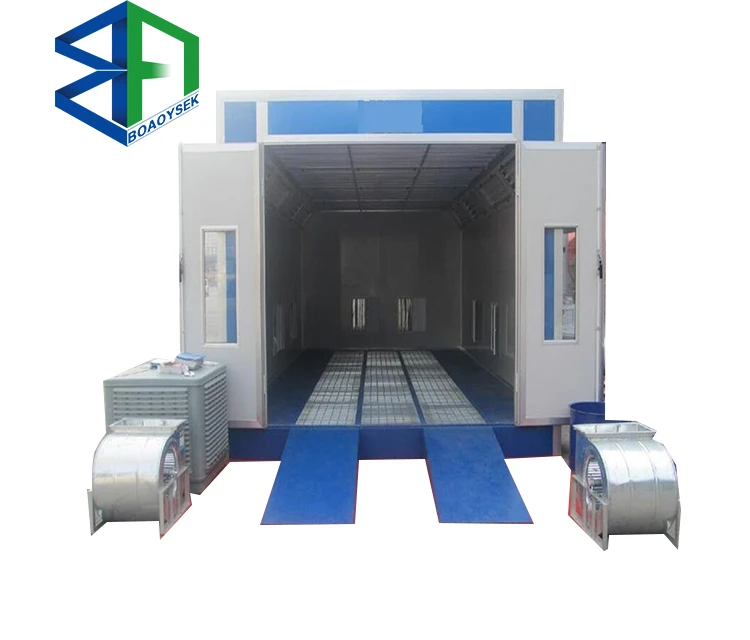

| Blower (centrifugal type) | 2 | 4KW (380V Three-phase 50 HZ) | Air volume: supply air 18000M3/H, CE certification motor, belt fan. |
| Induced draft fan (centrifugal type) | 1 | 4KW (380V Three-phase 50 HZ) | Air volume: supply air 18000M3/H, CE certification motor, belt fan. |
| Combustion engine | 1 | Riello G20 | |
| Heat exchanger | 1 | Made of 1.0mm stainless steel, the chimney diameter is 150mm. | |

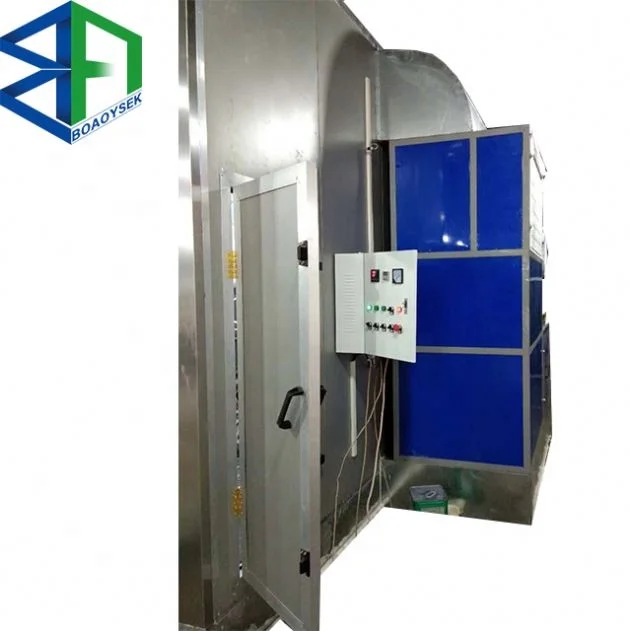

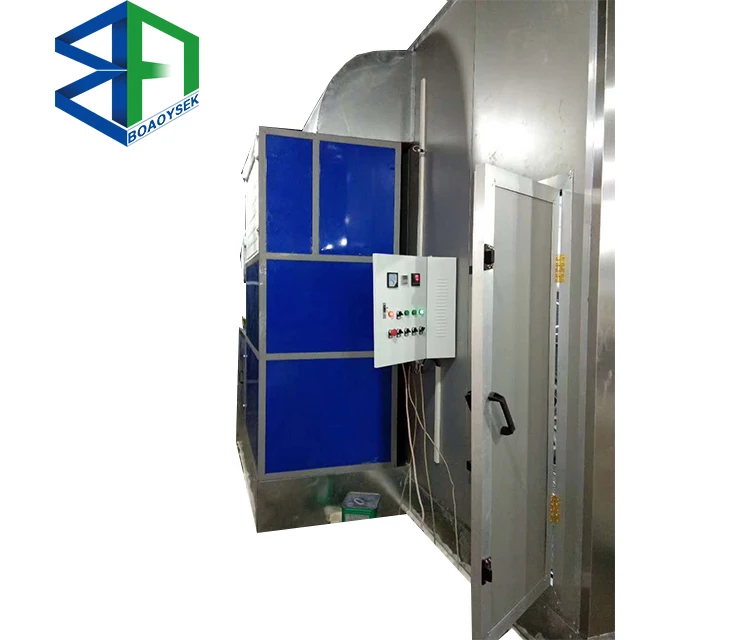

| Heating cabinet | 1 | 1.0 color steel plate production (white) | |
| Dome light | 8 Group | Each set of 4 tubes, each tube 40W | LED |
| Waist light | 8 Group | Each set of 4 tubes, each tube 40W | LED |
| Pneumatic damper | 1 | ||
| Electric cabinet (English panel) | 1 | 380V Three-phase 50 HZ | Luxury export configuration, pure English panel,internal delixi electrical appliances. |
| Filter cotton | 1 Set | Three-dimensional plastic top cotton G600,bottom cotton, tuyere cotton | Without a word |
| On the plate | 1 Pair | 1800(length)x1000(width)mm | 3mm diamond plate.Electric galvanized |
| Remark: with Bluesky label and instruction manual. | |||
| 1. Aluminum alloy plastic coating shall be used at the joint of baking board surface. There shall be no obvious gaps around the door. | |||
Packaging & Shipping
Air bubble film,Wrap film,Wrapping paper Three layers,Use fumigation-free wooden case for special cases

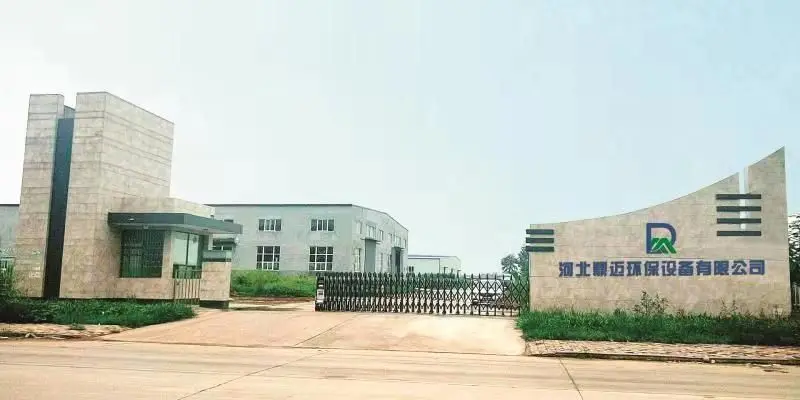

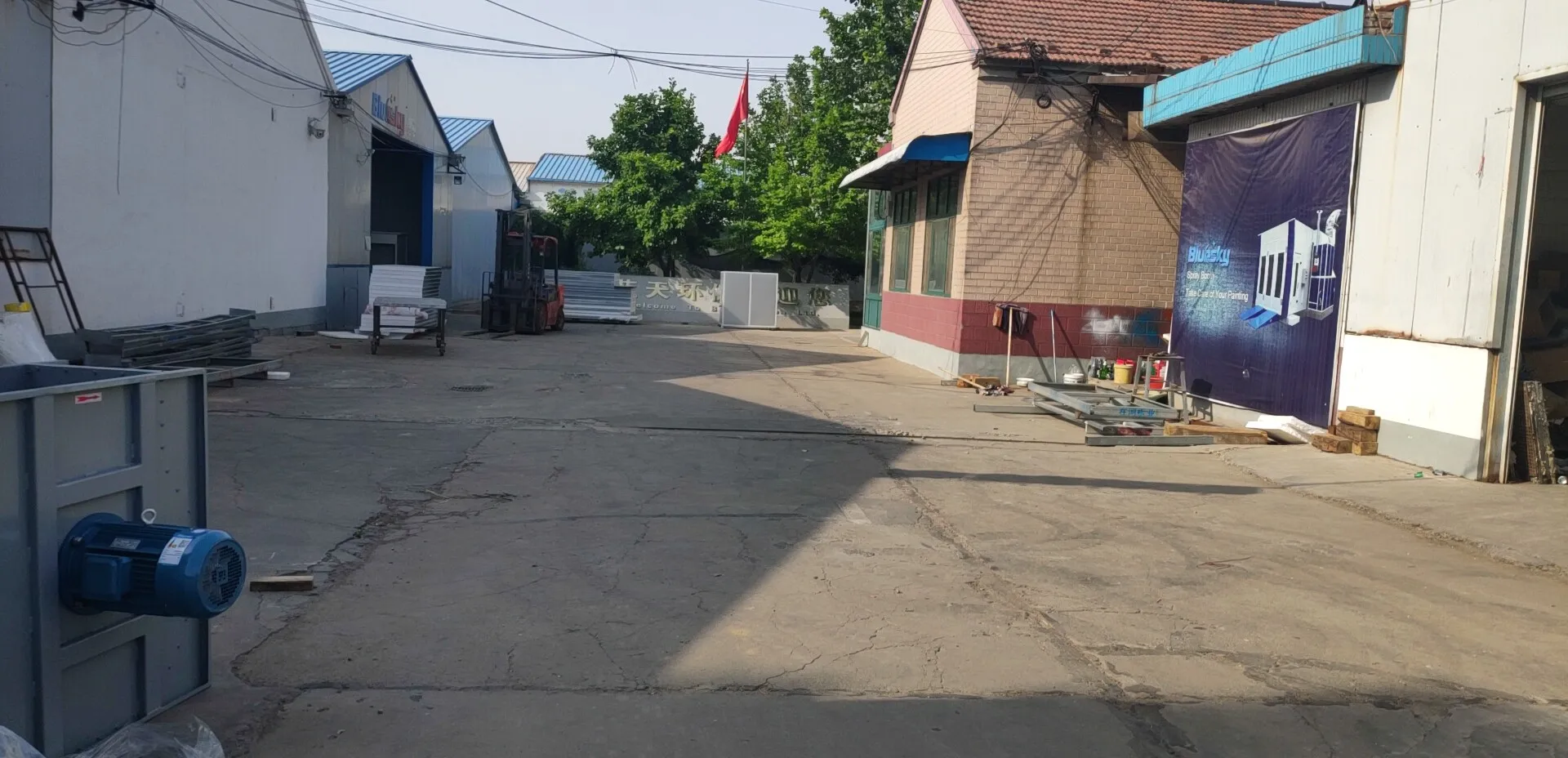

Company Information
Customer bo ao environmental protection equipment co., LTD., is a professional modern enterprise engaged in the research and development, production and sales of auto sheet metal repair equipment.Bo Australia environmental protection company has full product series, excellent quality, cost-effective solutions and efficient professional services, selling products independent research and development to spray paint, industrial coating production line, large room of the lacquer that bake, environmental protection equipment is given priority to, in addition to serving the domestic automobile service market, bo Australia also rely on superior to peer processing capacity and stable product quality, makes Australia products are exported to the United States, Nigeria, dubai, Russia, Korea, Mexico and other countries.The company has been "innovative technology, quality optimization and customer-centric" core concept, through ISO 9001:2010 quality system certification and CE certification to win the trust and recognition of customers at home and abroad.We use high quality products to provide you with high quality service, we use the integrity to let you rest assured forever!All staff of the company sincerely welcome domestic and foreign merchants to come to discuss business, investment and cooperation, and create brilliant together

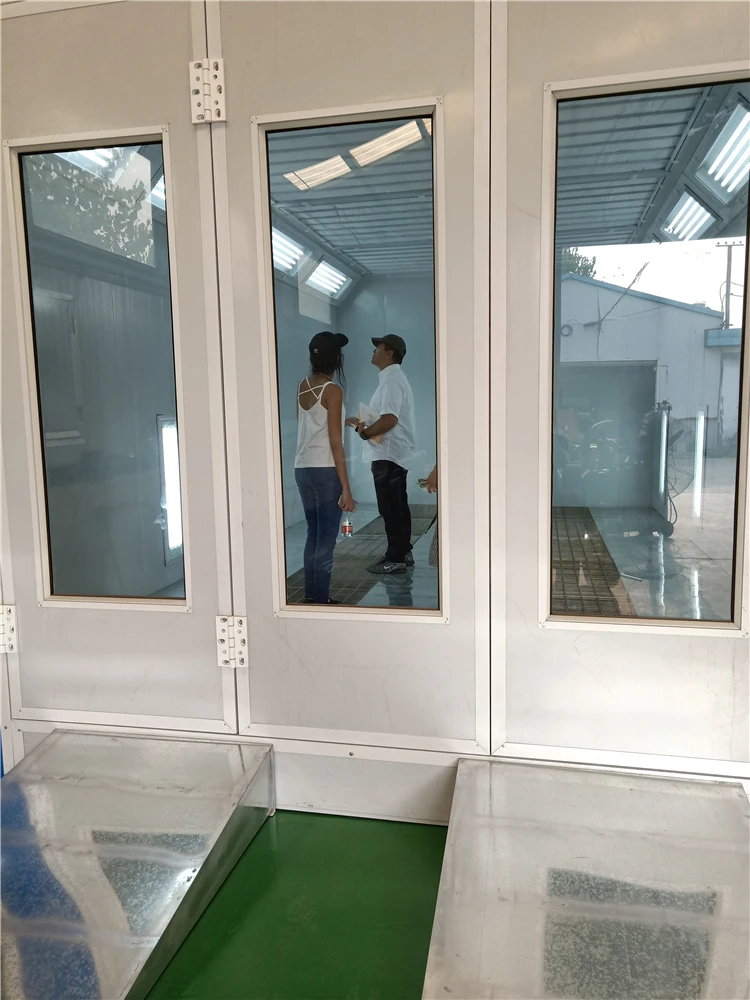

Customers
