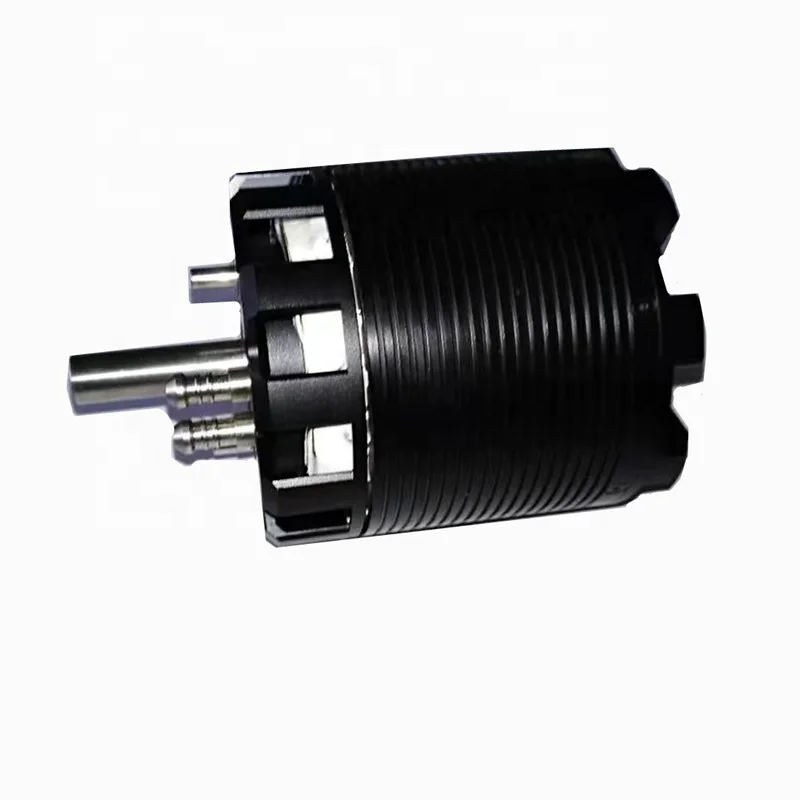

electric spindle dc brushless motor 7.5kw 12000rpm

Product Overview

Description

electric spindle dc brushless motor 7.5kw 12000rpm



Note: All of our brushless dc motor need to work together with speed controller, speed controller need to buy by separately.



Product Description

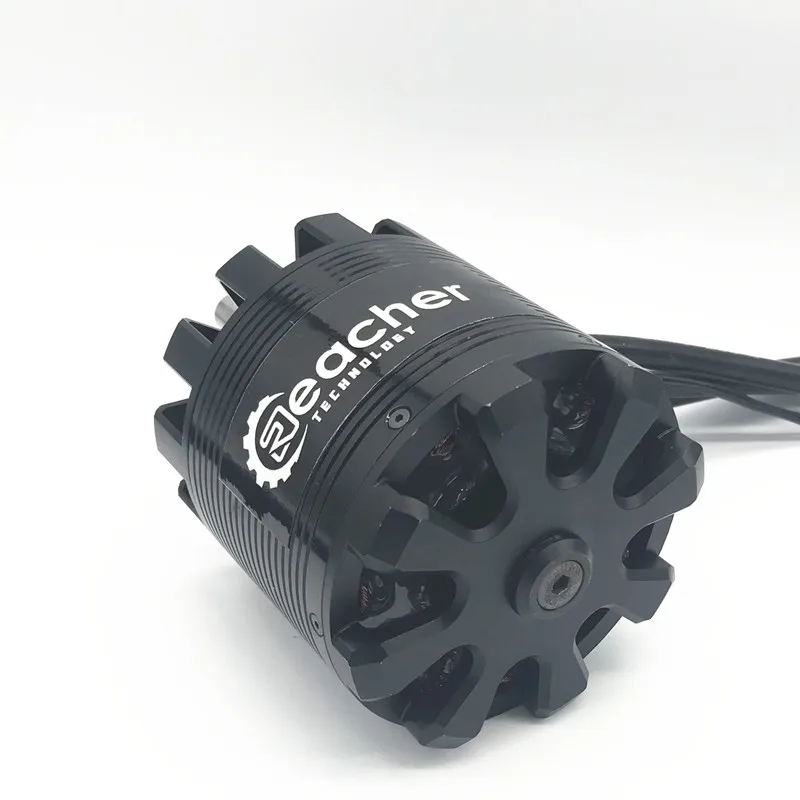

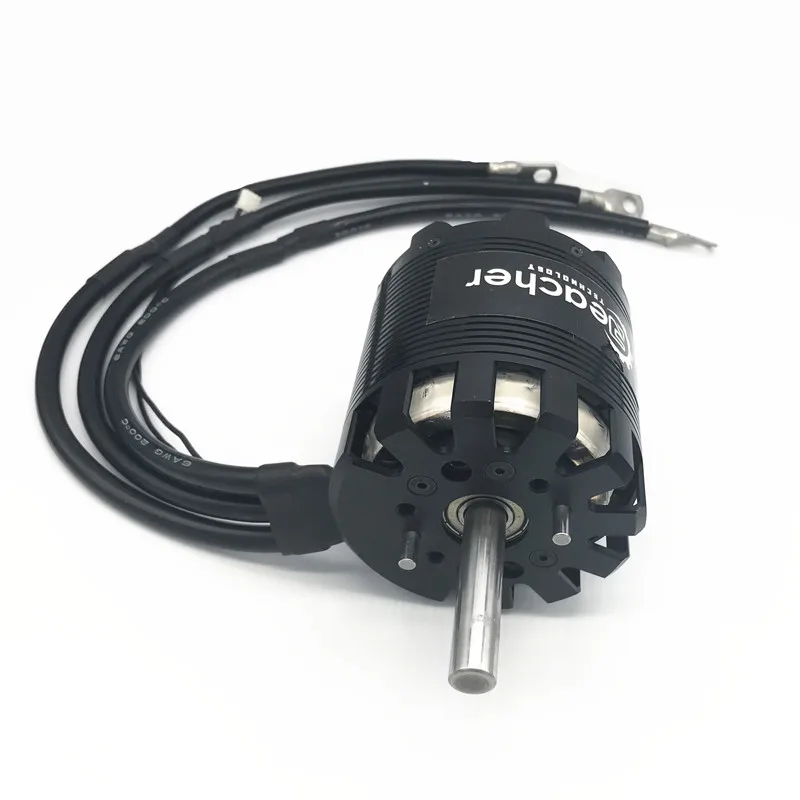

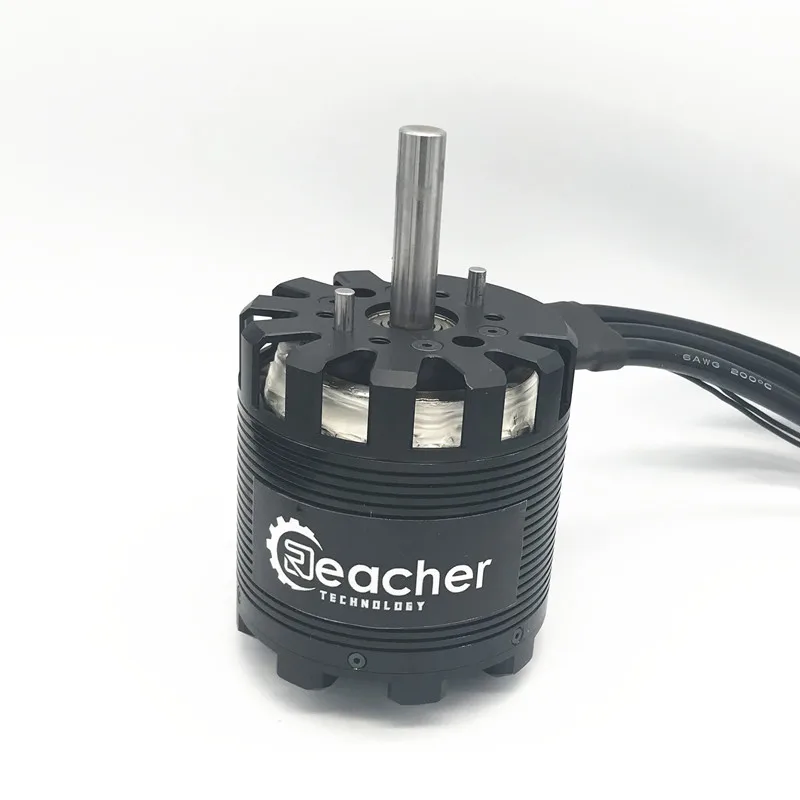

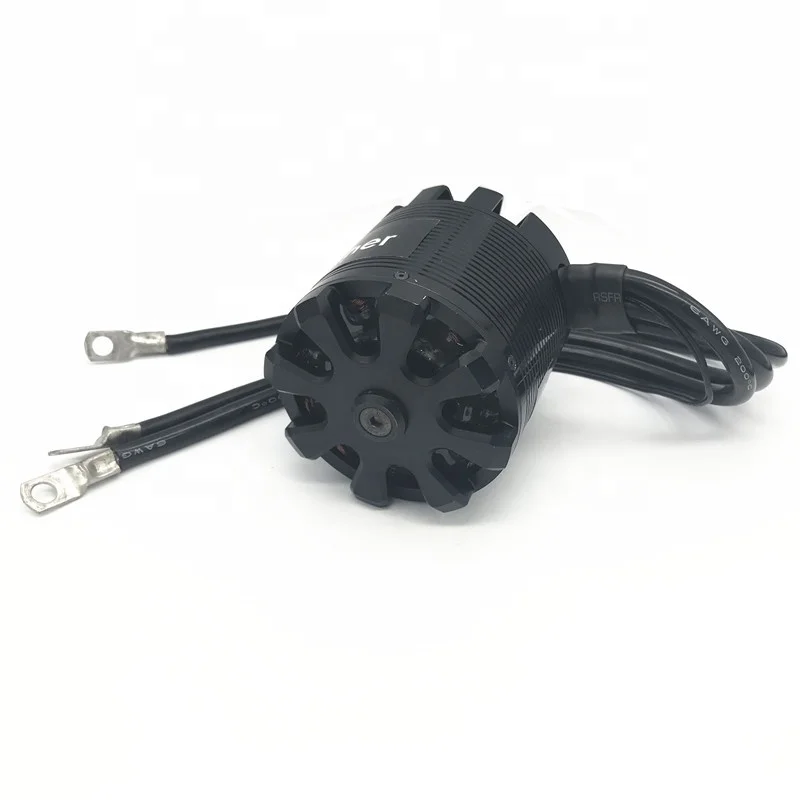

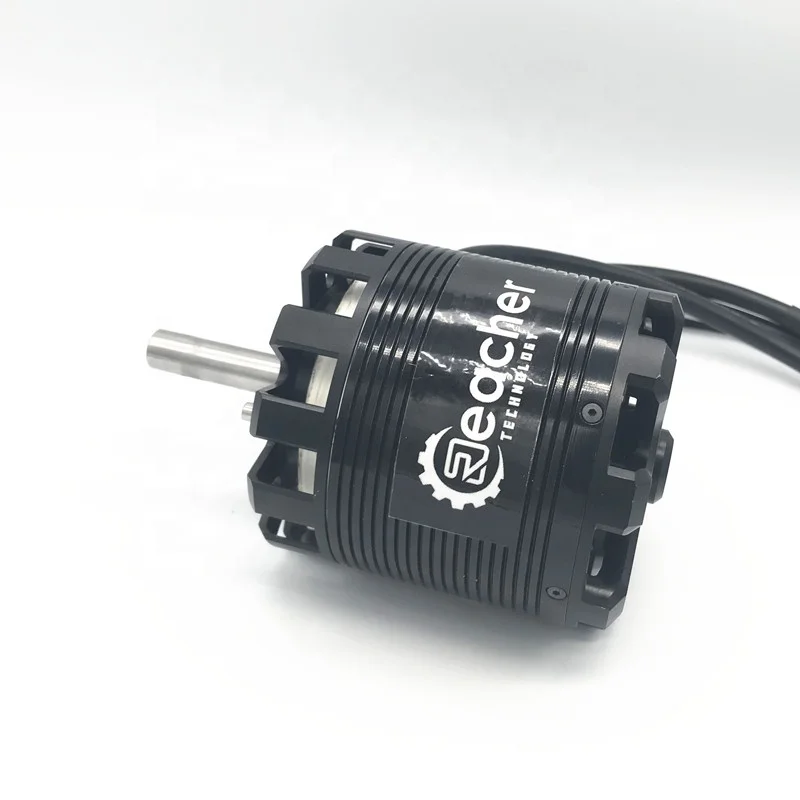

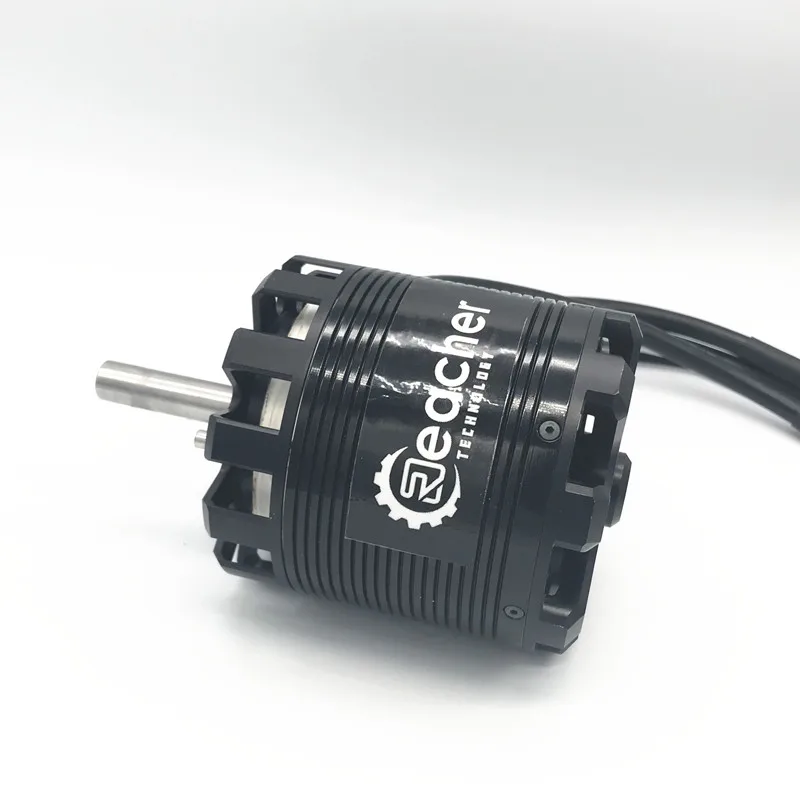

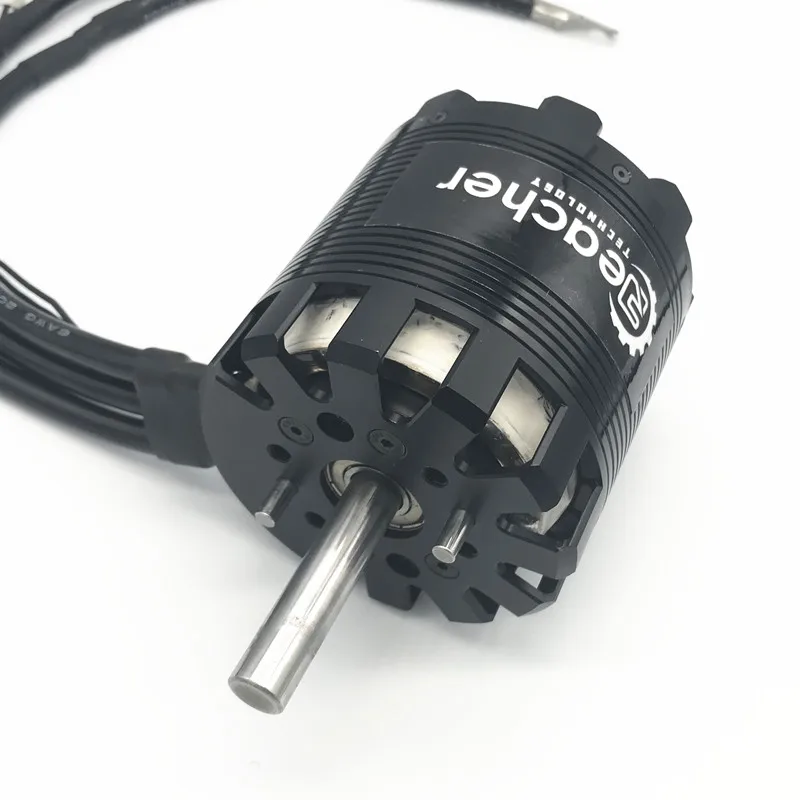

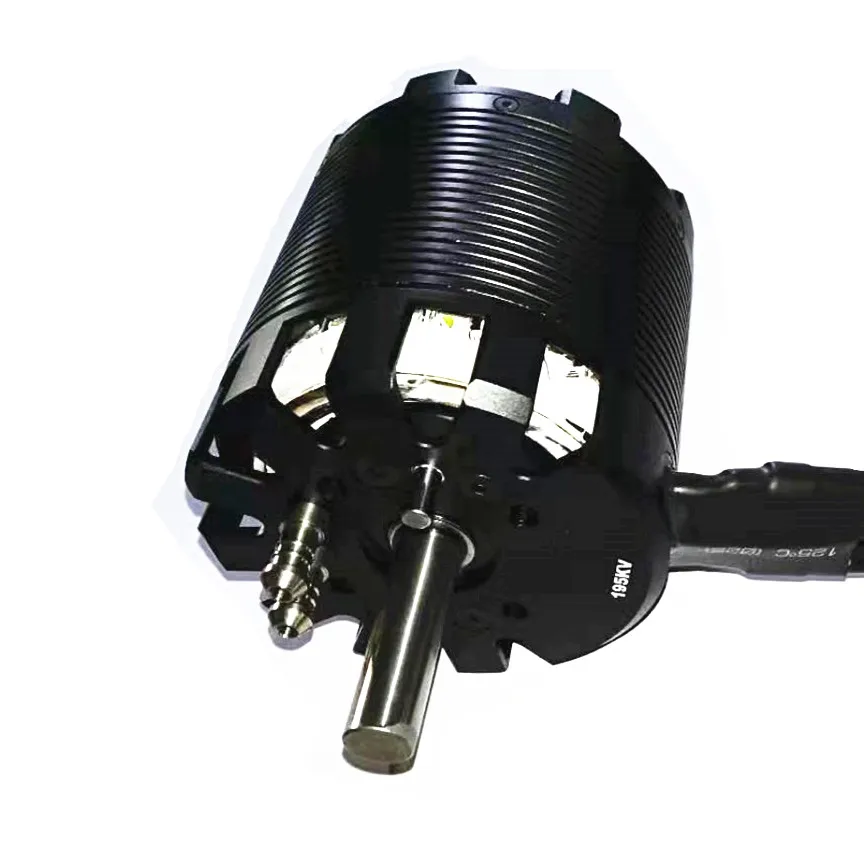

The Reacher Tech RTD90 Series motor rotor was designed with segmentation magnets, which can reduce eddy current in the magnets andgenerate less heat.

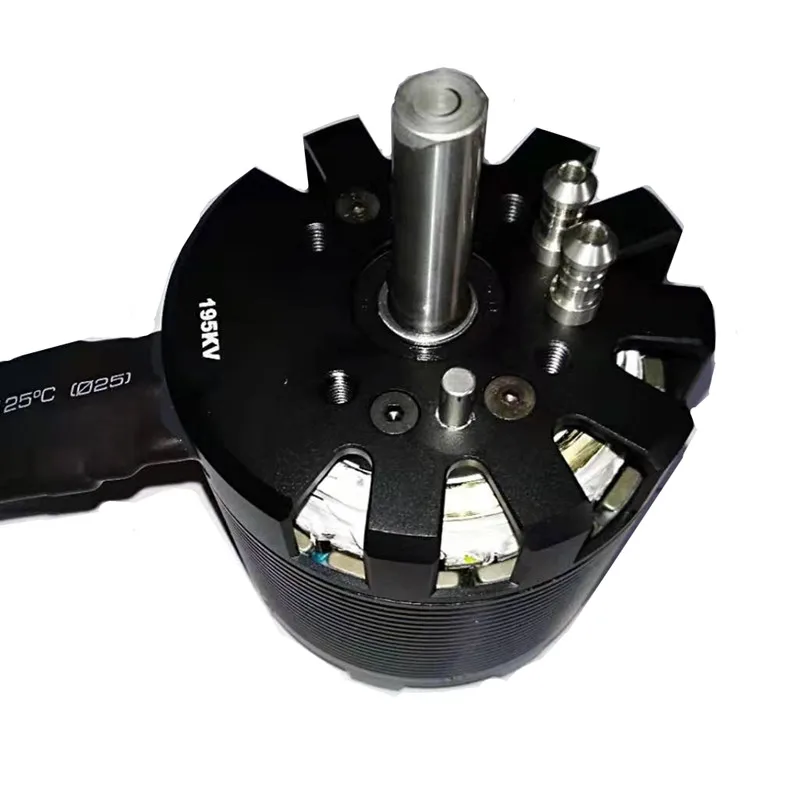

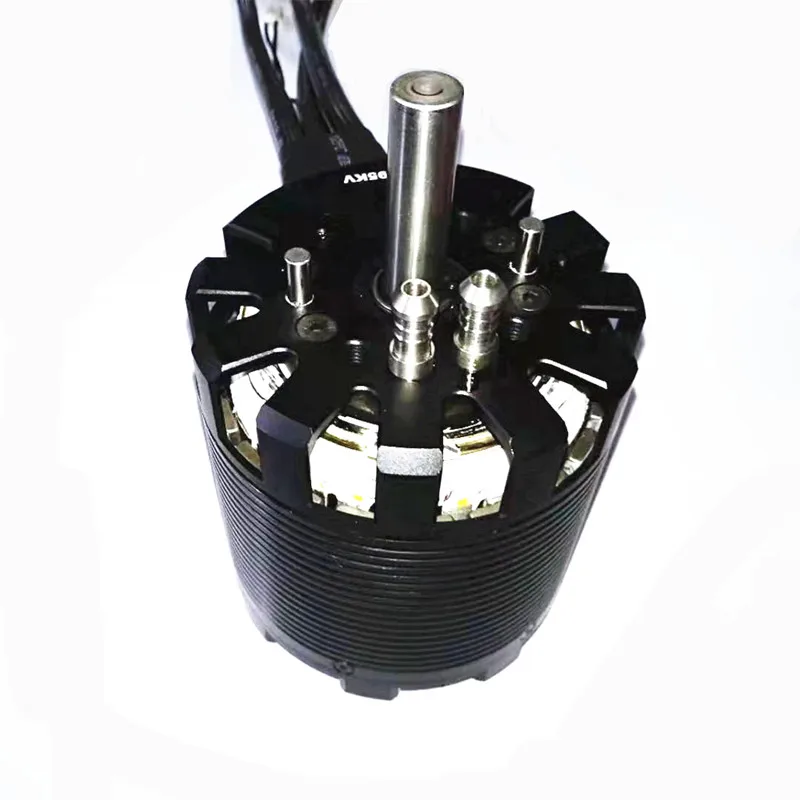

The motor is original designed for Surfboard with water cooling function which can vanish the heat generated by stator with the water flowing through the cooling pipe. Meanwhile, the motor itself also has the air cooling ability to vanish the heat from stator and magnets to let the motor output greater power. The motor body shell is made of Light and solid 7075 aluminum alloy, all the motors from this series have wide range of RPM and can output powerful torque.

The motor rotor was made with high mgnets strength, the stator was made with very thin and high quality lamination, so the motor have very high efficiency ,very high power/torque output .



Both the stator and the rotator of this motor have been processed with the waterproof coating that let the motor perform well in splash proof in the moist and wet, freshwater environmental conditions. It also can prevent from from Oxidation and corrosion.



Furthermore, the manufacturing cost is favorable with the durable service life . Such characteristics make it become the best candidate of power in the devices like water parks and underwater robots.



Feature



1. Segmentation magnets design, which can reduce eddy current in the magnets and generate less heat.

2. Light, High strength 7075 alloy motor shell with blaster and black anodize,can prevent from Oxidation and corrosion.

3. High quality Imported Japan Brand ball bearing with high energy efficiency and very low noise and vibration.

4. The rotor have good dynamic balance,the vibration of the motor is very low .

5. High performance magnet: 45SH Grade, temperature resistance up to 150 Centigrade .

6. High grade,high temperature resistant copper wire with high insulation .Working Temperature Range from -60℃~180℃

7. High power density ,High torque, and high efficiency,High RPM .

8. Combine the water cooling and air cooling feature.

9. Coated both on the stator and rotor, the motor can be applied in splash water or wet condition.

10. The stator use 0.1mm lamination,stator magnetic loss is very small and made the motor have very high power output .









Product Parameters





RT Model No	D90L96-335	D90L96-270	D90L96-225	D90L96-195	D90L96-170	D90L96-150
Winding turn (Coils)	4T	5T	6T	7T	8T	9T
Coil resistance(mΩ)	2.5±0.5	3.7±0.5	4.9±0.5	6.3±0.5	7.6±0.5	10±0.5
Coil inductance(uH)	2.3±0.2	3.7±0.3	4.3±0.3	6.1±0.4	8.7±0.5	11.4±0.5
Working Voltage Range (Cells of LiPo)	6-10S	8-12S	10-14S	12-16S	14-18S	14-22S
Max Spin Speed (RPM)	14070	13608	13230	13104	12852	13860
Speed Constance KV(RPM/V)	335	270	225	195	170	150
Torque Constance Kt(N*M/A)	0.0348	0.0412	0.0491	0.0573	0.0641	0.0712
Current @8.4V without Loading	6.4A	4.6A	3.4A	3.0A	2.5A	2.2A
Max Power(KW)	9.5	10.4	12	13.3	15.6	18
Peak Current(A)	420	410	400	390	375	360
Max Effeciency	86%	97%	88%	89%	90%	90%
Rating Power(KW)	7.5	7.8	10.8	11.2	12.2	15.1
Rating Torque(N*M)	10.5	13.8	17.8	18.8	20	22
Net Weight (kg)	2.53	2.51	2.56	2.52	2.52	2.52
Construction	24N/20P
Dimension (mm)	D90*L96.4
Shaft Diameter (mm)	φ12*L40
Output Wire Length (mm)	160±5MM
Connector	10.0mm Gold Connector
Max Working Temperature	120 Centigrade
Service Life	10000 hours







Note: Due to the materials increased 30%-50%, labor cost increased 30%, but the USD/RMB exchange rate down from 7.1 to 6.4 during the whole 2020 year, So the new cost from 2021 should be compeletely different, please kindly understand. All motor prices are subject to the final offer based on your order.



OEM/ODM Order question



We can custom made whatever brushless dc motor and servo you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.



For the motors please let us know your requirements:

1. Please choose inrunner motor or outrunner motor you need.

2. Do you have motor diameter and length limited?

3. What working voltage you will use for this motor?

4. What's your expected rated power?

5. What's your expected RPM?

6. You battery pack can bear how high peak current?

7. You estimated yearly sales qtys?

8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.

9. Other requirements if you need, for example, wire length, connector types and so on.

Contact Us directly via Trade Manager or send us email both ok, we will reply ASAP in 24 hours.

Below our custom made motors for other clients for your information.







Product Pictures

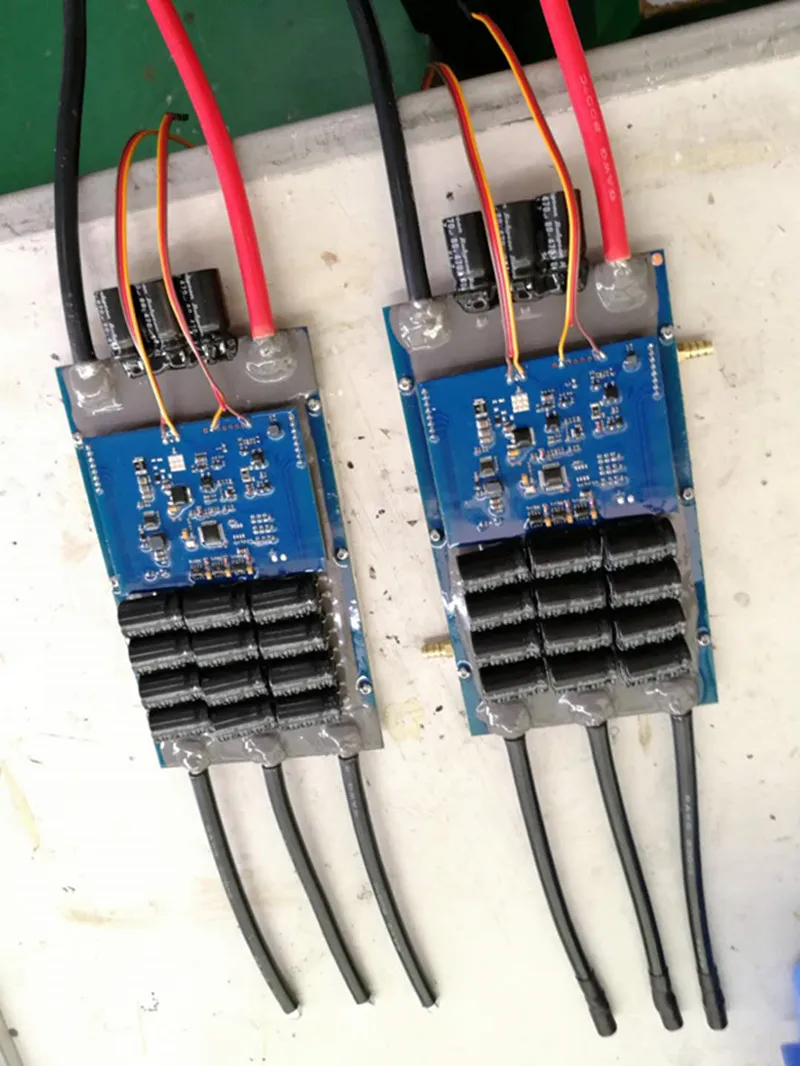

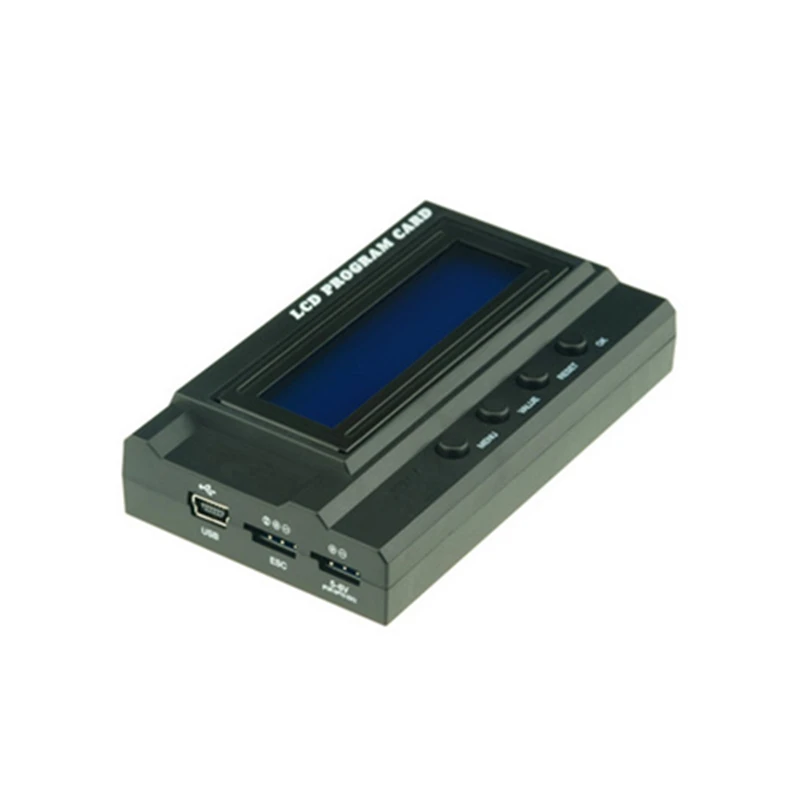

To work with our brushless dc motor well, we suggest you buy our brushless speed controller as well. Also the LCD Program Card warm suggested.
