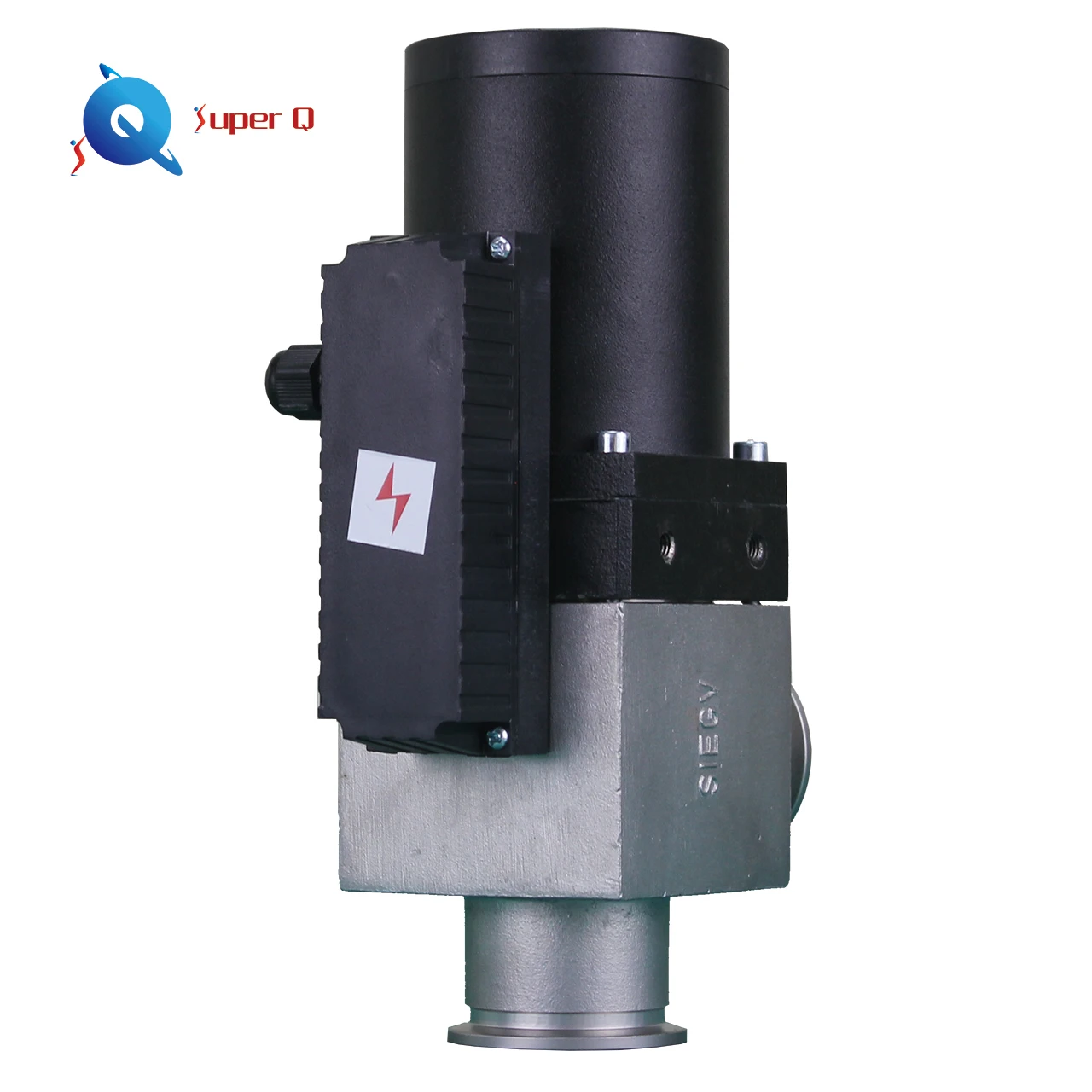

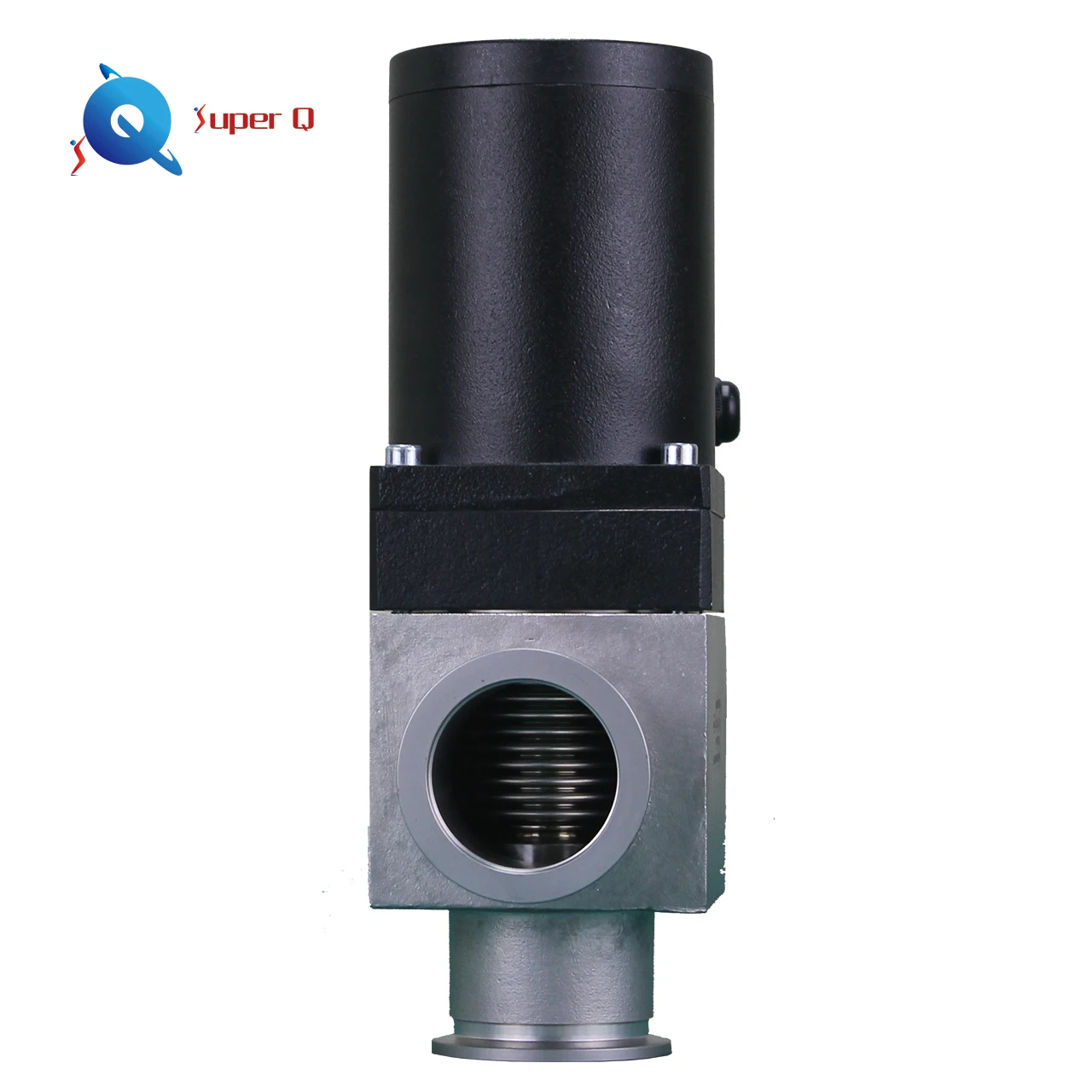

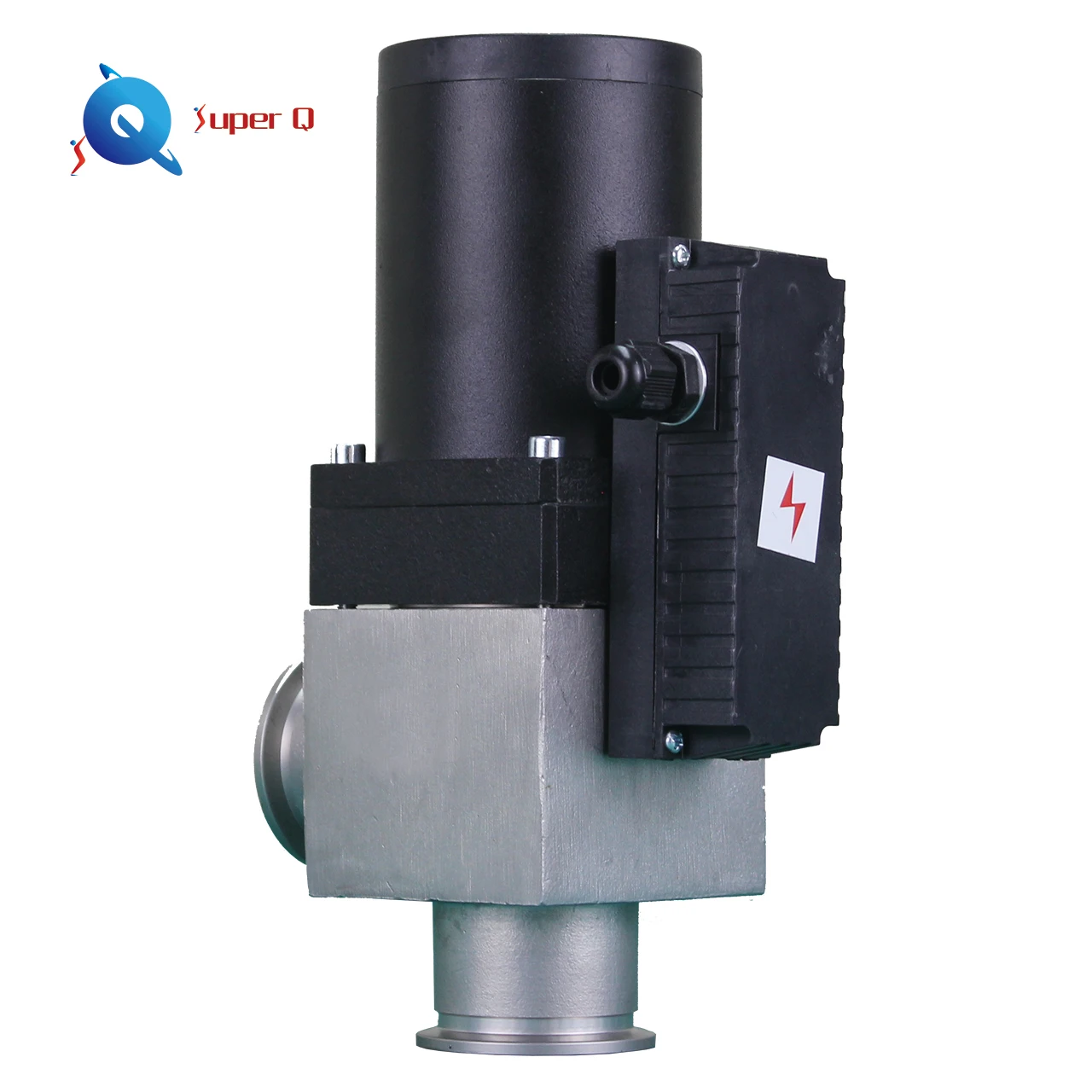

Electromagnetically Actuated Vacuum Valves with Position Sensor
- Category: >>>
- Supplier: Beijing Super Q Technology Co. Ltd.
Share on (62349377265):
Product Overview
Description
Product Description
EVGDC-J series electromagnetic high vacuum angle valve is one of the main components in vacuum system, which takes electromagnetic force as the lifting force of valve plate.
Technical parameter
1.Pressure range: 1×10-6Pa~1×105 Pa .
2.Differential pressure on the gate: less than 1.1×105 Pa.
3.Body and seat leak rate: less than 1.3×10-7Pa·L/S.
4.Cycles until first service: more than 100000 times.
5.Installation psition: Any.
6.The valve is provided with a reed-reed valve position indicator with a position signal generator.
2.Differential pressure on the gate: less than 1.1×105 Pa.
3.Body and seat leak rate: less than 1.3×10-7Pa·L/S.
4.Cycles until first service: more than 100000 times.
5.Installation psition: Any.
6.The valve is provided with a reed-reed valve position indicator with a position signal generator.
Model | EVGDC-J10B(KF)S-P | EVGDC-J16B(KF)S-P | EVGDC-J25B(KF)S-P | EVGDC-J40B(KF)S-P | |||
conductance（L/S） | 1.6 | 3 | 12 | 32 | |||
Weight AL(kg) | 0.8 | 0.85 | 1.8 | 4.4 | |||
Weight 304(kg) | 0.9 | 1.2 | 2.4 | 6.6 | |||
Power （V） | 220V+10%～-15% | ||||||
Speed of opening （S） | 0.04 | 0.04 | 0.06 | 0.08 | |||
Speed of closing:（S） | 0.1 | 0.1 | 0.1 | 0.12 | |||
Delay fuse capacity | 0.35 | 0.35 | 0.8 | 1.6 | |||
Maximum switching frequency（times/minute） | ＜6 | ＜6 | ＜6 | ＜6 | |||
Starting power（w） | 420 | 420 | 1000 | 2000 | |||
Maintenance Power（w） | 5 | 5 | 9 | 9 | |||
Valve position signal switch tongue reed load | 24V maximum current 0.25 A | ||||||
Detailed Images
Related Products

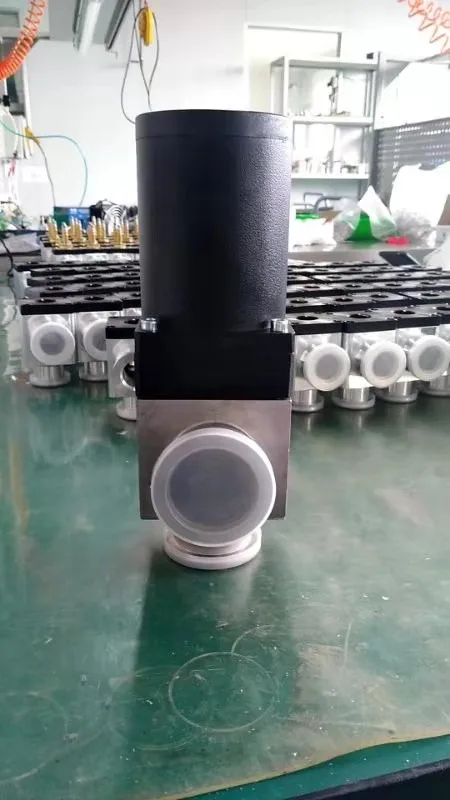

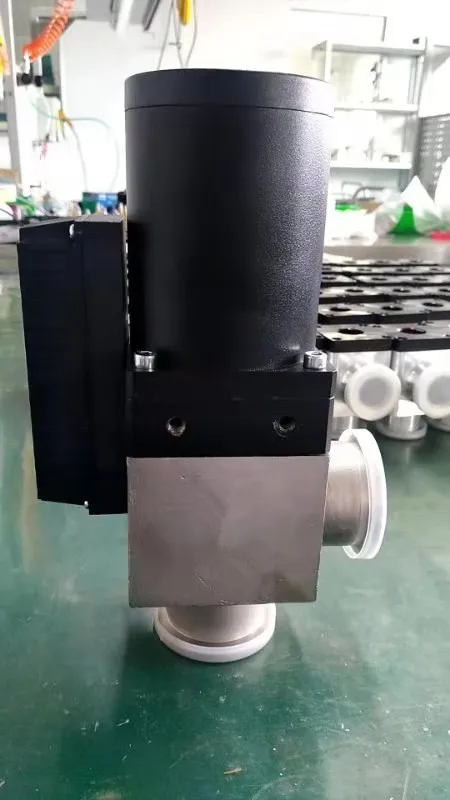

Stainless Steel Body is available

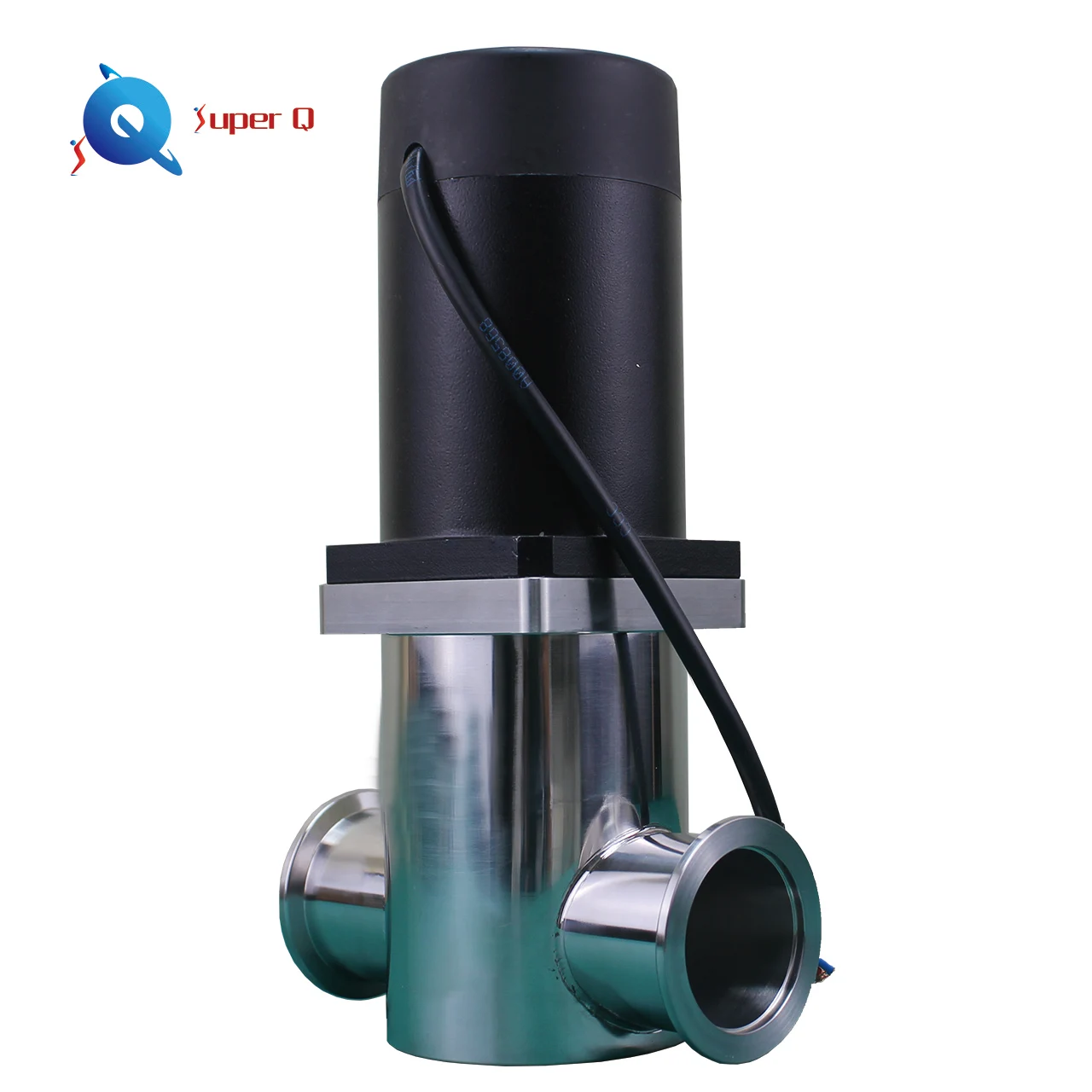

We also have straight / Inline valve.
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 4-8weeks if the goods are not in stock or need to be customized. It is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
