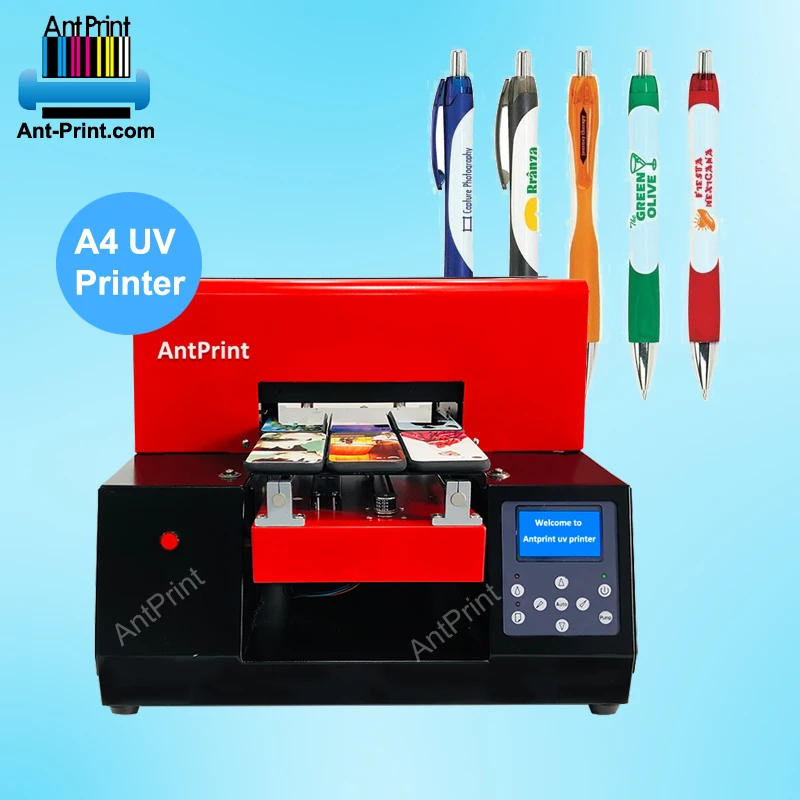

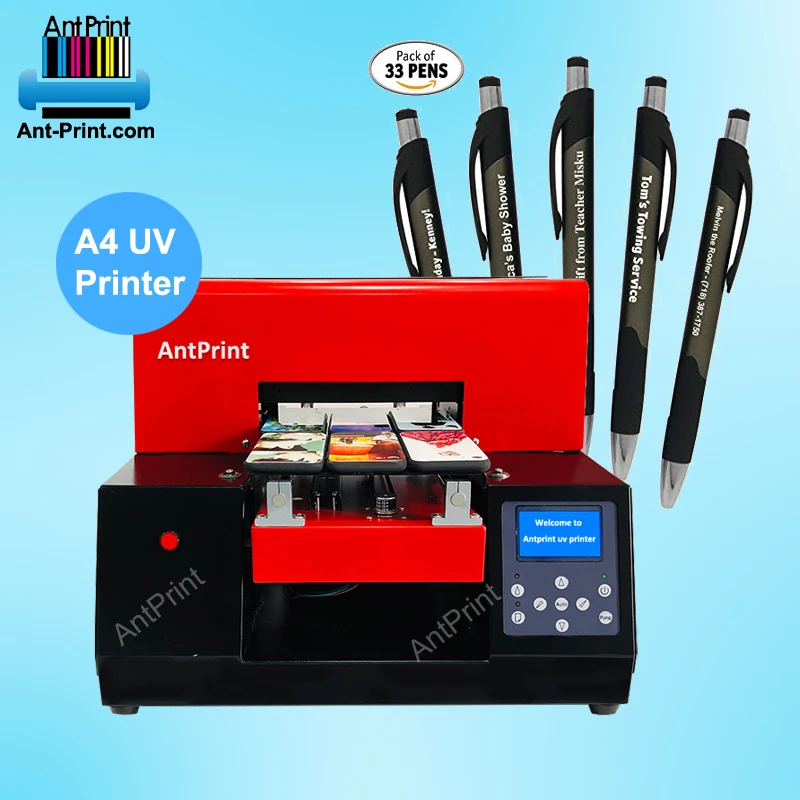

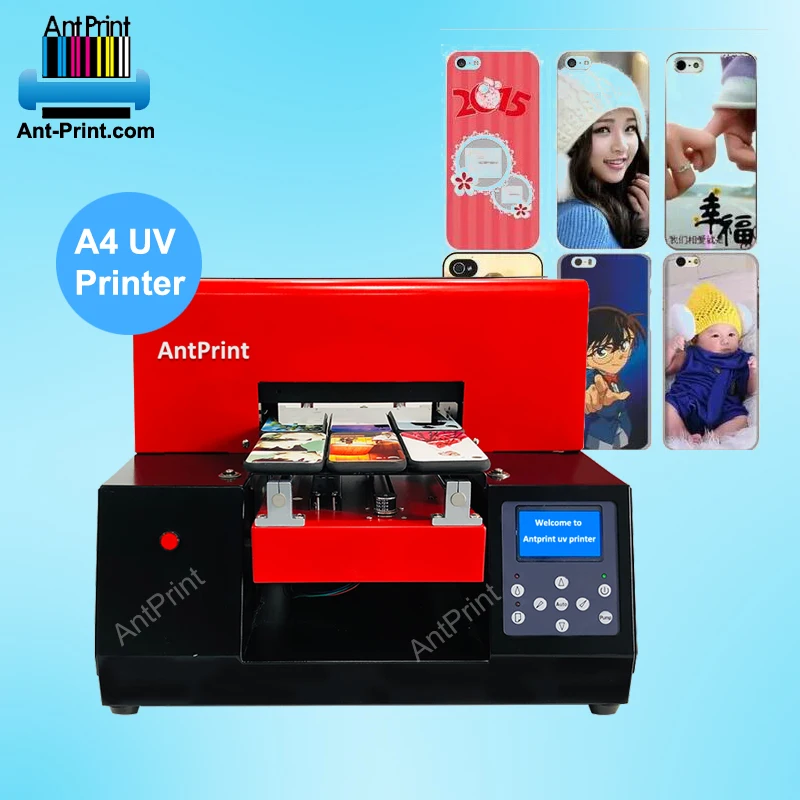

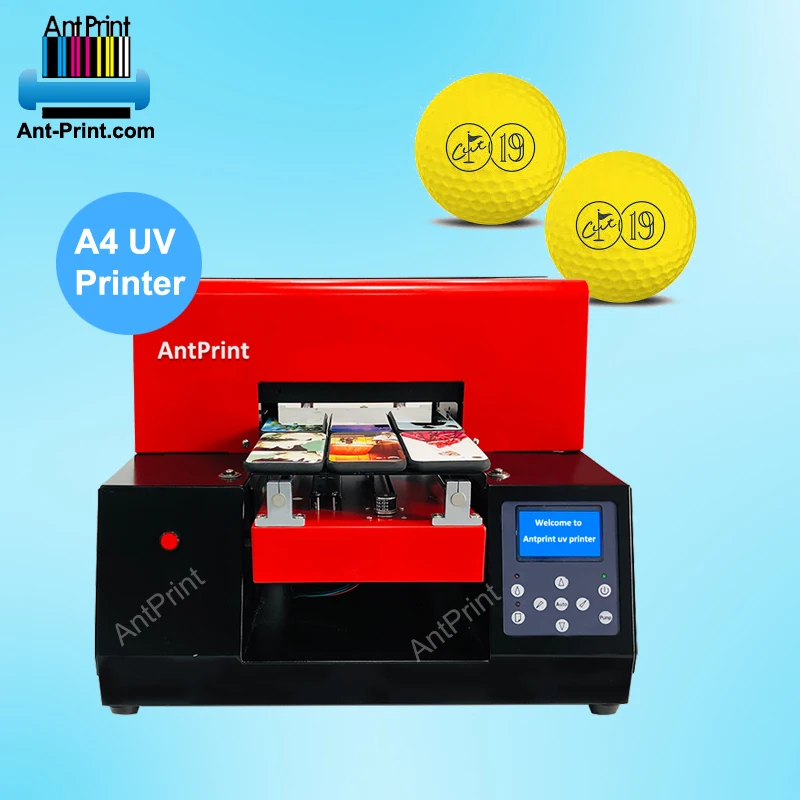

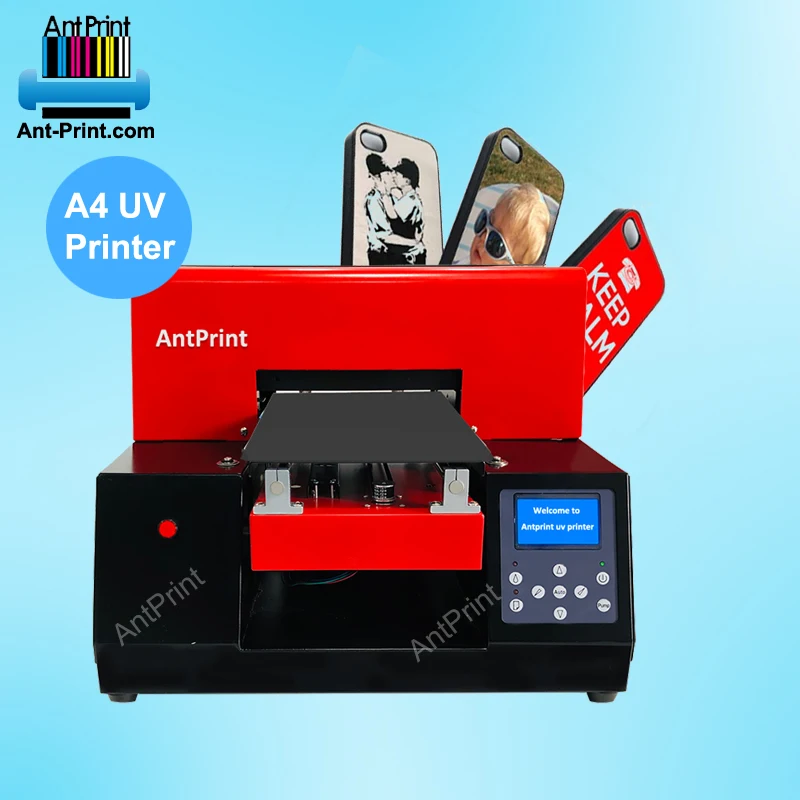

Mini A4 glass uv printer is a kind of inkjet printer that can print on 99% material in the market, most products can be printed directly withou any pretreatment. Most people use to print on matal, wood, glass, pvc, acrylic, ceramic and so on. Many people use it to print on phone case, pvc cards, ball pens, charger, water bottles, canvas, board, leather, textile, slate, driftwood, bamboo,wine jar and so on.
| Products name | Multifunctional a4 portable direct uv printer for printing on plastic glass uv printer a4 with white system |
| Printing Technology | Advanced Micro Piezo 6 color pigment inkjet technology |
| Application | Add UV ink for printing on metal, wood, glass, acrylic etc; |
| Add the eco-solvent ink for multifunction (coating is requirement) | |
| Printing speed | 2880 dpi 111 seconds/A4 size |
| Cooking system | Water cooling system + Heat sink |
| Print head | original L800 |
| Max resolution | 5760 *1440 dpi (highest resolution) |
| Max Printing Size | A4 (210mm×290mm) |
| Max thickness | 9.5MM |
| Height adjustment | Automation/Printer head protection board |
| Printing Software | Special RIP software, Photoshop, Word etc. |
| Transparent Date | USB2.0 high speed |
| Voltage/ Power | 110-220V / 30W |
| Printer head Protection | Intelligent Self Protect System |
| Ink type | UV ink |
| Printer head cleaning way | Automatic / clean by manual if block seriously |
| Ink system | CISS built inside (70ml-100ml per color) |
| Ink consumption | 10 ML/SQM |
| Computer system | Windows7/98/me/vista/2000/07/09/XP/MAC/NT |
| Working environment | 10-35 degrees |
| The way to add ink | CISS (add the ink into bottle directly) |
| Accessories | Accessories USB line, software-driven, power lines, product manual cleaning and ink adding tools |
| Net /Gross /volume weight | 30/ 35kg / 45kg |
| Printer/packing size | 56*49*40cm/69*56*44cm |

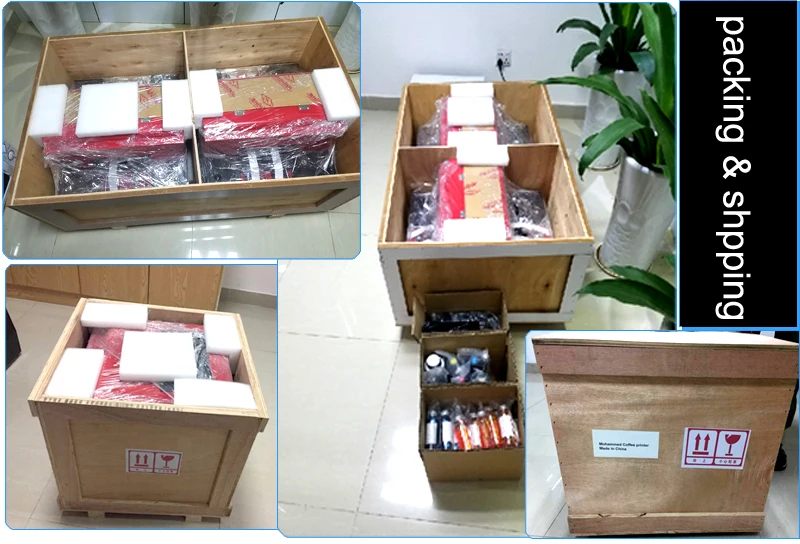

| Packing materials | Wood case (Fumigation free) |
| Special Remarks | Customized service is available |
| Language | English, Chinese |








Q.1 What’s the UV printer? What application does it can use for?
— UV printer is a kind of digital multifunctional inkjet printer that can print on most materials based on the special UV ink. People can use it for print any photos on the different materials surface, such as metal, wood, glass, ceramic, stone, acrylic, pvc, plastic, abs, steel, aluminum and so on. Most people use is to print company logo their products, or they print beautiful design on their products, there are many business man use it for printing on phone case, pvc cards, ball pens, CD/DVD, charger, mug cup, cylinder, wood veneer, oil painting and so on.
Q.2 What’s the main features of the UV printer?
— Compared to the eco-solvent printer, UV printer has four great features:
a. Print directly on most material, no need spray coating;
b. Drying at once, no need wait for drying time;

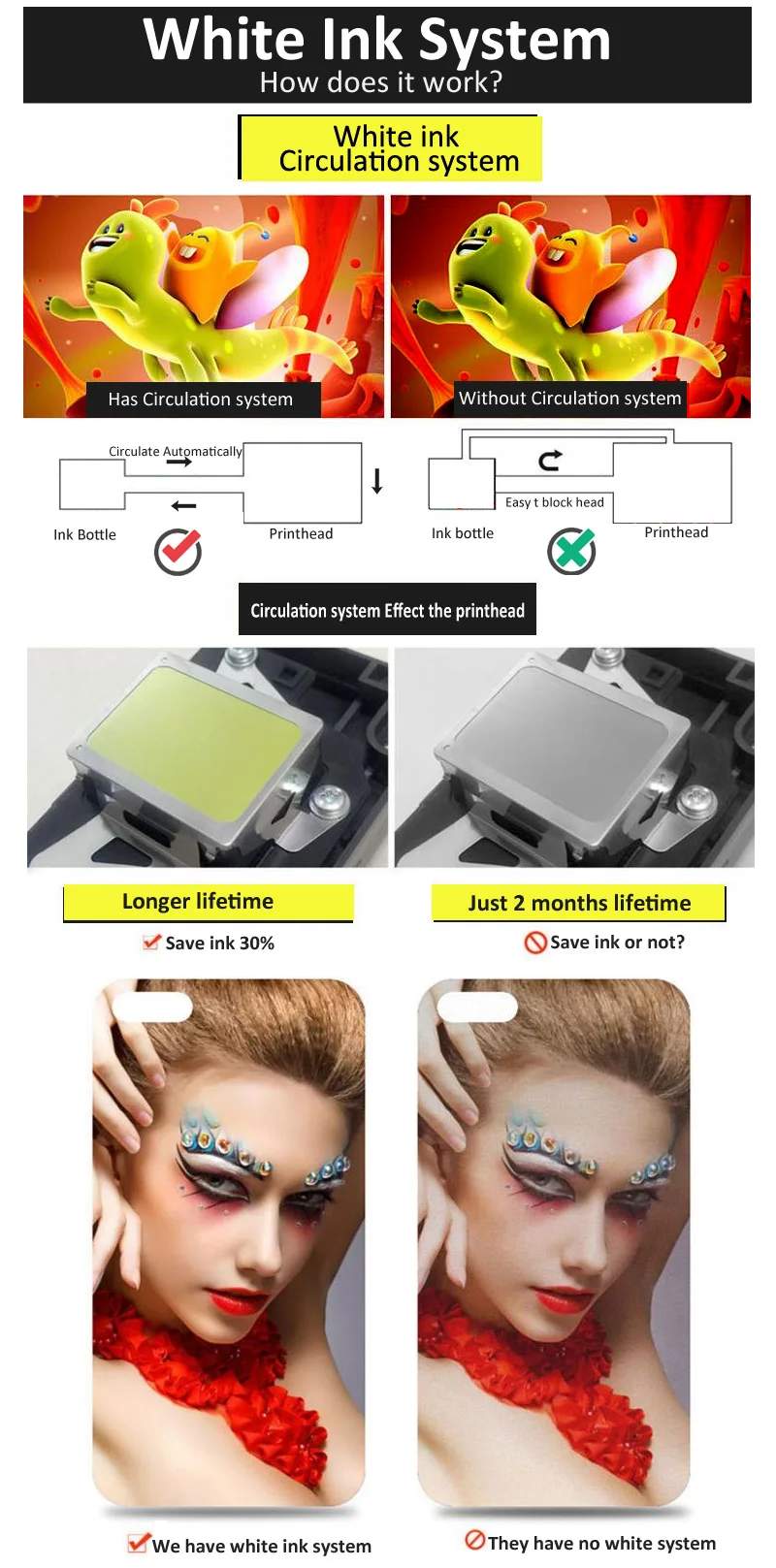

c.The white UV ink ink is available, can print on dark products;
d. Can print with embossment 3D effect.
Q.3 Why the (UV printer) printed pictures can drying at once?
— Most people think the printed pictures can dry at once for the high temperature of the LED UV lamp.
If fact it is wrong. As the UV ink can make chemical reaction with the LED light (from the UV lamp), so the UV ink can dry at once.
— As these printers have the different max printing size, max printing speed and
resolution. If you have no idea to choose which one, you can ask yourself: what products do i need to print? what’s the max size ? How many pcs do i need per month?
— Maybe the UV printer is little expensive compared to the old screen printing machine.
But the ink cost is very low. Kindly know 1 liter ink can print about 100 SQ.M.
For example, if you want to print on your phone case with design size 5cm*8cm, you can print about 25000 pcs phone case (If it is white phone case and do not need print with embossment).
— As the UV ink is a kind of inkjet printer, it is develop from the eco-solvent/ textile printer/ food printer printer after they add the UV system (LED UV lamp and cooling system).
So, you can print on t-shirt and phone case, pens etc by the same one UV printer. But as the t-shirt printing demands to the textile ink, so you need exchange the ink before you printing ( Of course you need clean the nozzle before you exchange the ink). About the details, our online international technicians will guide you.
