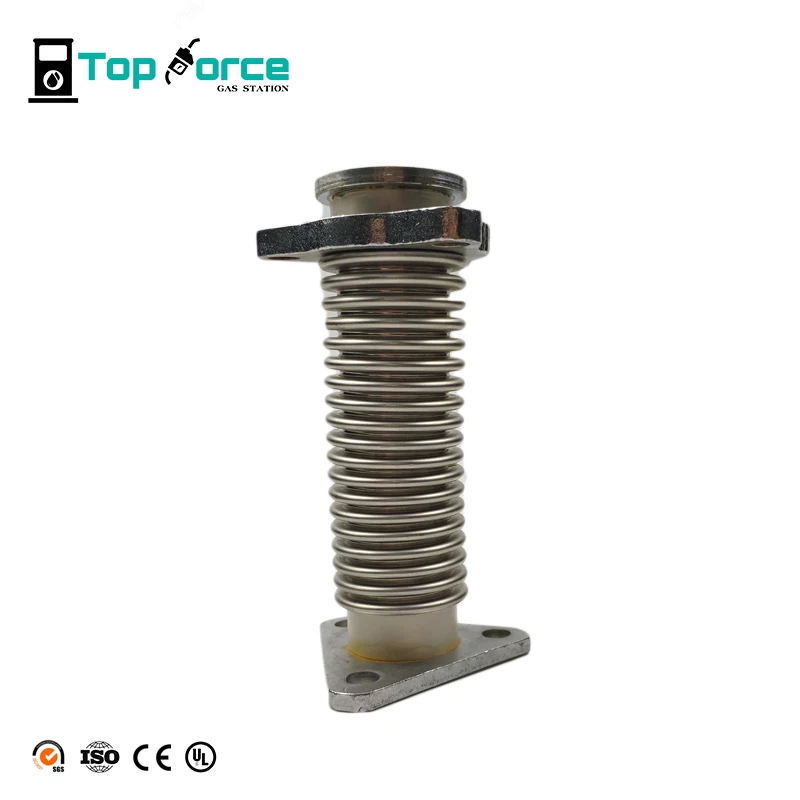

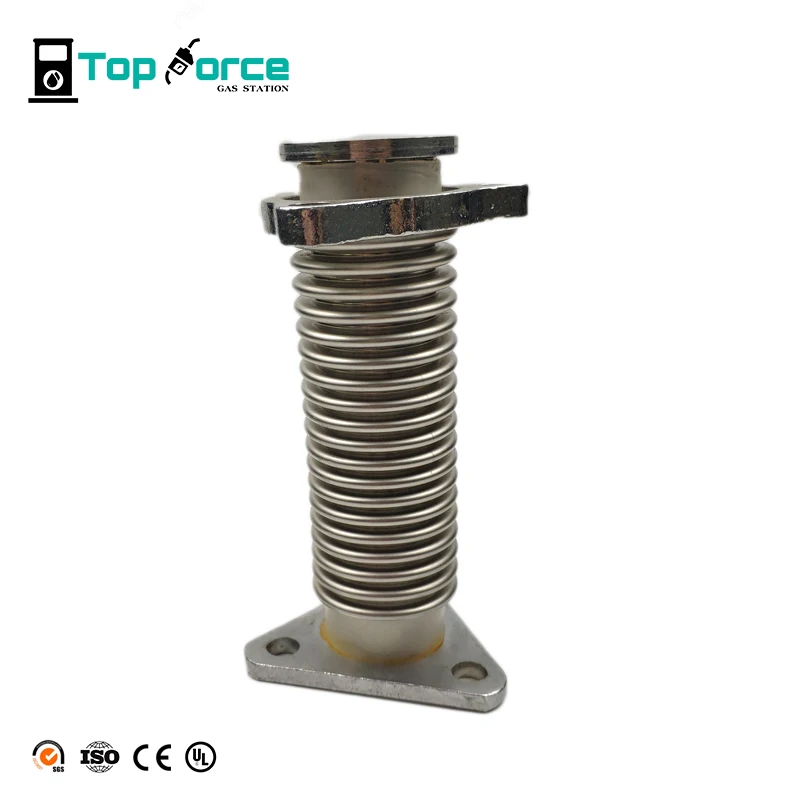

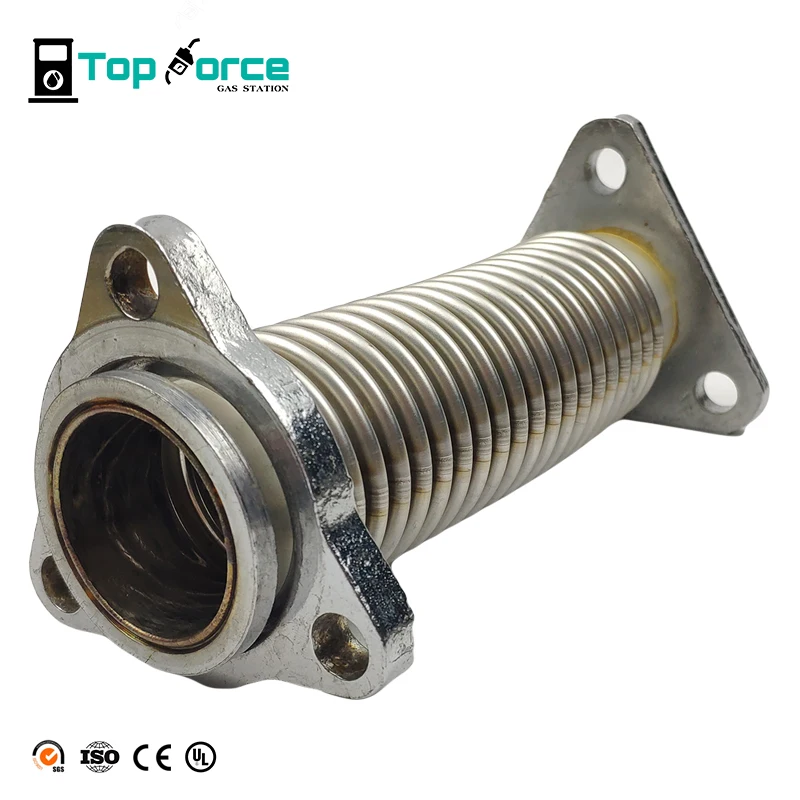

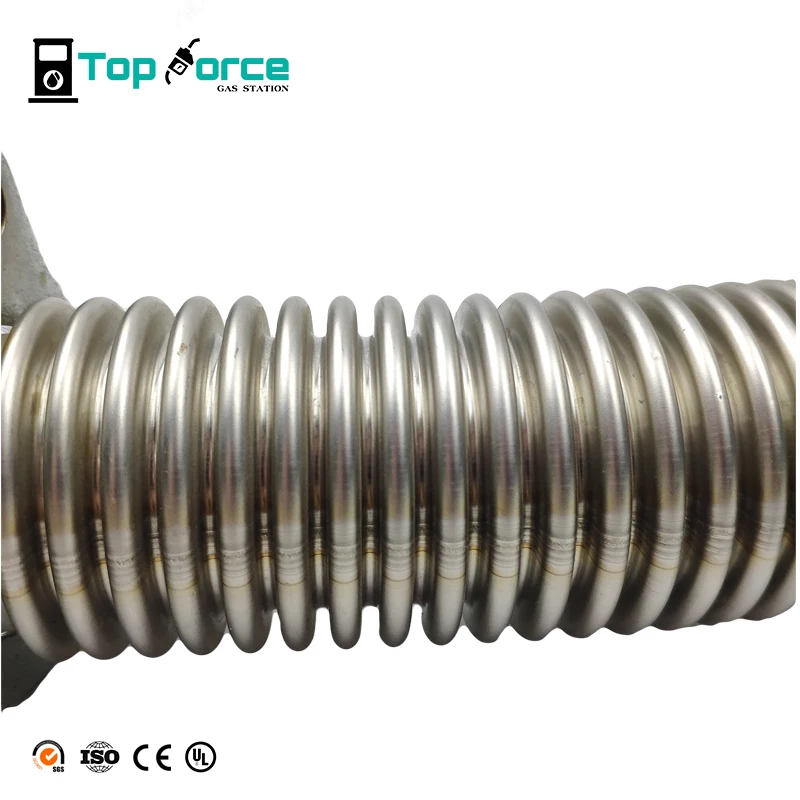

The Stainless steel annular corrugated flexible metal hose are good at decreasing vibration and noise. The project quality and usage life of equipment will be significantly extended if such hoses are installed at inlet and outlet of the pump and compressor. The product can avoid disadvantages of rubber fitting, such as aging and burst caused by material fatigue and failure. The annular corrugated flexible metal hose are fine choices for engineering design and application because they can not only reduce the vibration and noise during operation but also compensate misalignment of pipeline.
1.To absorb effectively vibration, noise,thermal expansion from pipeline system;
2.To resolve minor deviation because of piping connecting and eliminate the pipeline residual stress;
3.Applied to repeated motion in high temperature areas,good anti-fatigue performance;
4.Good flexibility,resistant to high temperature, resistant to corrosion.
5.Applied in the fields of petroleum,chemical industry,aerospace,metallurgy,electricity, gas,building,mechanical, construction,iron and steel,paper making,fabric,medicine,food and vessels ect.
Pipe Diameter | DN40 |
Pipe Material | SS304,316L,etc |
Pipe thickness | 0.18-2.0mm |
Braided mesh material | SS304 etc |
Braided mesh layer | single layer or double layers |
Max. woking pressure | 10Mpa |
Working temperature | (-196)~(+700) °c |
Connect type | flange,thread,welded.etc |
Standard | ANSI,JIS,DIN,GOST,etc |
Flange material | stainless steel or carbon steel |
Pipe assembly length | according to clients' requirements |
