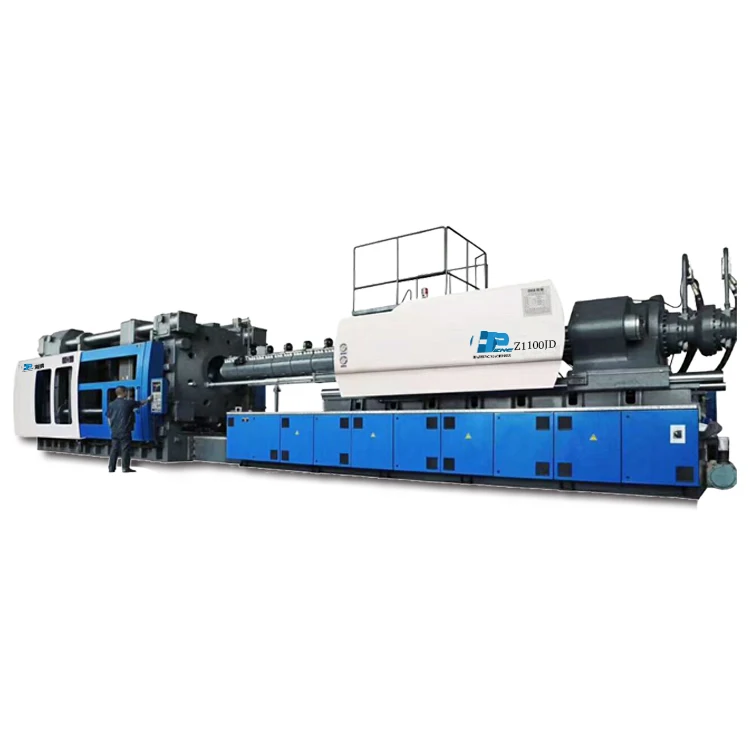

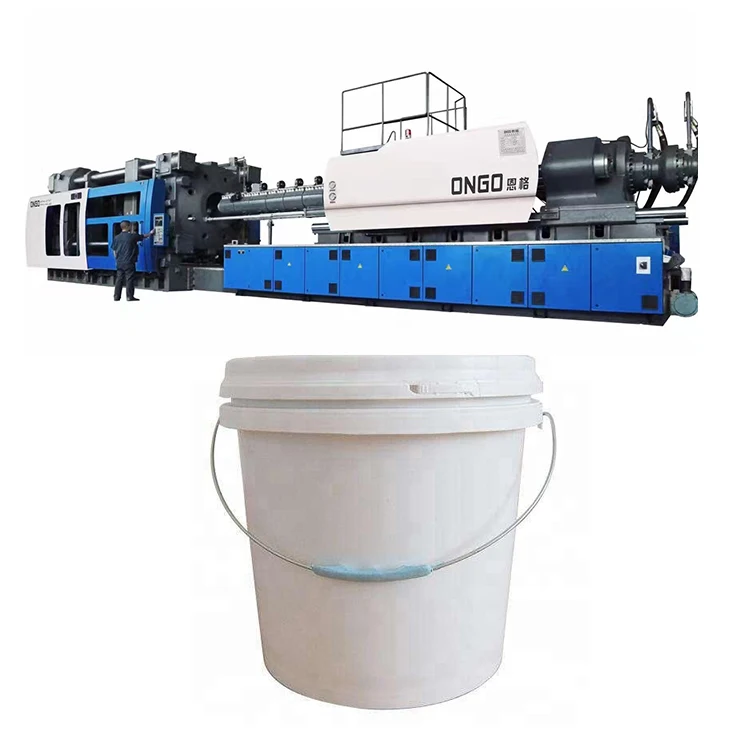

ONGO 1000 Ton 1100 Ton Injection Molding Machine Plastic Bucket Garbage Can Injection Molding Machine
- Category: >>>
- Supplier: Dongyang Haipeng Machinery Co. Ltd.
Share on (62349840312):
Product Overview
Description

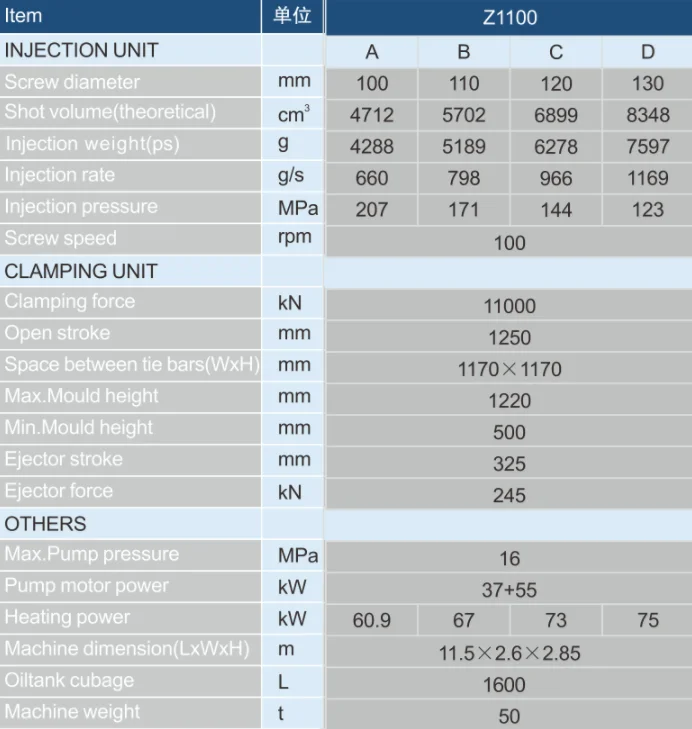

Product Paramenters
ITEM | Unit | Z1100 | |||
INJECTIONUNIT | A | B | C | D | |
Screw Diameter | mm | 100 | 110 | 120 | 130 |
Shot Volume(Theoretical) | cm^3 | 4712 | 5702 | 6899 | 8348 |
Injection Weight(Ps) | g | 4288 | 5189 | 6278 | 7597 |
Injection Rate | g/s | 660 | 798 | 966 | 1169 |
Injection Pressure | MPa | 207 | 171 | 144 | 123 |
Screw Speed | rpm | 100 | 100 | 100 | 100 |
CLAMPING UNIT | |||||
Clamping Force | kN | 11000 | |||
Open Stroke | mm | 1250 | |||
Space Between Tie Bars(W*H) | mm | 1170*1170 | |||
Max Mould Height | mm | 1220 | |||
Min Mould Height | mm | 500 | |||
Ejector Stroke | mm | 325 | |||
Ejector Force | kN | 245 | |||
OTHERS | |||||
Max.Pump Pressure | MPa | 16 | |||
Pump Motor Power(Servo) | Kw | 36.7+36.7+36.7 | |||
Heating Power | Kw | 68.8 | |||
Machine Dimension(L*W*H) | M | 12.4*2.67*3.3 | |||
Oiltank Cubage | L | 1600 | |||
Machine Weight | T | 50 |
Products Description
ONGO 110 TON- 2900 TON plastic injection molding machine
We can customize thin wall injection molding machines for customers according to the characteristics of each customer, and provide overall solutions，We can solve the problem for you at different injection molding industry
Our products can produce any parts, if you have any questions, please click to contact us
1.INJECTION PREPLASTICATION SEAT WITH OIL COPPER SLEEVE
The preplastication seat reciprocates once in every injection motion. Normal non-automatic lubrication in injection unit can't offer lubrication support to this important motion. Thus, we use oil copper sleeve to make sure that injection reciprocates well.Even without lubricating oil support, it can also slide excellently.Considering cost, however, some materials without oil always cause harmful effect to injection accuracy after a period of time
2.CLOSED BASE STRUCTURE
Compared with opened structure, the closed base structure is neater and protects components better to avoid any damage by crash. It also improves operation safety Automatic mould adjustment device is convenient for customer operation.
3.SEALED STRUCTURE WITH CONE SURFACE
In line with famous international brands, sealed structure with cone surface in connection position of high pressure oil pipe improves sealing reliability greatly
4.SPRAY PLASTIC IN OIL TANK
Spray plastic in oil tank makes it clean, and what's more, it prevents oil tank to be corroded for long time, extends hydraulic
oil service time effectively, and decreases customer's use-cost
oil service time effectively, and decreases customer's use-cost
Under the control of ISO 9001 management system, from material selection to processing, production and assembling, each step is inspected strictly.In order to reach 100% eligible rate, the machine shall be given more than 72 h-continuous test in performance reliability.
Our services
1.BEFORE SERVICE PURPOSE
Considering reasonable, standard and saving cost scheme for customers, we offer
all-around service and technical support to help them choose correct machine
all-around service and technical support to help them choose correct machine
2.SALES SERVICE
We will provide customer instructions on water arc elasticity connection of the
machine, free new machine commissioning, technical training and machine
operation Training.
machine, free new machine commissioning, technical training and machine
operation Training.
3.AFTER-SALES SERVICE
Technical support and product maintenance We offer subsequent training and
technical consultation, can even send service engineer to solve the problem at
the customer s factory. After upgrading our product, we will give priority to update
the sold machines according to customer' s requirement
technical consultation, can even send service engineer to solve the problem at
the customer s factory. After upgrading our product, we will give priority to update
the sold machines according to customer' s requirement
Company Profile
FAQ
Q1. What's our minimum order quantity ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
Q2. What detailed information do we need if you want to order our product ?
Product pictures with measurements or drawings, sample best, product weight, material, cavities
Q3: Could you send your engineer to my country, to start the machine?
Surely, we have experience technical engineer for oversea service, they would help you install machine, training your workers.
Q4. Are we a factory or trading company?
We are a real factory in Ningbo and we are one of the leader of high-speed injection molding
machine in China.
Q5. Can we print client's logo?
We can customize thin wall injection molding machines for customers according. to the characteristics
of each customer, and provide overall solutions.
Q6. How can you more info about injection molding machine production processes?
We have a factory product food containers inside of ONGO factory. Here you can find out how
ONGO machine product and how food containers are produced.
Q7.What quote do you offer?
EXW/FOB / CIF and others ways according to your needs. When the quality is same, our price can be
more competitive.
