Двойной кварцевый инфракрасный нагревательный элемент для электронного промышленного отопления

Infrared heating technology radiates and conveys large amounts of energy in a short time. Infrared lamps are suitable for printing、packing、plastic processing、heating food、drying wood、auto industry and other areas what you need. Our lamps are available for large surfaces, for three dimensional shapes and for small work pieces. By matching the optimum wavelength of infrared, the lamps can save energy up to 50%. Twin tube shape is a better stable design for short wave infrared lamp with high radiation density and high power intensity.

E-DEN Infrared Lamps-Advantages

1: E-DEN infrared heating lamps can be switched on and off frequently.
2: 1~2 seconds fast response time to full power IR heating energy.
3: Output power can be adjusted simply by voltage regulator (50V~lamp rated voltage).
4: Accurate（±1 ℃）IR heating temperature control with SCR regulators or solid state relays.
5: Small installation space, flexible horizontal or vertical burning position by our infrared lamps.
6: Our infrared heating lamps are for all industrial heating applications, the highest working temperature up to 1000 ℃.
7: Special Gold reflector (90% reflective rate) and Ceramic white reflector (70% reflective rate) coated on IR lamp quartz tube surface to reflect infrared radiation energy back on heated objects.
8: Different objects different matched IR radiation wavelength-IR lamp Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output-The highest surface power output of short wave IR lamp is 200KW/M², Fast response medium wave IR lamp is 150KW/M², Carbon medium wave IR lamp is 100KW/M², Medium wave IR lamp is 60KW/M².
10: We guarantee ≥5000 hours average working life for most of our infrared quartz heating lamps.

                              Short wave infrared lamp

            Fast response medium wave infrared lamp

                    Carbon medium wave infrared lamp

                        Medium wave infrared lamp

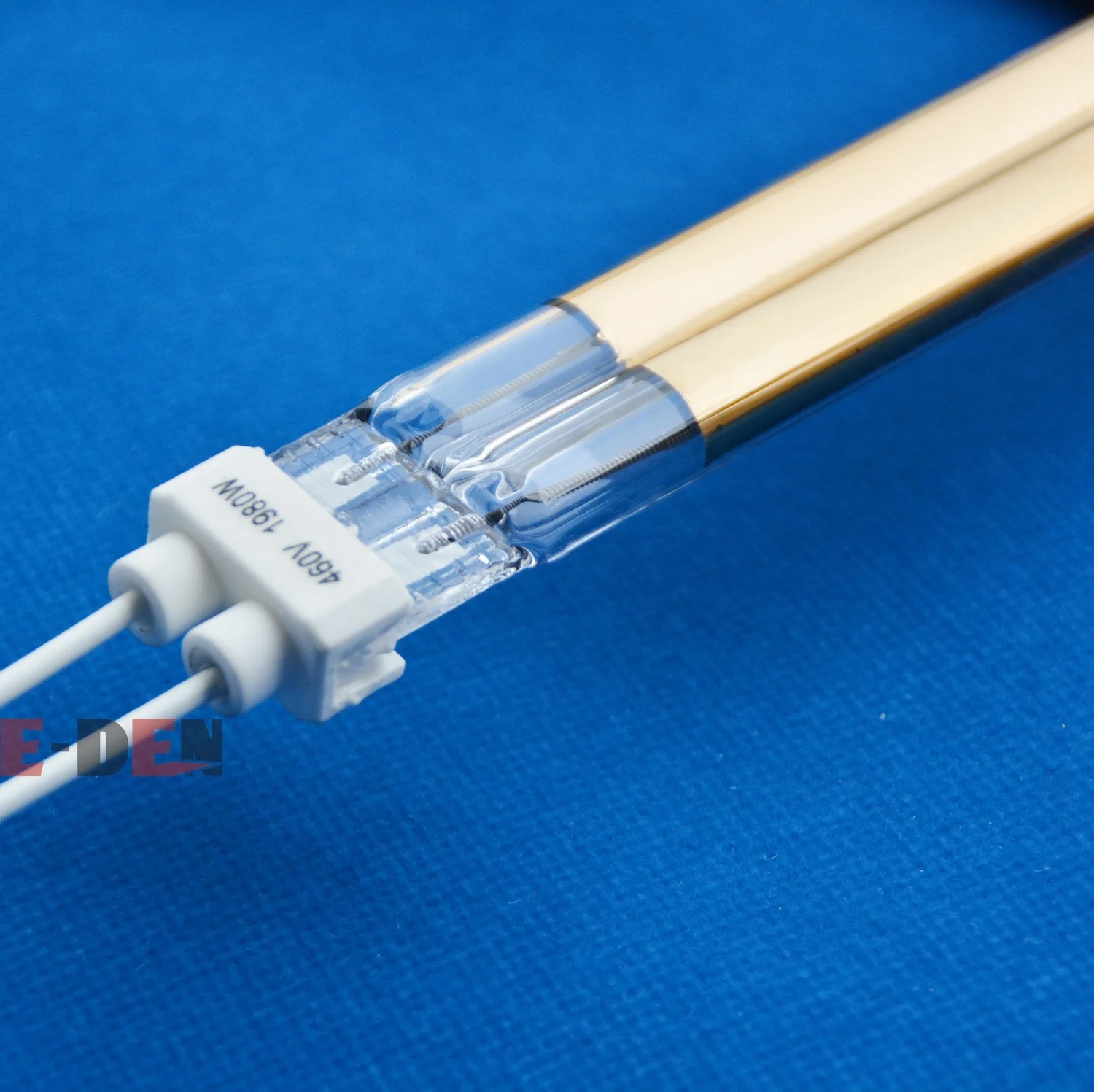

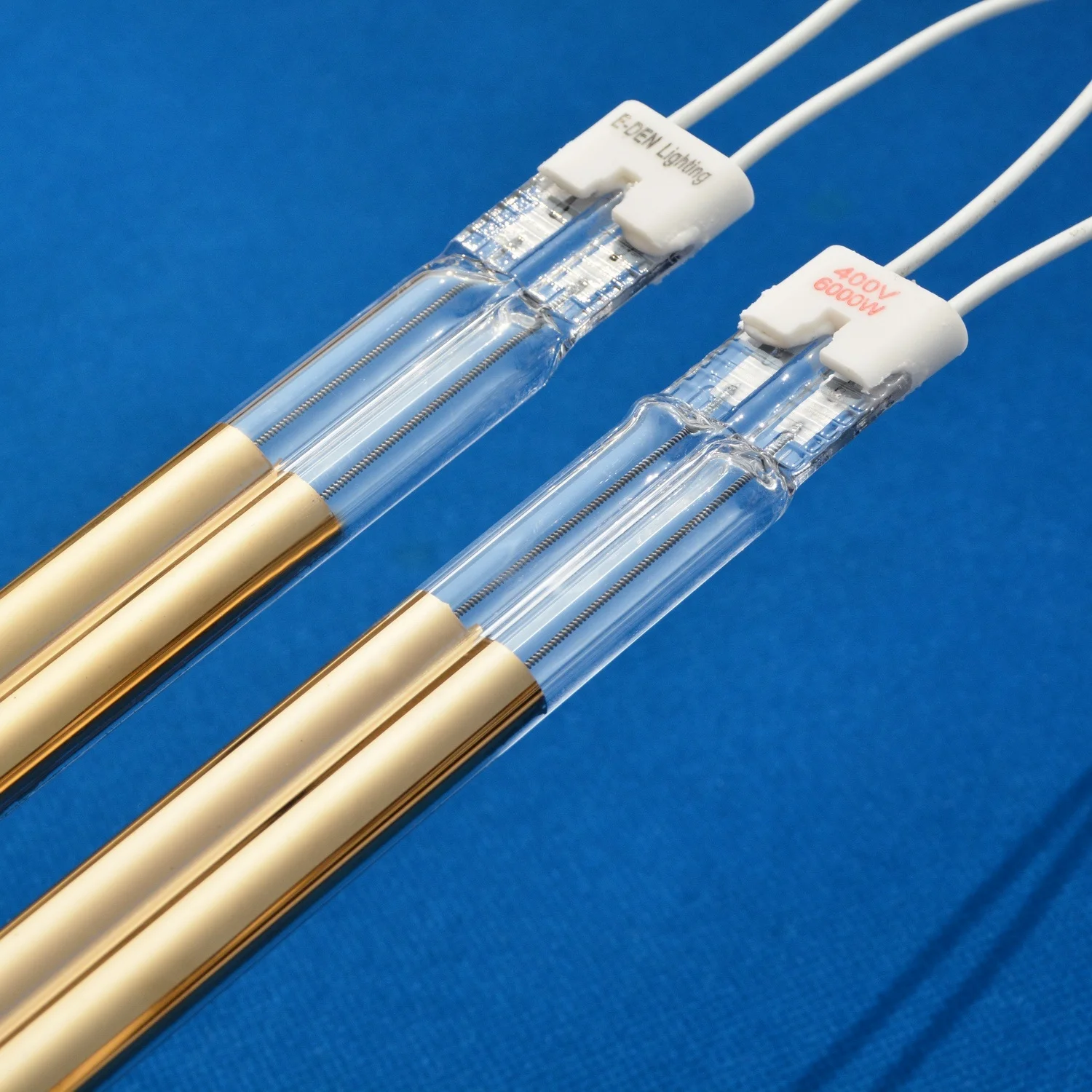

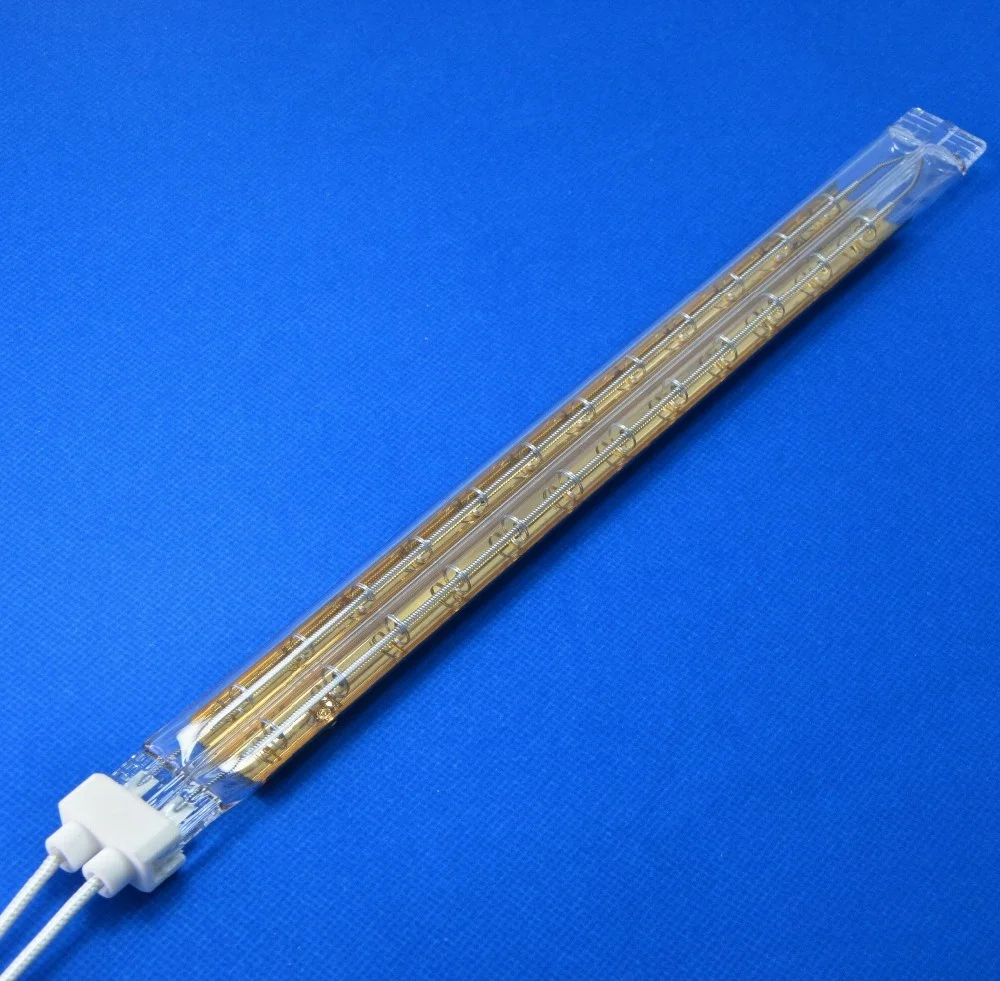

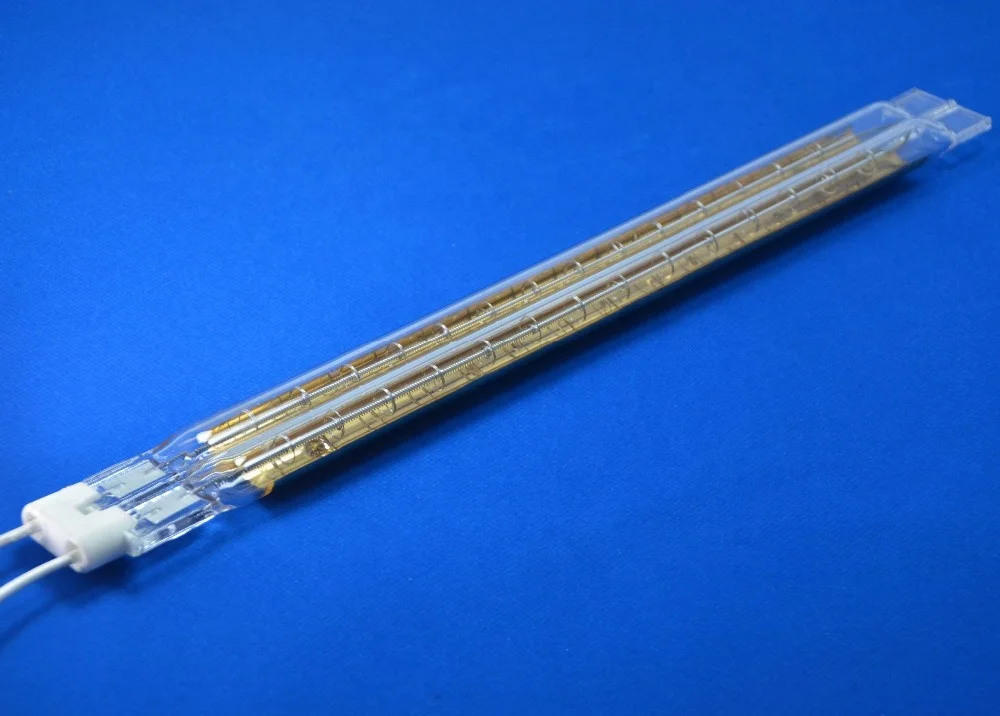

Fast response medium wave infrared lamp can be switched on/off the same as short wave lamps in a short time, and the range of IR radiation wave is 1.4-2.0μm. The especial fast medium wave can heat the surface and thin layers quickly. Fast medium wave lamps can be made in all lengths up to 6 meter long. The twin tube designed lamps are stable and its high power density lamp can transfer high energy to the long material.

According to the configuration of different heating filament and ending cables, medium wave twin tube infrared lamps can be produced in the following one side or two side connection configuration.

Nanjing E-DEN Lighting Technology Co., Ltd., a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries. We also offer OEM/ODM manufacturing service for our customers all over the world. We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, our IR products pass the ISO 9001 international quality certification and CE safety certificate. We always do our best to provide our customers highest quality products and most satisfactory after-sales service.
