Product Overview

Description



Products Description

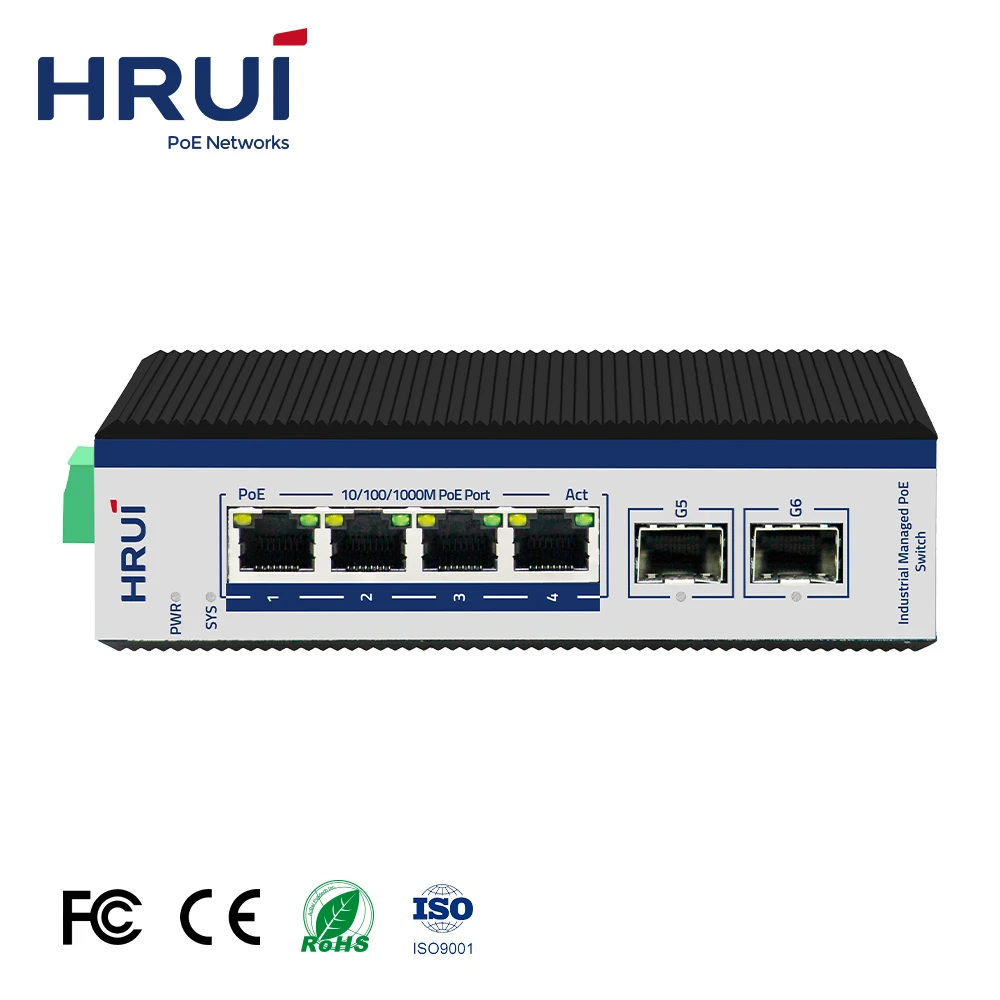

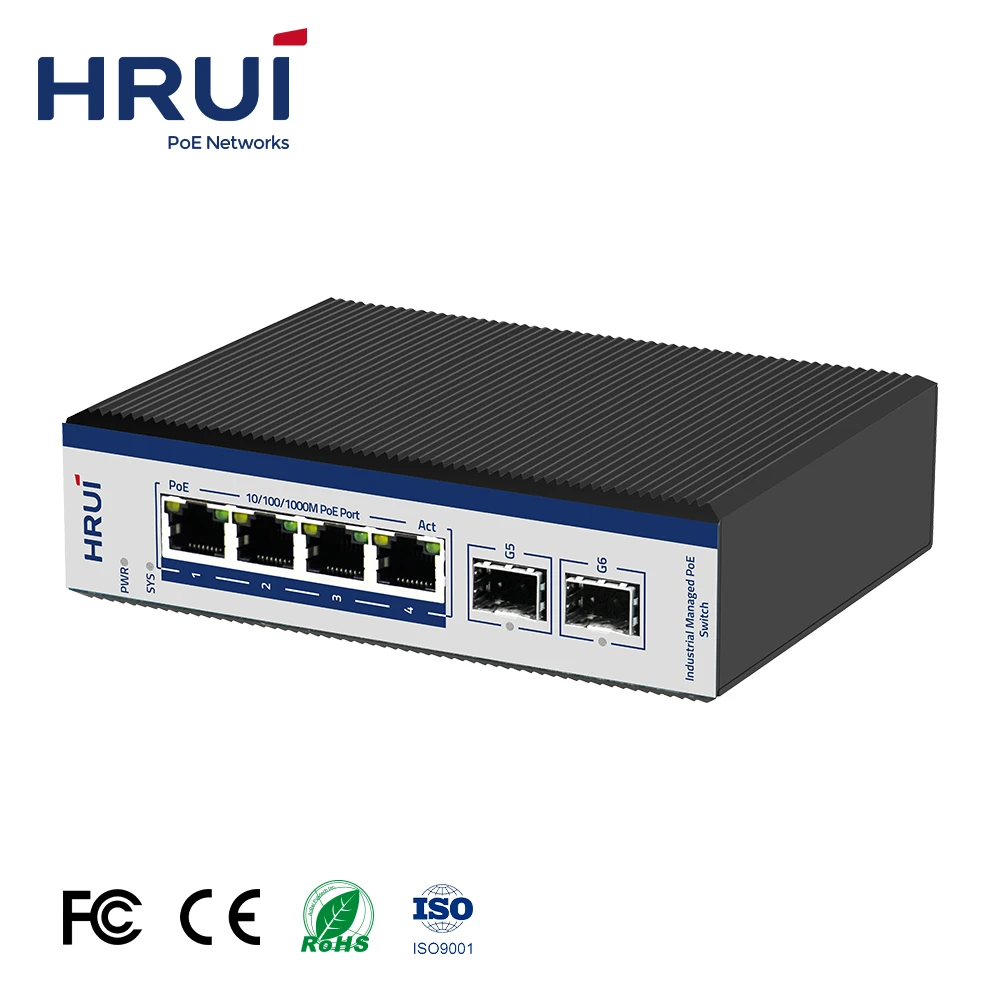

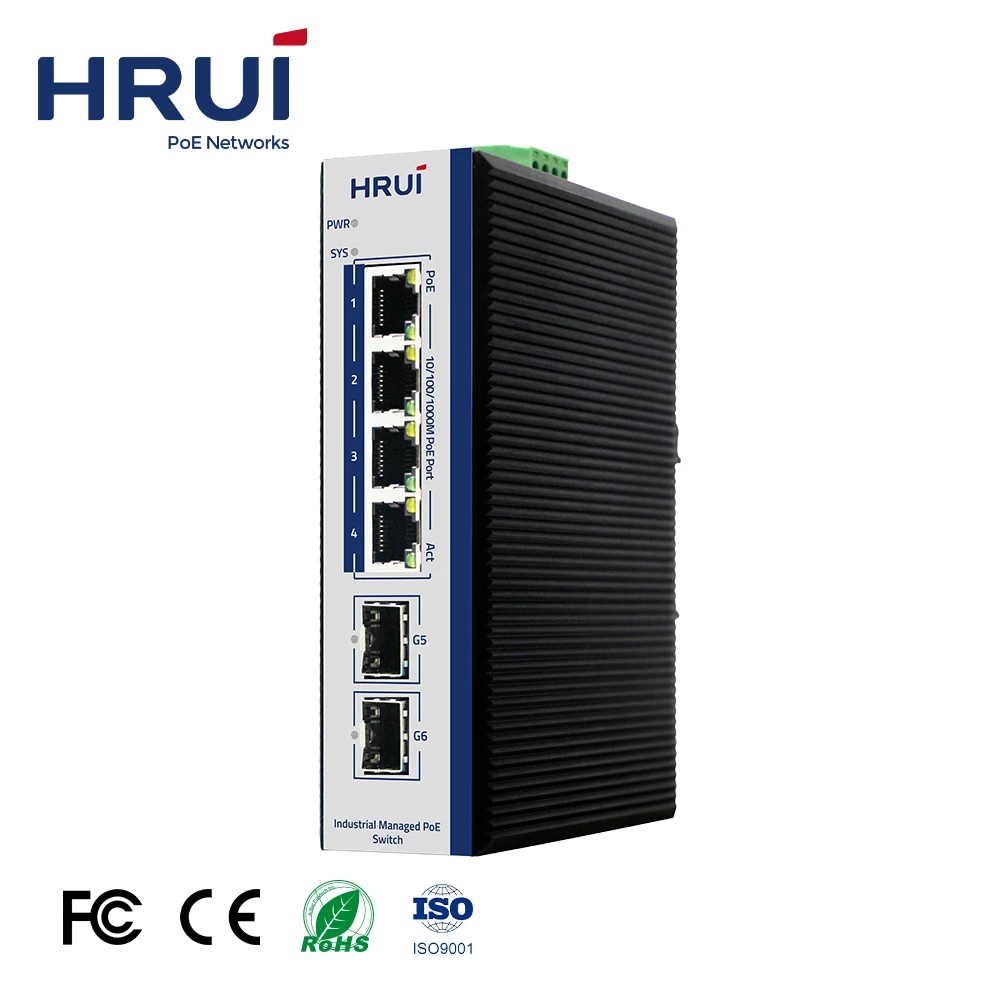

High performance and cost-effective industrial managed PoE switch with 4*Gigabit PoE Ports + 2*Gigabit SFP Slots + 1*Console port, L2+ Managed, providing advanced network management capabilities, redundant ring network, recover time ≤12ms, lightning protection, Surge 6KV, ESD 15KV, rugged high-strength aluminum shell, IP40 protection, DIN35 rail mounting, DC 48-55V dual power supply, -40℃ to 85℃ wide operating temperature range, suitable for various industrial networks scenarios with ethernet access.




Main Features




Product Paramenters


I/O Interface
Power Supply
Input Voltage: DC48～55V
Type of input: 4 PIN Terminal Block(V1+ V1- V2+ V2-)
Interface
4*Gigabit PoE Ports + 2*Gigabit SFP Ports + 1*Console port
Performance

Switching Capacity
12Gbps
Throughput
8.928Mpps
Packet Buffer
4M
MAC Address
8K
Jumbo Frame
9.6Kbytes
VLAN
4096
Flash
16MB
RAM
128MB
Transfer Mode
Store and forward
Standard
Network Protocols
IEEE802.3
IEEE802.3u
IEEE802.3z
IEEE802.3ab
IEEE802.3x
IEEE802.1d
IEEE802.1w
PoE Protocol
POE Standard: IEEE 802.3af / IEEE 802.3at
Industry Standard
EMI: FCC Part 15, CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Network Medium
10BASE-T: Cat3, 4, 5UTP(≤100 M)
100BASE-TX: Cat5 or above UTP(≤100 M)
1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Media
Multi-mode: 850nm, 1310nm Transmission Distance: 550m/2Km
Single-mode: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km
Protection
Certificate
CE, FCC, RoHS
Environment
Environment
Operating temperature: -40～85℃
Storage temperature: -40～85℃
Humidity: 5%~95 % ( No condensation)
Physical Features
Dimension
Product Dimension(L*W*H): 145mm×108mm×40 mm
Package Dimension(L*W*H): 245mm×190mm×60mm
N.W: 0.6kg
G.W: 0.8kg
Packing Info
Carton MEAS: 505mm× 320 mm× 400mm
Packing Qty: 20units
Packing Weight: 17KG
Package List
Industrial grade switch: 1 Set
Instruction manual: 1 PCS
Certificate, warranty card: 1 PCS
Serial cable: 1PCS
Indication
LED Indicator
PWR
Lighting: Powered
Un-Light: No Power
SYS
Lighting: System is operating normally
Un-Light: System is not running
Network port yellow
Lighting: PoE Powered
light
Un-Light: No PoE Powered
Network port green light
Slow Flashing: 10/100/1000 Link normally
Un-Light: Link disconnect
Flashing: Link data transmission
G5-G6
Lighting: Fiber Connection is Normal
Un-Light: Disconnect
Flashing: Link data transmission

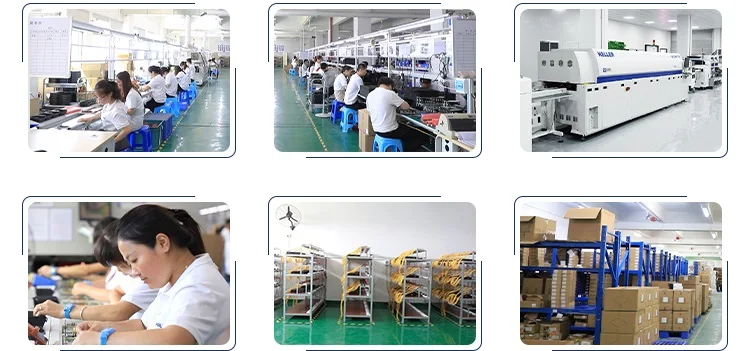

Company Profile

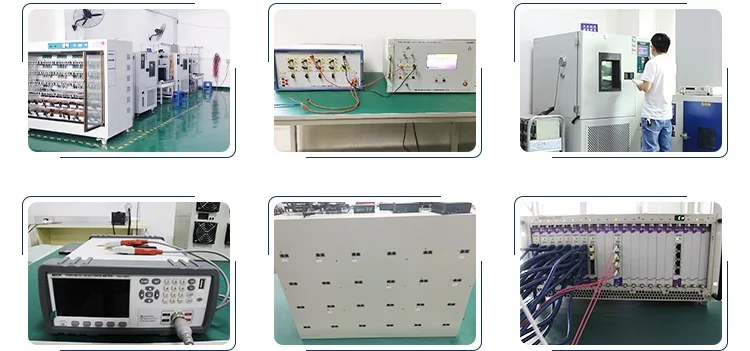

R&D Equipments
