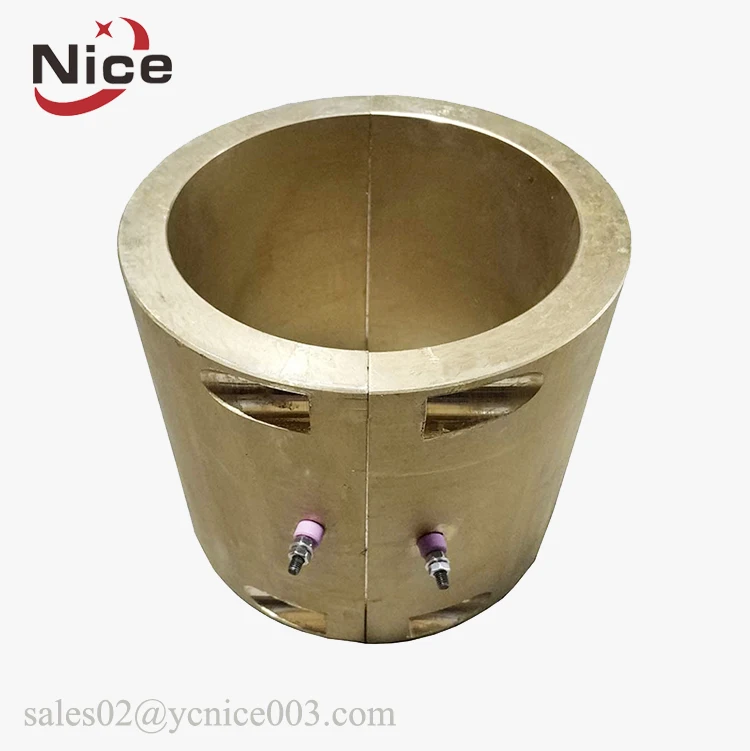

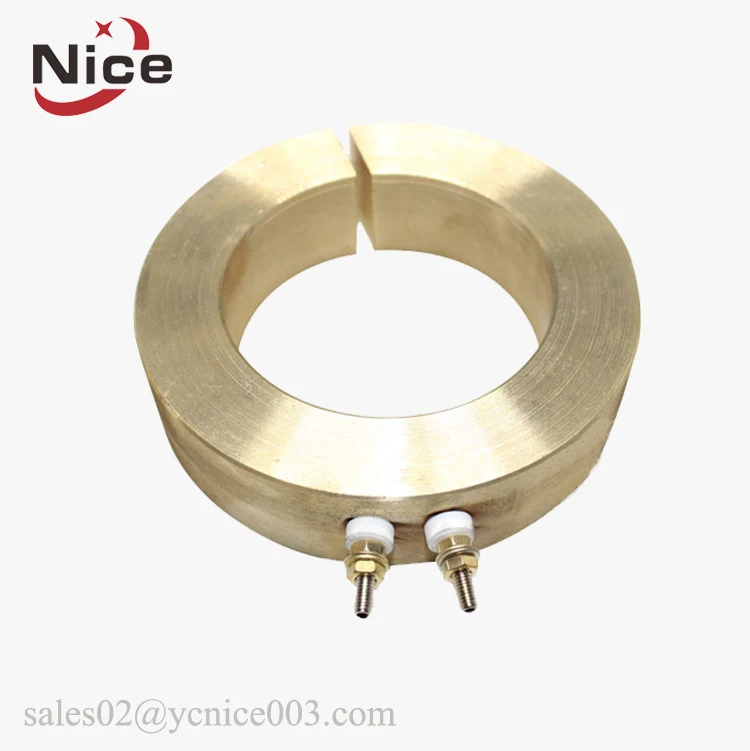

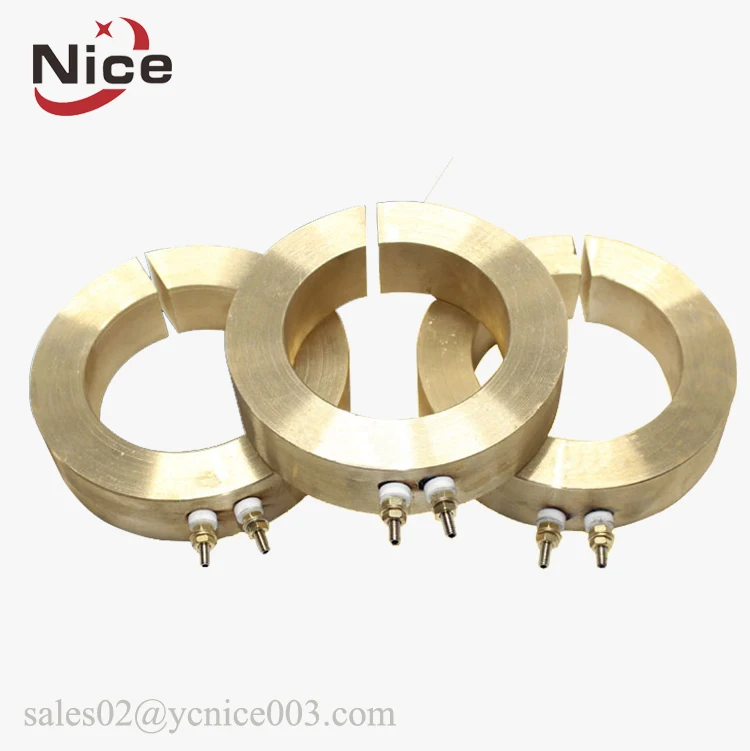

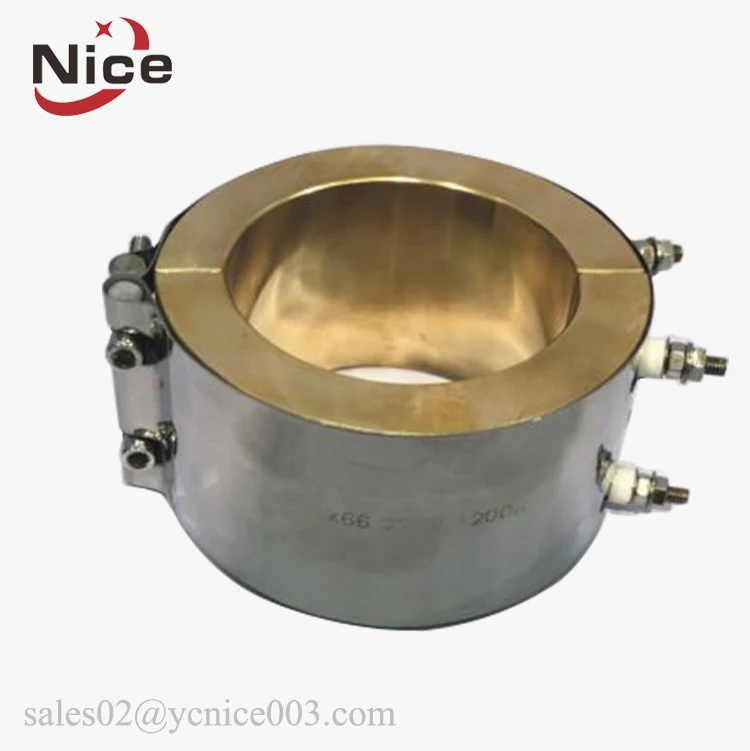

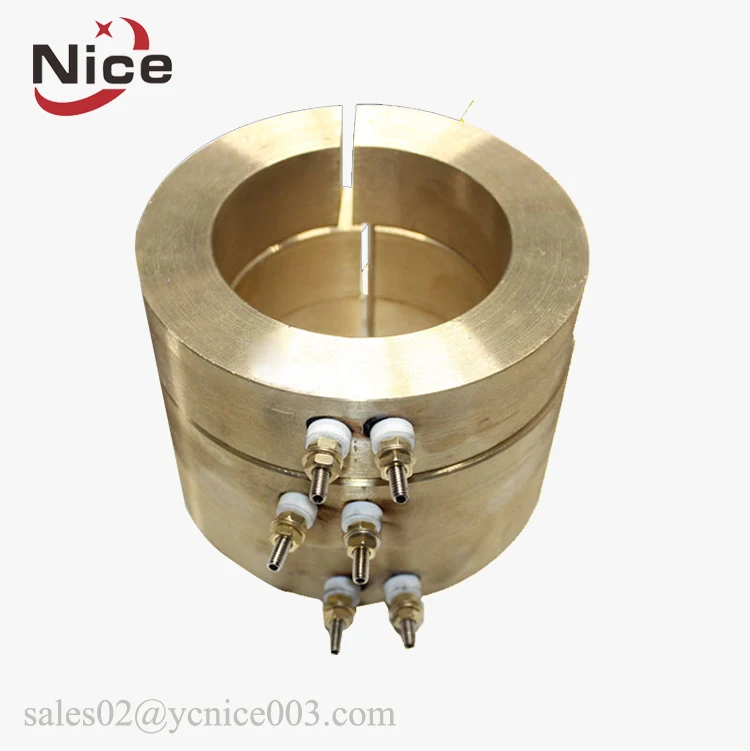

220v 6kw cast copper heater for extruder machine

Product Overview

Description

Description

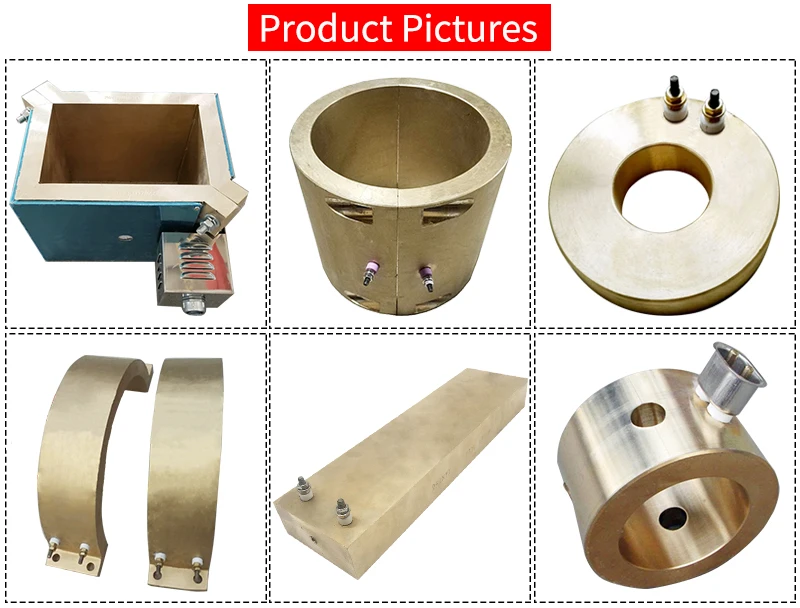

Casting Copper Heater combine top quality tubular heaters and high thermal conductivity non-ferrous alloys. Modern foundry techniques ensure a dense, porosity free casting. After casting the heaters are machined to ensure a close contact on the working surface. Cast In heaters can be supplied with clamping straps or with built in clamping means.
It is a tubular electric heating element for heating body, and bending molding, into the mold with high quality metal alloy material into various shapes, round, flat, rectangular, air-cooled, water-cooled and other shapes . After finishing it and heated body tightly, Metal casting heater is a kind of high efficiency heat uniformity division of the heater, thermal conductivity, excellent metal alloy, ensure the hot surface temperature uniformity, eliminating equipment hot and cold spots. With long life, good insulation properties, mechanical properties, corrosion resistance, magnetic resistance etc

Specification

Material	Copper, brass, bronze or cupronickel alloy
Max Watt density	20 w/cm²on the heating element
Voltages available	120V, 240V, 380V, 450V, others available on request.
Wattage Tolerance	+5%, -10%
Resistance tolerance	+10%, -5%
Max operating temperature	600 oC  (1400 oF)
Leakage current	<0.5MA
Insulation resistance	> 2MΩ
Grounding resistance	<0.1Ω
The condition of usage	temperature -20 ℃ ~ + 60 ℃; relative humidity<80%

Application

• Laminating Equipment


• Liquid Heat Exchangers


• Packaging Seal Bars


• Plastic Extruder Barrels


• Plastic Extrusion Dies


• Platen Heaters


• Silicone Wafer Processing Equipment


• Silk Screen Equipment


• Vacuum Forming Equipment

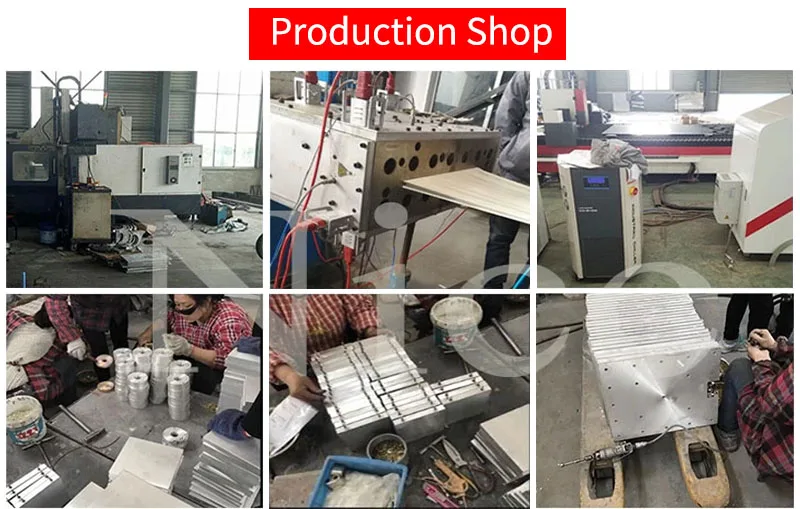

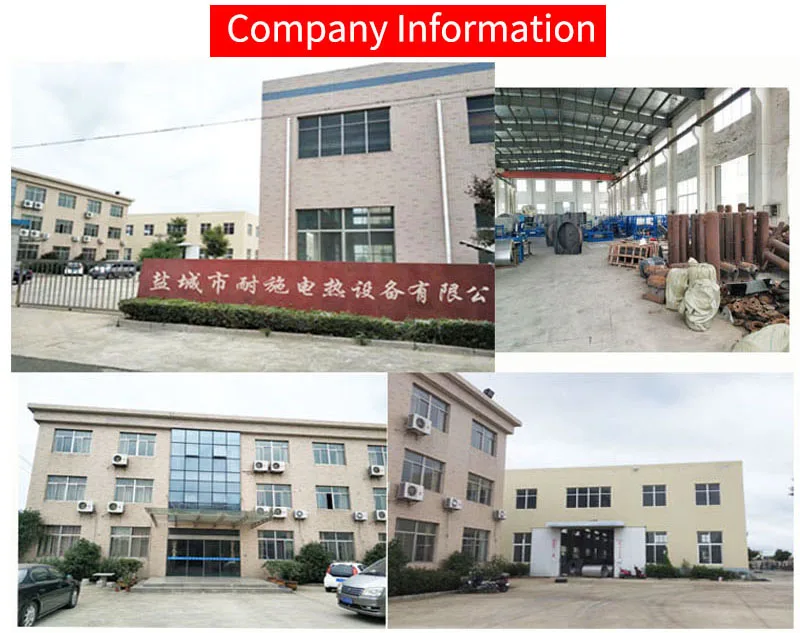

Yancheng Nice Electric Heating Equipment Co.,Ltd,a professional manufacturer according to customers’ requirements,has advanced production lines,testing equipment and QC department to provide clients with high quality goods.In addition,an experienced R&D department and service team to give clients best heating solutions.

Our products have been exported to Europe,America,Asia,Mid East etc,more than 200 countries,and used widely in Plastic Machinery,Vacuum Packing,Petroleum Chemical Industry,Food,Industrial Furnaces and Autonmation etc.

Thank you for your patience and welcome your cooperation.

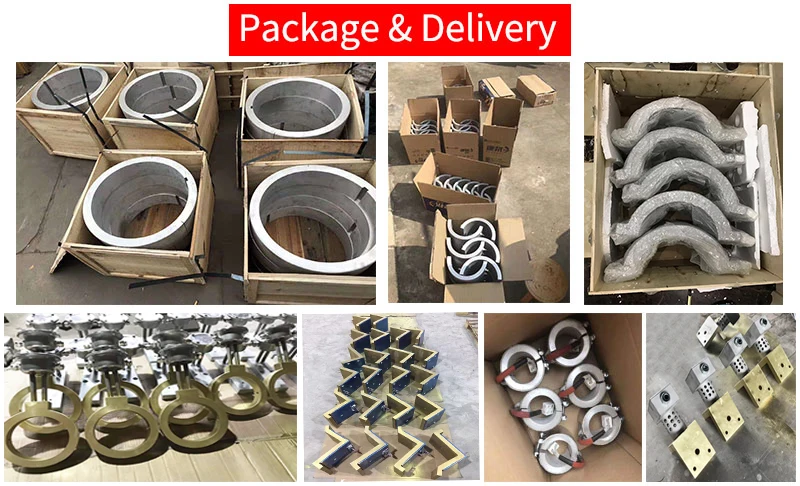

1.Package:Wooden case or carton box

2.Delivery: For samples,7-10 days after payment

                    For big quantity,will be shipped in time as the contracts

Order Guide

1.Size and shape

2.Voltage and power

3.Operation temperature requirement

4.Other design requirement

5.Order quantity

6.It’s best you can supply drawing pics
