DJM 1615 97 Boiler water dispenser Water level sensor electrode Water level probe lower price

Share on (62350202940):


Price:$2.80 - $4.50

Quantity:


Product Overview

Description

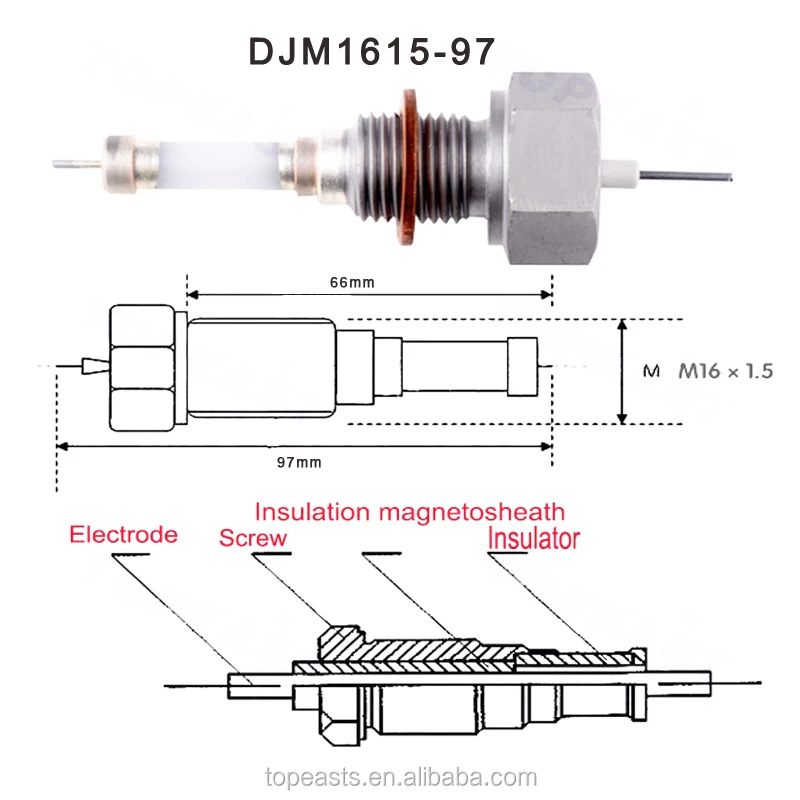

Water Electrode Sensor1.jpgWater level electrode DJM1615-97Water Electrode Sensor4.jpgWater Electrode Sensor5.jpg





Product Description


   WATER Level electrode










































Model No.SpecificationInstall TypePack
DJM1615-115M16×1.5×115external thread10pc/Pack
DJM 1615-97M16×1.5×9710pc/Pack
DJM 1615-87M16×1.5×8710pc/Pack
DJM 1815-115M18×1.5×11510pc/Pack
DJM 1815-97M18×1.5×9710pc/Pack
DJM 1815-87M18×1.5×8710pc/Pack









Company Information
















Product Name: Boiler water level probe tip electrode rod outer thread type level sensor


Model: DJM1615-97

Material: high-alumina ceramic alloy +

Product Specifications: Length 97mm Thread M16 * 1.5

Usage: widely used in electricity generation and medium-sized boilers, dyeing, chemical and other industrial and mining enterprises.


















Package Includes:



1 x WATER Level electrode





The first.

The measuring device can be used to detect the level of boiler drum, high and low pressure heaters, deaerator steam machines and other heat exchangers. Regulators may also be used for water tanks, condensers, water tanks and other liquid level measurement


Second.

the structural characteristics of  Electrode point level gauge in the power, petroleum, chemical and other industries have a wide range of application history, however, has not changed in the past as a idealized design, structure it in a measuring device, the interface circuit design parameters were secondary instrument there are some flaws, resulting in false detection level phenomenon, especially in the spring and summer of high and low pressure heater, deaerator exchange system level detection, measurement error phenomenon higher frequency. This creates a serious impact on production equipment operation safety and economy. DJM series of electrical contacts water level gauge type electrode and UDZ color digital intelligent electrical contact level gauge support, widely used in electricity generation and medium-sized boilers, dyeing, chemical and other industrial and mining enterprises, the monitoring of boiler drum water level, high-pressure heaters, except oxygen, evaporator, condenser, boiler starting splitters and dual water-cooled generator water tank level measurement and other conductive liquid level measurement.

Electrode (electrically connected) models and specifications
No. Model specifications and contact form measuring cartridges
01 DJM1615-115 type M16 × 1.5 × 115 external threaded type
02 DJM1615-87 type M16 × 1.5 × 87 external threaded type
03 DJM1615-97 type M16 * 1.5 * 97 external threaded type
04 DJM1815-87 type M18 × 1.5 × 87external threaded type
05 DJM1815-97 type M18 × 1.5 × 97external threaded type
06 DJM1815-115 type M18 × 1.5 × 115external threaded type
07 DJY1712-115 type Φ17 × Φ12 × 87 push-type insulation
08 DJY1712-87 type Φ17 × Φ12 × 87 push-type insulation
09 DJY2212-115 type Φ22 × Φ12 × 115 push-type insulation
10 DJY2212-87 type Φ22 × Φ12 × 87 push-type insulation


Third,

the water level gauge electric contact electrode of the technical requirements are as follows:
Temperature: ≤372 ℃
Pressure: ≤22Mpa
Insulation resistance: ≥100MΩ
Manufacturing materials: insulating portion was 99.9% high purity alumina
Conductor portion of alloy steel
