Factory Price 12mm High Density Insulation Calcium Silicate Board
Product Description
High density calcium silicate insulation board is developed for nonferrous metal industry with density range 800-1000KGS/M3, used for conveying, casting and molding of molten alumina and other non-ferrous metals, also can be used as clamping fixture in glass industry. Besides its own thermal insulation, its non-stick aluminum characteristics have been greatly played. High strength, good machinability, can be used to machine precision products and complex parts by Numerical Control Machine Tools.
There are two types of board reinforced by glass fiber and carbon fiber.
Features and advantage
1. Low thermal conductivity and less heat lost in high temperature
2. Not wetted by molten alumina
3. Resistance to thermal shock
4. Excellent machining performance
5. Asbestos-free
Application
1. Ladle insulating panels
2. Clamping fixture for car glass
3. Dip tubes
4. Pouring spouts
5. Hot-top rings
6. Stopper pins
7. Rolling edge
8. Floats
9. Launders
High density calcium silicate board Technical index
Item | DK-800 | DK-801 |
Type | Glass fiber reinforced | carbon fiber reinforced |
bulk density kg/m3 | 850-950 kg/m3 | 850-950 kg/m3 |
temp limit °C | 1000-1100 °C | 1000-1100 °C |
continuous service temp °C | 850°C | 850°C |
flexural strength MPa | 6.5 | 8 |
compressive strength(break)5%deformation | 15.5 MPa 12MPa | 17 MPa 13 MPa |
coefficient of thermal expansion/°C | 7*10-6 | 7*10-6 |
thermal conductivity (W/M.K) | 100°C 200°C 300°C 400°C 0.113 0.120 0.121 0.125 | 100°C 200°C 300°C 400°C 0.103 0.114 0.124 0.133 |
thermal shrinkage% after 24 hours lineal % Thickness % | 650°C 700°C 750°C 850°C 1000°C 0.15 0.25 0.28 0.35 0.49 0.86 1.00 1.10 1.30 3.50 | 650°C 700°C 750°C 850°C 1000°C 0.10 0.18 0.20 0.21 0.36 0.60 0.80 0.90 1.10 2.40 |

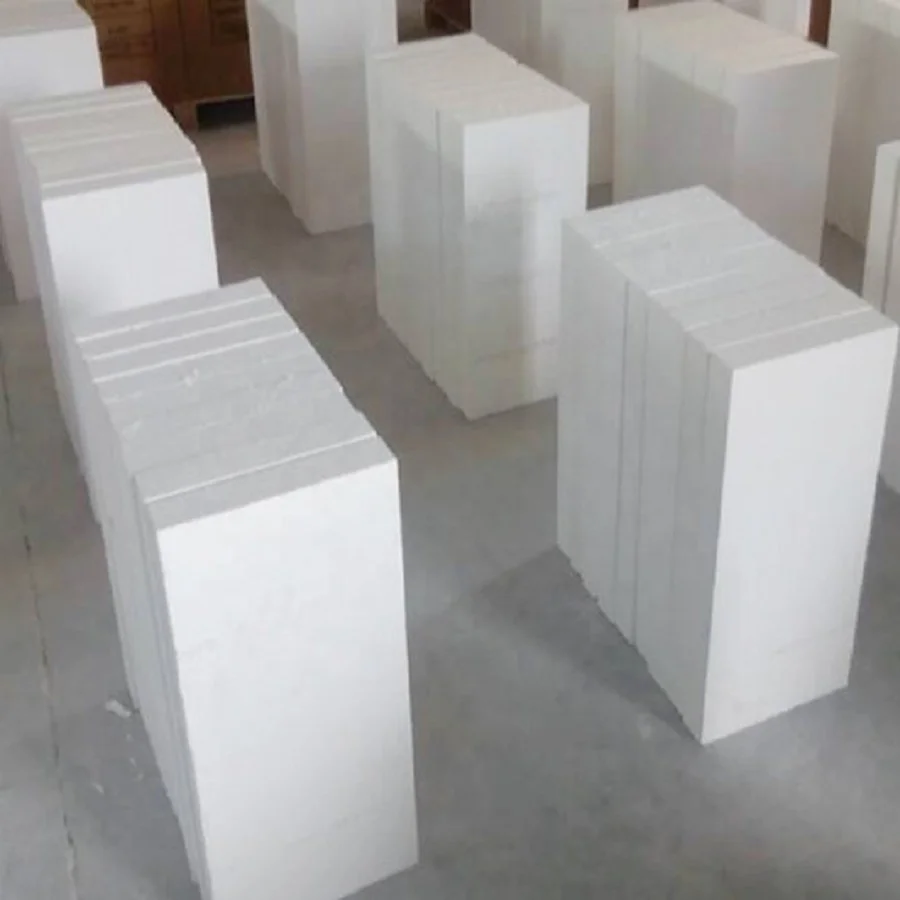

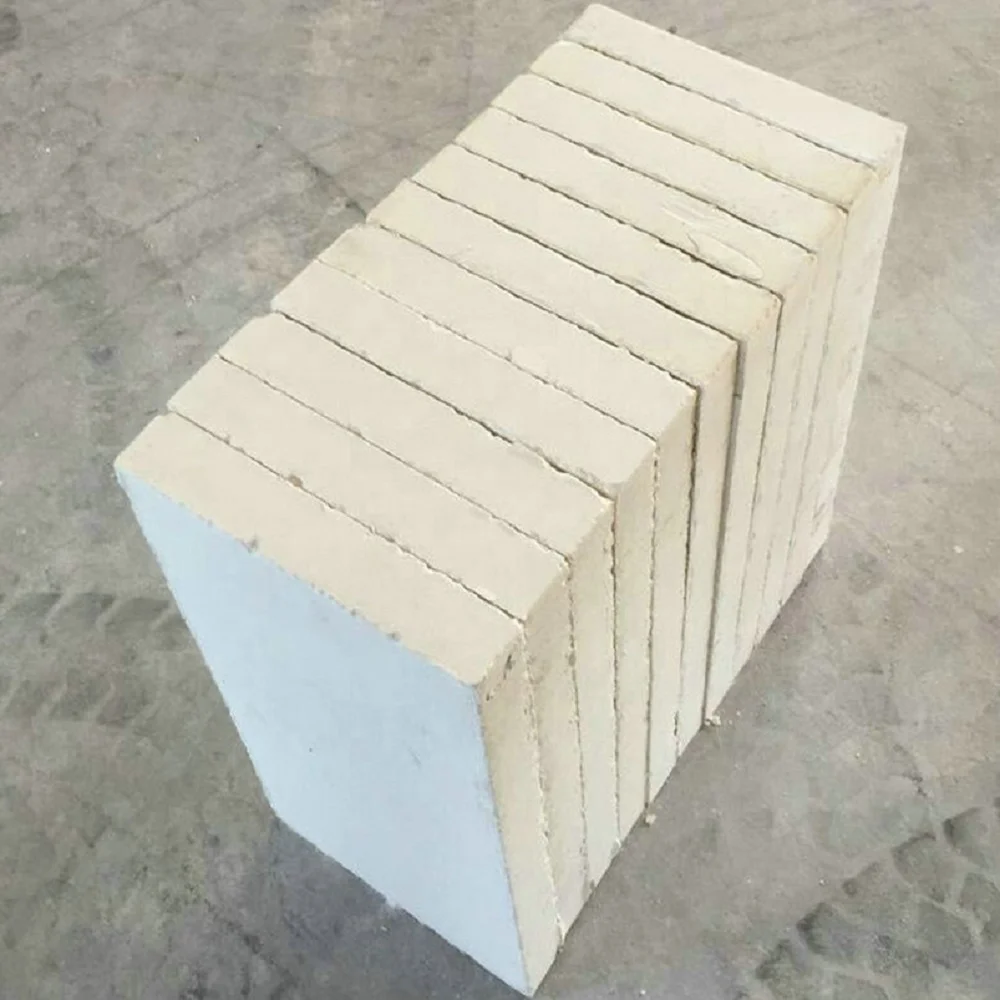

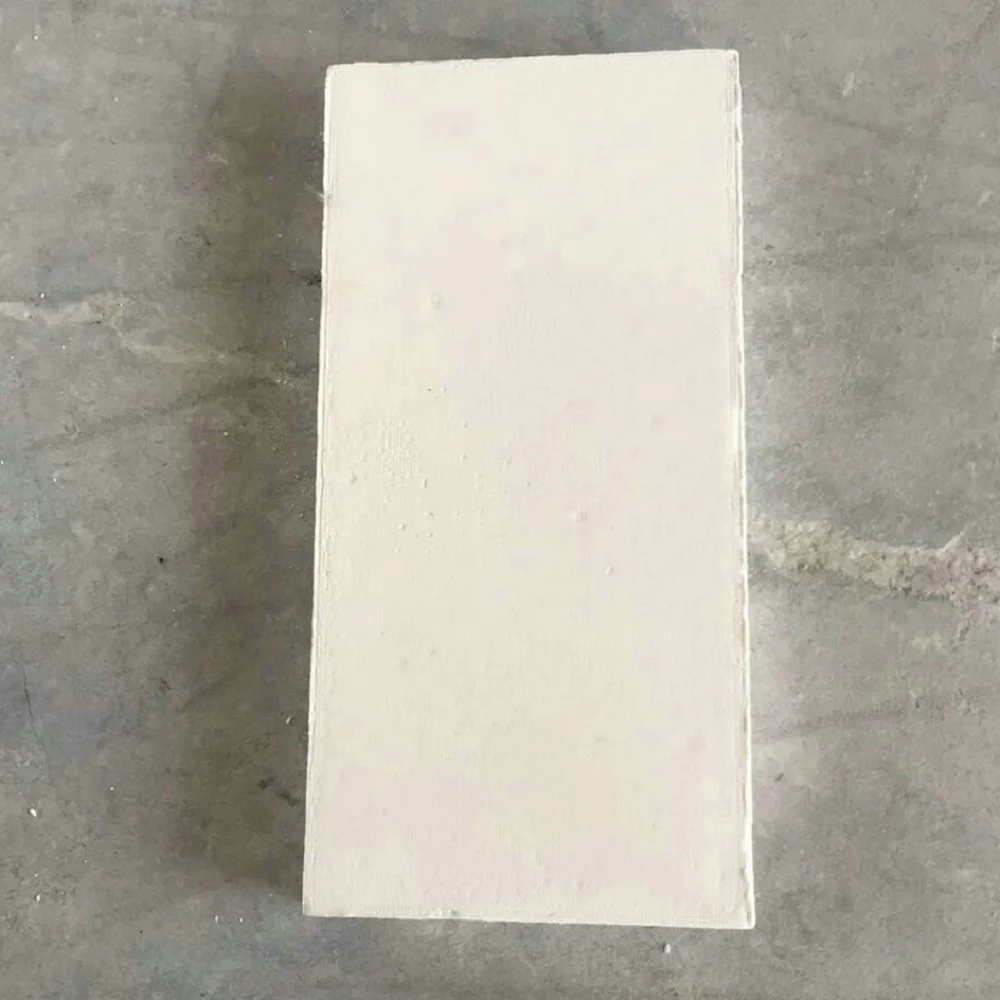

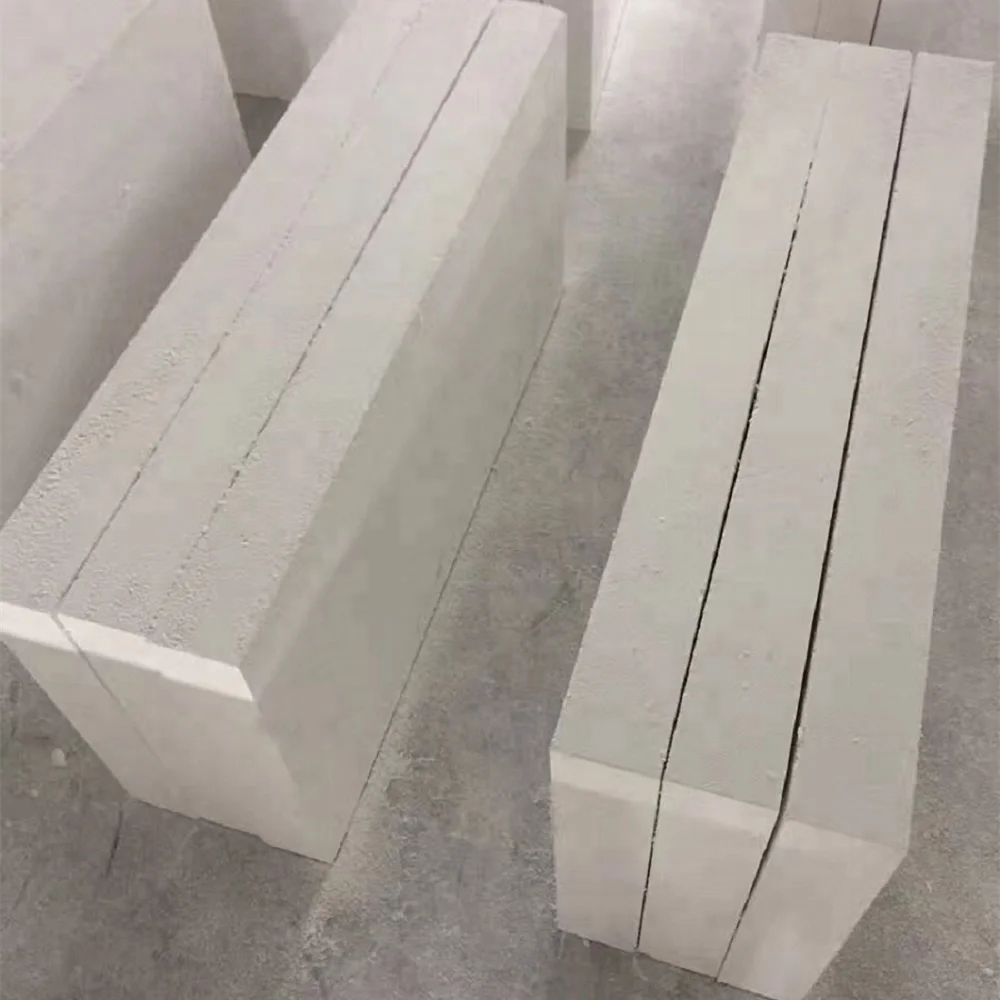

pictures of high density calcium silicate board
Packaging & Shipping
Packing of high density calcium silicate board: inner plastic bag, outer carton or pallet.
Shipping of of high density calcium silicate board: By vessel or by train from any Chinese port,
Samples can be delivered by International express.

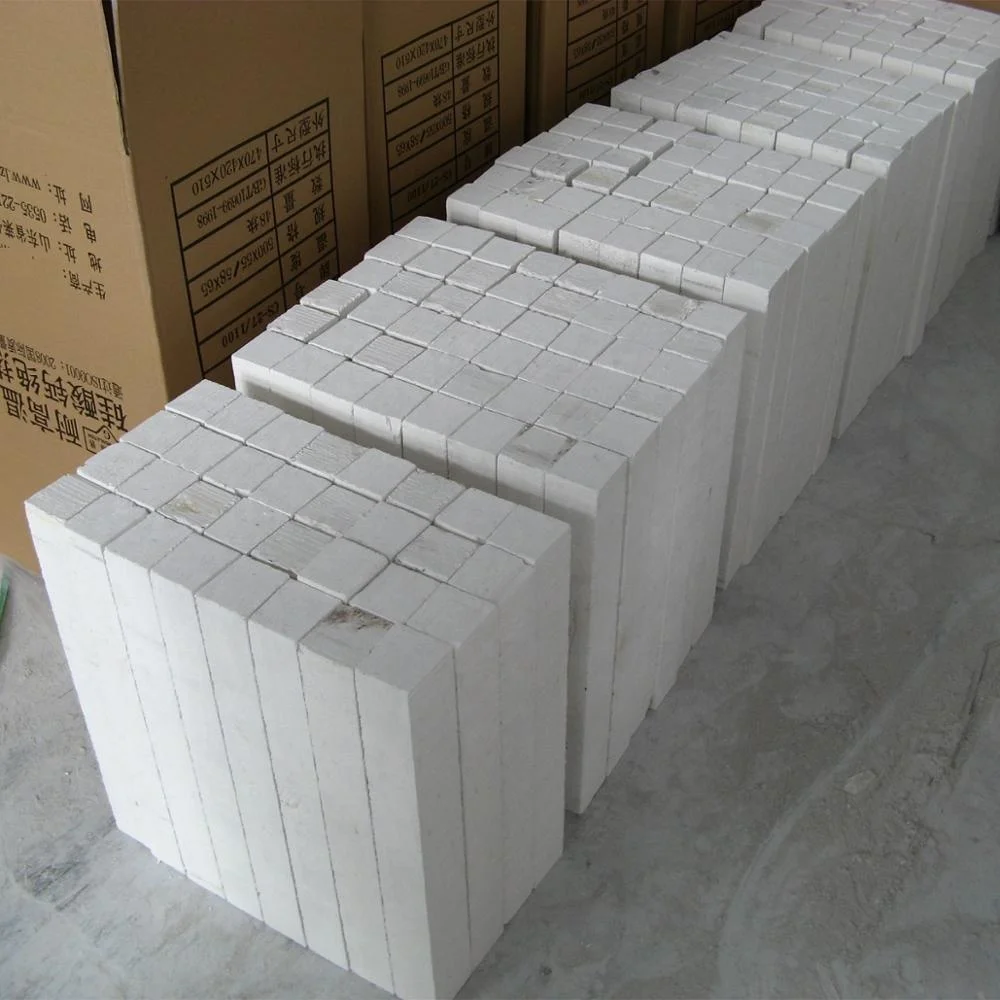

Package pictures of high density calcium silicate board
Our Services
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Free sample
calcium silicate board 12mm sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
Company Information
DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
FAQ
1. How can I get your prompt quotation for high density calcium silicate board?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, bulk density, dimension (length*width*thickness), and quantity. We’ll be very appreciated if you can provide drawings.
2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your condition.
3. Which payment terms can you accept?
T/T,LC,Western Union,moneygram are available for us.
4.After an order is placed, when to deliver?
15-25days after confirming the order.
5.Does your company accept customization?
We accept OEM service.
6.How to solve the quality problems?
If the products don’t conform to customer samples or have quality problems, our company will be responsible for it.
7. What is the HS code?
The HS code is 68099000
8. Is there any cost for the sample?
We provide free sample but don't bear the freight
