CNC Double Head PVC Window Profile Lamination Machine Aluminium Doors Window Manufacturing Machine
CNC Double Head PVC Window Profile Lamination Machine Aluminium Doors Window Manufacturing Machine
CNC Double Head PVC Window Profile Lamination Machine Aluminium Doors Window Manufacturing Machine

CNC Double Head PVC Window Profile Lamination Machine Aluminium Doors Window Manufacturing Machine

Share on (62350406618):


Price:RUB 1,040,602.05

Quantity:


Product Overview

Description

Features:
1. The left head is fixed, right head is moving on the linear bearing rail.Every head realizing  +45 °, 90 °, -45 °cutting, the angle change is controlled by cylinder through knob automatically. 2. Saw blade spindle produced by a professional factory, custom imports of carbide saw blade. 3. Feeding motion system adopt 25 square bearing system.Left and right movement of the head are using 40 Circular linear bearing system 4. Double valve control angle conversion, to avoid long-term failure of the solenoid valve. 5. Through hydro-pneumatic cylinder adjust the cutting speed to ensure the smooth feeding. 6. Safety cover moving together with the cutting head,guarantee safety operation.
Parameter
Air Pressure
0.5-0.8MPa
Air Consumption
200L/min
Input Voltage
3N~50Hz 380/220V or As Customer Specification
Input Power
7(Kw)
Saw Blade Diameter
φ600×4.4×φ30×120T
Motor Rotary Speed
2800r/min
Cutting Height
90° max 400(mm) 45°max 290(mm)
Cutting Width
90° max 185(mm) 45°max 200(mm)
Cutting Length
400-4900 mm
Overall Dimension
5200×1750×1950 mm
Weight
2000(kg)
Length error
+ 0.1 mm
Repeat locating length
≤ 0.30 mm
Cutting angle
± 45 °, 90 °
Profile cutting angle allowance
± 5 '
Cutting profile plane
≤0.05 mm
Cutting surface roughness
Ra12.5μm
Main accessory
Saw blade
Wagen
Solenoid valve
Germany FESTO
Cylinder
JPC(FESTO Joint Venture Brand)
Motor
Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device
STNC
Electrical Button and Switcher
Schneider
AC Contactor and Circuit Breaker
Schneider
Linear Bearing System
HIWIN
Magnetic Grid
SIKO
Standard accessory
Saw blade
2pcs
Air Gun
1pc
Certificate
1pc
Coolant Spray Device
2pcs
Mobile work piece supports
2set
Complete tooling
1set
Operation Manual
1pc
Optional Device
Dust Collector System
1set

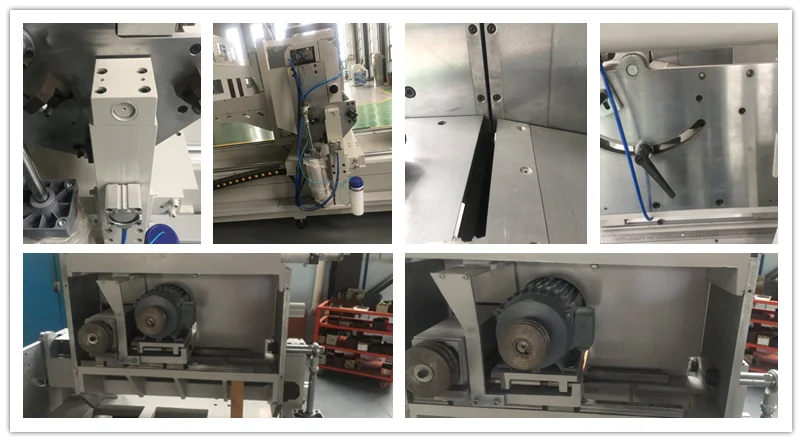

Product Details
