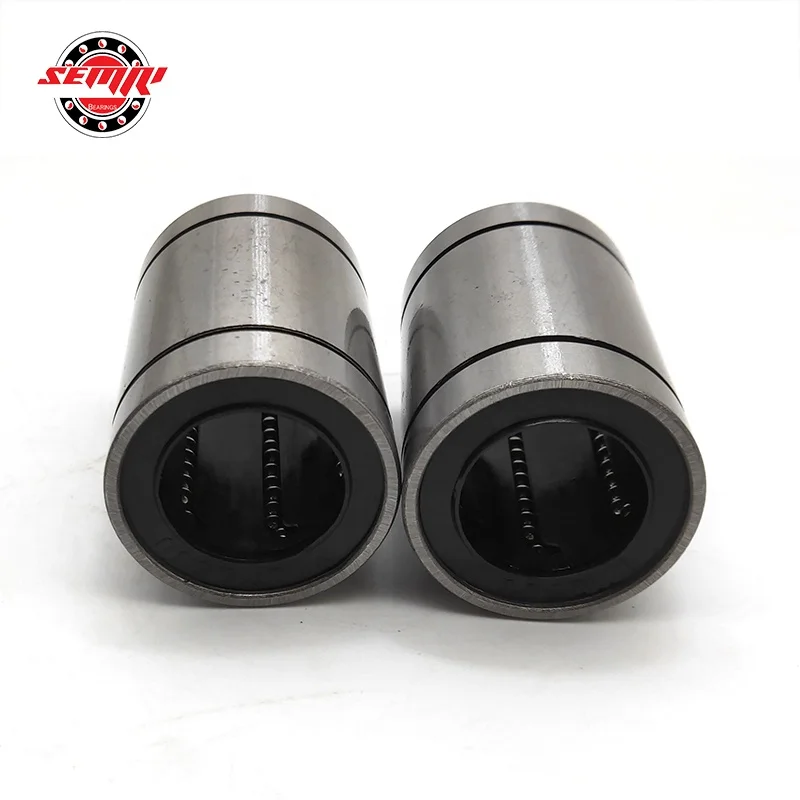

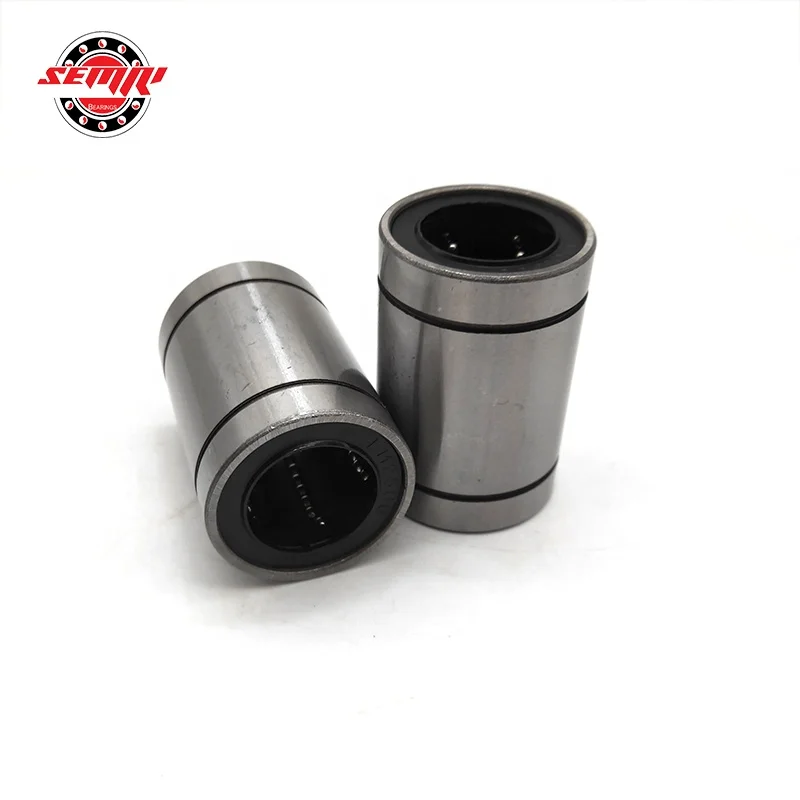

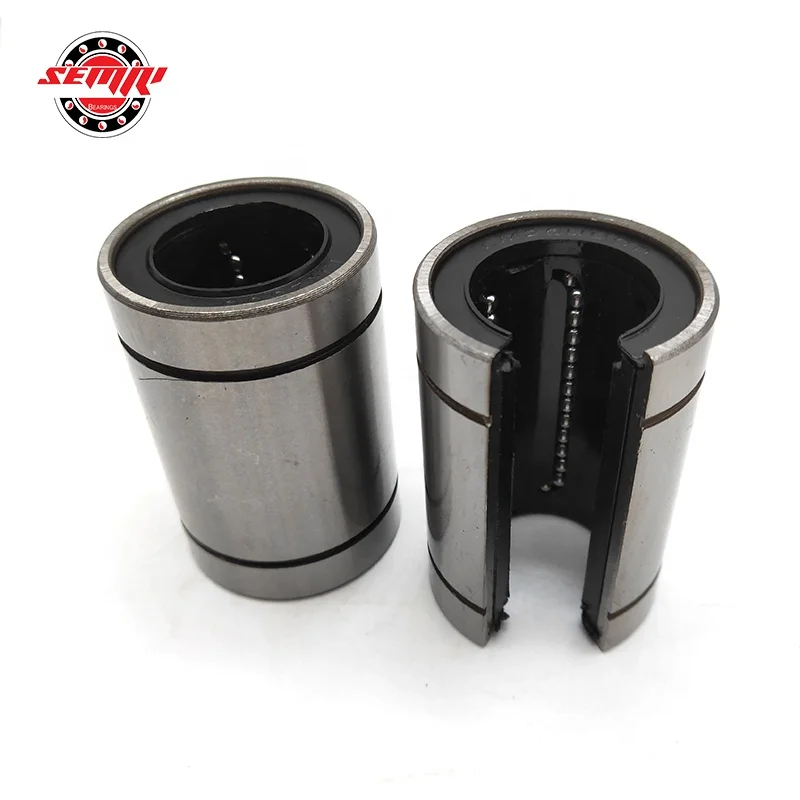

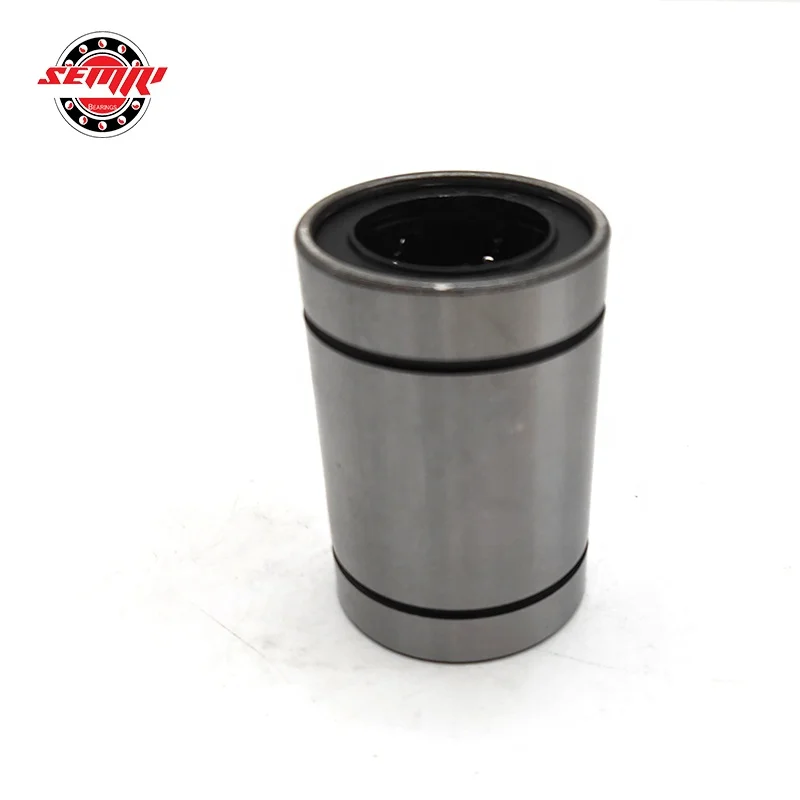

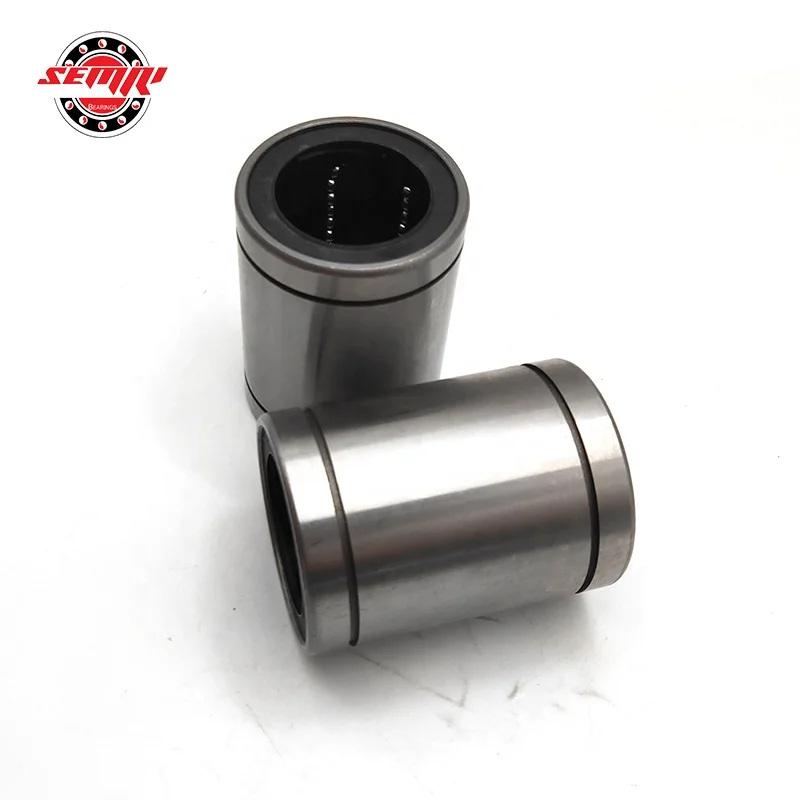

1x1.56x2.25 inch Sealed Linear Ball Bushing Bearing LMB16UU
- Category: Linear Bearings >>>
- Supplier: Tianjin Semri Bearing Technology Co. Ltd.
Share on (62350409118):
Product Overview
Description
Product Description
1x1.56x2.25 inch Sealed Linear Ball Bushing Bearing LMB16UU
| Model | 1x1.56x2.25 inch Sealed Linear Ball Bushing Bearing LMB16UU |
| Bore Size | 1 inch |
| Application | CNC,electronic equipment, etc |
| Part Number | d | D | L | B | W | Circuits | C (N) | Co (N) | Weight (g) |
| LMB 4 UU | 0.25 | 0.5 | 0.75 | 0.511 | 0.039 | 4 | 206 | 265 | 8 |
| LMB 6 UU | 0.375 | 0.625 | 0.875 | 0.6358 | 0.039 | 4 | 225 | 314 | 14 |
| LMB 8 UU | 0.5 | 0.875 | 1.25 | 0.9625 | 0.0459 | 4 | 510 | 784 | 37 |
| LMB 10 UU | 0.625 | 1.125 | 1.5 | 1.1039 | 0.0559 | 4 | 774 | 1180 | 76 |
| LMB 12 UU | 0.75 | 1.25 | 1.625 | 1.1657 | 0.0559 | 5 | 862 | 1370 | 95 |
| LMB 16 UU | 1 | 1.56 | 2.25 | 1.7547 | 0.0679 | 6 | 980 | 1570 | 200 |
| LMB 20 UU | 1.25 | 2 | 2.625 | 2.0047 | 0.0679 | 6 | 1570 | 2740 | 440 |
| LMB 24 UU | 1.5 | 2.375 | 3 | 2.4118 | 0.0859 | 6 | 2180 | 4020 | 670 |
| LMB 32 UU | 2 | 3 | 4 | 3.1917 | 0.1029 | 6 | 3820 | 7940 | 1140 |

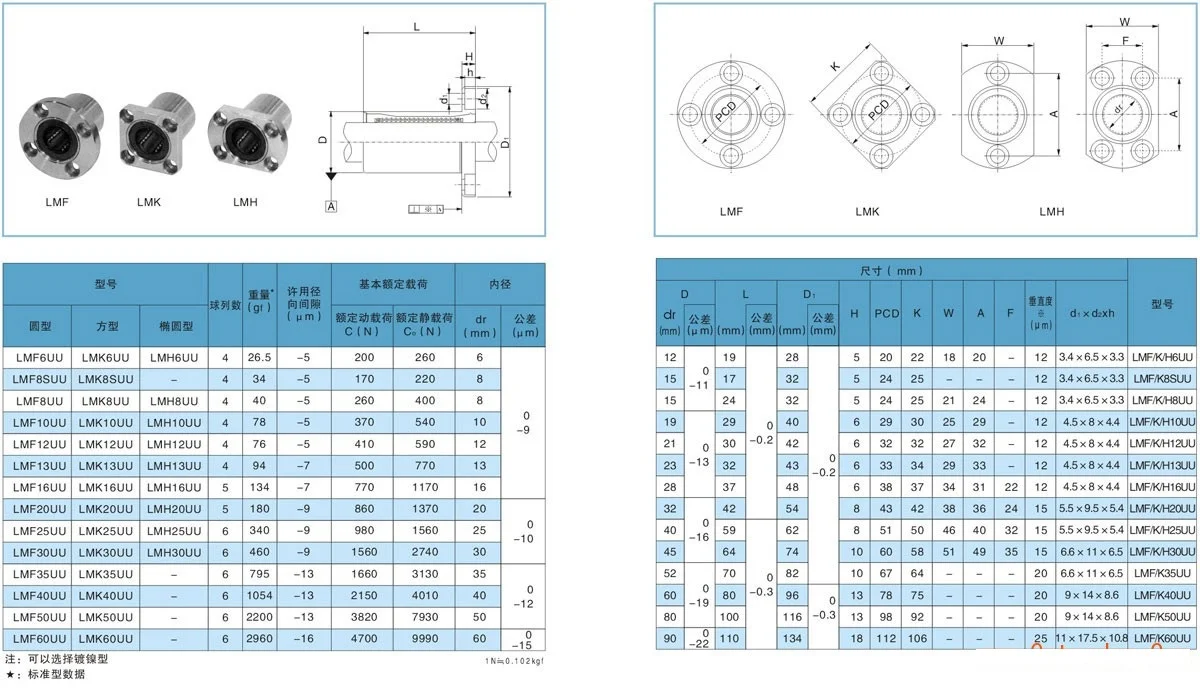

| Part Number | d | D | L | Df | Dp | t | X | Y | Z | Circuits | C | Co | Weight (g) |
| LMF 8 UU | 8 | 15 | 24 | 32 | 24 | 5 | 3.5 | 6.5 | 3.1 | 4 | 274 | 392 | 37 |
| LMF 10 UU | 10 | 19 | 29 | 40 | 29 | 6 | 4.5 | 8 | 4.1 | 4 | 372 | 549 | 72 |
| LMF 12 UU | 12 | 21 | 30 | 42 | 32 | 6 | 4.5 | 8 | 4.1 | 4 | 510 | 784 | 76 |
| LMF 13 UU | 13 | 23 | 32 | 43 | 33 | 6 | 4.5 | 8 | 4.1 | 4 | 510 | 784 | 88 |
| LMF 16 UU | 16 | 28 | 37 | 48 | 38 | 6 | 4.5 | 8 | 4.1 | 5 | 774 | 1180 | 120 |
| LMF 20 UU | 20 | 32 | 42 | 54 | 43 | 8 | 5.5 | 9.5 | 5.1 | 5 | 882 | 1370 | 180 |
| LMF 25 UU | 25 | 40 | 59 | 62 | 51 | 8 | 5.5 | 9.5 | 5.1 | 6 | 980 | 1570 | 340 |
| LMF 30 UU | 30 | 45 | 64 | 74 | 60 | 10 | 6.6 | 11 | 6.1 | 6 | 1570 | 2740 | 470 |
| LMF 40 UU | 40 | 60 | 80 | 96 | 78 | 13 | 9 | 14 | 8.1 | 6 | 2160 | 4020 | 1060 |
| LMF 50 UU | 50 | 80 | 100 | 116 | 98 | 13 | 9 | 14 | 8.1 | 6 | 3820 | 7940 | 2200 |
| LMF 60 UU | 60 | 90 | 110 | 134 | 112 | 18 | 11 | 17.5 | 11.1 | 6 | 4700 | 10000 | 3000 |
| Part Number | d | D | L | B | W | Circuits | C | Co | Weight (g) |
| LM 8 UU | 8 | 15 | 24 | 17.5 | 1.1 | 4 | 27 | 41 | 16 |
| LM 10 UU | 10 | 19 | 29 | 22 | 1.3 | 4 | 38 | 56 | 30 |
| LM 12 UU | 12 | 21 | 30 | 23 | 1.3 | 4 | 42 | 61 | 32 |
| LM 13 UU | 13 | 23 | 32 | 23 | 1.3 | 4 | 52 | 79 | 43 |
| LM 16 UU | 16 | 28 | 37 | 26.5 | 1.6 | 5 | 79 | 120 | 69 |
| LM 20 UU | 20 | 32 | 42 | 30.5 | 1.6 | 5 | 88 | 140 | 87 |
| LM 25 UU | 25 | 40 | 59 | 41 | 1.85 | 6 | 100 | 160 | 220 |
| LM 30 UU | 30 | 45 | 64 | 44.5 | 1.85 | 6 | 160 | 280 | 250 |
| LM 40 UU | 40 | 60 | 80 | 60.5 | 2.1 | 6 | 220 | 410 | 585 |
| LM 50 UU | 50 | 80 | 100 | 74 | 2.6 | 6 | 390 | 810 | 1580 |
| LM 60 UU | 60 | 90 | 110 | 85 | 3.15 | 6 | 480 | 1020 | 2000 |
Our advantage
Packing
FAQ
Q:Why choose SEMRI?
A:1. We are professional,have factory in shandong for many years.
2. We are experienced for 10 years.
3. We can offer a various kind of bearing with high quality:Z1V1,Z2V2,Z3V3 and best price
Q:How is the quality of your products?
A:The same quality, we have lower price.The same price,we have better quality.
Q:Except linear bearings ,what other main bearing do you have?
A:Thrust roller bearing,Cylindrical roller bearing,Taper Roller Bearing,Spherical roller bearing,Deep groove ball bearing,Angular contact ball bearing etc.
Q:Can I get LMB16UU linear bearings slider free samples?
A:We will charge a little sample fee for our regular designs or customized ones, These charges will be refunded to you when your mass production order is confirmed.
Q:Can you make the products as our requirement?
A:We have more than 10 years' OEM experience. We supply products fo more than 300 automobile parts factories.
