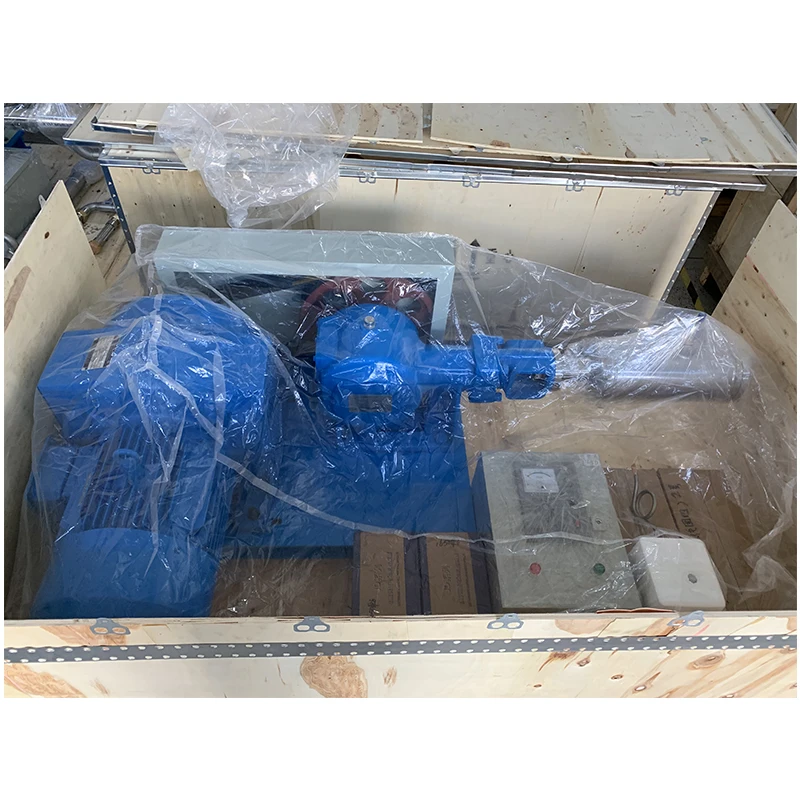

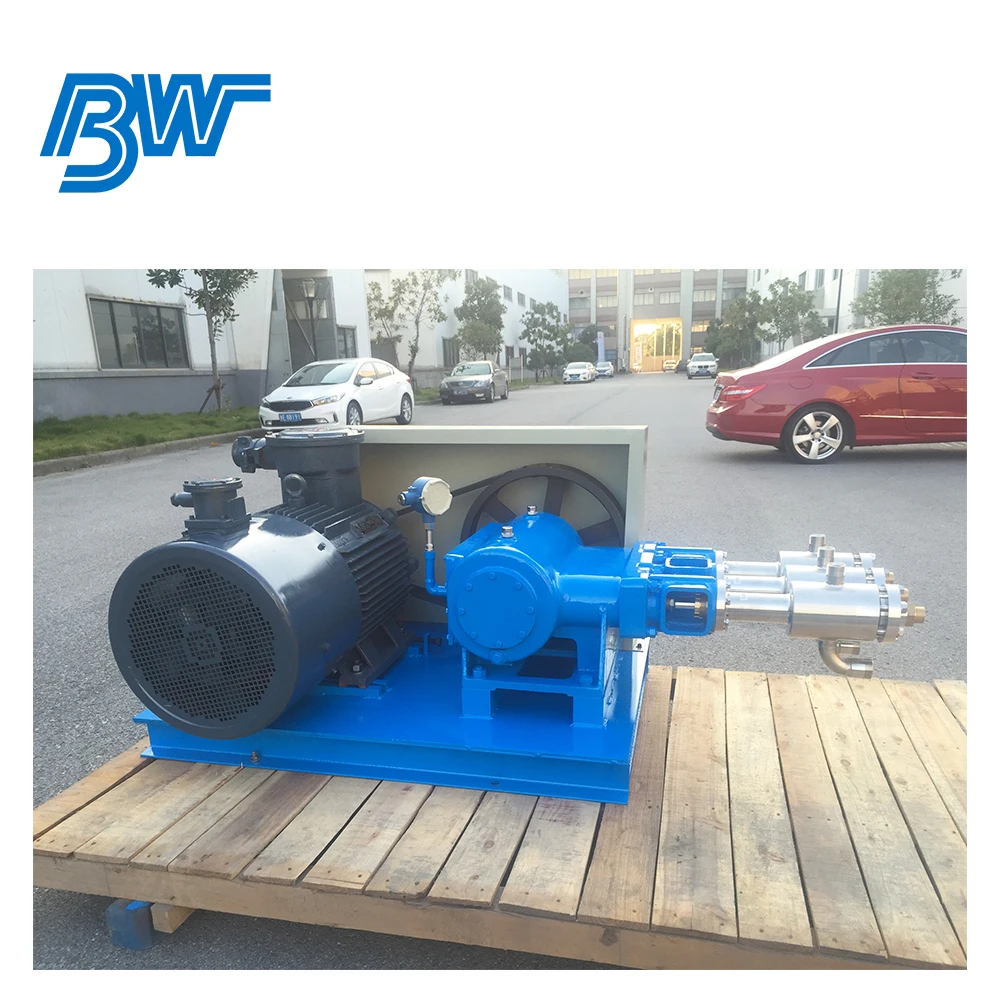

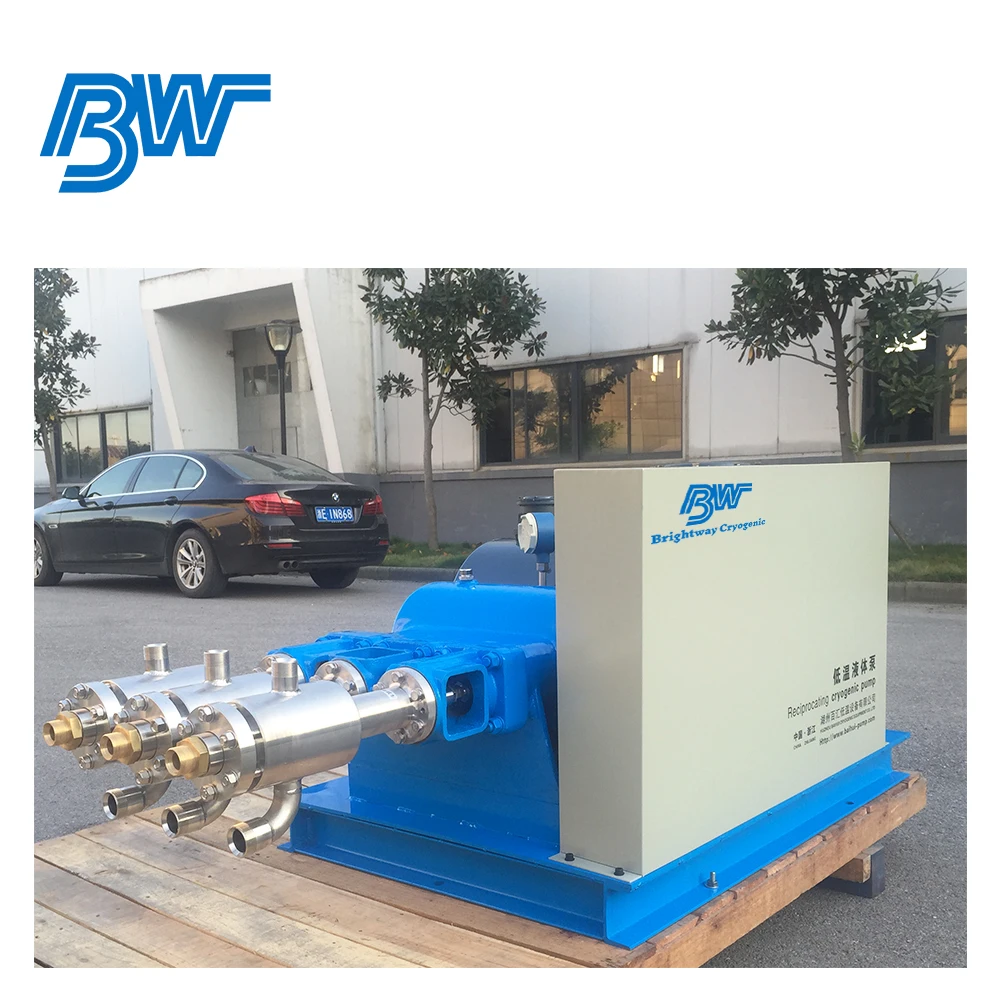

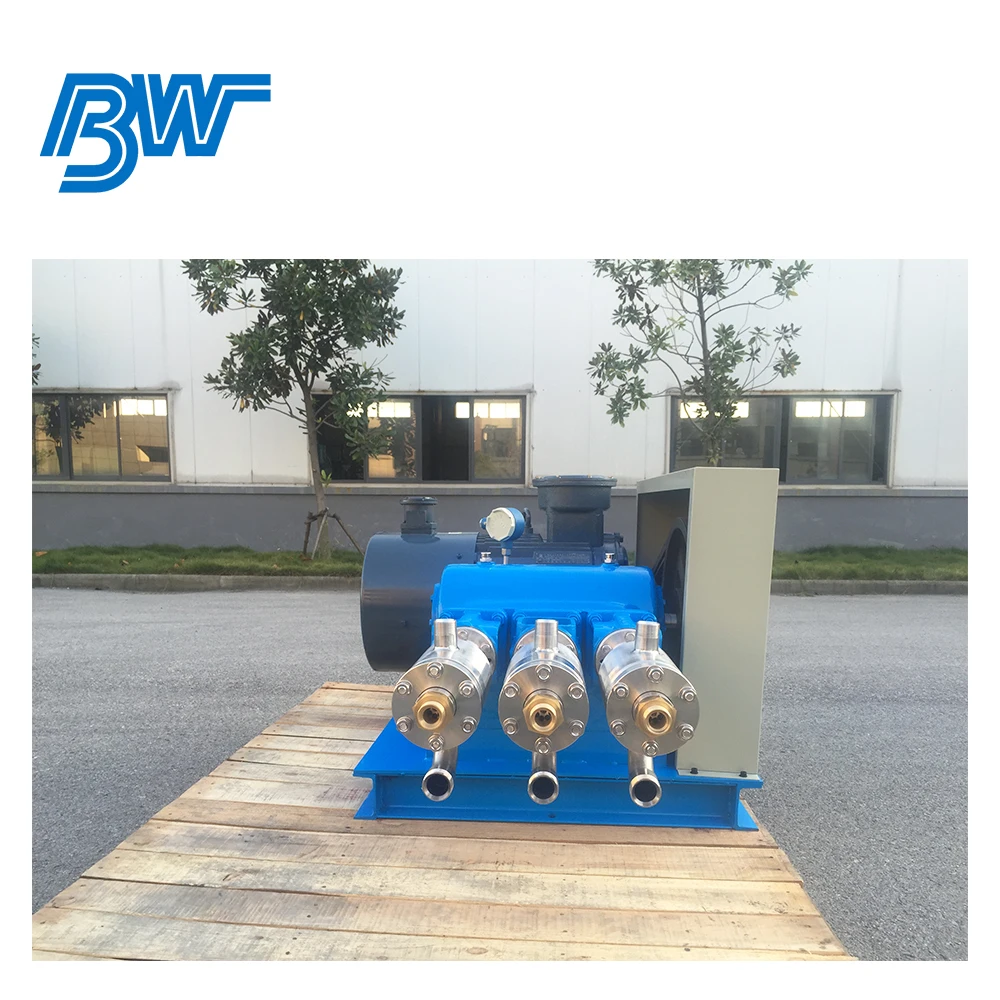

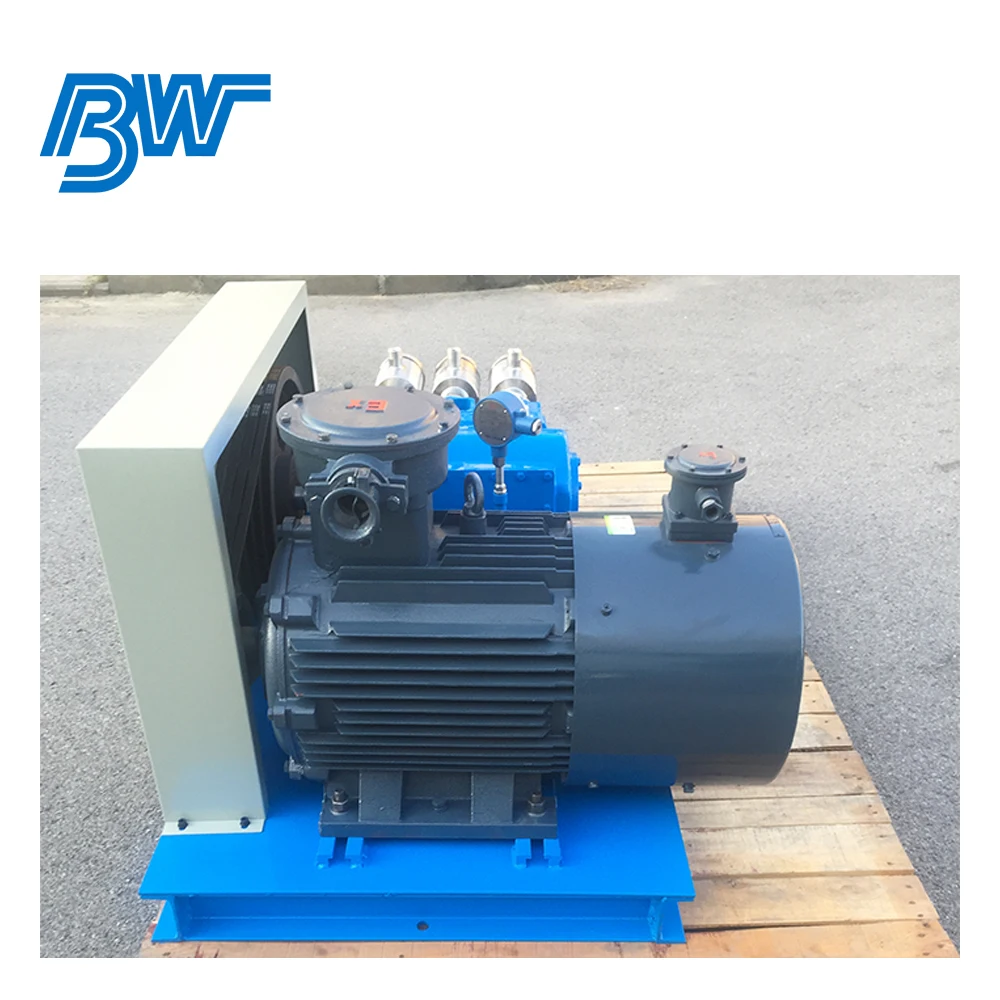

LNG High Pressure Cryogenic Liquid CNG Pump
- Category: >>>
- Supplier: Huzhou Baihui Cryogenic Equipment Co. Ltd.
Share on (62350416683):
Product Overview
Description
Product Description
L-CNG High Pressure Pumps
Suitable Media:LNG
Scope of Application:L-CNG natural gas station&Filling of CNG tanks
Main Technical Parameters:
Flow :3500-5000L/h
Max outlet pressure:25.0MPa
Optional Configuration:
Stationary motor/ frequency control
Safety valve/Cryogenic stop valve
Stationary motor /frequency control
Back temperature interlocking device
Air outlet temperature interlocking device
Air outlet pressure interlocking device
Transmission case oil temperature interlocking
PLC control system
Supply of skid
| Type | Flow range L/h | Inlet pressure Mpa | Max pressure Mpa |
| Double&Horizontal&Piston | 3500 | 0.02-1.6 | 25.0 |
| 4000 | |||
| 4500 | |||
| 5000 |
