Original direct export tractor yto x704

Share on (62350471234):


Price:$12,300.00

Quantity:


Product Overview

Description


Product Description

 tractor yto-x704 features

1).The diesel engine, which is manufactured using advanced British technology, delivers large torque, high fuel efficiency and low emission. PERKINS engine is also optional.
2).The transmission system is made on the basis of Italian technology. The top speed can be more than 35km/h.
3).The full hydraulic steering system is utilized for easy operation.
4).High safety is ensured due to the use of the wet disc brake.
5).Optional new cab is not only elegant but also can be equipped with an air conditioning system so as to offer the driver a high level of comfort.
6).In addition to built-in master cylinder, two auxiliary cylinders can also be used, resulting in increased lift force (30kN).
7).Our wheel tractor adopts double action clutch. German LUK clutch is available for your choice.

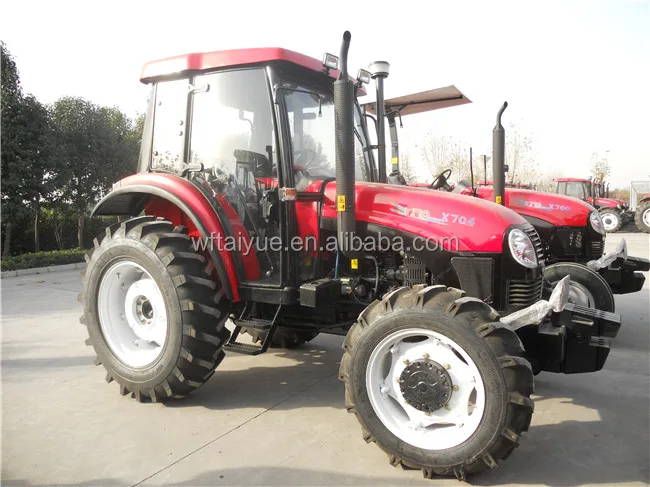

tractor yto-x704 (15)_.jpg


 tractor yto-x704  specification

Model

YTO X704

Drive Type

4x4 ,4WD

Dimension(L*W*H)

4250mm*2145mm*2650mm

Wheelbase

2214mm

Min. Ground Clearance

370mm

Min. Operating Mass

3540kg

Tyre Size (F/R)

11.2-24/16.9-30

Wheel Track (F/R)

1569-2005/1500-2100mm

Gear Shift (F/R)

12/4

Speed Range (F/R)

1.63-26.82 & 4.23-12.69 km/h

Lifting Force (610mm)

>21.9KN

Lifting Force (Link Joint)

>25.6KN

Engine model

LR4B523

Engine Type

4-cyliner,vertical,water cooler,4 stroke direct injection diesel engine

Engine Displacement

4.95L

Rated Power/Rotating Speed

51.5kW/2300rpm

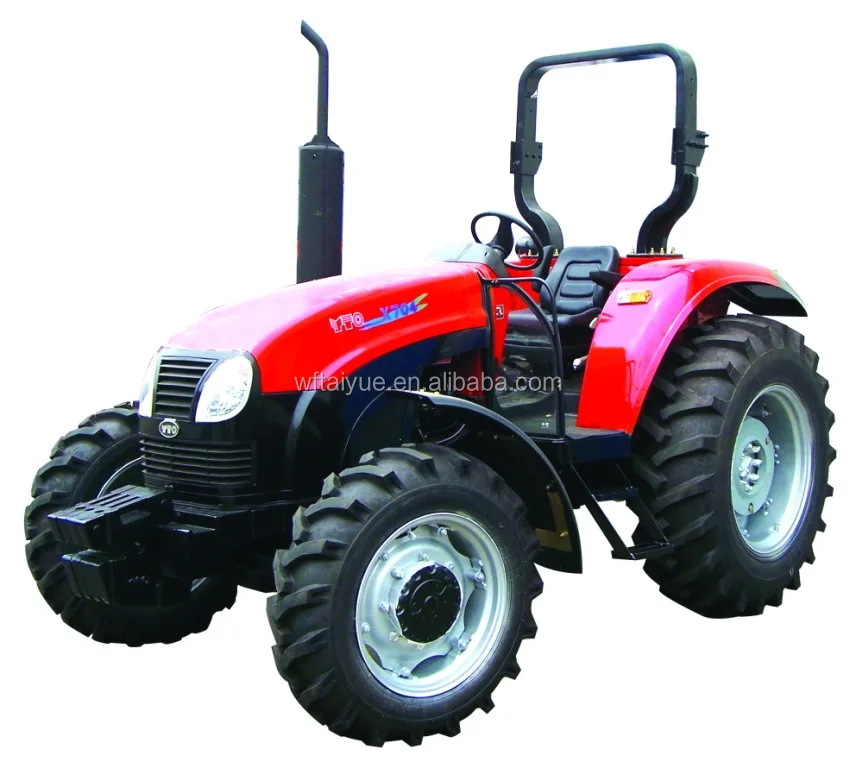

tractor yto-x704 (17).jpg

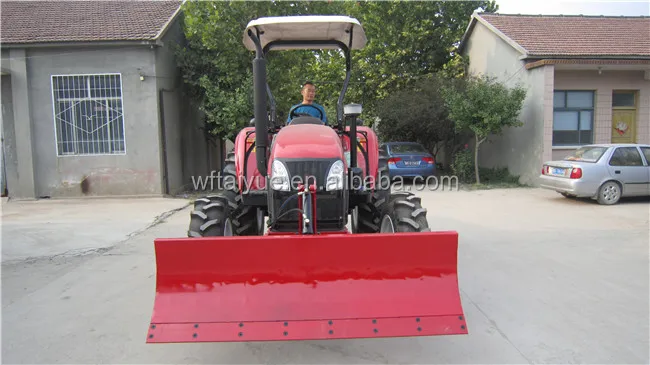

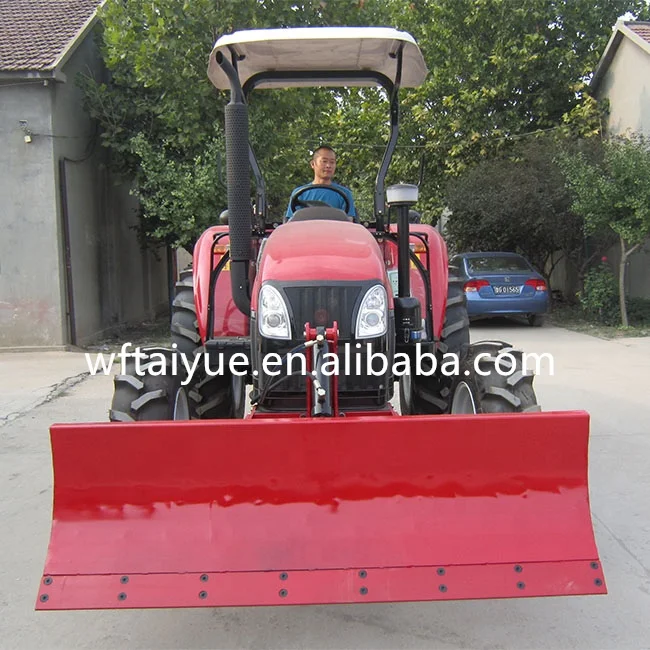

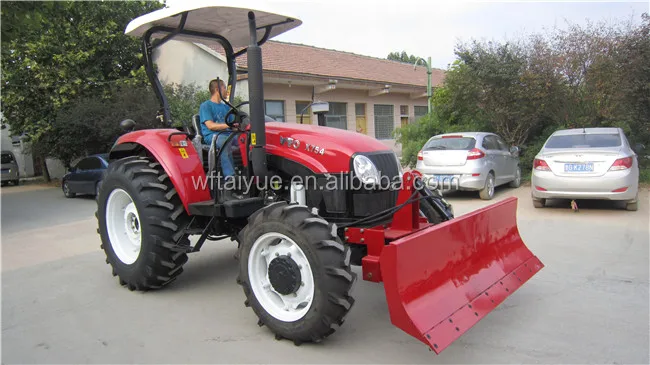

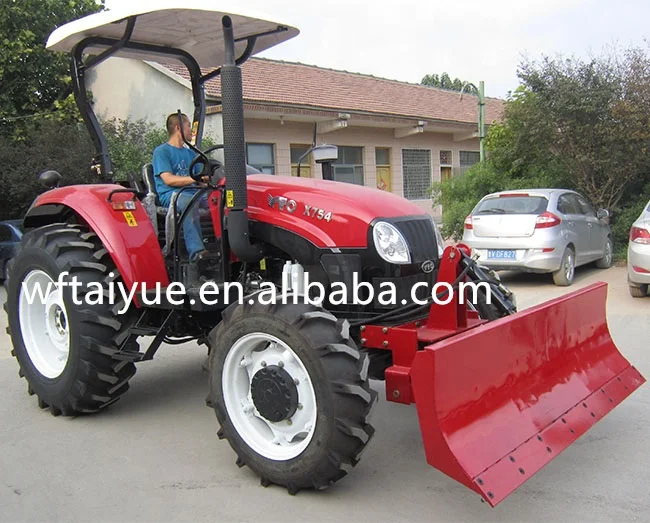

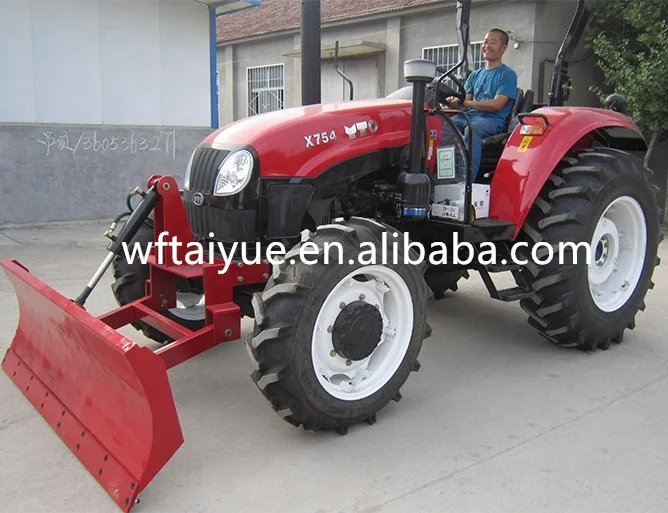

 tractor yto-x704  with implements
tractor yto-x704 (7)_.jpgtractor yto-x704 (4)_.jpg
