bottle liquid filler, bottling line wine, alcohol bottle filling capping machine
- Category: >>>
- Supplier: Qingzhou Tongda Packaging Machinery Co. Ltd.
Share on (62350519570):
Product Overview
Description
We are fatory to make liquid bottling filling line machines, and the speed of each module of the filling line can be made based on customer's requirement. More info pls contact Bovey Hao at:
contact person: Bovey Hao
email address: boveyhao555@gmail.com
mobile/wechat/whatsapp: +8618653665650
email address: boveyhao555@gmail.com
mobile/wechat/whatsapp: +8618653665650
bottle liquid filler, bottling line wine, alcohol bottle filling capping machine
Products Description
Filling Feature
1. The tolerance of filling liquid level is below 2mm,better than the industry standard.
2. The advanced technology of frequency conversion speed regulation is adopted on the machine,and the largest filling volume will get to 200-300 bottles per hour.
3. Bottle height is from 140-340mm,easy to adjust.
4. Tight seal,and it does not fill if there is no bottle or bottle broken.Liquid flows down along the inner wall of the
botlle,effectively control of the foam and spill.
5. It is widely used for red wine,fruit wine,flavoured drinks,sauce-soy,vinegar etc.
6.The spiral bottle arranging device ensures the safety of the bottle-feed-in.
2. The advanced technology of frequency conversion speed regulation is adopted on the machine,and the largest filling volume will get to 200-300 bottles per hour.
3. Bottle height is from 140-340mm,easy to adjust.
4. Tight seal,and it does not fill if there is no bottle or bottle broken.Liquid flows down along the inner wall of the
botlle,effectively control of the foam and spill.
5. It is widely used for red wine,fruit wine,flavoured drinks,sauce-soy,vinegar etc.
6.The spiral bottle arranging device ensures the safety of the bottle-feed-in.

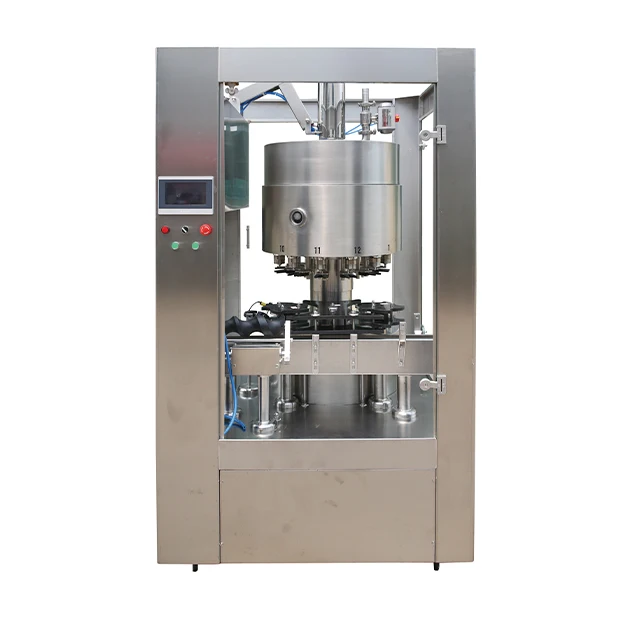

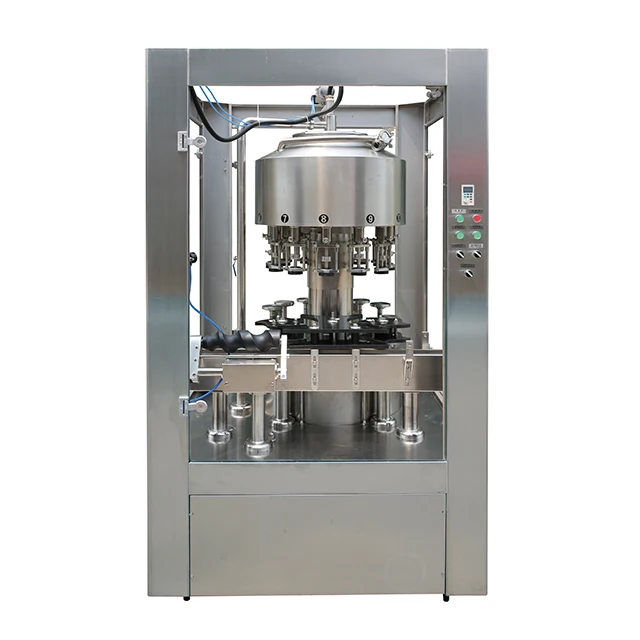

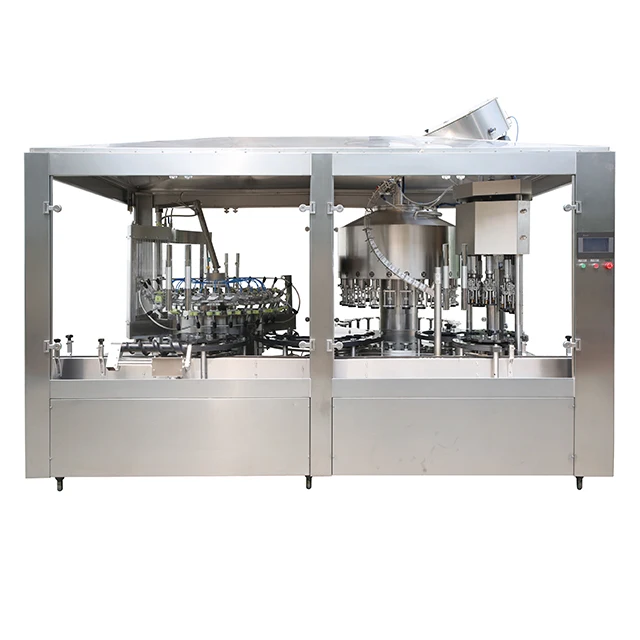

12 heads filling machine
1. Accurate filling liquid level
2. High working efficiency
3. Large range of bottle adjustment
4. No liquid loss,no drip dropped
5. Large range of applicaton
6.Free bottle-feed-in
1.With glass housing to protect
2.With CIP cleaning system
3.With pump for auto-liquids-supplying
4.With conveyor line easily working
5.With filling valve for the same liquid-level
2.With CIP cleaning system
3.With pump for auto-liquids-supplying
4.With conveyor line easily working
5.With filling valve for the same liquid-level
1. Accurate filling liquid level
2. High working efficiency
3. Large range of bottle adjustment
4. No liquid loss,no drip dropped
5. Large range of applicaton
6.Free bottle-feed-in
12 heads filling machineThere is bottle feeding in Screws and Starwheels which make bottle moves steadily.
Low vacuum filler is recommended for still,non dense liquids such as still water,wine,alcoholic beverage
(whiskey, vodka, brandy etc) and any kinds of flat non viscous liquids.In this case,the opening of the filling valve is given by the neck finish of the containers,lifted by the mechanical plates of the filler. wine,alcohol beverage automatic filling machine with high precision.

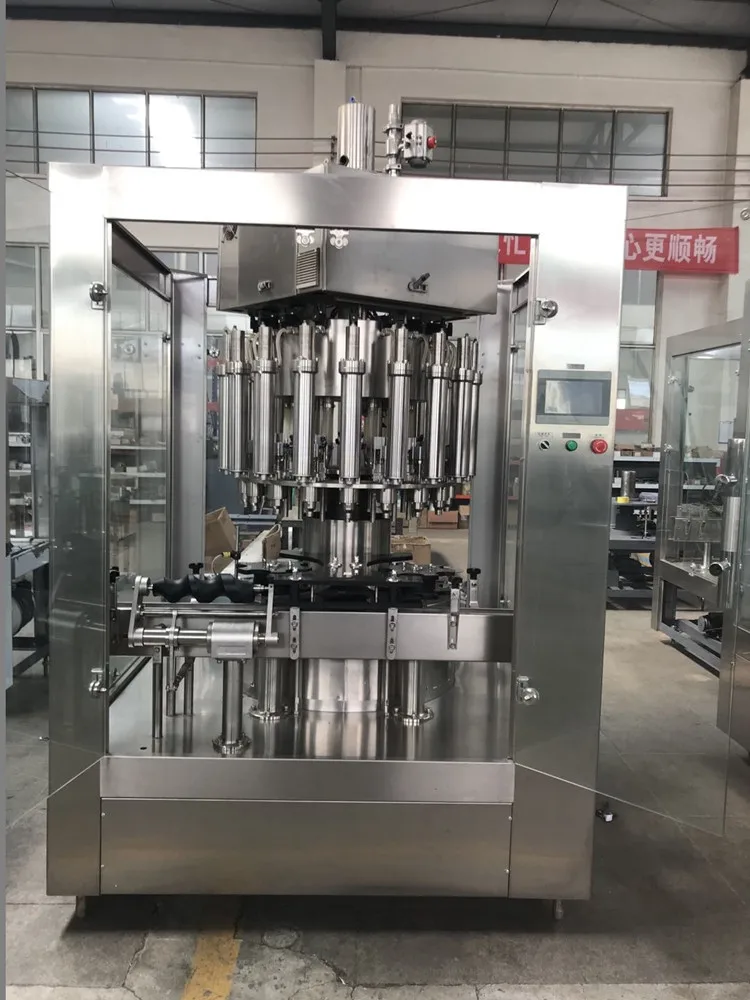

Filling line for test before shipping
Magnetostrictive sensor controlling the
liquor filling line layout drawing

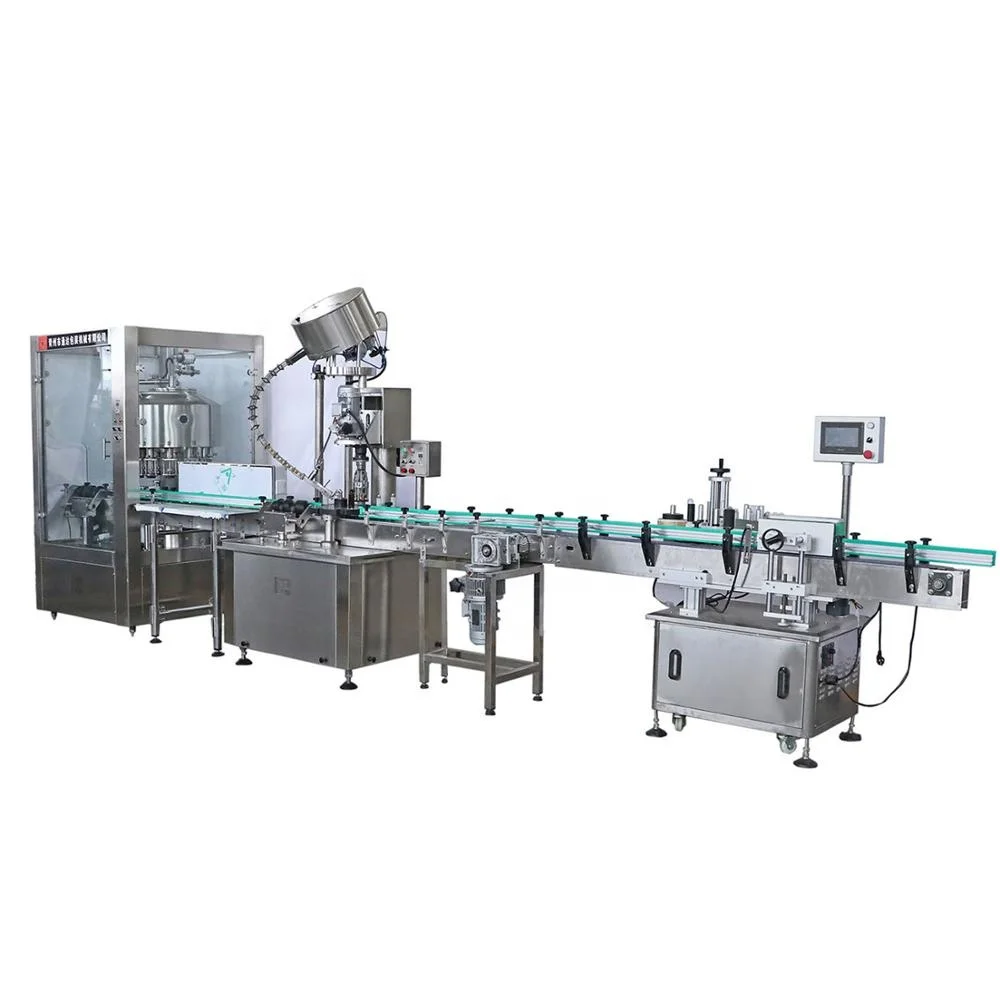

the whole process bottles Depalletizer,unscrambler,feeding,washing,filling,t corking,capping,sleeve shrinking,labeling and packaging stage
Filling Samples Application
Liquor Wine
flavoured juice drinks
syrup
Filling Parameter
Model | Filling Heads | Capacity bph | Bottle Height mm | Bottle Dia. mm | Filling Tolerance ml | Power kw | Dimension mm |
GFP-12 | 12 | 2000 | 140-320 | ≤100 | ±0.5% | 0.75 | 1200x1050x2100 |
GFP-18 | 18 | 4000 | 0.75 | 1300x1180x2100 | |||
GFP-24 | 24 | 6000 | 1.5 | 1700x1450x2100 | |||
GFP-30 | 30 | 8000 | 1.5 | 1900x2000x2100 | |||
GFP-36 | 36 | 10000 | 2.2 | 2300x2150x2100 | |||
GFP-40 | 40 | 12000 | 2.2 | 2300x2300x2100 | |||
GFP-48 | 48 | 14000 | 3 | 2600x2700x2100 | |||
GFP-60 | 60 | 16000 | 3 | 3300x3300x2200 |
1. High efficiency to get to 2000 bph capacity.
2. Large application range.
3. To keep the same liquid filling level.
4. No bottle leakage.
5. No bottle no sealing.

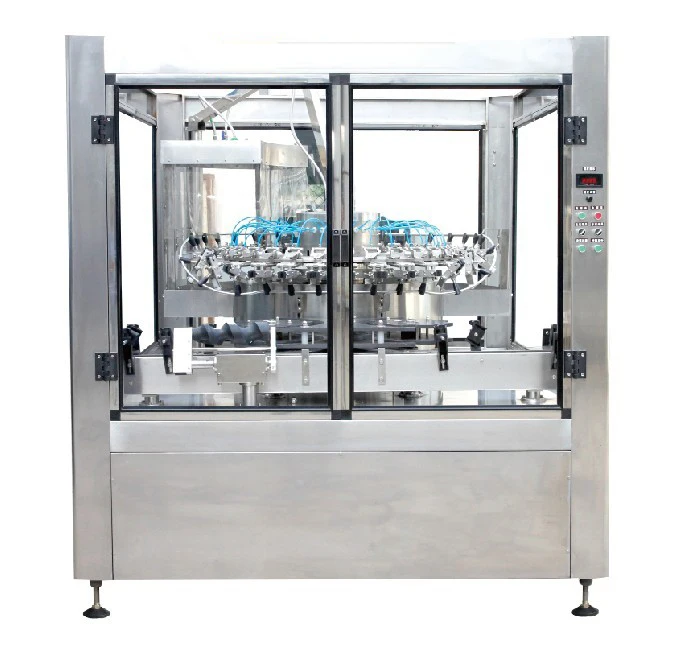

1. Rinse thoroughly-bottle inside and outside clean by water or chemical liquids.
2. Adapt to bottle type,It is suitable for various bottle types with wine bottle height 140-300mm and bottleneck ɸ25mm-ɸ100mm.
3. Water saving: Equipped with a circulating water tank, which is used after water filtration to reduce water consumption.
4. Wide adaptability.

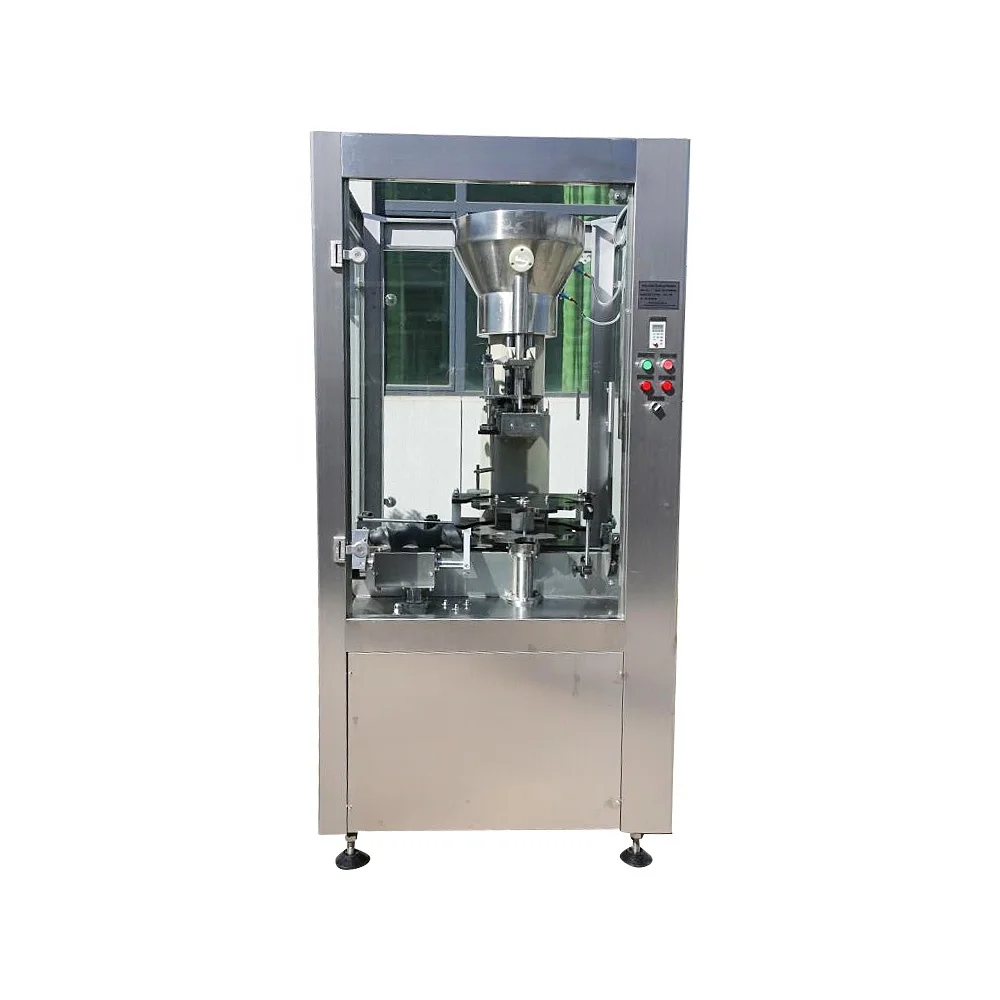

3. T Corking Machine
1.Mainly used for T-cork cap in glass bottles.
2. There is push-down part before capping.
3.Equipped with T-cap feeding device, automatic arranging corks, labor saving and reliable.
4.Equipped with photoelectric sensor system, no bottle no cork.
2. There is push-down part before capping.
3.Equipped with T-cap feeding device, automatic arranging corks, labor saving and reliable.
4.Equipped with photoelectric sensor system, no bottle no cork.

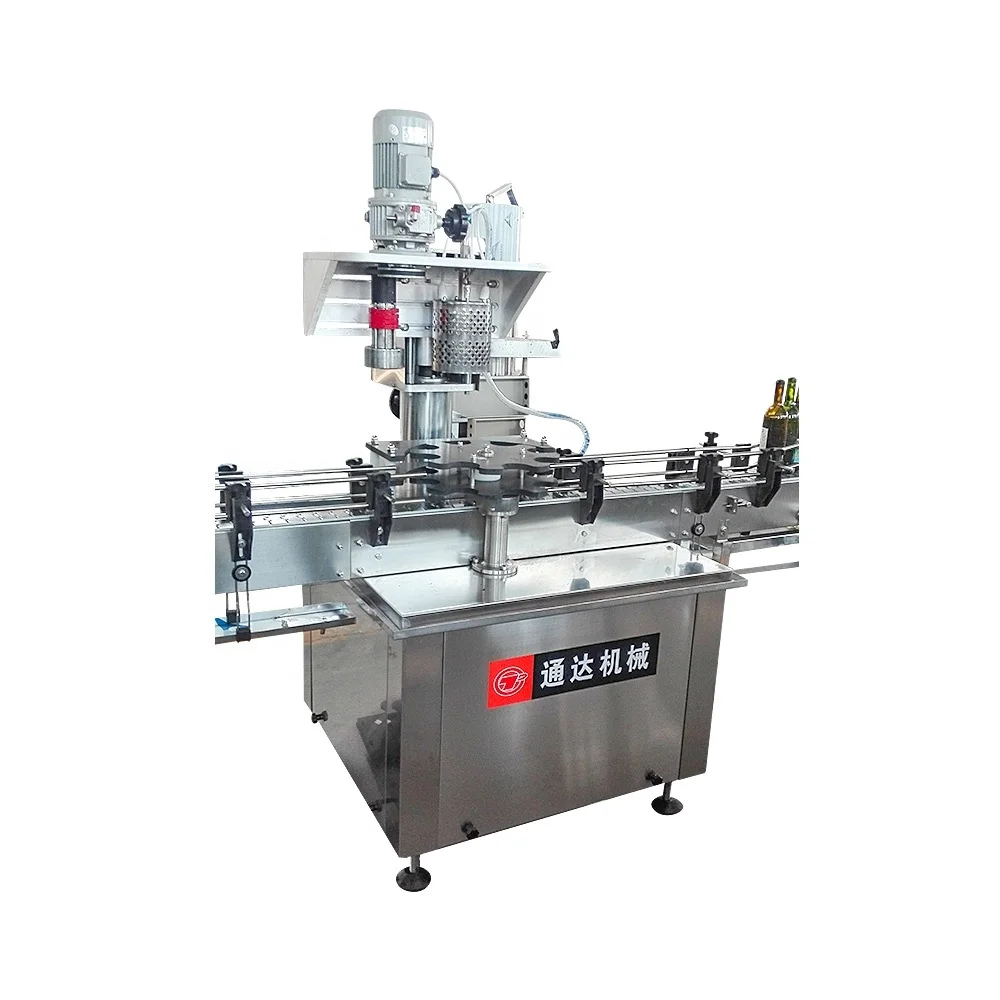

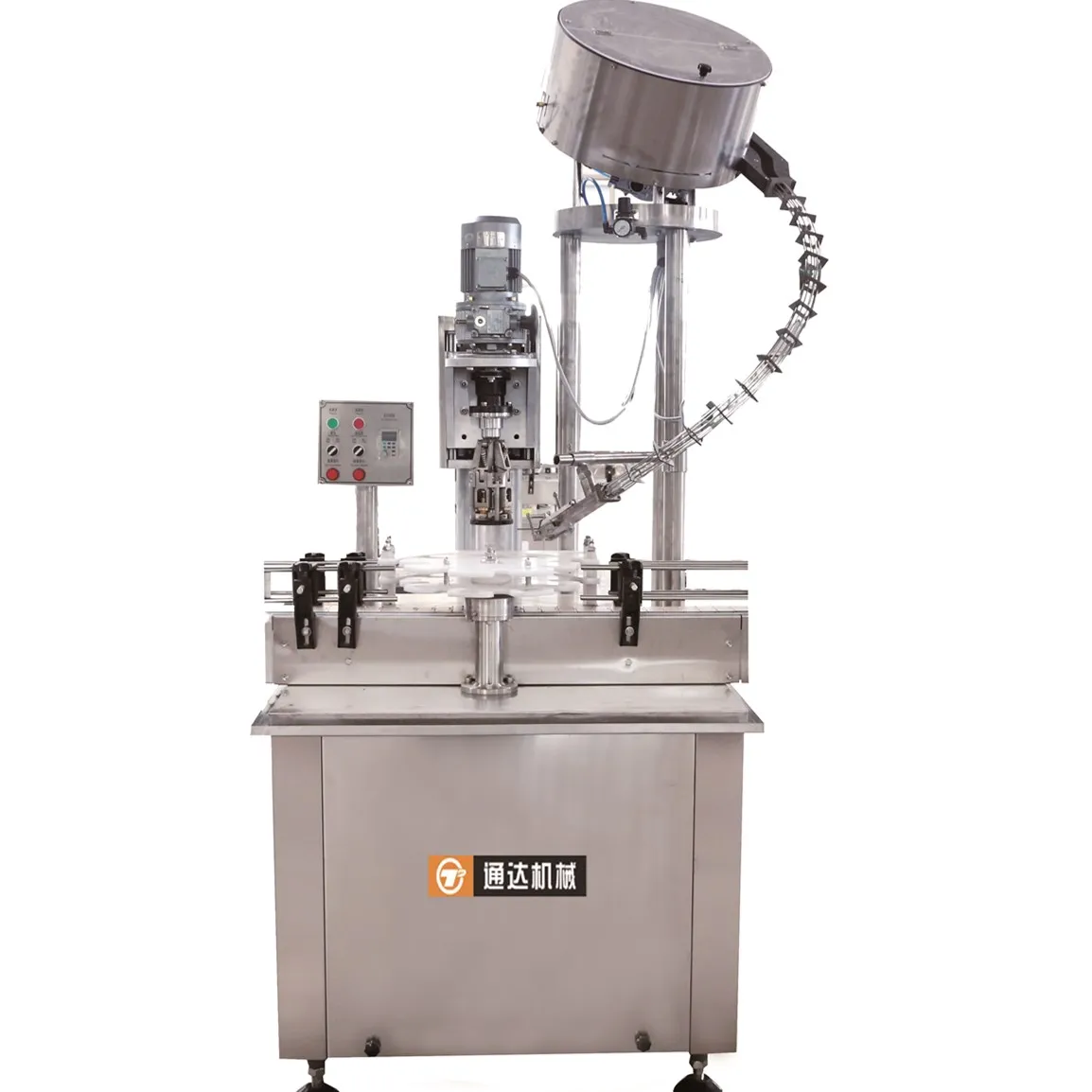

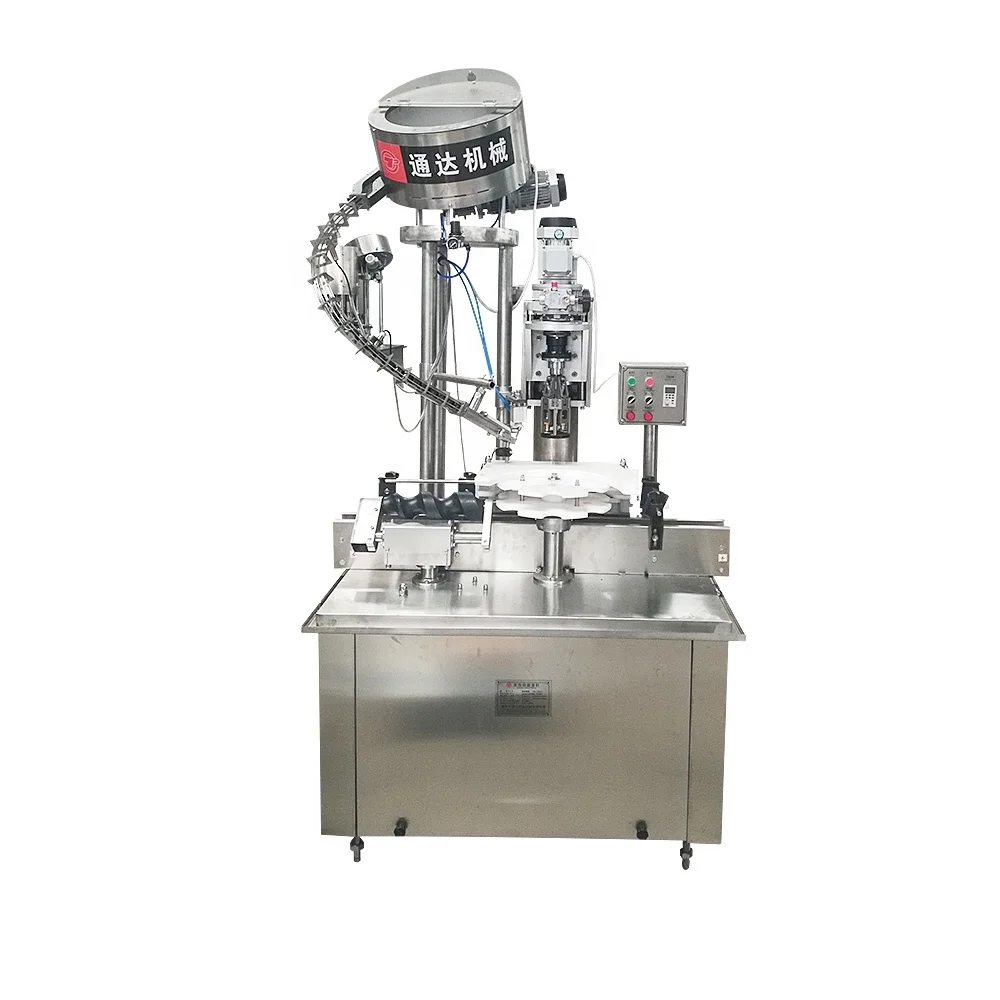

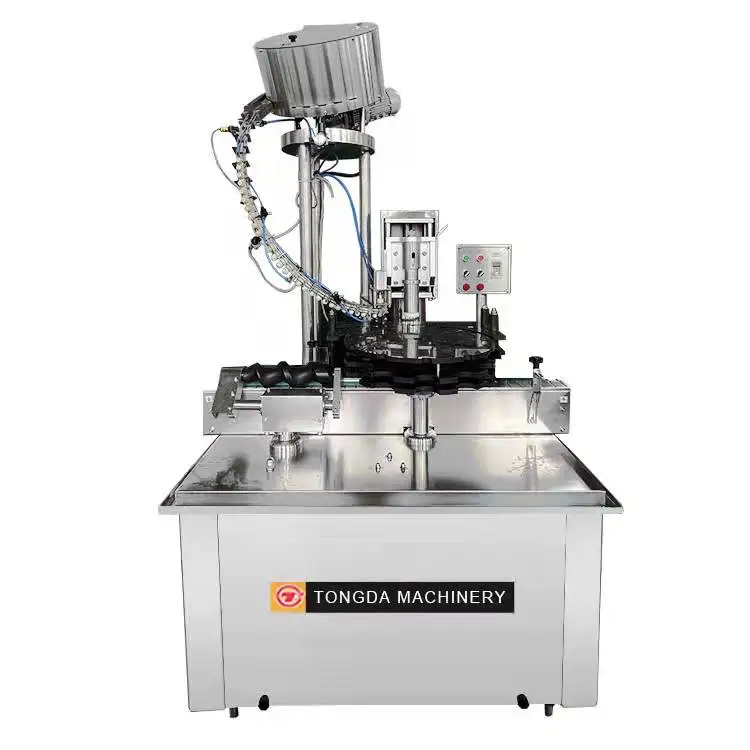

4. Aluminum Capping Machine for refrence
1. The capper is suitable for aluminum screw caps: ropp cap,sleeve,stelvin caps
2.. This capper can be customized based on customer's requirement.
45 Automatic Corking Machine for reference
1.Mainly used for soft wood cork in glass bottles. 2.The shrinkage cork mechanism adopts an independent squeeze head to ensure the
smooth progress of the cork. 3.Equipped with arranging device, automatic arranging corks, labor saving and reliable. 4.Equipped
with photoelectric sensor system, no bottle no cork.
smooth progress of the cork. 3.Equipped with arranging device, automatic arranging corks, labor saving and reliable. 4.Equipped
with photoelectric sensor system, no bottle no cork.
6. Automatic Shrinker & Grinder part for reference
1.Rolling cap completed at one time, smooth and firm, and has wrinkle-free appearance, good sealing effect and high efficiency.
2. The power & the dial system are equipped with a buffer overload protection device.
3. The rapid structure of the bottle dial star wheel, the bottle mouth is equipped with an automatic positioning device.
2. The power & the dial system are equipped with a buffer overload protection device.
3. The rapid structure of the bottle dial star wheel, the bottle mouth is equipped with an automatic positioning device.

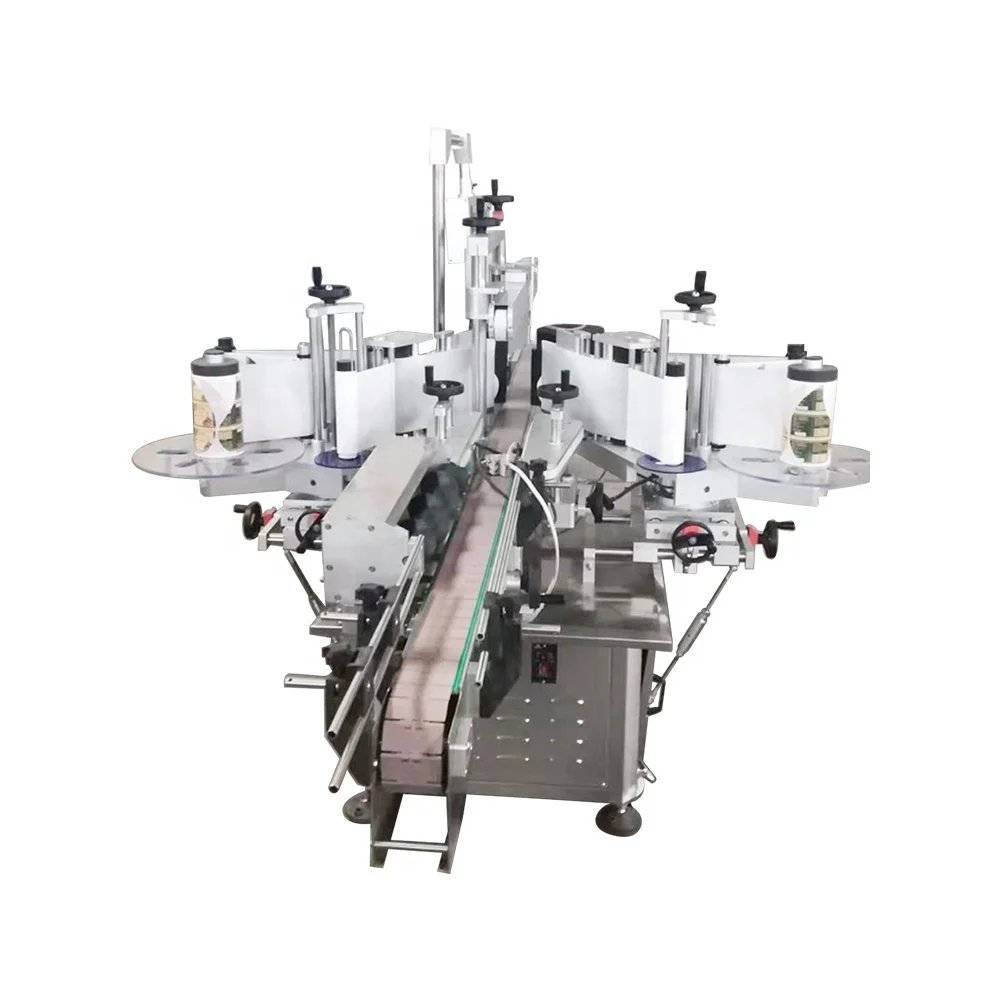

7.The labeling part
1.Adopts the original pneumatic roller structure.
2. High repeat accuracy, no bubbles when labeling
3. This machine is especially suitable for high-requirement all-round labeling.
4. One or two labels can be selected for one-time labeling.
5. Real man-machine interaction, simple operation, online help information.
2. High repeat accuracy, no bubbles when labeling
3. This machine is especially suitable for high-requirement all-round labeling.
4. One or two labels can be selected for one-time labeling.
5. Real man-machine interaction, simple operation, online help information.
we have still assistant packaging equipment,bottles depalletizer,unscrambler,plastic bottles wrapping machine,glass bottles loading box machine,robot palletizer,if any need,pls contact with us
Name: Bill Smith
Tel/wechat/whatsapp: +8613853604546
email: billsmithoverworld@foxmail.com
Company Profile
TONGDA PACKAGING MACHINERY CO., LTD.
We are confident about our product quality because of the professional technical team and advanced production workshop and the the Quality Assurance System.
222
Tongda Packaging Machinery Co., Ltd. is a professional manufacturer of non-carbonated liquid bottling line equipments,we have more than 15 years' manufacturer experience in this field.
Tongda mainly manufactures non-carbonated liquid bottling line, our bottling equipments are mainly used for white spirit, grape wine, fruit wine, vinegar, soy sauce, cooking oil, enzyme, juice, non-carbonated drink, honey, syrup, tomato sauce, fruit jam, engine oil, lubricating oil…our bottling equipments mainly include bottle loading table, bottle washing machine, bottle filling machine, bottle capping machine, bottle sterilization machine, bottle drying machine, bottle labeling machine, inkjet printer, laser coder, tape carton sealing machine…We also supply solutions for our customer.
Tongda mainly manufactures non-carbonated liquid bottling line, our bottling equipments are mainly used for white spirit, grape wine, fruit wine, vinegar, soy sauce, cooking oil, enzyme, juice, non-carbonated drink, honey, syrup, tomato sauce, fruit jam, engine oil, lubricating oil…our bottling equipments mainly include bottle loading table, bottle washing machine, bottle filling machine, bottle capping machine, bottle sterilization machine, bottle drying machine, bottle labeling machine, inkjet printer, laser coder, tape carton sealing machine…We also supply solutions for our customer.
Main products: non-carbonated liquid filling line such as bottle unscrambler, bottle washing machine, bottle filling machine, bottle capping machine, bottle corking machine, bottle capsule heat shrinking machine, bottle drying machine, bottle labeling machine, laser coder, inkjet printer, tape carton sealing machine...
Main application: filling line of red wine, fruit wine, white spirit, soy sauce, vinegar, cooking oil, honey, syrup, tomato sauce...
Main application: filling line of red wine, fruit wine, white spirit, soy sauce, vinegar, cooking oil, honey, syrup, tomato sauce...
Product packaging
TONGDA PACKAGING MACHINERY CO., LTD.
We are confident about our product quality because of the professional technical team and advanced production workshop and the the Quality Assurance System.
Customer Photos
Tongda Packaging is a professional manufacturer of packaging machinery in China. We make our machinery cover all over the overseas market with the scientific progressive conception and first-class quality products.
We warmly welcome customers all over the world to visit our manufacture.
Our Service
Tongda Service gives you fast and easy online access to your Installed Base to order your original spare parts and explore the Options & Upgrades relevant for your line.
Make your life easier in your day to day business, and help you to improve your line and maintain its performance.
7/24 online service
1- Machine running video
2- Watch our factory online
2- Watch our factory online
Customized service
1-Design the machine according to requirements and provide professional advice
2- We can help design product production lines and draw factory layout
2- We can help design product production lines and draw factory layout
Installation / commissioning / training
1- We will arrange experienced technicians to install, debug and test the equipment
2- Our company provides technical training for customers
3- We promise that our products are all new
2- Our company provides technical training for customers
3- We promise that our products are all new
After-sale service
1-After inspection, we provide a 12-month quality guarantee, free wearing parts, and other parts at the lowest price
2- If you cannot solve the problem, we have professionals to answer your questions at any time
2- If you cannot solve the problem, we have professionals to answer your questions at any time
FAQ
TONGDA PACKAGING MACHINERY CO., LTD.
1. What is your sample service?
We can send you the video of the finished machine or you can welcome to visit our company and see the machine running in the factory.
Or if we get the permission of the customer who has brought the machines from us,we can tell you our customers'contact information,you can go to visit their factory.
2. What is your after sale service?
We will send technicians overseas,commissions and operator training.Our warranty period is 12 months,in this period,we provide free parts for buyer as well as the necessary technical support.Out of warranty period,we offer free technical support and the cost of spare parts.
3. How about the spare parts?
After we finish all the things,we will offer you a spare parts list for your reference.
4. What services are there during the production?
We will cooperate with buyers and update the manufacturing process and status to buyers and we will invite buyer come to test the machine when the goods finished in our factory, if the buyer think it is ok,we will arrange shipping or we can make the testing video and send it to buyer.
5. How to customize the service?
We can design the machines according your requirements (material,power,filling type,the kinds of the bottles and so on),at the same time we will give you our professional suggestion.
We can offer free technical support and consultation,draw the factory layout.
