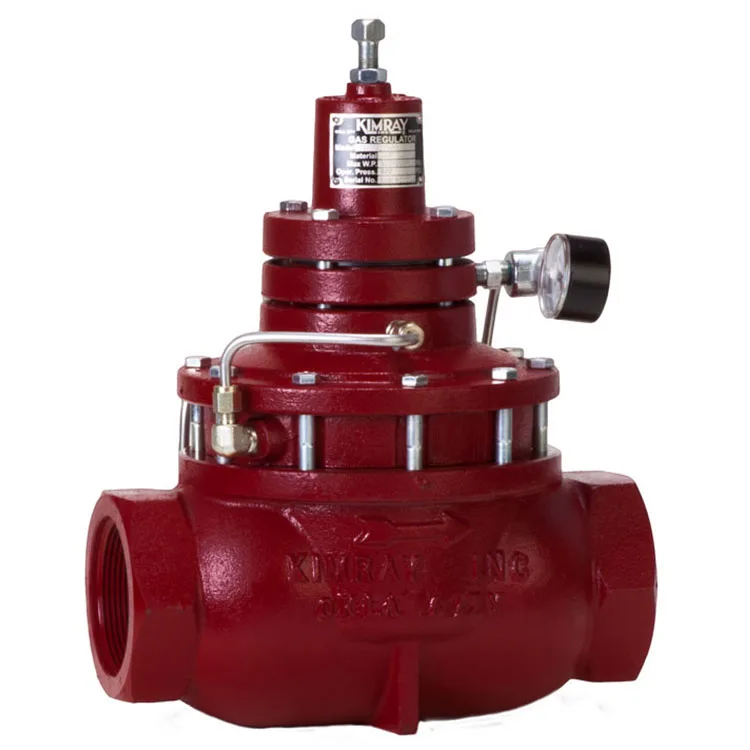

Control pressure downstream of the valve and Pneumatic ABX5 330 SGT PR5-D REGULATOR
Product Description
Control pressure downstream of the valve by adjusting the set point to the desired max downstream pressure. Commonly used as a suction control valve on compressors. Utilizes process gas to operate integrated pilot. Gas must be clean and dry.
Specification
Connection Type
Female NPT
Body Style
Through Body
Trim Type
Equal Percentage
Seal Class
Class VI
Process Fluid
Gas
Pilot Type
Vent
Operation
Pneumatic
Catalog Page
BL_A07295
Face-to-Face Length
12.06"
Max. Working Pressure
300 psig
Min. Set Point Pressure
10 psig
Body Material
Cast Ductile
Option Available for NACE MR0175 compliance or certification.
