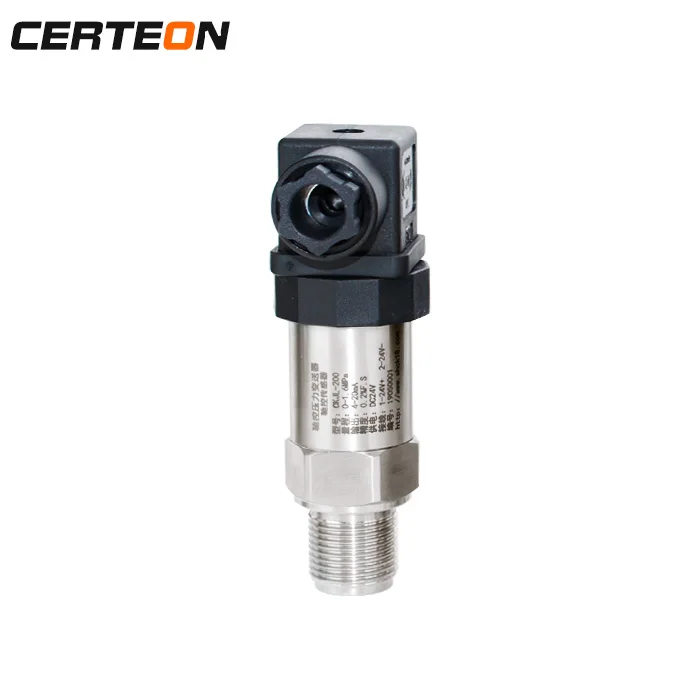

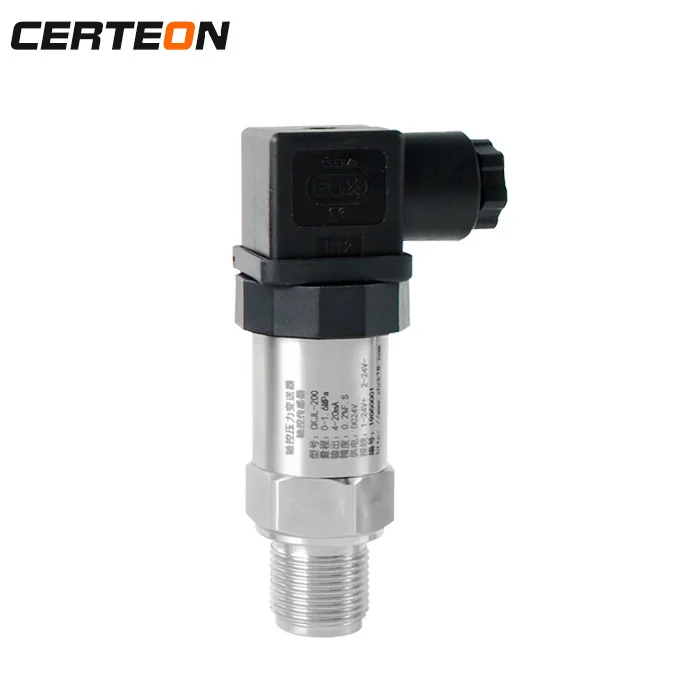

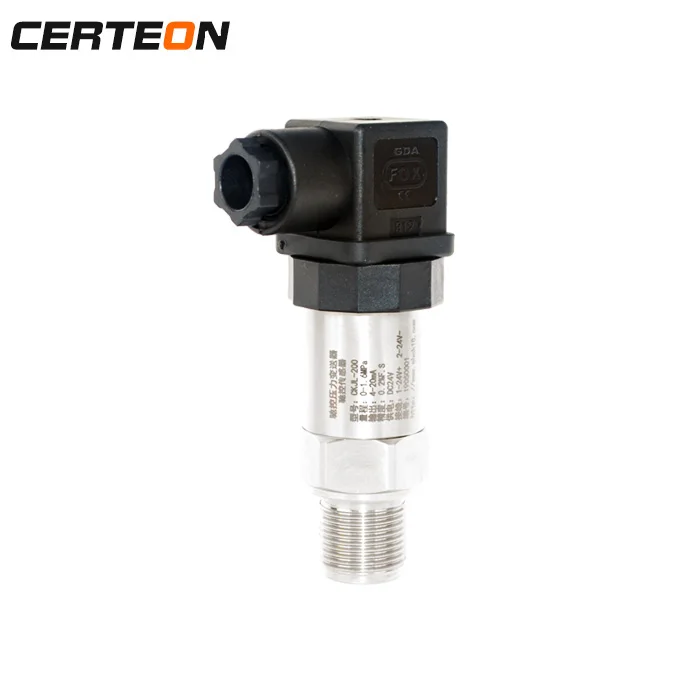

explosion proof Fieldbus Flush digital differential Diaphragm Pressure transducer Transmitter sensor for air gas Hirschmann

Product Overview

Description

Product parameters

Items	Parameter
Range	-0.1MPa...0kPa~10kPa...100MPa
Overload capability	Below 10MPa ≤ 2 times full scale 10MPa and above ≤1.5 times full scale
Pressure Type	G (gauge pressure), A (absolute pressure), S (sealed gauge pressure)
Accuracy	0.1% (custom), 0.25% (typical), 0.5% (maximum)
Long-term stability	±0.1%FS/year (typical), ±0.2%FS/year (maximum)
Zero temperature drift	±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa)
Sensitivity temperature drift	±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa)
Compensation temperature	0°C~50°C(≤100kPa), -10°C~70°C(typical)
Working temperature	-40°C~80°C, -20 ° C ~ 60 ° C (explosion-proof type)
Power supply	15~ 30V (Default 24V)

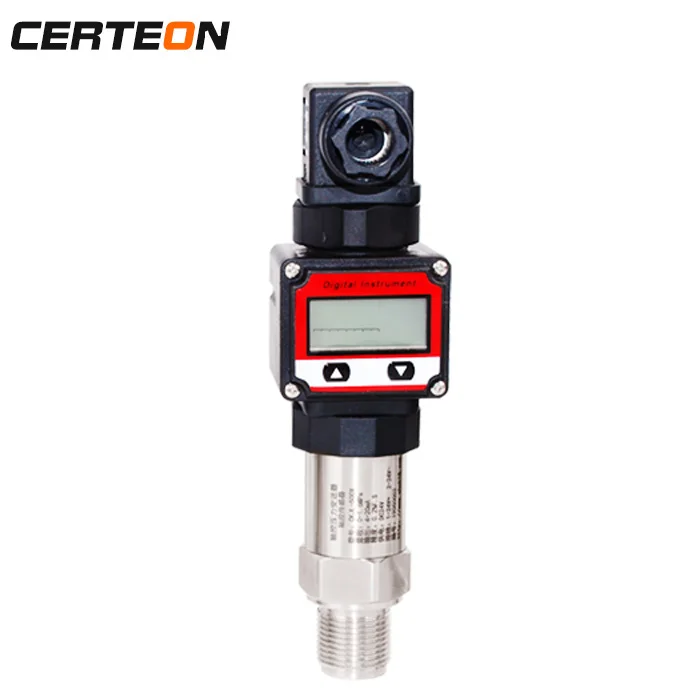

Live display	4-digit LED or LCD
Output Signal	4mA~20mA (superimposable HART protocol) RS485 (can output 4mA~20mA signal at the same time)
Load Resistance	Current type: ≤ (U-12) / 0.02 (Ω)
Explosion-proof grade	Intrinsically safe type: Ex d IIC T5 Gb
Protection level	IP65/IP67

Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.



Q:What is the delivery time ?

 A:Our delivery time is within 3-7days after we get your payment ; for large qty mass order , the time should be confrimed again for you



Q:How about your package ?

 A:Do not worry about the package ,we have rich experience at packing , all our package is standard exporting package .



Q: How about the Warranty time ?

 A:Our warranty time is 12 months after you get our goods  . All lifelong technology service and support .



Q:How about the payment terms ?

A:You can choose T/T, Western union , or you can choose by alibaba -credit insurance .

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q:What is the MOQ?

A:1PC.



Q:Can I get a lower price if I order large quantities?

A:Yes,cheaper prices with more bigger size orders.



Q:Can I have my own logo of the products?

A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement.
