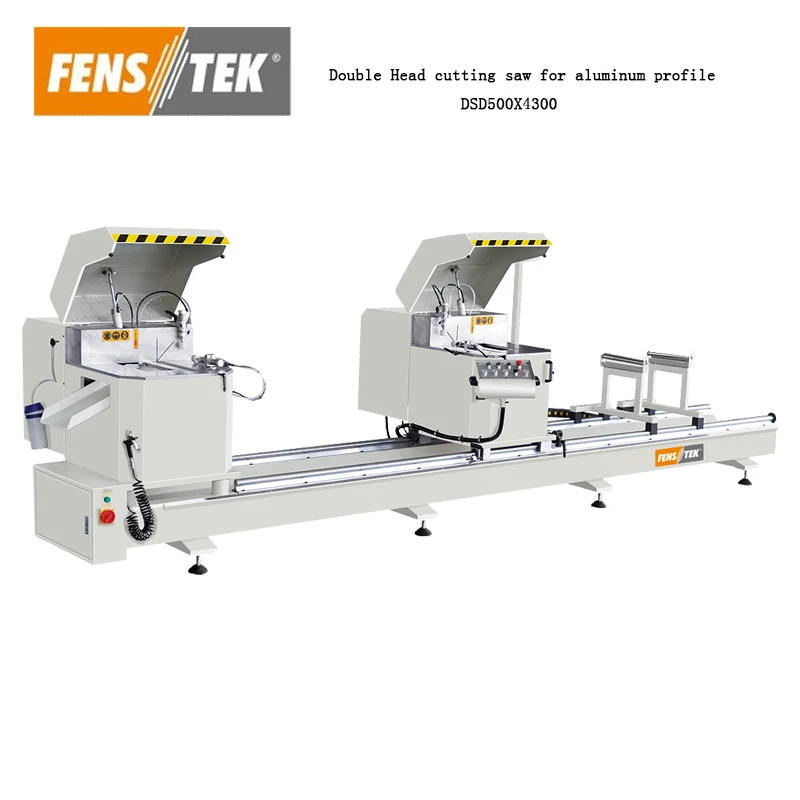

Aluminum Profile Double Head Saw Cutting Window Machine
- Category: >>>
- Supplier: Jinan Fenstek International Trade Co. Ltd.
Share on (62350562832):
Product Overview
Description
Aluminum Profile Double Head Saw Cutting Window Machine
Product Description
Features:
1. The main material for aluminum alloy curtain wall, window material cutting and can also be used for plastic profile cutting.
2. The use of carbide saw blades, diameter up to 500 dia, line of high speed high precision machining.
3. Right heads feeding adopts pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
4. This machine uses the numerical control technology, profiles of different specifications can completed automatically under the expected size.
5. Machine during operation, two saw blade can separate cutting.
6. The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large.

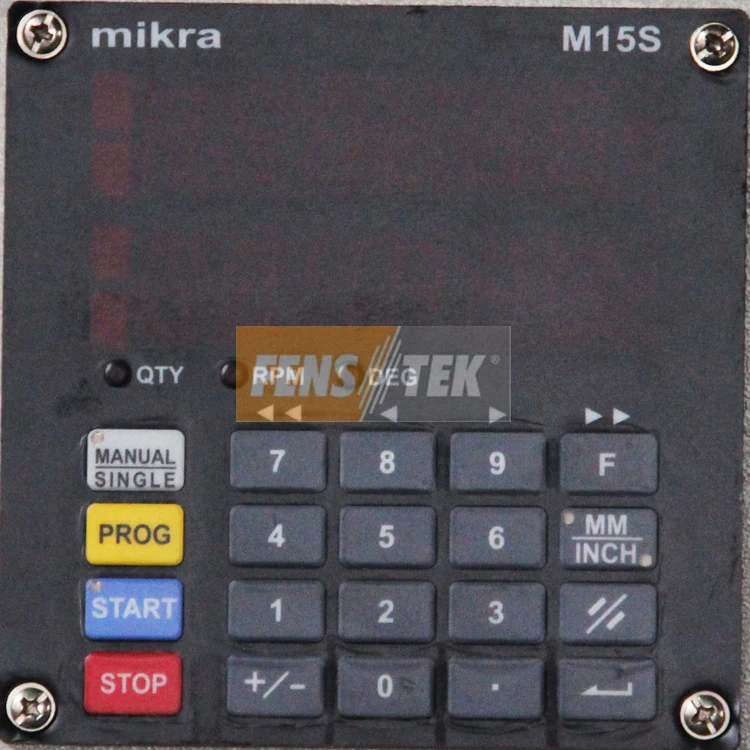

7. With digital display for showing exacting cutting position. Friendly using.
2. The use of carbide saw blades, diameter up to 500 dia, line of high speed high precision machining.
3. Right heads feeding adopts pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
4. This machine uses the numerical control technology, profiles of different specifications can completed automatically under the expected size.
5. Machine during operation, two saw blade can separate cutting.
6. The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large.
7. With digital display for showing exacting cutting position. Friendly using.
Specification | ||
Power supply | 380V, 50HZ | |
Cutting motor power | 5.9kw | |
Angle accuracy | +±0.5 degree | |
Dimensional accuracy | ±0.1mm | |
Cutting motor rotary speed | 2800r/min | |
Operation air pressure | 0.6-0.8MPa | |
Air consumption | 60L/min | |
Blade specification | 500*25.4 | |
Cutting length | 400mm-4500mm | |
Cutting width | 150mm | |
Max cutting section | 135*200mm. | |
Cutting angle | 45, 90 degree | |
Contour dimension | 5750*1300*1500mm | |
Weight | 2500kg | |
Main accessory | ||
• Saw blade | Wagen | |
• Solenoid valve | Germany FESTO | |
• Cylinder | JPC(FESTO Joint Venture Brand) | |
• Motor | Anhui Sanyang (Best Chinese Motor Brand) | |
• Air Filter Device | SMC | |
• Electrical Button and Switcher | Schneider | |
• AC Contactor and Circuit Breaker | Schneider | |
• Linear Bearing System | South Korean Brand | |
Standard accessory | ||
• Saw blade | 2pcs | |
• Mobile work piece supports | 2set | |
• Air Gun | 1pc | |
• Complete tooling | 1set | |
• Certificate | 1pc | |
• Operation Manual | 1pc | |
Optional Device | ||
• ADS Model | ADS500x4300 | |

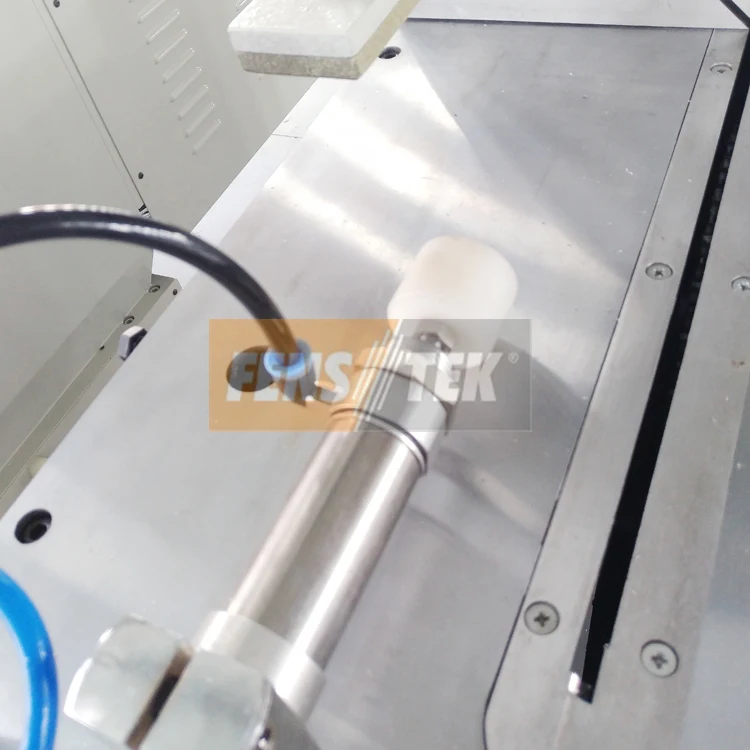

Product Details
Our Services
Buyer Show
Exhibition

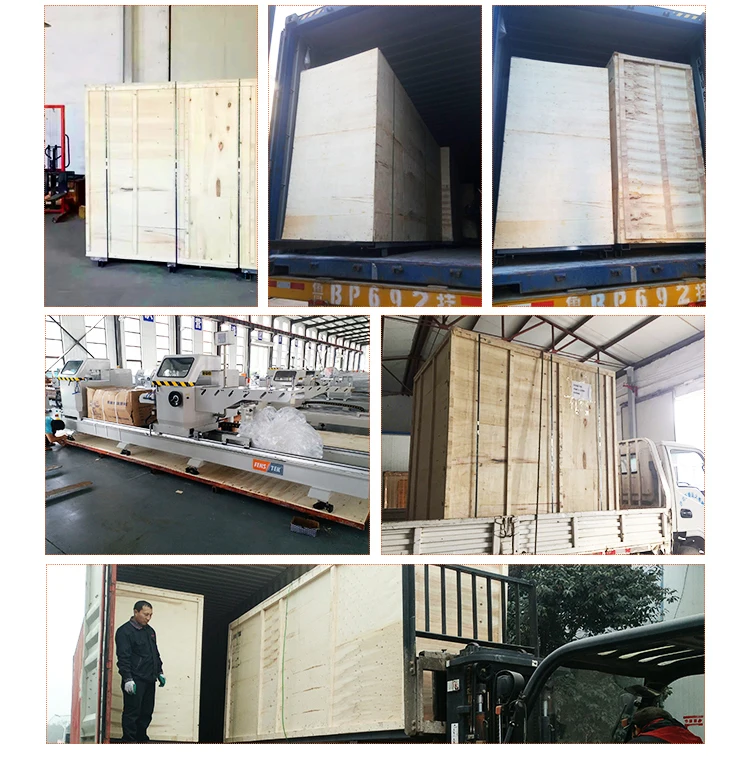

Delivery&Packaging

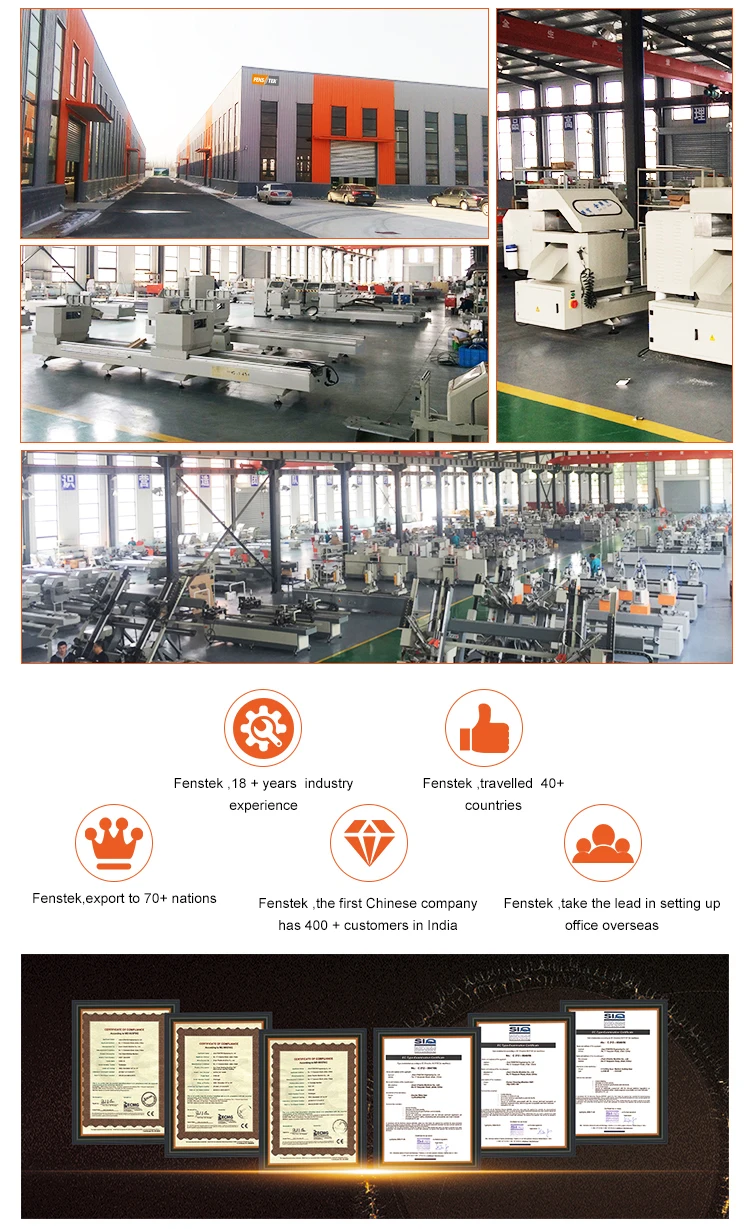

Company Profile
FAQ
