Высококачественный бесмасляный самосмазывающийся подшипник с заглушкой латунный подшипник карбоновая втулка графитовые втулки втулка Подшипник
- Category: Bushings >>>
- Supplier: Sheng Yao Wang(Dalian) International Trade Co. Ltd.
Share on (62350624964):
Product Overview
Description
Products Description
Graphite bearing definition
Oil-free sliding bearings can be self-lubricated by design, work smoothly, reliably and without noise. Under the condition of liquid lubrication, the sliding surface is separated by lubricating oil without direct contact, and the friction loss and surface wear can be greatly reduced. The oil film also has a certain vibration absorption capacity. But the starting friction resistance is large. The part of the shaft supported by the bearing is called the shaft diameter, and the part matching the shaft diameter is called the bearing pad. In order to improve the frictional properties of the bearing pad surface, the layer of anti-friction material cast on its inner surface is called a bearing bush.
product name | carbon graphite bush bearing75*85*90mm |
MOQ | 1 |
Sample | Avaliable |
number of row | single row |
Service | OEM Customized Services |
Uses of self-aligning ball bearings | Shaft sleeve and pin sleeve for joint parts of construction machinery (excavator, bulldozer, loader) Water turbine turbine of water conservancy machinery |
Porous metal material
Porous metal is a powder material that has a porous structure. If it is immersed in lubricating oil, the pores are filled with lubricating oil, and it becomes an oil-bearing bearing with self-lubricating properties. The porous metal material has a low toughness and is only suitable for stable, non-impact loads and medium and small speeds. Bearing plastics: Commonly used bearing plastics include phenolic plastics, nylon, PTFE, etc. Plastic bearings have greater compressive strength and wear resistance, can be lubricated with oil and water, and have self-lubricating properties, but poor thermal conductivity.
Characteristics of graphite bearings
The sliding bearing has the advantages of simple structure, convenient manufacturing, small radial size, strong vibration absorption capacity of the essential oil film, etc. It can withstand a large impact load, so the work is smooth and no noise, and the shaft can be high-speed for a long time under the condition of ensuring liquid friction Operation, suitable for precise, high-speed and heavy-load rotation occasions. Since the required clearance should be obtained between the journal and the bearing to work properly, which affects the improvement of the rotation accuracy; even in the state of liquid lubrication, the sliding resistance friction factor of the lubricating oil is generally still present. Between 0.08-0.12, so its temperature rise is higher, and lubrication and maintenance are more difficult.

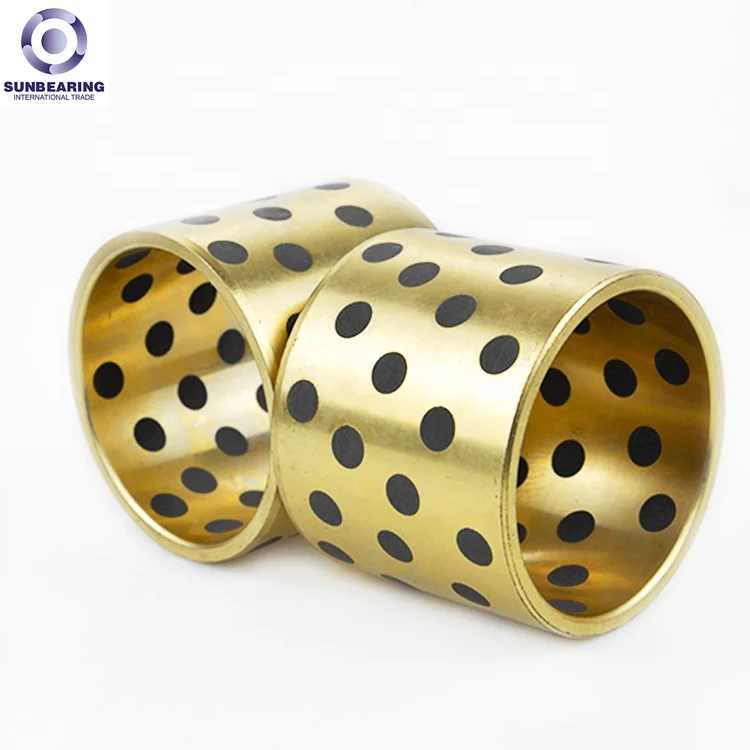

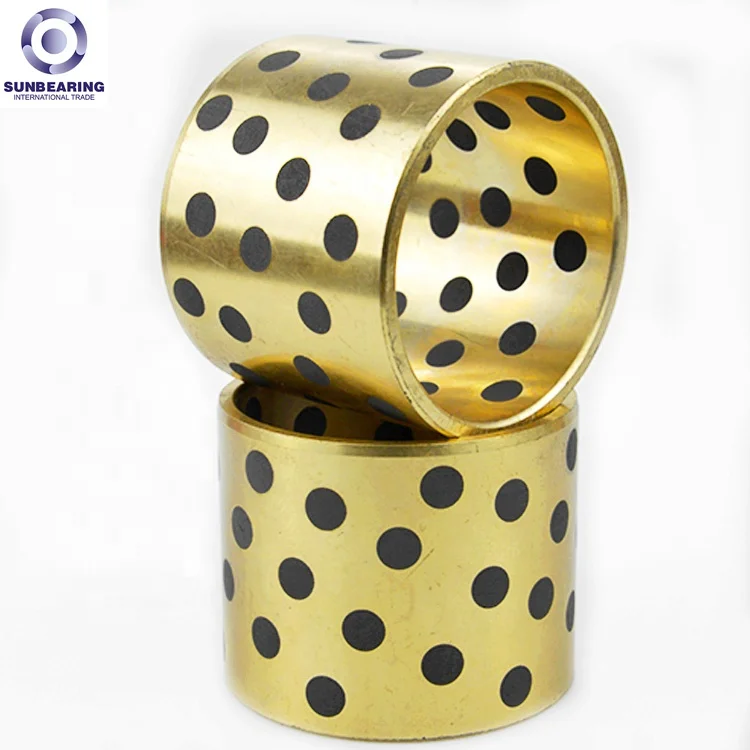

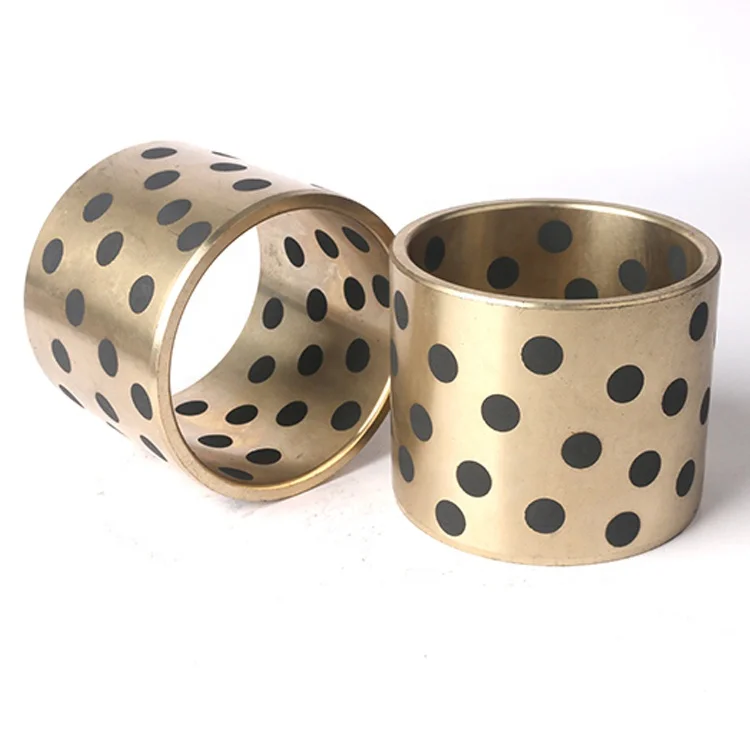

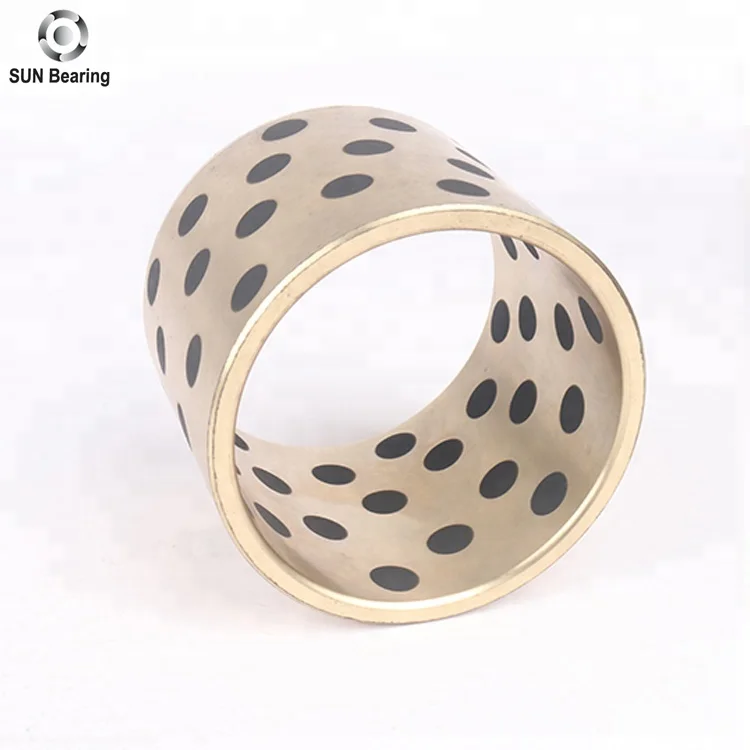

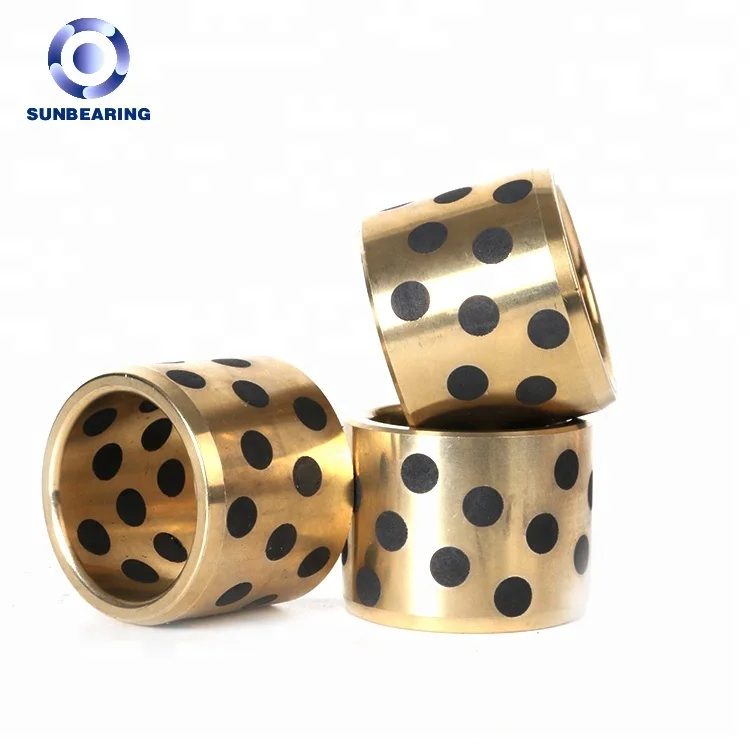

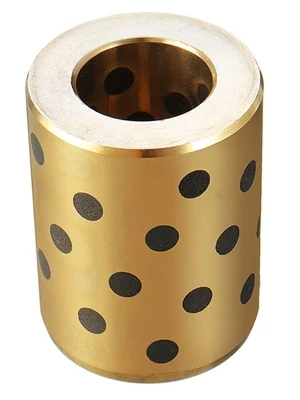

Graphite Bronze Bearing Oilless Bushings 75*85*90mm

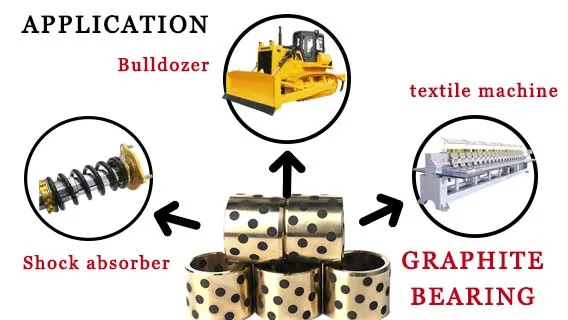

Application fields of graphite bearings
1. Shaft sleeve and pin sleeve for joint parts of construction machinery (excavator, bulldozer, loader).
2. Heavy-duty automobile balance shaft bushings.
3. Shock absorber bushes for cars and motorcycles.
4. Hydraulic industry, hydraulic gear pump bushings, oil cylinders, cylinder bushings, etc.
5. Injection molding machine, vulcanizing machine.
6. Mold industry, plastic mold, automobile mold guide sleeve
7. Water turbine turbine of water conservancy machinery.
8. Forging industry, punching machine, etc.
9. Metallurgical industry.
2. Heavy-duty automobile balance shaft bushings.
3. Shock absorber bushes for cars and motorcycles.
4. Hydraulic industry, hydraulic gear pump bushings, oil cylinders, cylinder bushings, etc.
5. Injection molding machine, vulcanizing machine.
6. Mold industry, plastic mold, automobile mold guide sleeve
7. Water turbine turbine of water conservancy machinery.
8. Forging industry, punching machine, etc.
9. Metallurgical industry.
Recommend Products
Details Images
Production processes
During the customer's order production process, we carry out processing inspection, the purpose is to do better quality control
Selection of graphite bearing grease
Oil-free sliding bearings can also be lubricated with grease for better performance. The following points should be considered when choosing grease:
(1) When the bearing load is large and the rotation speed is low, grease with a small cone penetration should be selected, and vice versa. High-speed bearings are selected. Greases with less cone penetration and good mechanical stability are used for oil-free and oil-free sliding bearings. Pay special attention to the lower viscosity of the base oil of the grease.
(2) The dropping point of the selected grease is generally 20-30 ℃ higher than the working temperature. In the case of continuous operation at high temperature, be careful not to exceed the allowable temperature range of the grease.
(3) When oil-free and oil-free sliding bearings work in water or wet environment, calcium-based, aluminum-based or lithium-based grease with good water resistance should be selected.
(4) Use grease with good adhesion
(1) When the bearing load is large and the rotation speed is low, grease with a small cone penetration should be selected, and vice versa. High-speed bearings are selected. Greases with less cone penetration and good mechanical stability are used for oil-free and oil-free sliding bearings. Pay special attention to the lower viscosity of the base oil of the grease.
(2) The dropping point of the selected grease is generally 20-30 ℃ higher than the working temperature. In the case of continuous operation at high temperature, be careful not to exceed the allowable temperature range of the grease.
(3) When oil-free and oil-free sliding bearings work in water or wet environment, calcium-based, aluminum-based or lithium-based grease with good water resistance should be selected.
(4) Use grease with good adhesion
Product packaging
Company Introduction
Sheng Yao Wang (Dalian) International Trade Co., LTD. has been focusing business of bearing production and trade for 17 years, has rich experiences in bearing processing and trade, to provide clients with professional bearing application solutions. The companyprovides the customized products and OEM service. Various new collections and design are coming out each month with the currentstyles and fabrics. The factory own the proficient skill and updated machine
Certifications
our team
Our team attends the exhibition together, meets customers and our employees took part in the hiking meeting and climbed the mountain to do volunteer photos.
Customer Photos
After customers visited our factory, we invited foreign friends to eat Chinese food, everyone was very happy
Why Choose Us
Diversified advantages of our products and our high quality services
Real comments from customers, we will also listen to suggestions to do better
We are online 24 hours to give you timely responses to solve your needs
