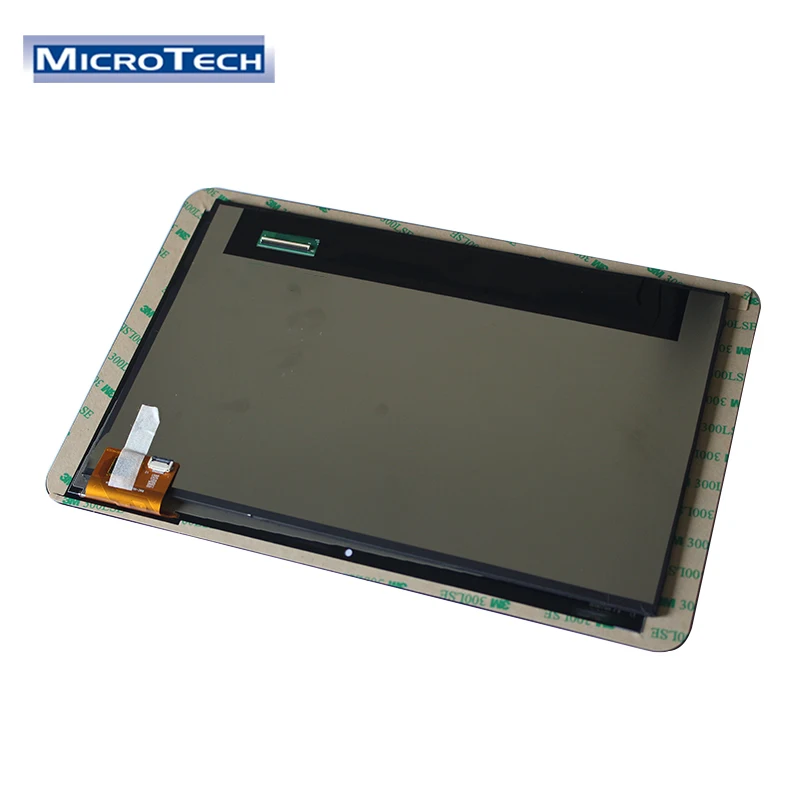

Spare Parts 10.1 Inch 350/600/1000 nits 1280x800 LVDS Interface Screen with Touch Panel for Laptops PC
- Category: >>>
- Supplier: MICROTECH TECHNOLOGY COMPANY LIMITED
Share on (62350659050):
Product Overview
Description
Spare Parts 10.1 Inch 350/600/1000 nits 1280x800 LVDS Interface Screen with Touch Panel for Laptops PC
Product Description

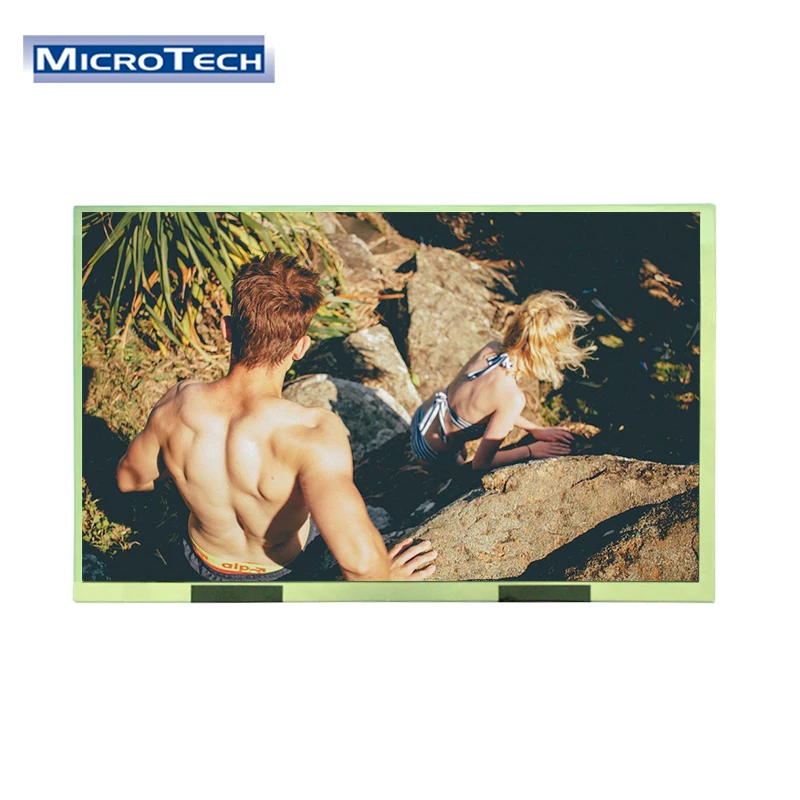

TFT LCD Display
After more than 20 years of mature technology developed by the factory, a color screen with an all-glass structure is made
Support Custom
Customized LCD Size & Resolution
Customized Interface and Pins definition
Customized FPC Shape and Material
Customized Interface and Pins definition
Customized FPC Shape and Material

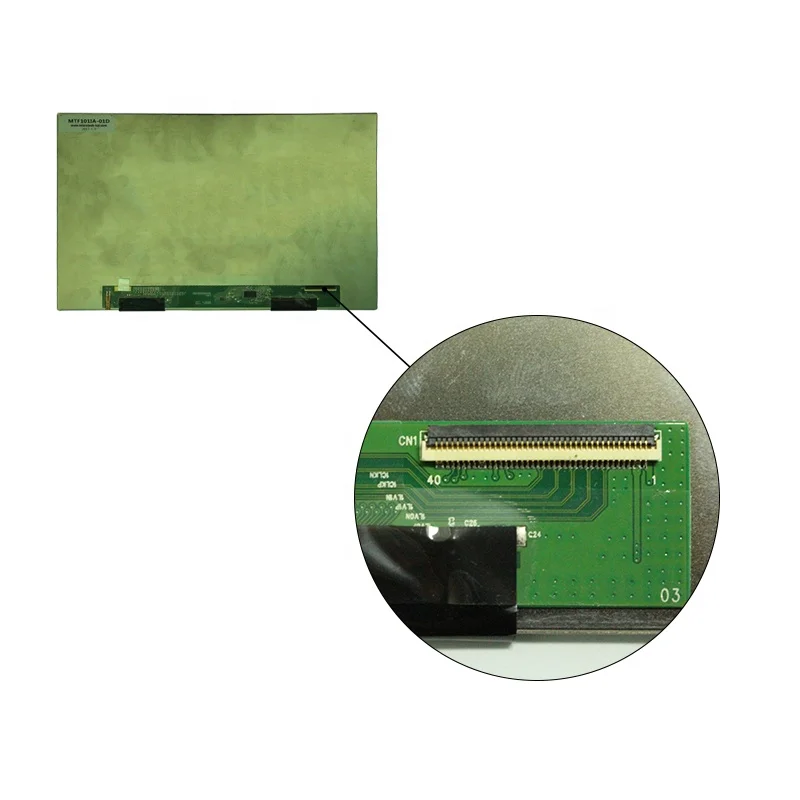

FPC design
Achieve micron level ultra-fine circuit, stable function.

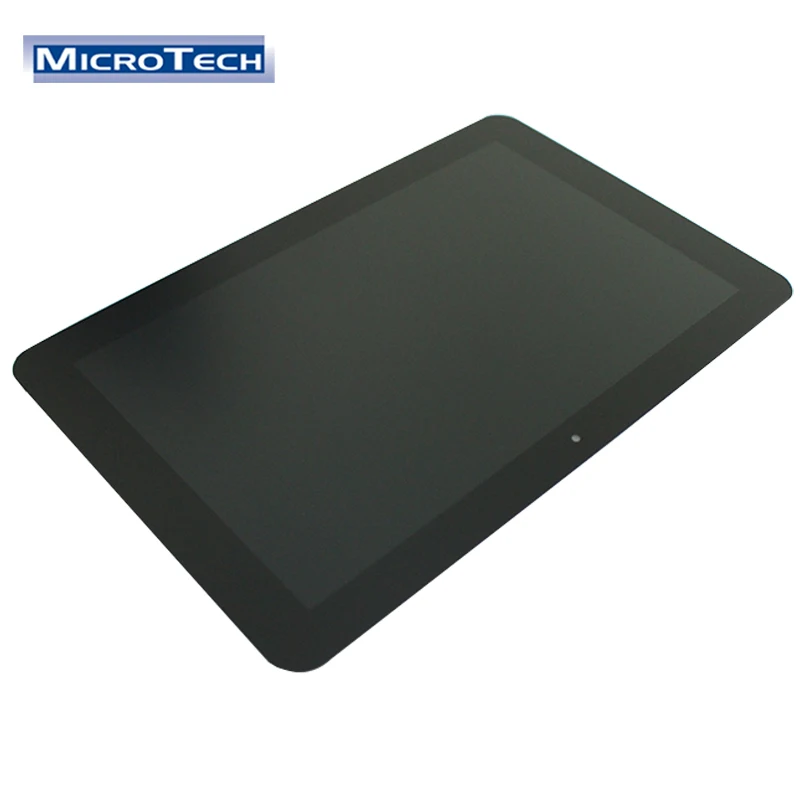

Viewing Angle
Using professional tempered glass, the surface strength is as high as 7H or more, the structure can be made of ultra-thin
thickness, and Borderless all-round viewing angle.
thickness, and Borderless all-round viewing angle.
Specification
Item | Specification | Remarks |
LCD size | 10.1 inch(Diagonal) | |
Driver element | a-Si TFT active matrix | |
Resolution | 1280 X 3(RGB) X 800 | |
Display mode | Normally Black, Transmissive | |
Dot pitch | 0.0565(W) X 0.1695(H) mm | |
Active area | 216.96(W) X 135.60(H) mm | |
Dimensional outline | 229.46(W) X 149.1(H) X4.8(D) mm | Note 1 |
Surface treatment | HC | |
Color arrangement | RGB-stripe | |
Interface | LVDS | |
Backlight power consumption | 5.4(Typ.) | |
Panel power consumption | 0.7W(Typ.) | Note 2 |
Weight | TBD{Typ.) |

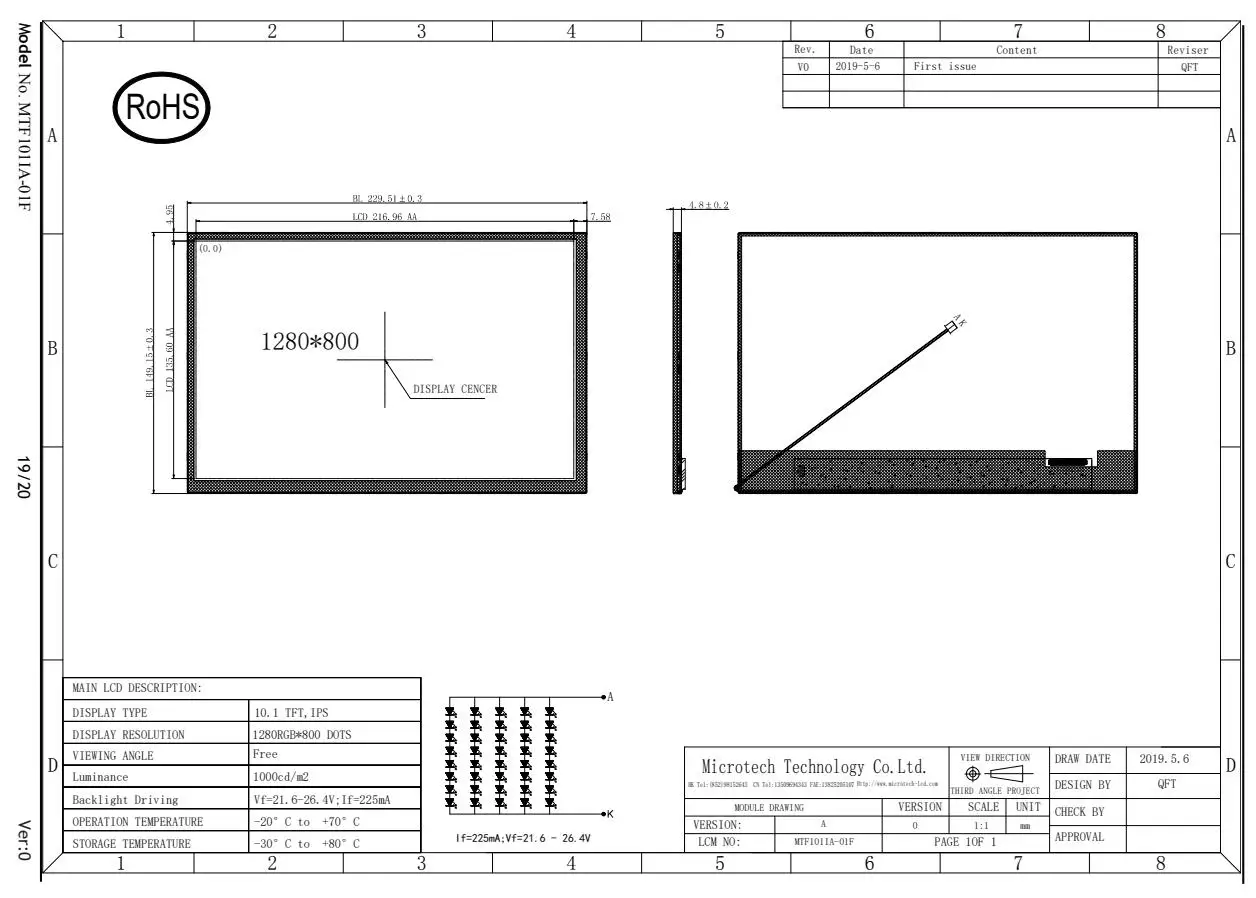

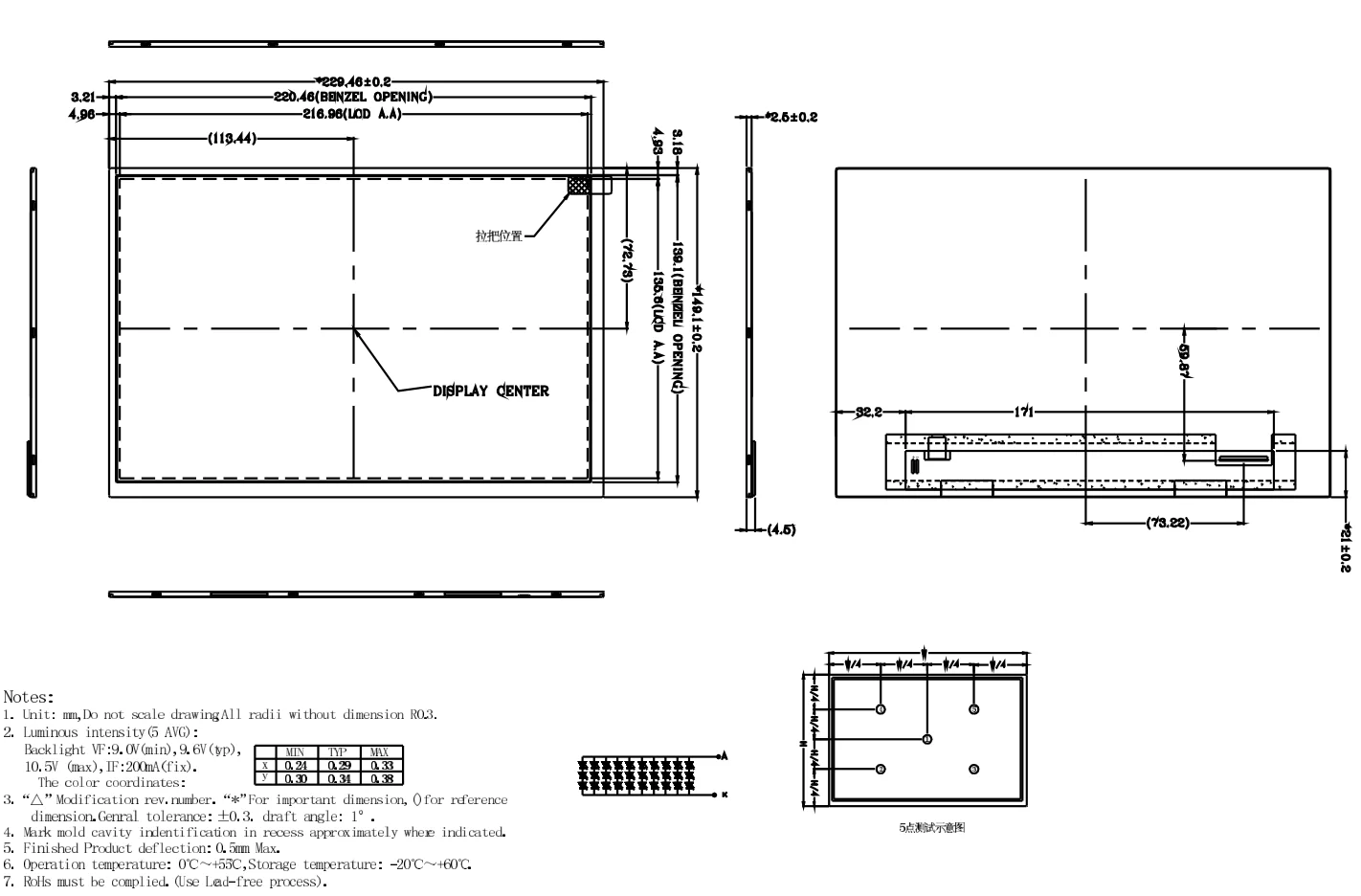

Note 1: Refer to Mechanical Drawing.
Note 2: Including T-con Board power consumption
Our service
Related Types and Customized Services
TFT LCM Module
Standard and custom make from 0.95" TFT to 27.0" TFT
Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive and Capacitive Touch Panels from 1.44" to 65.0"
TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"
TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"
Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux, Windows
TFT Display for iPhone, iPad, Samsung 3G Android Smart Phone, Tablet PC
Customise Resistive and Capacitive Touch Panels as you requirements
Customise AG, AR, AF, AS, Cover lens
Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board
Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable
Please contact us to send your engineering request
Standard and custom make from 0.95" TFT to 27.0" TFT
Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive and Capacitive Touch Panels from 1.44" to 65.0"
TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"
TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"
Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux, Windows
TFT Display for iPhone, iPad, Samsung 3G Android Smart Phone, Tablet PC
Customise Resistive and Capacitive Touch Panels as you requirements
Customise AG, AR, AF, AS, Cover lens
Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board
Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable
Please contact us to send your engineering request
We will provide a complete after-sales service, including defective products returned to the factory for repair or return.
Company Profile
Microtech Technology Company Limited established in 2001,offers professional design and manufacturing services for hundreds types of Liquid Crytal Display modules and Touch Panels-TN,FSTN,TFT,RTP,CTP.With the advantages of high contrast,fast response time,wide viewable angle and low power consumption,Microtech's products are widely used in Industrial Equipment,Medical devices,Home Intelligent Devices,Digital cameras,Video Game Devices,Instruments etc.Since its establishment,the management has been following human-oriented strategy and developing reliance among customers.To comply with these beliefs and ISO 9001:2015 standards,Microtech keeps on recruiting capable professionals,adopting advanced technology,developing new products,improving process and enhancing quality.Based on its strong R&D capacity, outstanding product quality and professional service,Microtech has won the high reputation from both mainland and oversea customers,and established long-term strategic partner relationship with them.
Certifications
Our products are not only satisfy the display individuation requirement of all the mobile phone manufacturing factories in the mainland,but also meet the highly uniformity and reliability requirement to the display effect of module for many famous brands in Europe,American and Asia pacific.In addition,our products which have reached the extent of excellent quality and reliability could be applied in Automotive,Medical,Power station,Transportation,Industrial & Equipment and Office equipment for many famous enterprises in American,France,Italy,Australia,Korea and so on.
Our company have passed the ISO 9001 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
Our company have passed the ISO 9001 quality system certification and SGS, RoHS, CE certification, to ensure all of our products and services are in international standard.
Customer Photos
In order to obtain an excellent quality management team and offer our customers professional & efficient service and satisfied products,We comprehensively carry out Zero Defect quality management,implement ISO9001:2008 standards training and organize the examination /enrollment of quality management personnel national professional qualification.Our Mission "Efficient and timely service is the key to our success.Our success is tied with our client's success. We are dedicated to provide excellent service to our customer at the most competitive prices." To provide customer a value added LCD product by stringent quality control,comprehensive technical support,and utilization of latest technology.
Exhibition
With our motto "Quality and Services are vital to enterpriess",Microtech aims to produce high quality LCD module to meet the customers' specific needs in all-round way.Meanwhile we seek for continuous service improvement,increase our market share,strengthen our competitiveness,and ultimately,expand our market worldwide!
Packing & Delivery
