Галогенный измеритель влажности

Product Overview

Description

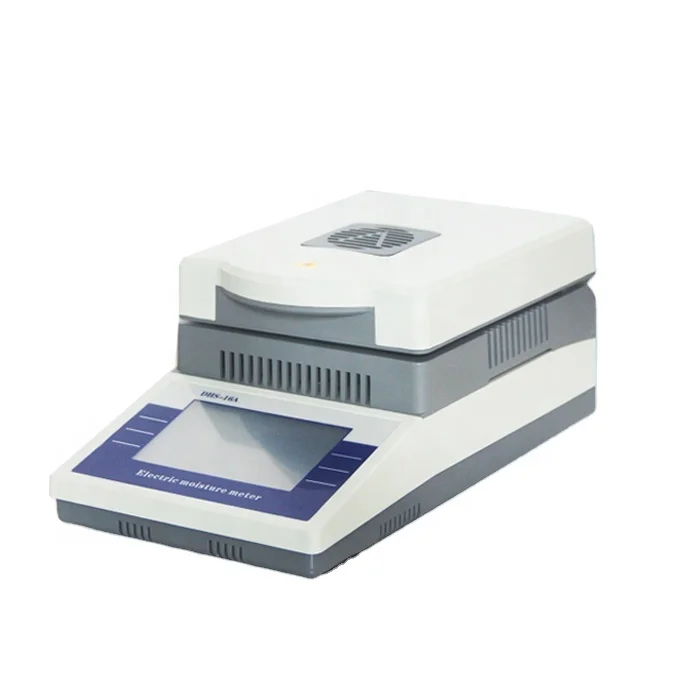

Halogen moisture meter

Model: DHS-16A



Summary of Applications

It can be widely used in all industries that need rapid determination of water, such as medicine, food, feed, seeds, rapeseed, dehydrated vegetables, tobacco, chemical industry, tea, food, meat and textile, agriculture and forestry, paper making, rubber, plastic and other industries in the laboratory and production process of water determination requirements;At the same time, it satisfies the determination of water content of solid, particle, powder, colloidal body and liquid.



Characteristic

1. Small size, light weight and simple structure;

2. No auxiliary equipment is needed;

3. Simple operation, no need for installation and debugging training;

4. High efficiency, fast speed, overall operation less than 10 minutes;

5. Various analysis methods, automatic, timed and semi-automatic, meet various analysis methods;

6. Signal output with RS232 standard can be directly connected to printers, computers and other equipment, which meets the requirements of HACCP format;

7. Imported ring halogen heating lamp has a long service life, fast heating speed and uniform heating. It only takes a few minutes to test a sample.



Technical parameters

Ambient temperature: 15 ℃-30℃, from 5℃ to 40℃to ensure the operation of the environment, and to ensure the measurement accuracy of the moisture rapid meter at extreme temperatures.Relative humidity: 50%-75%, no condensation at 30℃.Warm-up time: wait at least 30 minutes after the moisture rapid tester is connected to the power. When it comes back from standby state, the moisture rapid tester can be used immediately.Power supply: the input ac voltage 220V, 3A, 50Hz±1Hz voltage fluctuation: 220±10% power load: the maximum power in the heating process is 350W protection: protection from dust and moisture, pollution level: level 2

Model	DHS-20A	DHS-16A	DHS-16
Weight Readability	1mg	1mg	5mg
Maximum capacity	110g	50g
Moisture Accuracy	±0.5%(sample≥3g)
Moisture readability	0.02%~0.1%( sample ≥3g)
Temperature error	±0.1℃
Heat Temperature range	50℃ to 180℃
Heat Temperature time	0min-99min( 1min setting)
End point control	Automatic
Sample drying parameters	9 kinds
Moisture range	0%-100%
Communication	RS232
Pan size	100mm
dimensions (L x W x H)	330*180*140mm
Net Wight	2.9kg
Gross Weight	4.2kg
Heater	Halogen
