sanitary single and combination taps endurance life test device
- Category: >>>
- Supplier: Shenzhen Honas Technology Co. Ltd.
Share on (62350815187):
Product Overview
Description
Sanitary single and combination taps endurance life test device
Product Description
Application
This water taps endurance test equipment is suitable for faucet switch life (single handle single control, single handle double control and double bing double control faucet) transfer switch, rotating shower life and extraction faucet life test item detection
The machine adopts the imported touch human-machine interface and programmable controller (PLC) to form the control core of the system, which is perfectly combined with the mechanical execution components to ensure the long-term stable operation of the system.
The machine adopts the imported touch human-machine interface and programmable controller (PLC) to form the control core of the system, which is perfectly combined with the mechanical execution components to ensure the long-term stable operation of the system.
Items | Parameter |
Dynamic pressure test range | 0.01~0.6MPa (adjustable) |
Test period | 1~999 million times (can be set), the error is less than 1 time |
Water supply pressure sensor range | 0 ~ 1.6MPa |
Cold water gauge range | 0~1.6 MPa |
Cold water pressure gauge accuracy | 0.4 level |
Hot water pressure gauge range | 0~1.6 MPa |
Hot water pressure gauge accuracy | 0.4 level |
Equipment power supply | 380V |
Temperature control range | Hot water: room temperature ~ 90 ° C (adjustable), cold water: within 30 degrees |
Practical power | 16KW |
Test station | 2 pcs (working separated) |
Dimensions (l × w× h mm) | Operation equipment 1650×1000×1700 |
Standard | European standard En817,en200-2008, American Standard |
Materials | SUS304 stainless steel |
Controller | Programmable PLC touch screen |
Water tank | 2pcs(hot+cold) with hot and cold water separator |
Reflux tank | V type |
Test type | Rectangle ,triangle and American type |
Water taps type | Single handle single control, single handle double control, (double handle double control-adjustable purchase) |
Protection | Overload overload,leakage of electricity, heating, water supply etc |

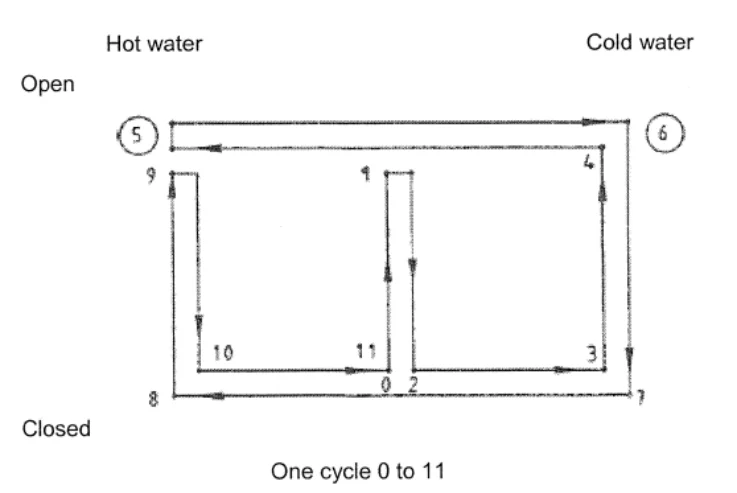

One cycle of rectangular motion includes three switching movements and two complete cold water-hot water-cold water movements
One cycle of triangular motion includes three switching movements and one complete cold water-hot water-cold water movement
