one year warranty plain cam dobby textile weaving heave duty high output jx408 water jet loom

Share on (62350867837):


Price:RUB 690,077.70

Quantity:


Product Overview

Description

Product Application

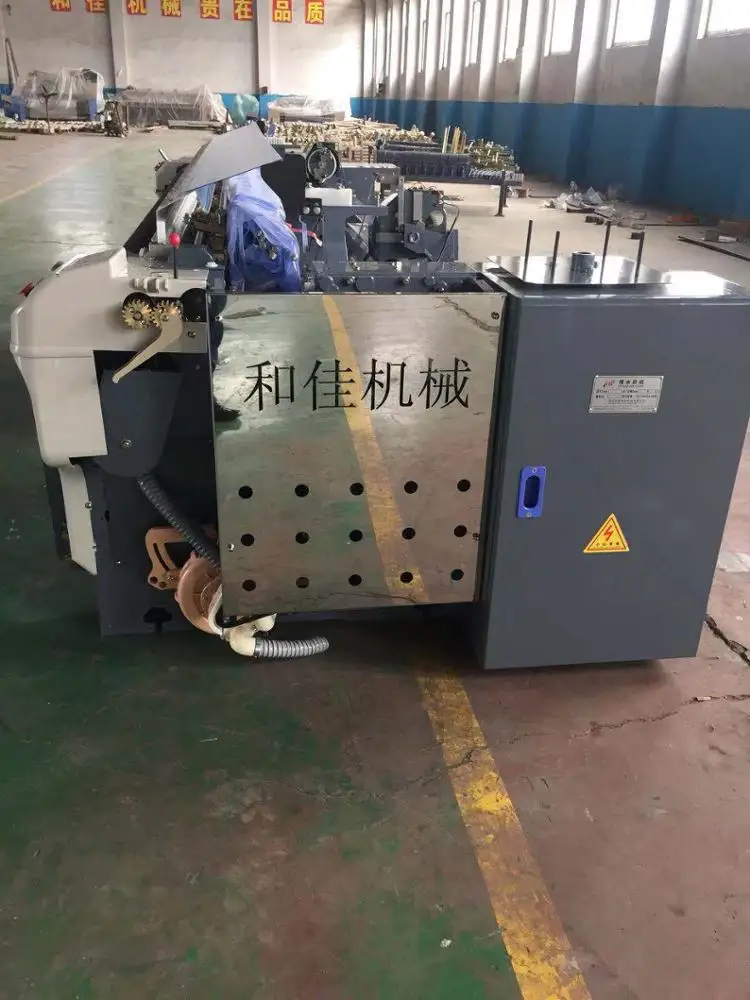

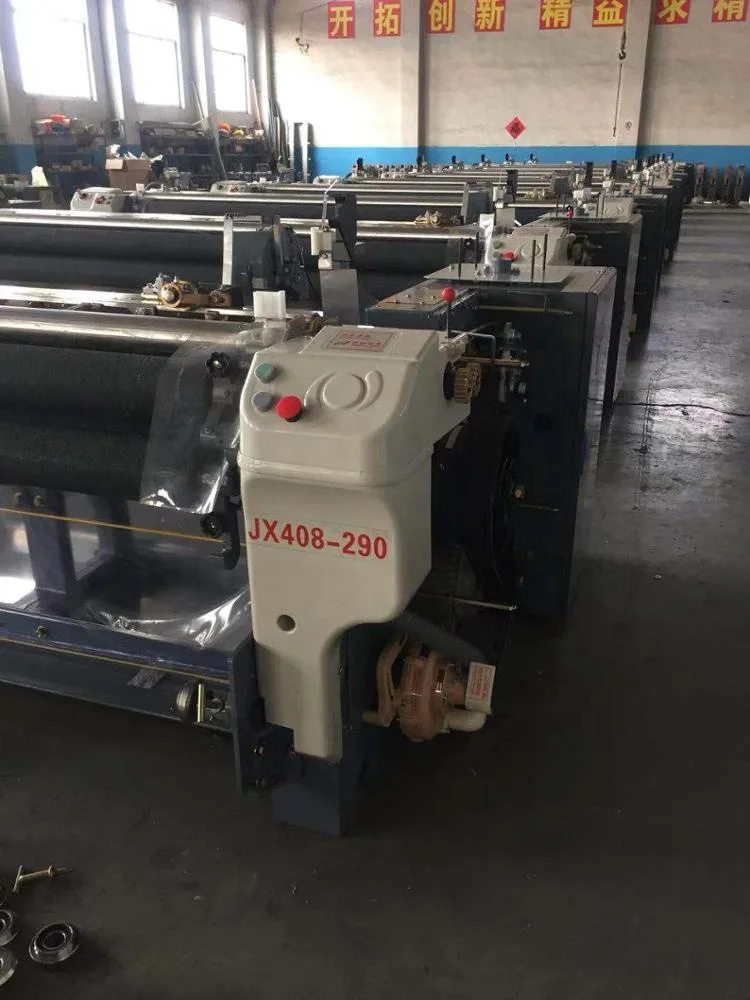

one year warranty plain cam dobby textile weaving heave duty high output jx408 water jet loom


New machine greatly improved the applicable scope of the water jet loom production fabric varieties, with double pump water jet weft insertion system,at the same time supply two kinds of different specifications of weft textile freely, get greatly improve the scope of the yarn, its good seismic performance, fully meet the weaving high density and high-weight fabrics of high quality.

Optional width:150,170,190,210,230,250,280,340,360cm
Weft density: 5-60 pick/cm

SPECIFICATIONS OF WATER JET LOOMS
 Reed Space(cm):
150,170,190,210,230,250,280,340,360
Weft selection:
 mechanical or electric feeder( Single,double or three nozzles )
 Motor:
18KW,22W,28KW,35KW
Running speed:
700-1000RPM
Heddle Frames:
Plain shedding 2~8 pieces, Cam shedding 4~12 pieces, Dobby shedding 16 pieces
Shedding:
plain/crank/cam/dobby
Let off:
mechanical
Take up:
mechanical
Nozzle:
Ceramics 1/2
Weft density:
5~60 picks/cm

Main Features

1) Independent air supply .

2) man-machine interface electric control .

3) reduces the equipment cost, do some simple cloth with low price equipment.

4) can be applied to cotton, chemical fiber and blended fabric.

Packing & Delivery
Company Profile

    Qingdao JinXin HeJia Machinery Co, LTD. IS specialized manufacturers of textile machinery, have a strong engineering and technology team, can realize the design and manufacture of textile machinery independently, the main products are: JX series air jet looms, JX series 851, JX series 408 heavy and high-speed water jet looms.

    Our company has passed Iso9001: 2015 quality system certification, the company formed a complete quality assurance system, has strict quality assurance in the whole process of product design, raw material purchasing, fitting and assembly, process assembly design, manufacturing, inspection, site installation and commissioning and after-sales service, has quality management, quality inspection,measurement and physical and chemical testing, product performance testing and other technical quality institutions and metrology testing facilities, to ensure the stability of product quality and continuous improvement of quality assurance system.
    The company always regards innovation and development as its top priority, has the satisfaction of users as the goal of lifelong pursuit, always adhere to the principle of quality first and users first. Our high level of design and production, strict quality assurance system, reliable after-sales service, let you choose our company's products to be truly satisfied and reassuring.
    We warmly welcome new and old friends from home and abroad to visit our company and negotiate business.

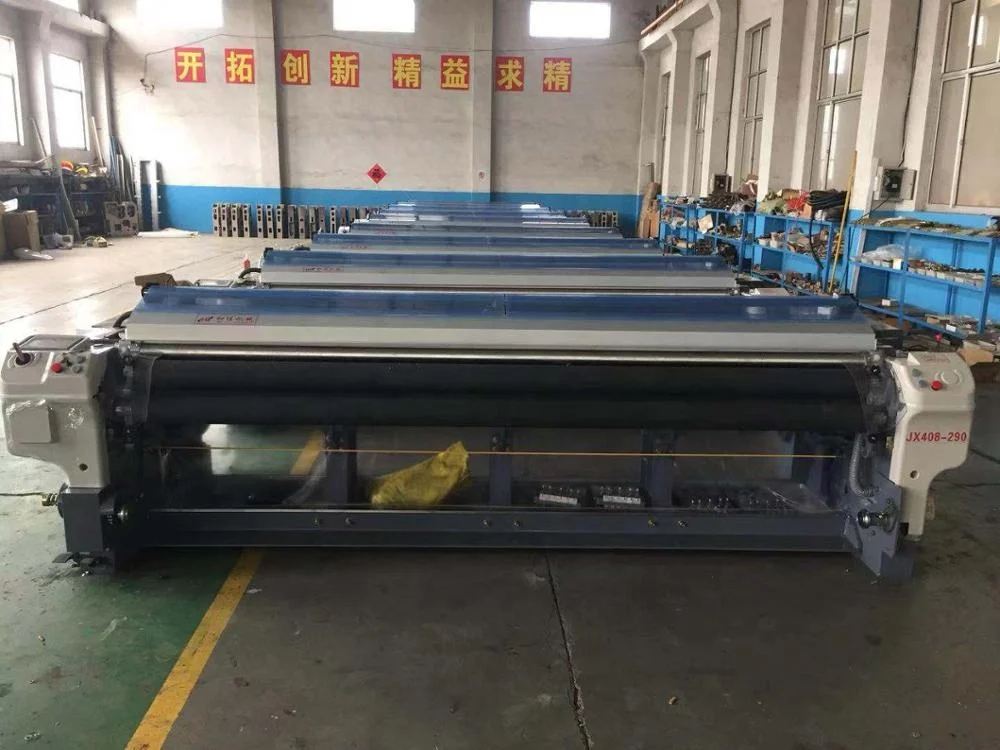

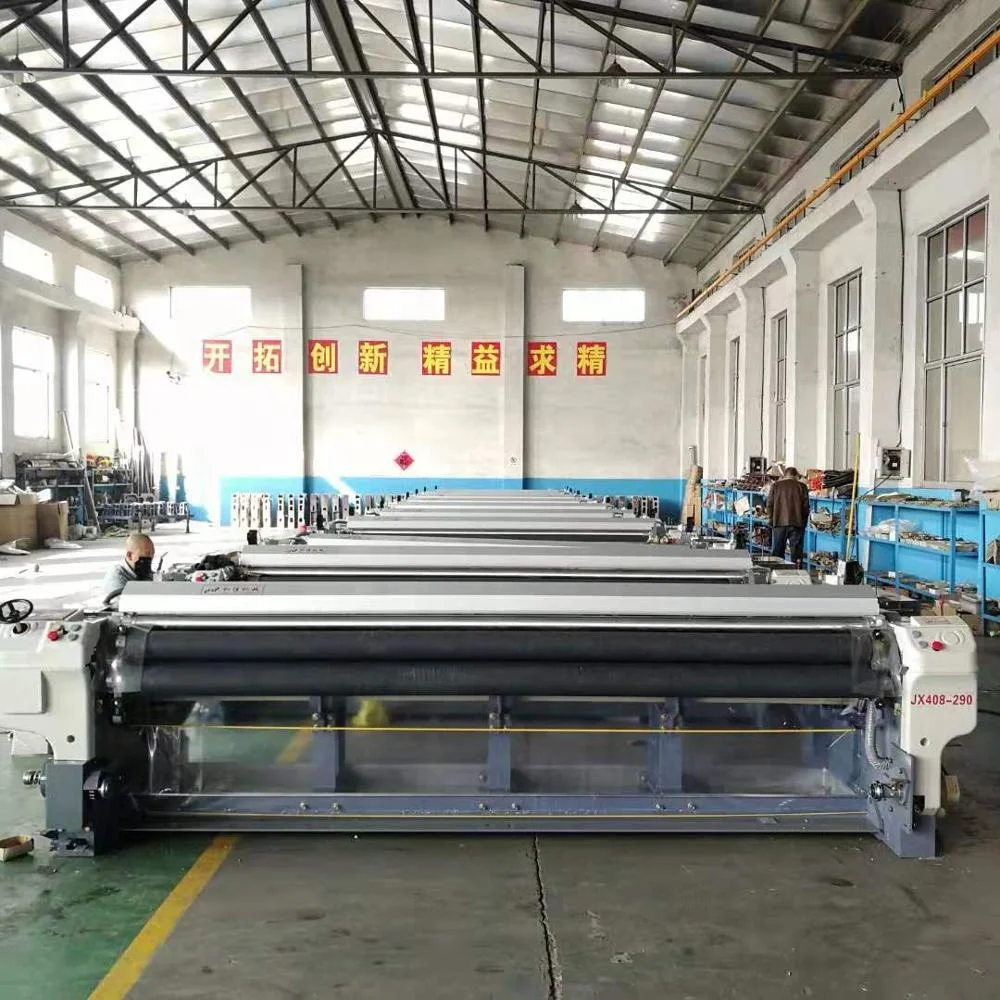

Factory And Workshop
Exihibition
Certifications

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
