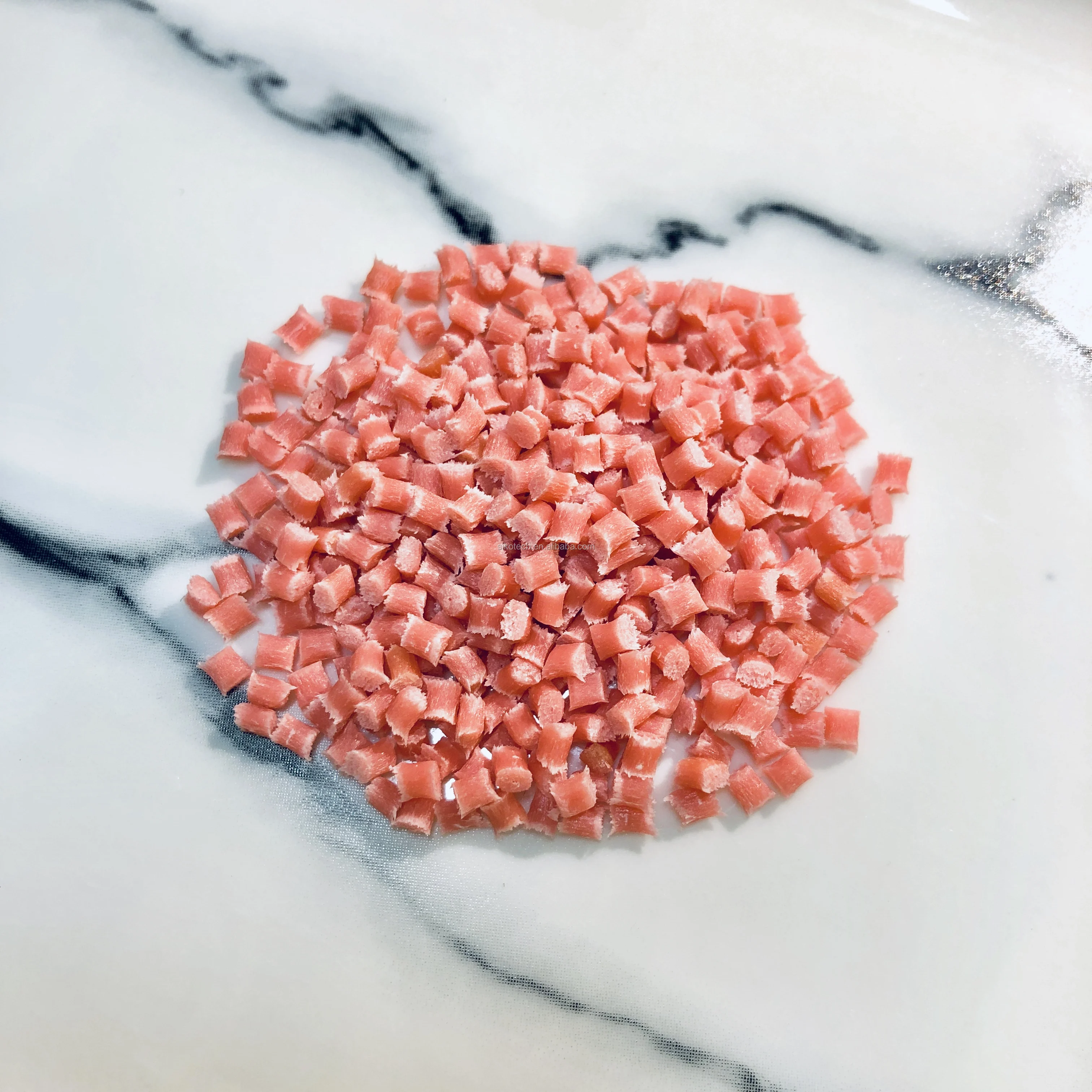

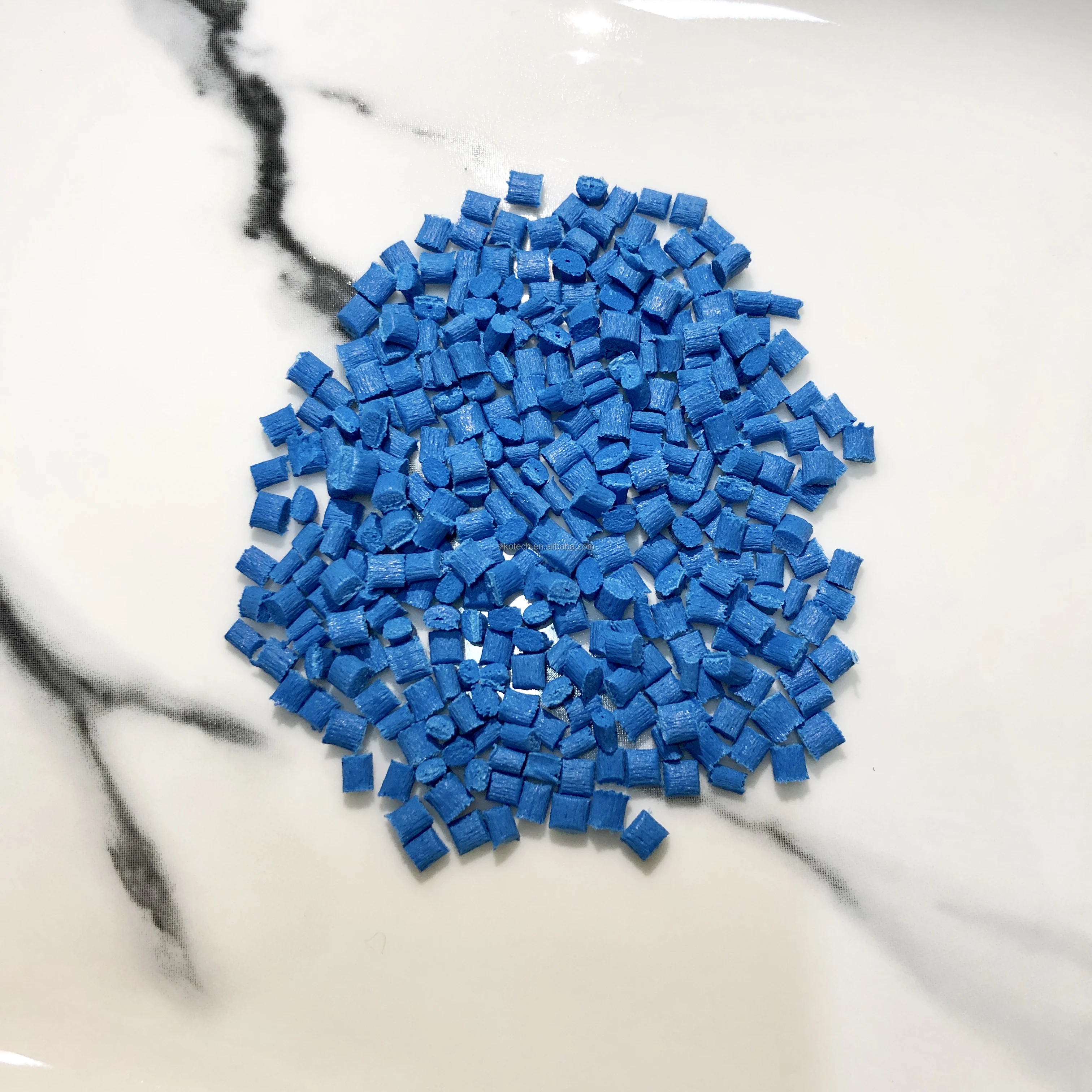

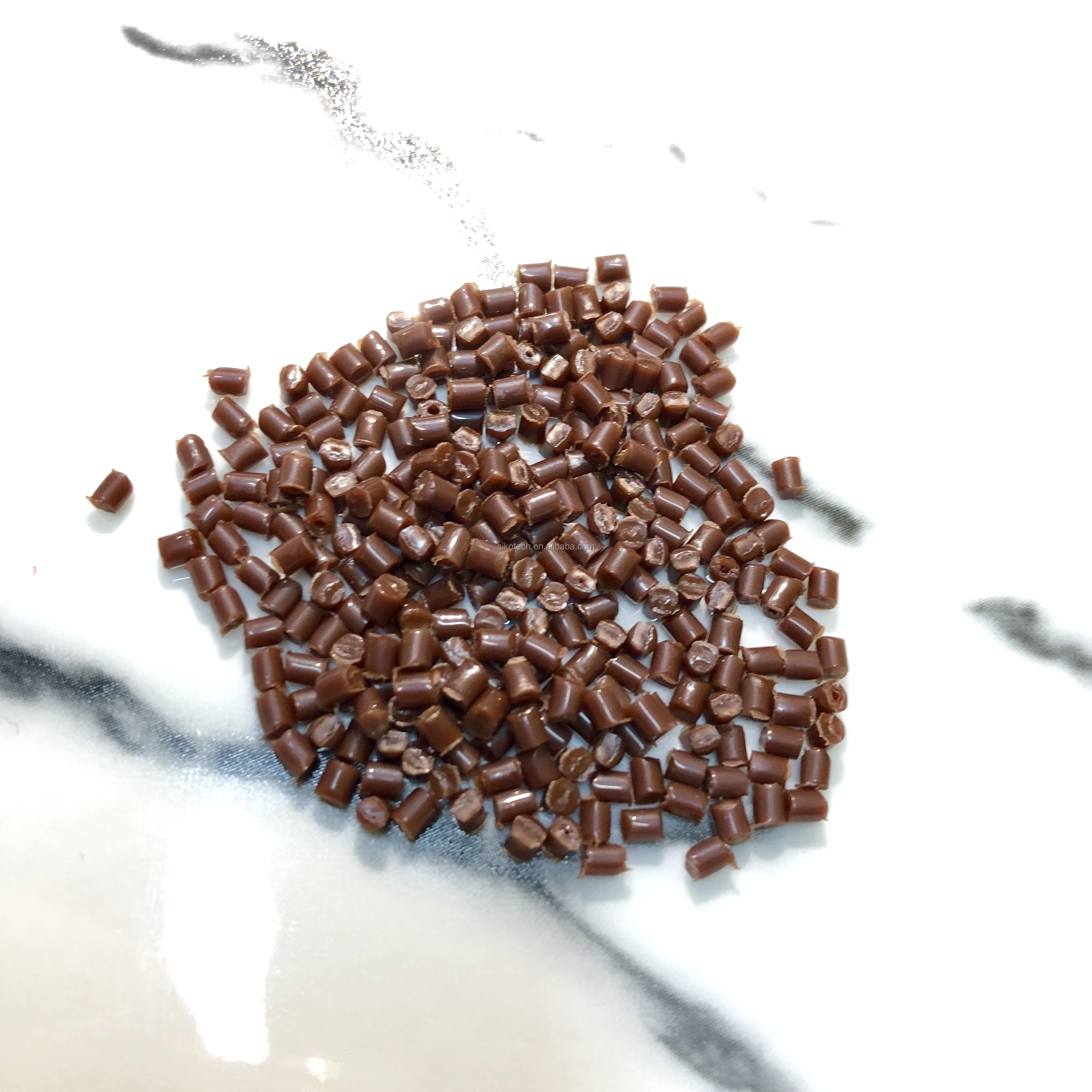

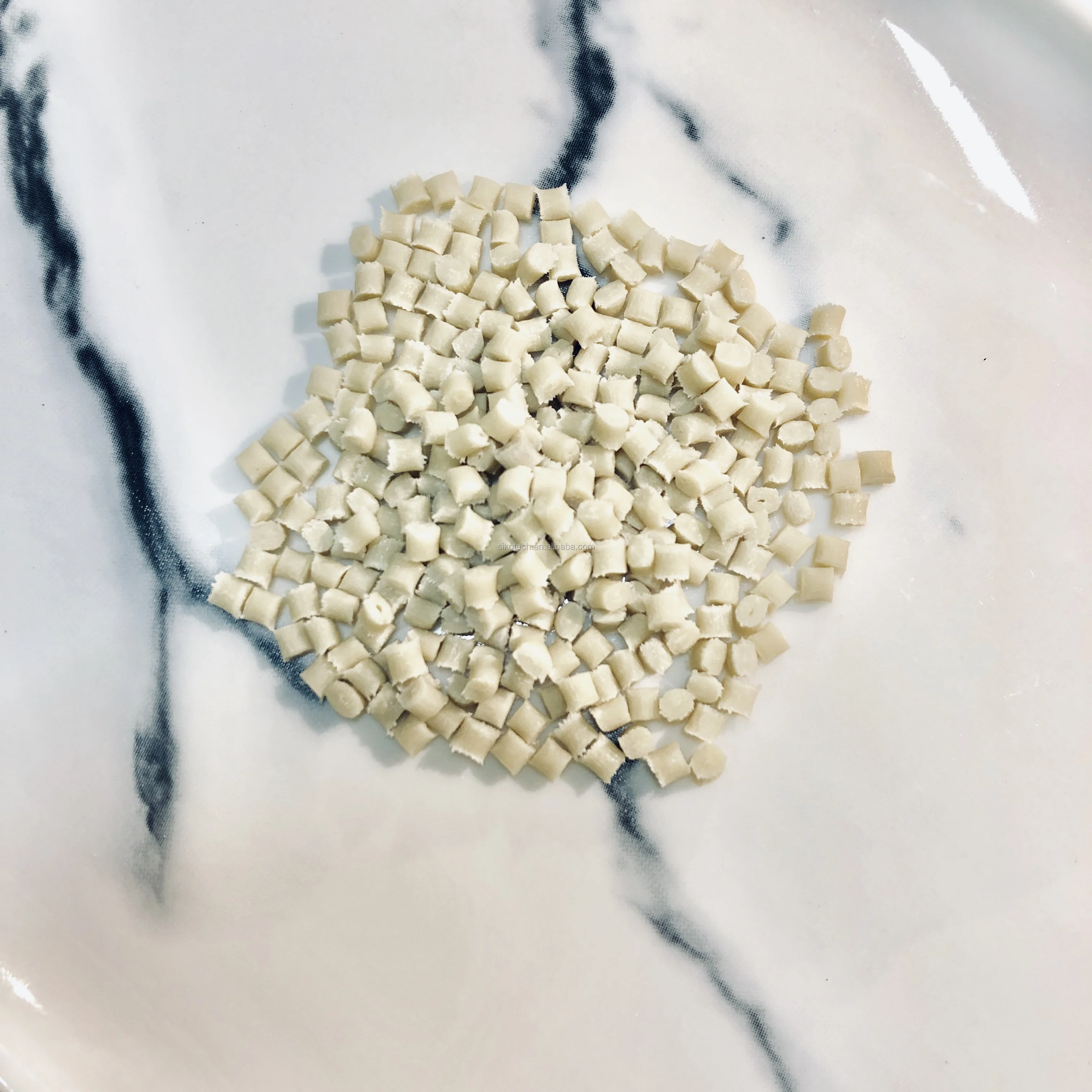

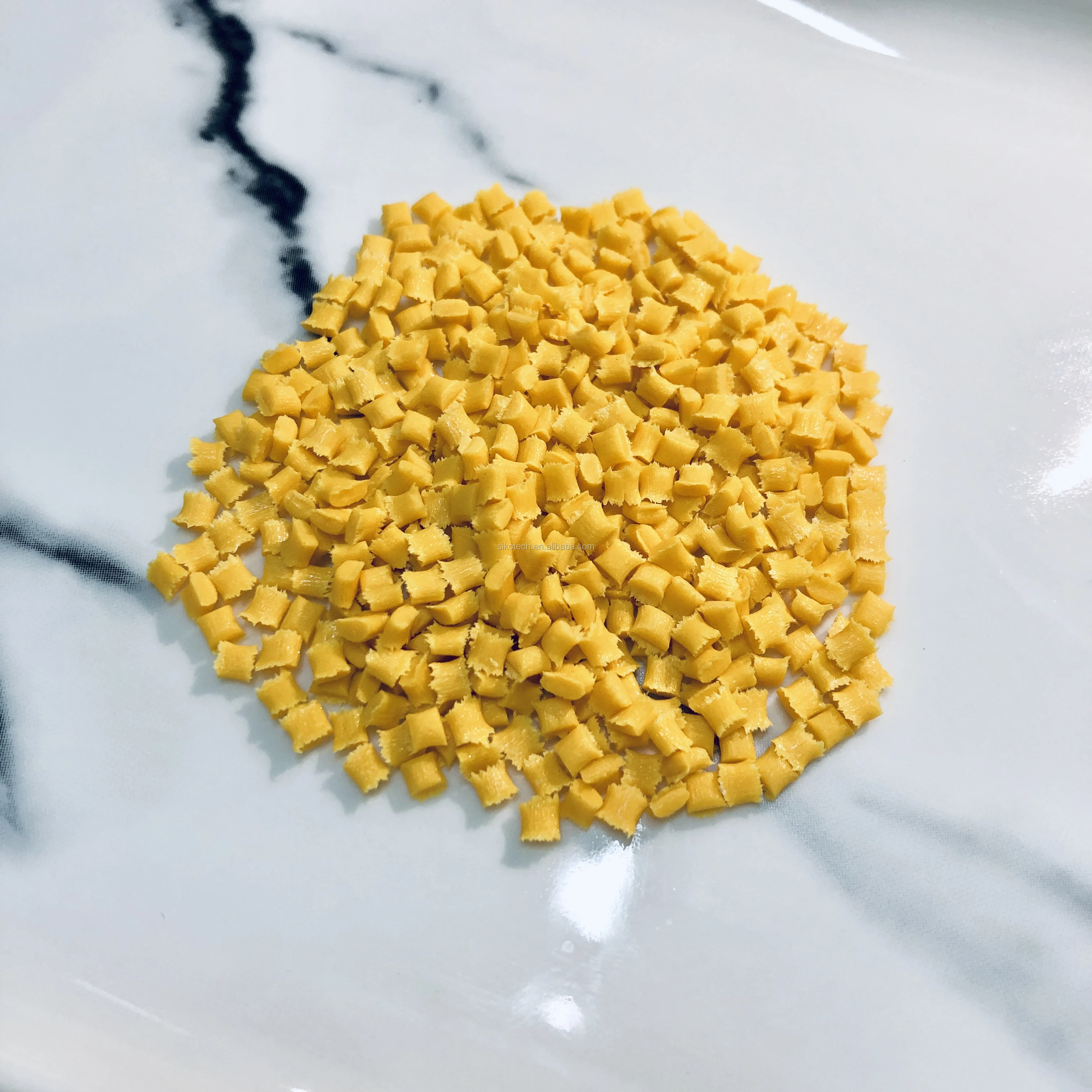

Material PA66 compounds with 25% glass fiber and flame retardant V0 customized color ready to ship for various switch compounds

Product Overview

Description







PA66 Description



PA66 (Polyamide 66), is the largest, most diverse and most versatile variety of the five engineering plastics, and translucent or opaque crystalline polymer. The density is between 1.12 and 1.14. Compared with PA6, PA66 is more widely used in the automotive industry, instrument housings and other products that require high impact resistance and high strength requirements. Specifically used in the manufacture of mechanical, automotive, chemical and electrical components, such as gears, rollers, pulleys, rollers, impellers in the pump body, fan blades, high pressure seals, valve seats, gaskets, bushings, various handles , support frame, inner layer of wire package, etc.



PA66 Features



1. It has excellent mechanical properties, high strength, high toughness, but high water absorption, so the dimensional stability is poor.

2, PA66 resin itself has excellent fluidity, no need to add flame retardant to reach V-2 level

3, the material has excellent coloring ability, can achieve various requirements of color matching

4. The shrinkage rate of PA66 is between 1% and 2%. The addition of glass fiber additives can reduce the shrinkage rate to 0.2%~1%. The shrinkage ratio is large in the flow direction and in the direction perpendicular to the flow direction.

5. PA66 is resistant to many solvents, but is less resistant to acids and other chlorinating agents.

6, PA66 excellent flame retardant performance, by adding different flame retardants can achieve different levels of flame retardant effect.



PA66 Main Application Field



Widely used in machinery, instrumentation, automotive parts, electrical and electronic, railway, home appliances, communications, textile machinery, sports and leisure products, oil pipes, fuel tanks and some precision engineering products.







PA66 Series	PA66+10%-50% GF reinforced	SP90G10-50	10%-50%	HB	PA66+10%, 20%, 25%, 30%,50%GF, Glassfiber reinforced grade	Auto parts, Electrical parts, Power tools, Gears, Mechanical parts, Industiral parts, Medical instruments parts,Connectors ect
	PA66+10%-50% GF and mineral filler reinforced	SP90GM10-50	10%-50%	HB	PA66+10%, 20%, 25%, 30%,50%GF, Glassfiber and mineral filler reinforced grade
	PA66+25-35% GF reinforced, heat, hydrolysis and glycol resistance	SP90G25/35-HSL	25%-35%	HB	PA66+25%-35%GF, heat resistance,hydrolysis and glycol resistance	Pumps, Auto Radiators.
PA66 Series	PA66 Super Toughness(ST), high impact, low temperature resistance	SP90-ST	None	HB	PA66, PA66+15%, 20%, 30%GF,Super Toughness grade, High impact, Dimension stability, low temperature resistance.	Sports Apparatus parts like Mountain bikes, Skating Shoes, Scooters, Skibobs etc
		SP90G20/30-ST	20%-30%	HB
	PA66 Flame Retardant Grade (FR) V0, unfilled	SP90F	None	V0	Unfilled,Flame retardant PA66	Various Switch components, Connectors, Coil Bobbin, Transformers bobbins etc
	PA66 Halogen free Flame Retardant Grade (FR) V0, unfilled	SP90F-GN	None	V0	Unfilled, Halogen free Flame retardant PA66
	PA66+25%/35%GF & FR V0	SP90G25/35F-RH	15%-30%	V0	PA66+ 25%, 30%GF, and FR V0 grade, Red phosphorus halogen free
	PA66+15%-30% GF & FR V0 Halogen free	SP90G15/30F-GN	15%-30%	V0	PA66+15%, 20%, 25%, 30%GF, and Halogen free FR V0 grade















1. About Sample

Less than 5 KG Free Sample can be offered after 5-7days. If more sample requested, we will refund the sample fee in the first order.

2. About Material

We can customize the material according to customers’ requirement.

3. About Color

We can match the material color according to the appointed Pantone/RAL#.

4. About Inspection

We have standard inspect procedure and full set of test equipment.

5. About Quality

All the products must be tested strictly according to the testing procedure before shipment.

6. About Delivery Period

Normally delivered in 10-15 working days after the confirmation of  order& payment. And it varies according to the material and quantity.

7. About Payment term

It’s flexible, TT, L/C at sight or online deal assured by Alibaba’s Trade Assurance.
