Product Overview
Description
1080p@60fps Support RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols H.264 HDMI Video Encoder
Product Description
1. Introduction

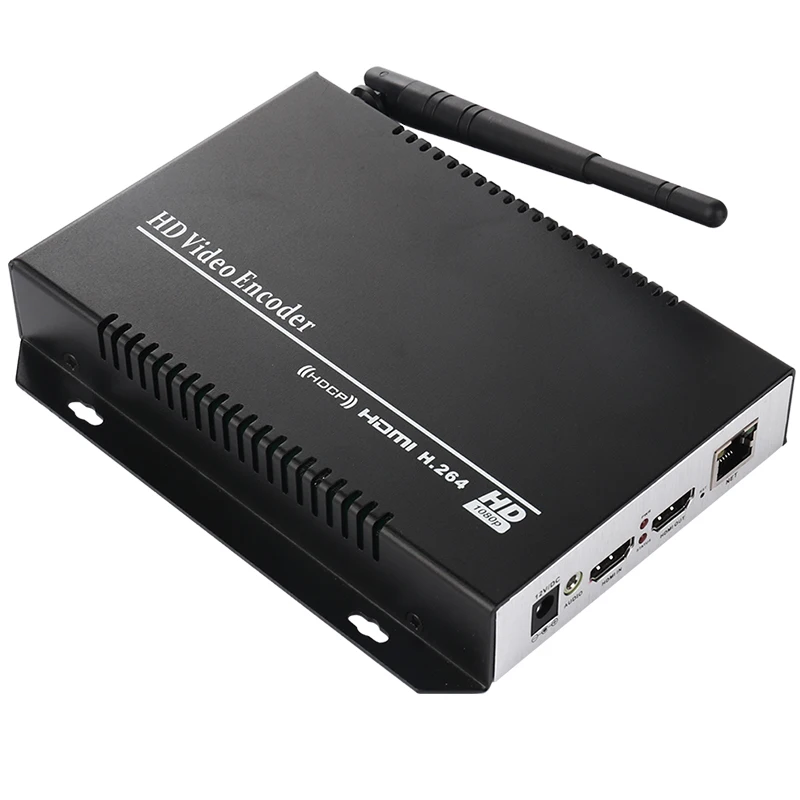

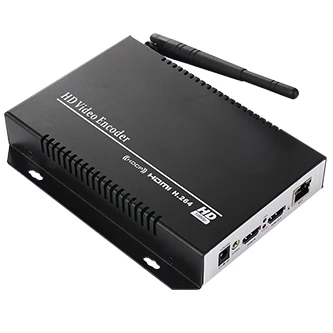

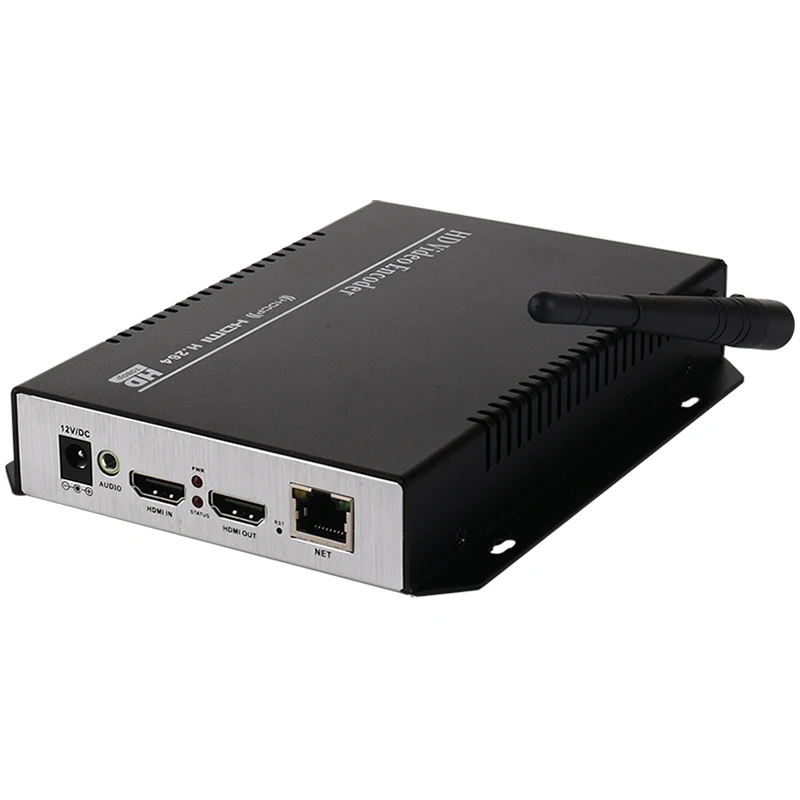

H.264 HDMI Video Encoder support WIFI - It is a HD audio & video encoding device with powerful functionality, which supports input HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps for main stream, 720@60fps for main and 2nd stream, etc., works with RTMP / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.
2. Features
1. Embedded HiLinux System, stable and effective.
2. Friendly Web Control UI, default IP is 192.168.1.168.
3. Support RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols.
4. Support output 2 RTMP (main stream & 2nd Stream) to different Media Server.
5. Main Stream Support output resolution - 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.
6. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
7. Output Stream bitrate adjustable.
8. Support firmware upgrade.
9. IP address can be set by yourself.
10. Support remote control via router port forward.
11. 1U/3U chassis available, max supports 16Pcs Encoder installed.
3. Specifications
| Video | |

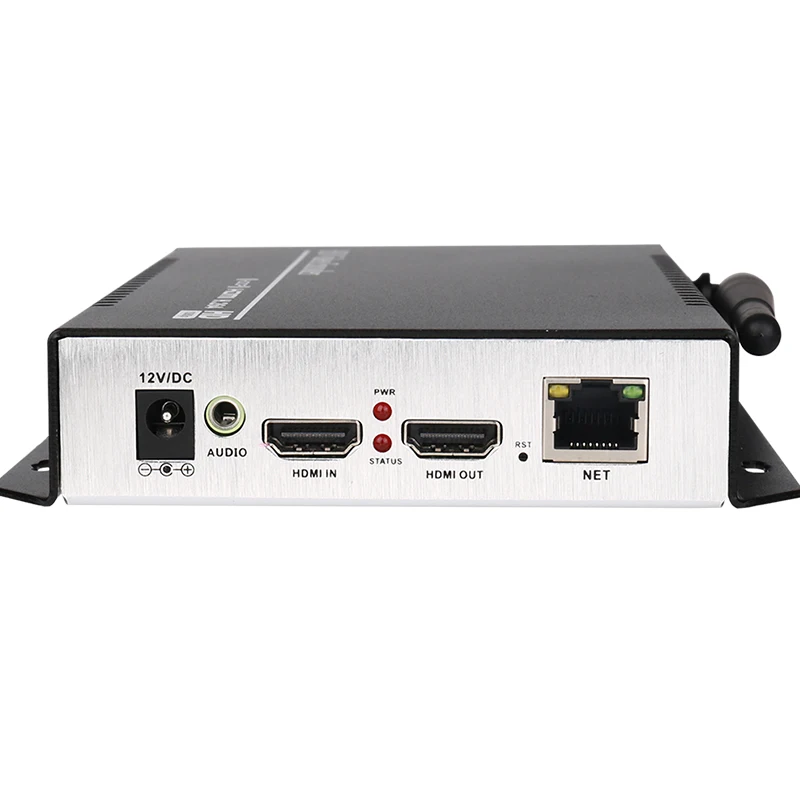

| Input | 1* HDMI |
Supports HDMI Resolution | 1080P/1080i/720P @50/60FPS and below |
Encoding type | H.264 |
Encoding Levels | H.264/AVC High/Main/Baseline Profile |
Output TS Steam Resolution | Max support 1920x1080P@60FPS |
Video FPS | 5-60FPS |
Video Bitrate | 0.1~ 32Mbps adjustable |
Bitrate control | VBR / CBR |
TS Protocols | HTTP / HLS / FLV / RTSP / UDP / RTMP / ONVIF |
Audio | |
Input | HDMI Audio |
Sample Rates | 44.1 kHz, 48.0 kHz |
Encoding | AAC / AAC+ / AAC++ / MP3, G.711 |
Bitrate | 12kbps~320kbps adjustable |
ONVIF | G.711 |
Network | |
Network | 100Base-T Ethernet interface |
System | |
Control Panel | //192.168.1.168 |
Firmware Update | supports |
Working environment | |
Operating temperature | 0 to 40 deg C |
Storage temperature | –20 to 70 deg C |
Relative Humidity | 5% to 90% non-condensing |
Dimension & Accessories | |
Dimension | 165mm*130mm*30mm |
Hot shoe | 1 Pcs |
Power adapter | DC 12V 1A |

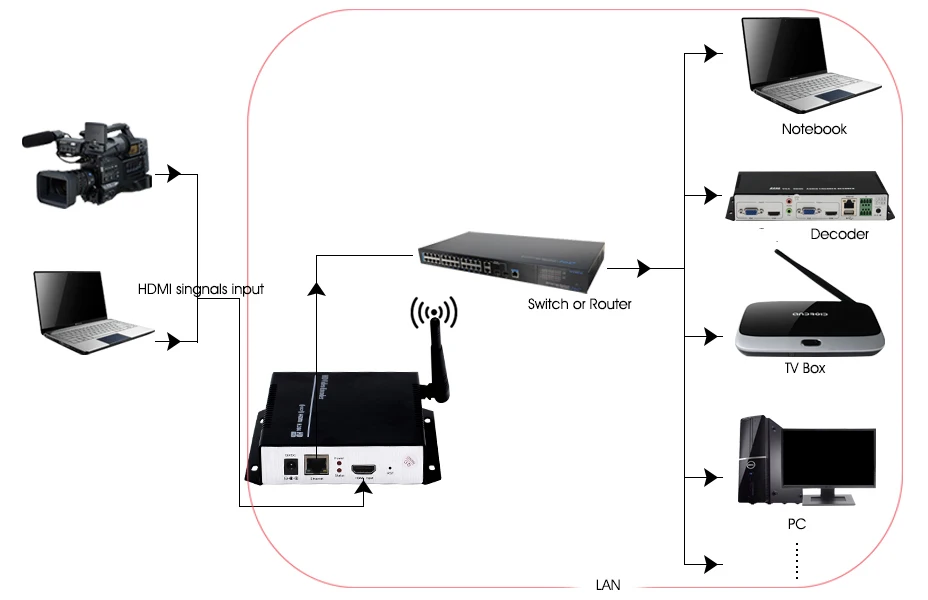

4. Application

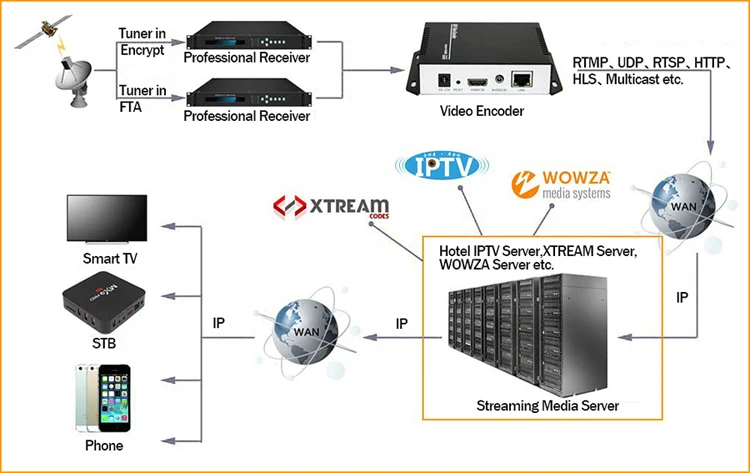

1. IPTV (Wowza, Xtream Codes, nginx Media Server, etc.)

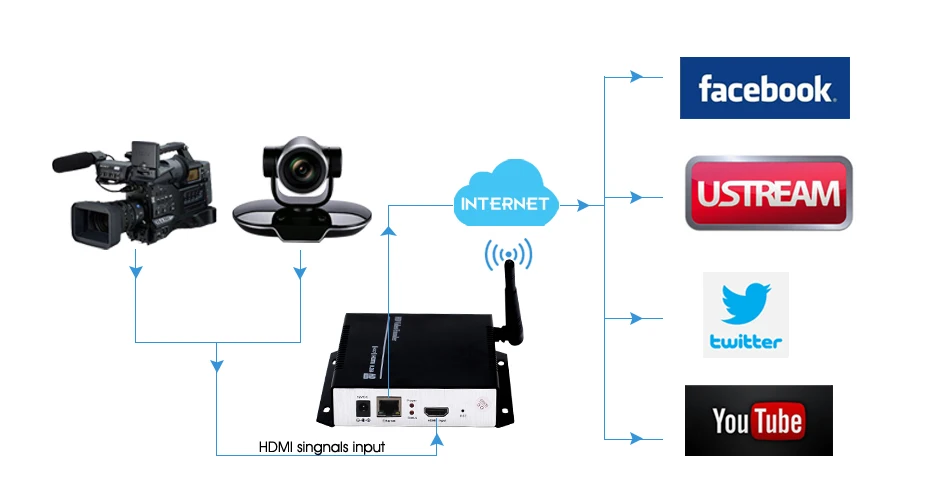

2. Online Live Broadcast ( YouTube, Ustream, Twitter, etc.)
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
Detailed Images
Packaging & Shipping
Company Information
FAQ
Q1:How could I get a sample and what is your payment method?
A: We have most of models in stock for samples requirement. After the sample charge is received, we will arrange the sample delivered to your door in 3-7 days.We accept most of the payment method such as Paypal, T/T etc.
Q2:How much the courier freight for the samples?
A:Freight depends on the sample quantity, weight ,packing size and your location.
Q3:How can I get your price list?
A:Price list will be provided upon receiving your enquiry. You can send your enquiry on alibaba or directly to our sales' email address.
Q4:Can we have our logo or company name to be printed on your products or the package?
A:Yes, you sure.
We accept OEM/ODM orders and provide services for logo printing, carton marks as well as packing designings.
You can send us the artwork by email in JPG, TIF, AI, EPS, TIFF or CorelDraw formats.
Logo printing may require MOQ which may vary from different models. Please contact us for details.
Q5:What's your usual payment term for orders?
A:We accept payment terms of T/T, L/C and Paypal etc. We can also accept Alibaba online ordering.
